Key Features & Adjustments

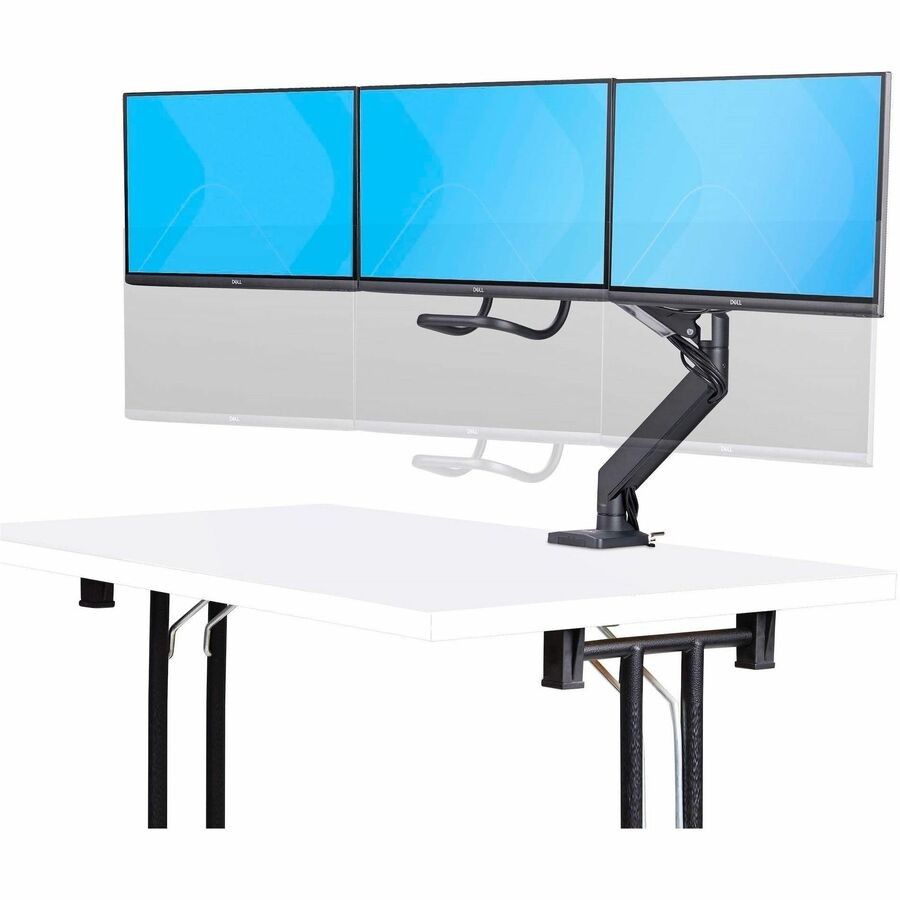

• Spring-Assisted Height Adjustment – Toolless up to 13in (330mm) with one-touch motion; max arm extension 20.7in (526mm).
• Weight Capacity – 13.2lb (6kg) per monitor, total max 39.68lb.

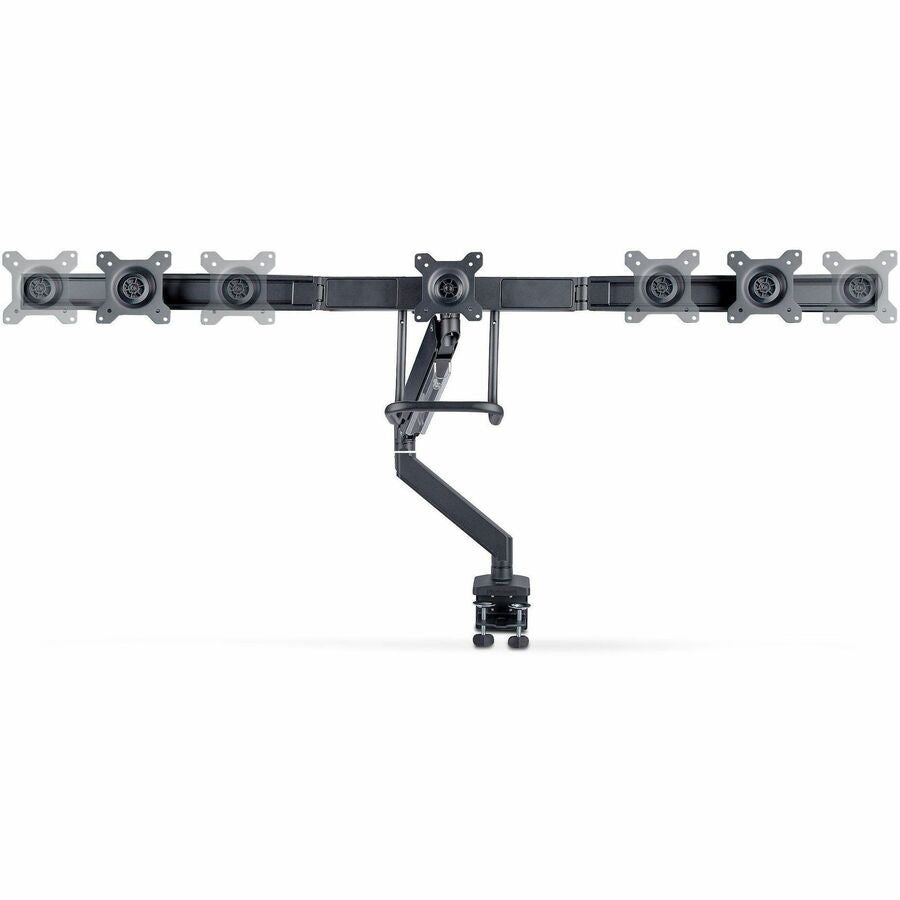

• Micro Height Adjustment – Screws on VESA plates for perfect alignment; ideal for bezel-less displays; outer VESA mounts slide on crossbar.
• Range of Motion – Crossbar +/-15° swivel for outer displays; per-monitor +/-10° swivel, +5/-15° tilt, 360° rotation (portrait/landscape).

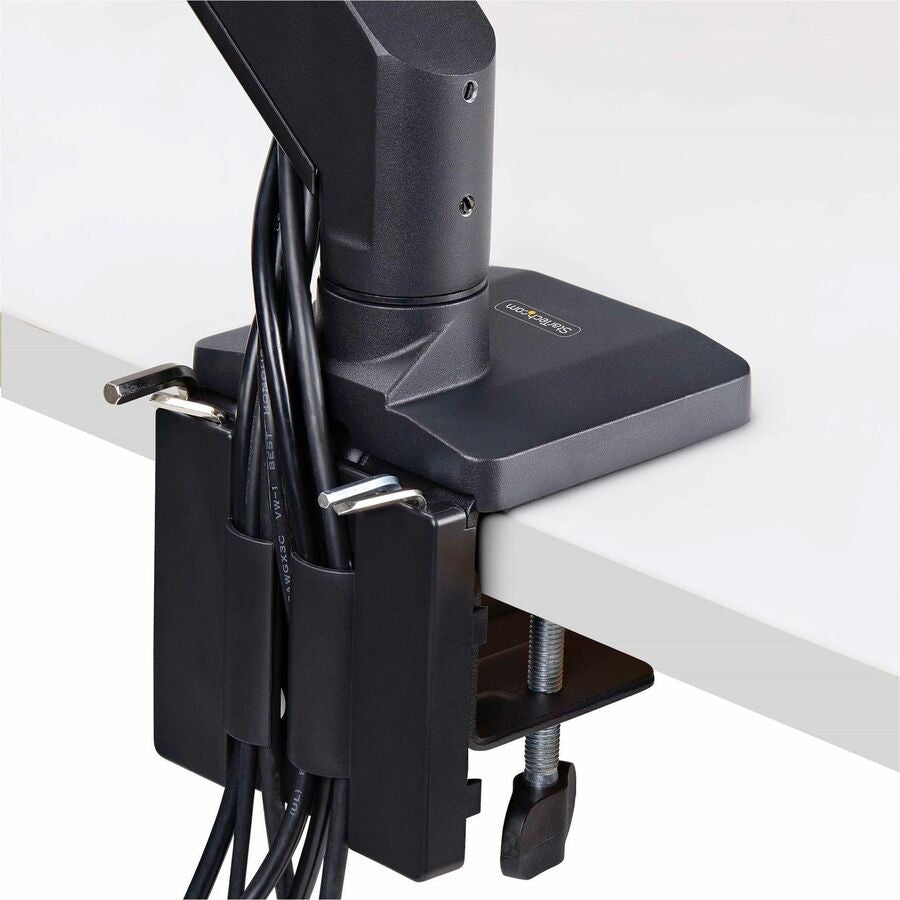

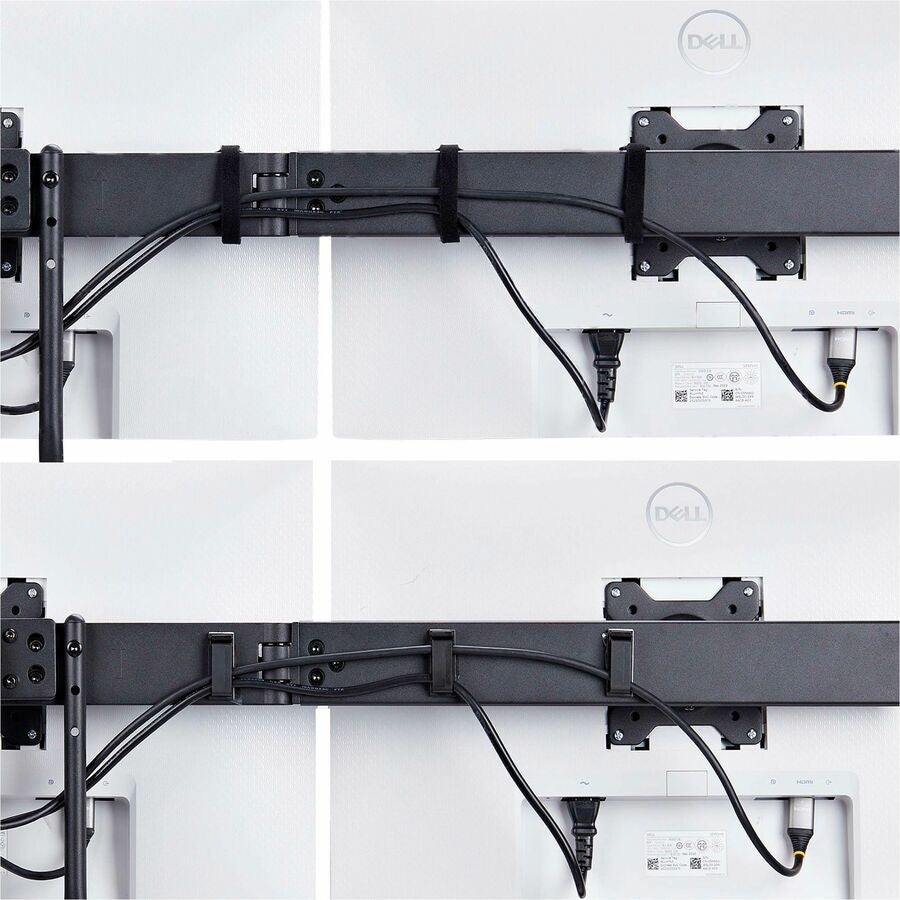

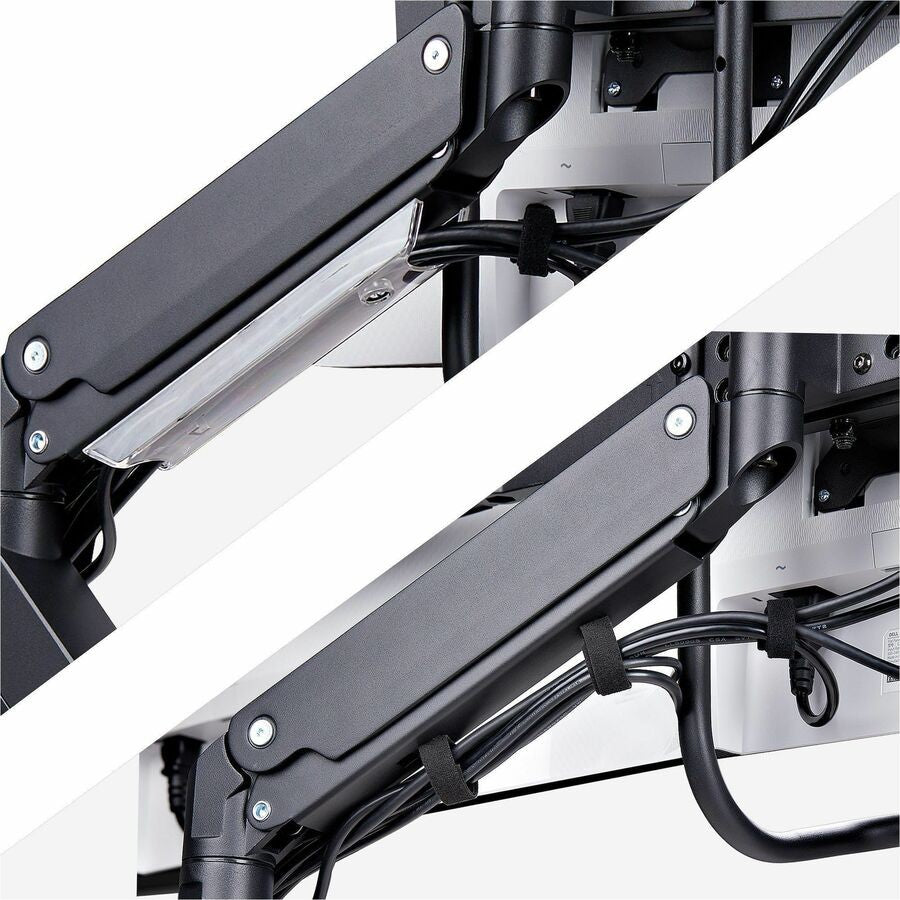

• Cable Management – Channel on arm underside, cable clip at base, hook and loop straps, clips for tidy workspace.

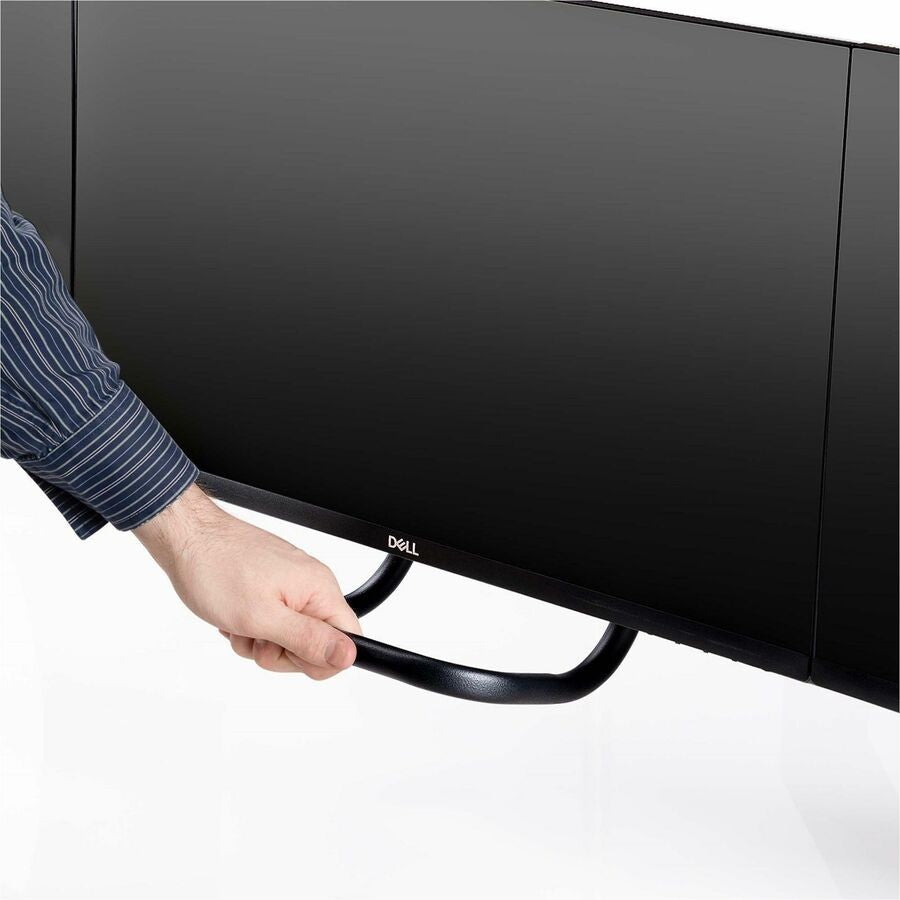

• Mounting Options – Desk C-clamp or grommet; tool-less arm adjustments, ergonomic grab handle.
• Screen Support – 17" to 27" displays, VESA 75x75/100x100 compatible.

Comprehensive Technical Specifications

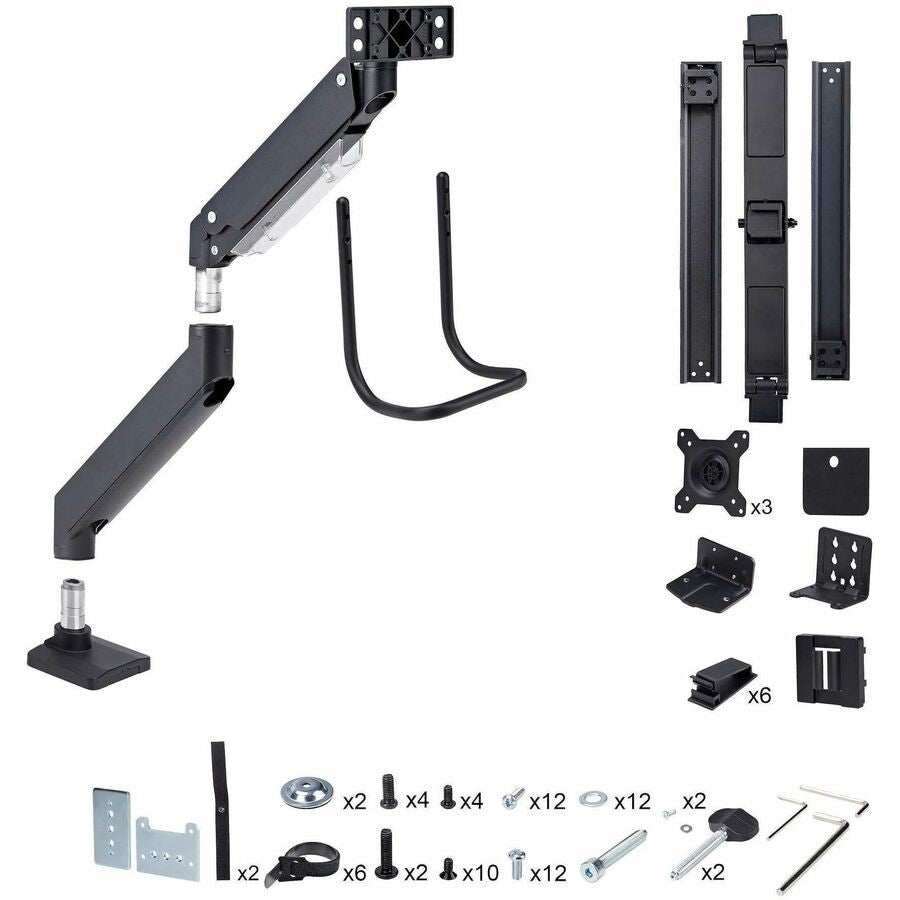

Complete Package Contents

• 1 x Base Mount
• 1 x Base Pad
• 1 x Swivel Arm
• 1 x Spring Arm
• 1 x Crossbar Left
• 1 x Crossbar Right
• 1 x Crossbar Center
• 3 x VESA Monitor Mount
• 1 x Grab Handle
• 4 x Flat Head Screws
• 1 x Grommet Base Plate
• 1 x Grommet Screw
• 1 x Grommet Plate
• 1 x Tool Holder
• 2 x Desk Clamping Discs
• 1 x Desk Clamp Lower
• 1 x Desk Clamp Upper
• 2 x Hand Knobs
• 10 x Countersunk Screws
• 4 x Button Head Screws
• 1 x 3mm Hex Key
• 1 x 4mm Hex Key
• 1 x 6mm Hex Key
• 2 x M4x10mm Screws
• 2 x M5x8mm Screws
• 12 x M4x12mm Screws
• 12 x M5x12mm Screws
• 12 x Washers
• 2 x Small Washers
• 6 x Hook and Loop Straps (Crossbar)
• 2 x Hook and Loop Straps (Spring Arm)
• 6 x Cable Management Clips (Crossbar)
• 1 x User Manual

Assembly & Usage Notes

Pro tip: Assemble on a flat surface; use included hex keys for secure VESA attachment. Verify desk thickness for C-clamp (universal fit); grommet option for smaller desks.

1. Mount base to desk using C-clamp or grommet hardware.
2. Attach swivel and spring arms.
3. Install crossbars and VESA mounts; adjust positions.
4. Mount monitors, align using micro adjustments.
5. Route cables through channels and secure with clips/straps.
