StarTech.com ARMPIVOTHD Heavy Duty Single 34" Monitor Desk Arm Silver
StarTech.com ARMPIVOTHD Heavy Duty Single 34" Monitor Desk Arm Silver
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech.com ARMPIVOTHD Heavy Duty Single Monitor Desk Mount Arm - Ergonomic Articulating VESA Arm for 34" Displays
This is a heavy-duty ergonomic desk mount monitor arm from StarTech.com, designed for single displays up to 34 inches and 19.9 lb (9 kg). The ARMPIVOTHD features full-motion articulation, gas-spring height adjustment, and supports VESA 75x75 or 100x100 mounts with desk C-clamp or grommet installation. UPC: 065030868204. Its aluminum construction and silver finish create a sleek, space-saving solution for office, healthcare, financial, or shared workspaces.
Key Features of StarTech.com Heavy Duty Monitor Arm
- One-Touch Height Adjustment – Gas-spring cylinder offers 13.1" (335 mm) of effortless adjustment; tension tunable for monitor weight.

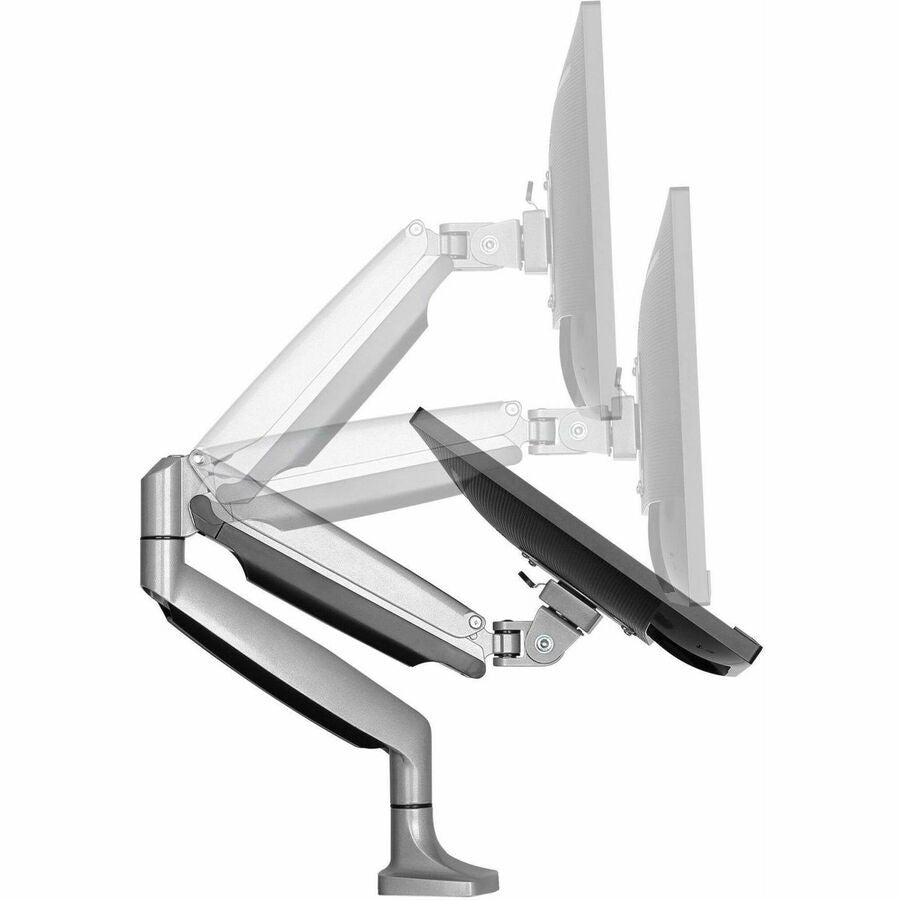

- Full-Motion Articulation – 180° swivel and rotation for landscape/portrait viewing; +90° to -90° tilt for optimal angles.
- Space-Saving Design – Frees desk surface by elevating 13"–34" monitors up to 19.9 lb securely.
- Built-In Cable Management – Organizes cables along the arm for a clean workspace.

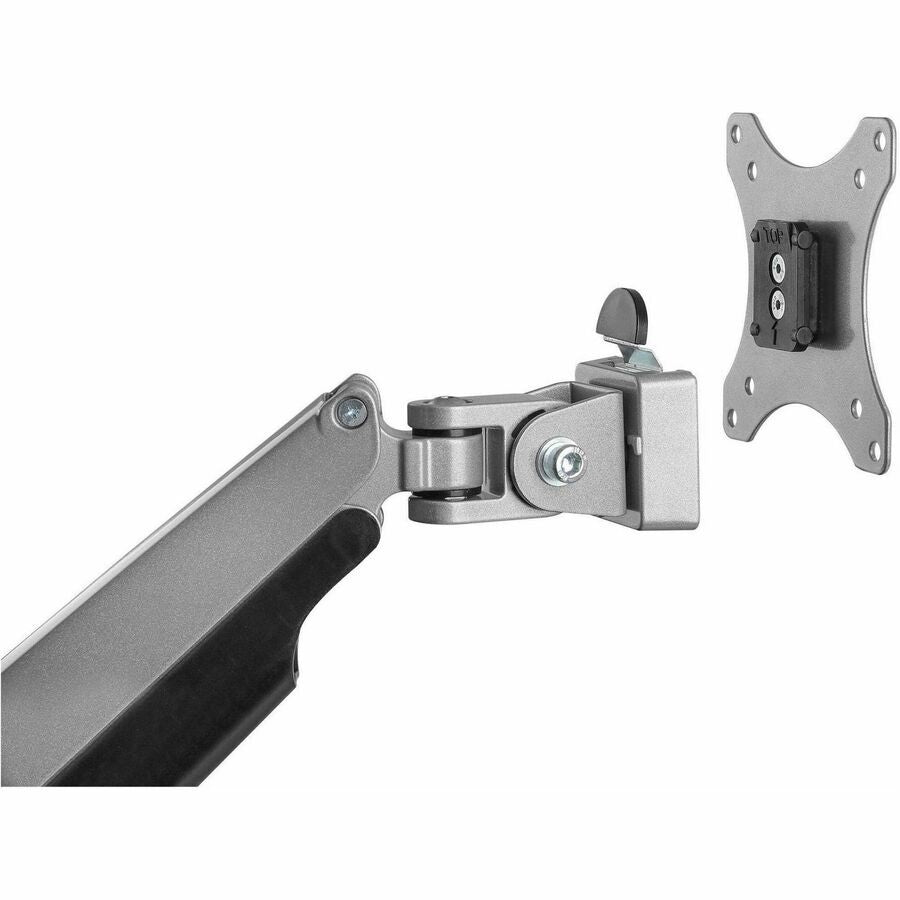

- Durable Aluminum Build – Heavy-duty construction with detachable VESA panel for easy monitor attachment/removal.

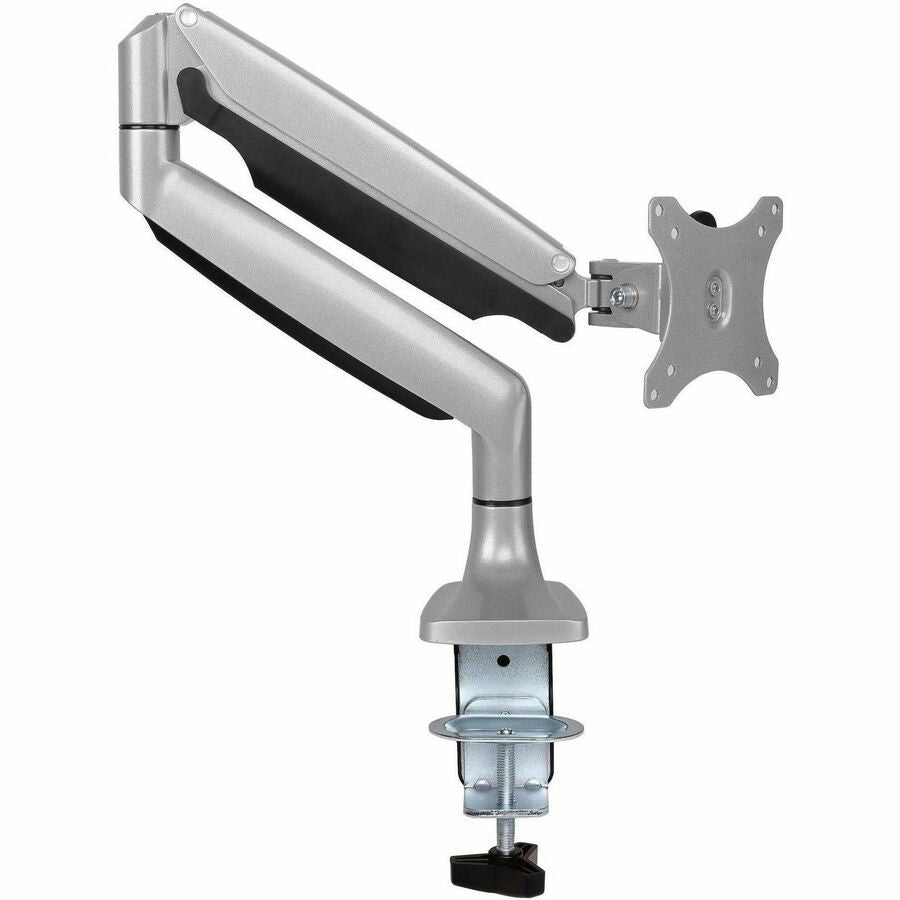

- Versatile Mounting – Desk clamp or grommet options; minimal assembly required.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | StarTech.com |
| Manufacturer Part Number | ARMPIVOTHD |
| UPC | 065030868204 |
| Product Type | Mounting Arm |
| Device Supported | Monitor |
| Number of Displays Supported | 1 |
| Minimum Screen Size Supported | 13" |
| Maximum Screen Size Supported | 34" |
| Maximum Load Capacity | 19.90 lb (9 kg) |
| VESA Mounting Pattern | 75 x 75, 100 x 100 |
| Height Adjustment | 13.10" (335 mm); Height Adjustable: Yes |
| Swivel | 180° |
| Rotation | 180° |
| Tilt | +90° to -90° |
| Features | Full Motion, Articulating, Heavy Duty, Space Saving Design, Gas Spring, Durable, Grommet Mount, Cable Management, Pivot |
| Product Material | Aluminum |
| Product Color | Silver |
| Dimensions (Arm) | Height: 20.80", Width: 11.20", Length: 3.80" |
| Weight (Approximate) | 6.80 lb |
| Country of Origin | China |
| Environmental Compliance | RoHS, REACH |
| Warranty | 5-year warranty and free lifetime technical support |

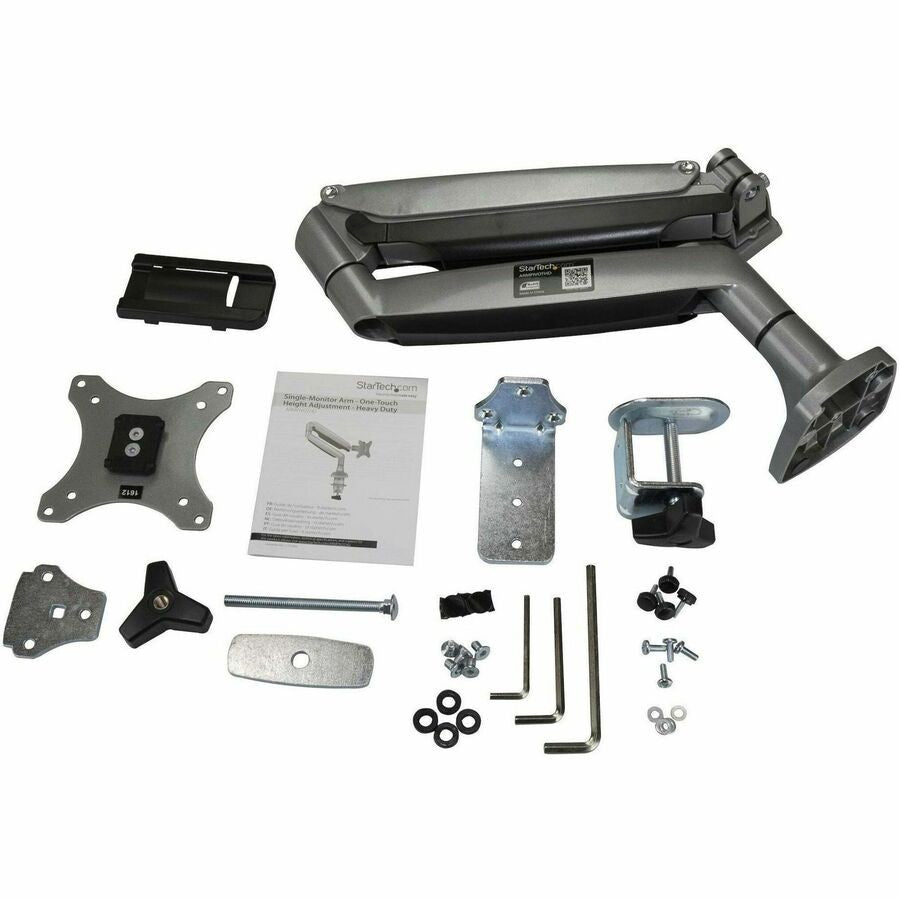

Easy Installation & Package Contents
Requires minimal assembly with included hardware; supports desk clamp or grommet mount. Pro tip: Adjust gas spring tension after mounting monitor for smooth operation.
- 1 x Spring Arm
- 1 x VESA Monitor Mount
- 1 x Grommet Base Plate
- 1 x Grommet Plate
- 1 x L Bracket
- 1 x Desk Clamp
- 5 x Clamp Screws
- 1 x Grommet Knob
- 2 x Rubber Pads
- 1 x Hex Key Holder
- 1 x 4 mm Hex Key
- 1 x 5 mm Hex Key
- 1 x 6 mm Hex Key
- 4 x M4x12 mm Thumbscrews
- 4 x M5x12 mm Screws
- 1 x Grommet Screw
- 4 x Washers
- 4 x Spacers
- 1 x Instruction Manual
- Attach base to desk using clamp or grommet.
- Secure spring arm to base.
- Mount VESA panel to monitor and attach to arm.
- Route cables through management channels.
- Adjust tension and test motion.
Why Choose StarTech.com ARMPIVOTHD Monitor Arm
Enhance productivity with ergonomic adjustability and robust support for heavy displays. Ideal for professional environments requiring reliable, adjustable mounting with cable organization and long-term durability.
Elevate your workspace with the StarTech.com ARMPIVOTHD desk mount monitor arm—order now!
Brand: StarTech
Type: Mounting Arm
Color: Silver
MPN: ARMPIVOTHD
Country of Origin: China
Manufacturer Warranty: 5 Years
Number of Monitors: 1
VESA Size: 75x75 mm
UPC: 065030868204
