StarTech.com 8-Outlet 1U Rackmount Metered PDU Surge 125V/15A TAA
StarTech.com 8-Outlet 1U Rackmount Metered PDU Surge 125V/15A TAA
Low stock: 4 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech.com 8-Outlet Horizontal Rack Mount PDU, 1U Server Power Distribution Strip w/Surge Protector, 125V/15A, 8ft/2.4m Power Cord, TAA

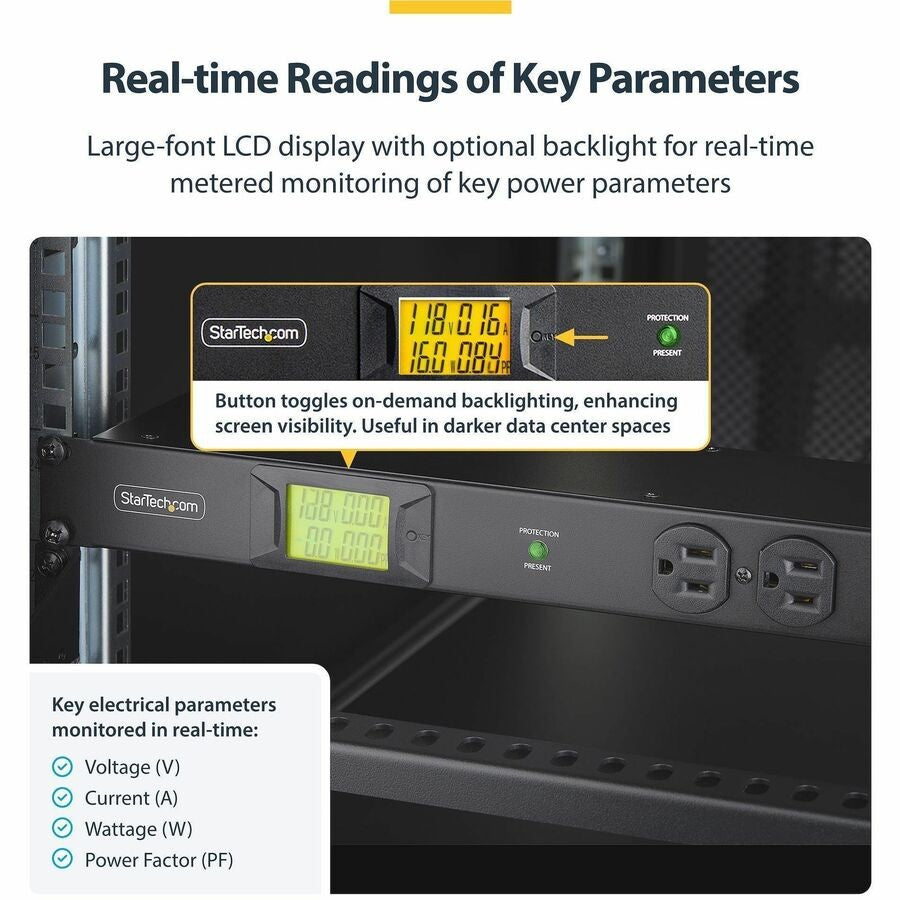

This is a StarTech.com 8-Outlet 1U Rackmount Metered PDU with surge protection, designed for server racks and data centers. It features a built-in 8ft (2.4m) NEMA 5-15P power cord, 8x NEMA 5-15R outlets (6 rear, 2 front), and a large backlit LCD for real-time monitoring of voltage (V), current (Amp), wattage (W), and power factor (PF). MPN: 8NM8-RACK-MOUNT-PDU; UPC: 065030902557. TAA compliant for professional environments.
Metered PDU Key Features
- Real-Time Metering – Large-font backlit LCD display shows V, A, W, PF for efficient load management and early issue detection.
- Surge Protection & 15A Breaker – Mechanical trigger resettable circuit breaker with safety cover; LED confirms active protection.

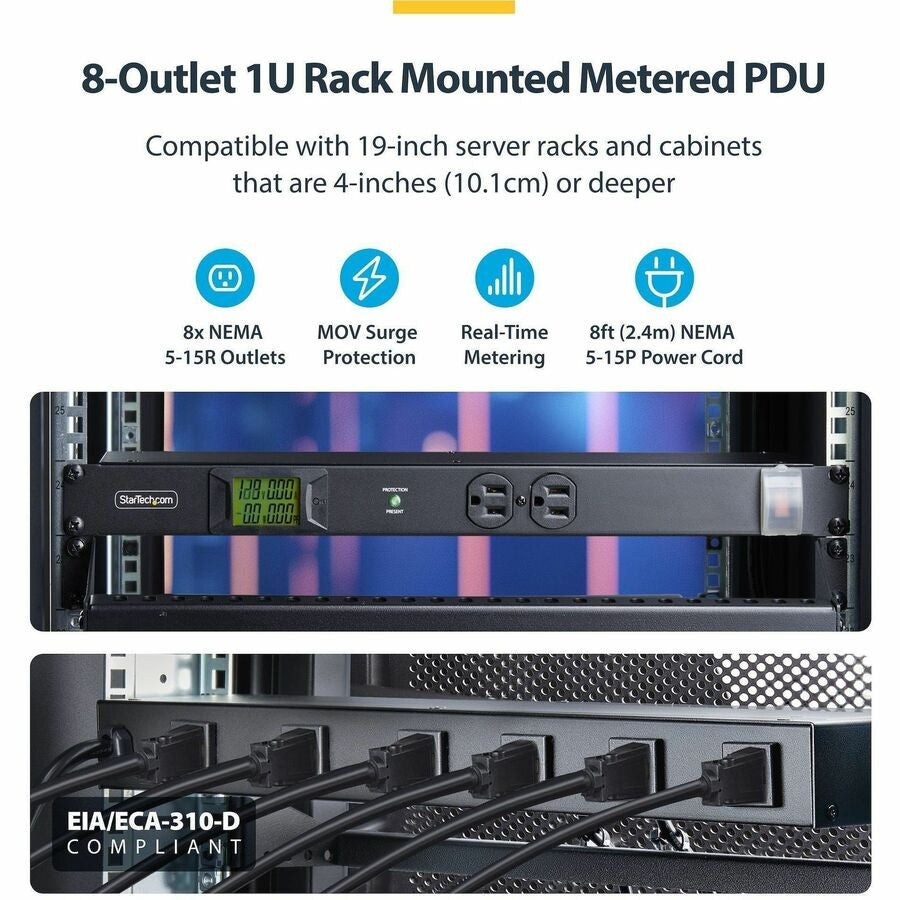

- 1U Horizontal Rackmount – Fits EIA-310-D compliant 19-inch 2/4-post racks or cabinets at least 4 inches (10.1cm) deep.
- Durable Construction – Cold-rolled steel with textured finish for sturdiness in server rooms and data centers.

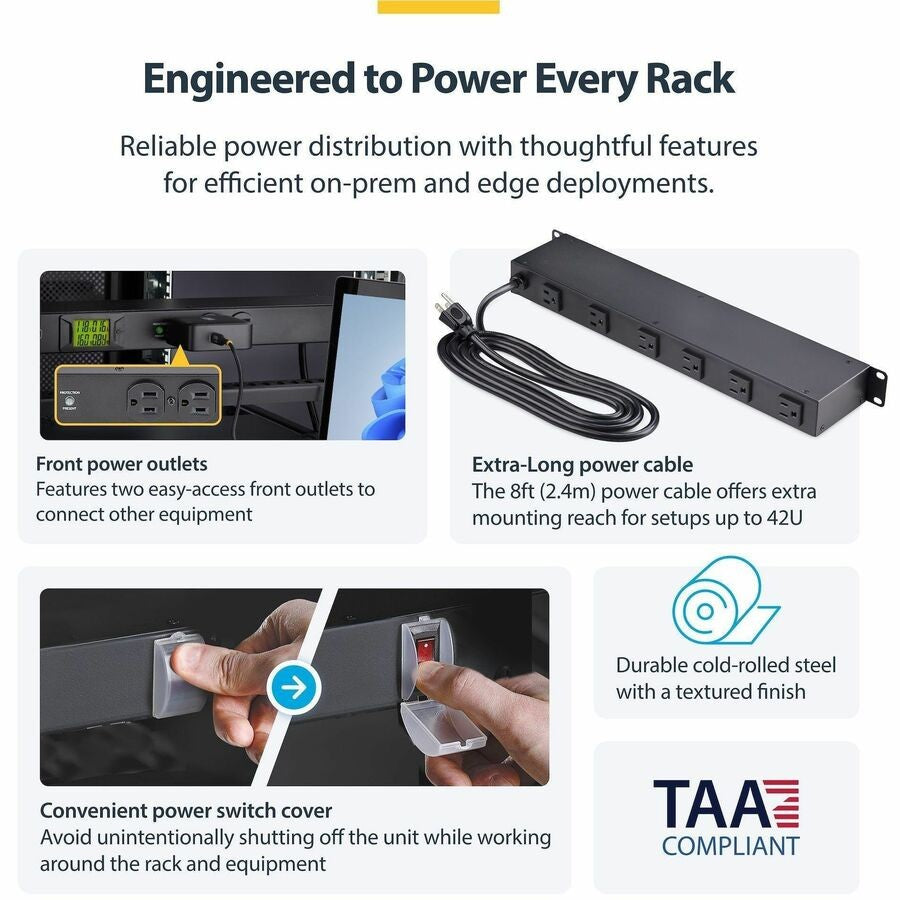

- Outlet Configuration – 8 NEMA 5-15R outlets: 6 rear-facing, 2 front-facing for versatile connectivity.
- On-Demand Backlight – Improves visibility in low-light scenarios.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand/Manufacturer | StarTech.com |
| MPN/Manufacturer Part Number | 8NM8-RACK-MOUNT-PDU |
| UPC | 065030902557 |
| Product Type | Metered PDU |
| Plug/Connector Type | 1 x NEMA 5-15P |
| Receptacle Type | 8 x NEMA 5-15R (6 rear, 2 front) |
| Input Voltage | 120 V AC |
| Output Voltage | 125 V AC |
| Input Current | 15 A |
| Cord Length | 8 ft (2.4 m) |
| Rack Height | 1U |
| Mounting Orientation | Horizontal, Rack-mountable |

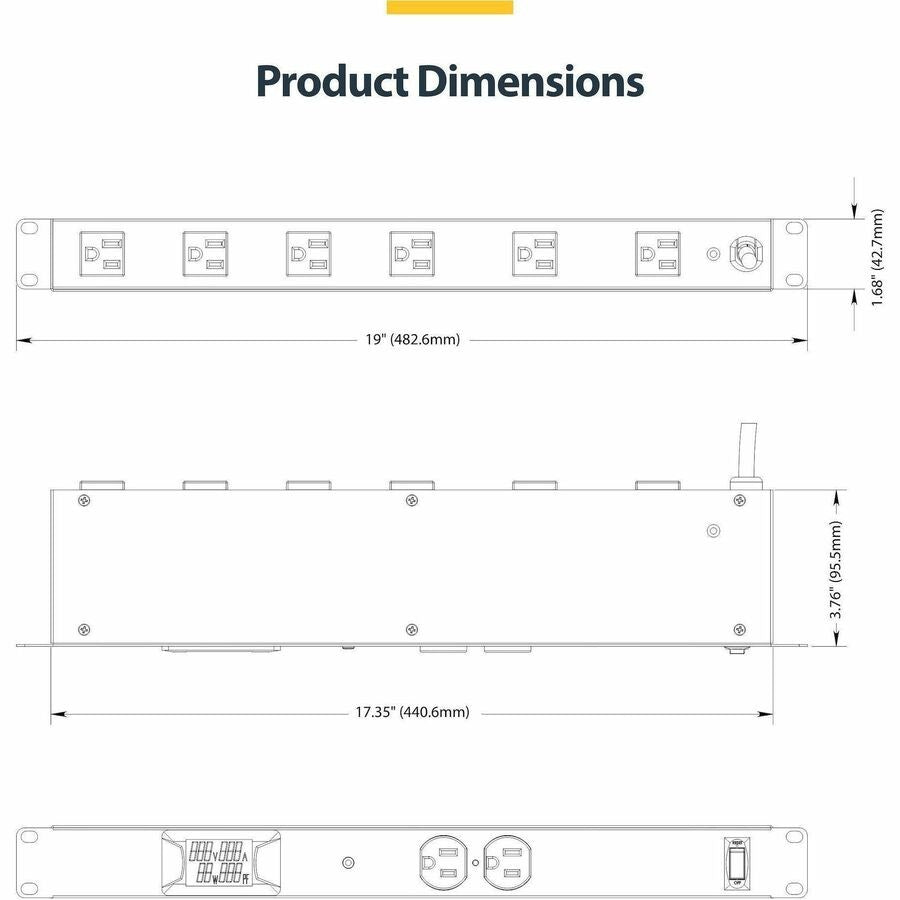

| Dimensions (H x W x D) | 1.7" x 19" x 3.8" |
| Weight (Approximate) | 4.40 lb |
| Color | Black |
| Material | Cold-rolled steel, textured finish |
| Protection Type | Surge Protection, Circuit Breaker (15A resettable) |
| Features | LCD Display (backlit), LED Status Indicator |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 14°F to 122°F (-10°C to 50°C) |
| Operating Humidity | 5% to 95% |
| Certifications & Standards | EIA-310-D, UL 60950-1, UL1449 VPT 500V, TAA Compliant |
| Application/Usage | Server Rack/Cabinet, Data Center |
Rack Installation & Maintenance
Compatible with standard 19-inch EIA-310 racks. Pro tip: Ensure rack depth exceeds 4 inches for secure mounting.
- Mount in 1U space using included hardware on 2 or 4-post racks.
- Connect NEMA 5-15P plug to power source.
- Plug devices into 8 outlets and monitor via LCD.
- Reset breaker if tripped; check LED for surge status.
- Clean steel surface as needed; store within environmental limits.
Why Choose StarTech.com Metered PDU
Provides essential metering, surge protection, and durable rackmount design for stable power distribution in professional IT environments.
Enhance your server rack power management—Order the StarTech.com 8-Outlet 1U PDU today!
Brand: TEC
Type: Metered PDU
MPN: 8NM8-RACK-MOUNT-PDU
Features: Monitor
Material: Steel
Color: Black
Finish: Textured
Power Source: Corded Electric
Voltage: 120 V
Power Phase: 1 Phase
Model: 8NM8-RACK-MOUNT-PDU
Current Rating: 10.1-15 A
UPC: 065030902557
