Description
StarTech.com 4K HDMI Extender Over CAT5/CAT6 Cable, 4K 60Hz Video Extender Up to 230ft (70m)

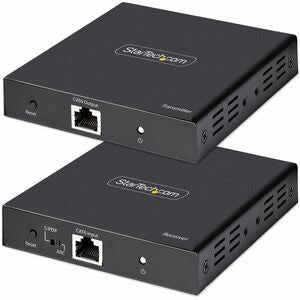

This is a StarTech.com 4K 60Hz HDMI extender kit that transmits HDMI audio/video signals up to 230ft (70m) over a single Category 5e/6 Ethernet cable. The complete point-to-point solution includes a local transmitter unit and remote receiver unit with S/PDIF audio out, supporting HDMI 2.0, 4:4:4 chroma subsampling, and zero latency for clear 4K video output. Manufacturer Part Number: 4K70IC-EXTEND-HDMI; UPC: 065030899208. Ideal for professional AV installations requiring long-distance HDMI extension with IR control and Power-over-Cable (PoC) convenience.
Advanced 4K HDMI Extension Features
- 4K 60Hz @ 230ft (70m) – Supports resolutions up to 4K 60Hz over Cat5e/6 cabling with zero latency and stable video output via HDMI 2.0 and 4:4:4 chroma subsampling.

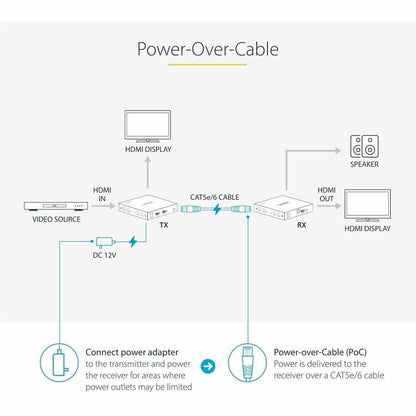

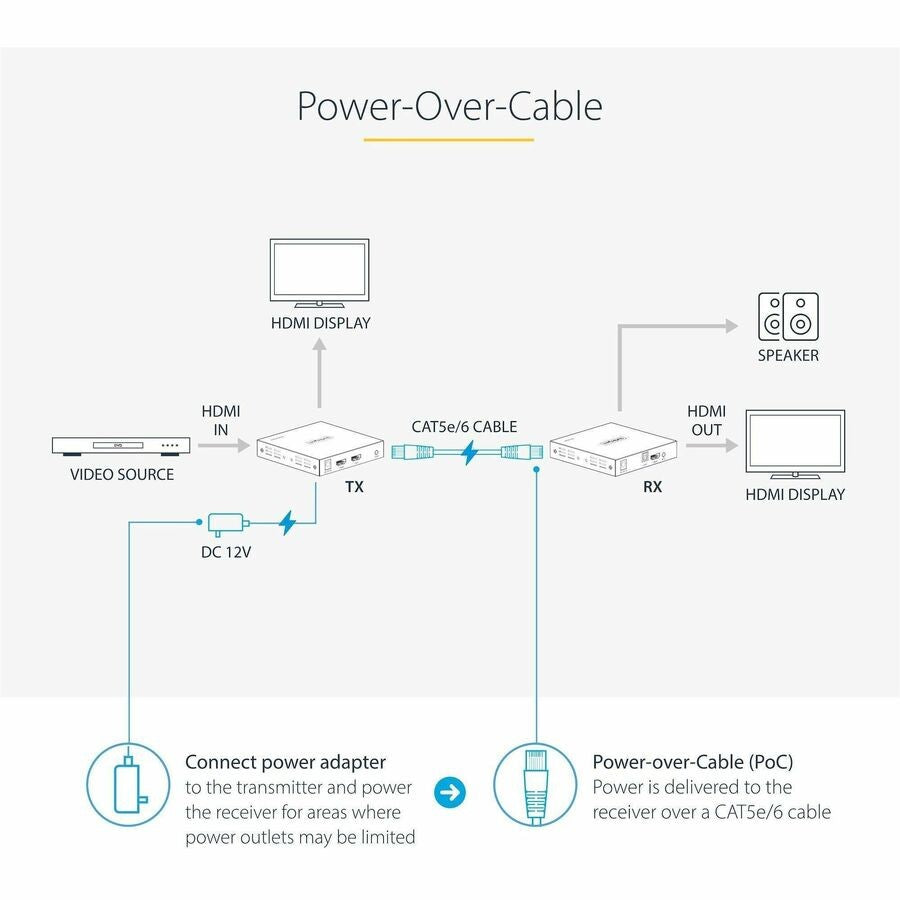

- Power-over-Cable (PoC) – Single power adapter powers both transmitter and receiver units, simplifying setup.

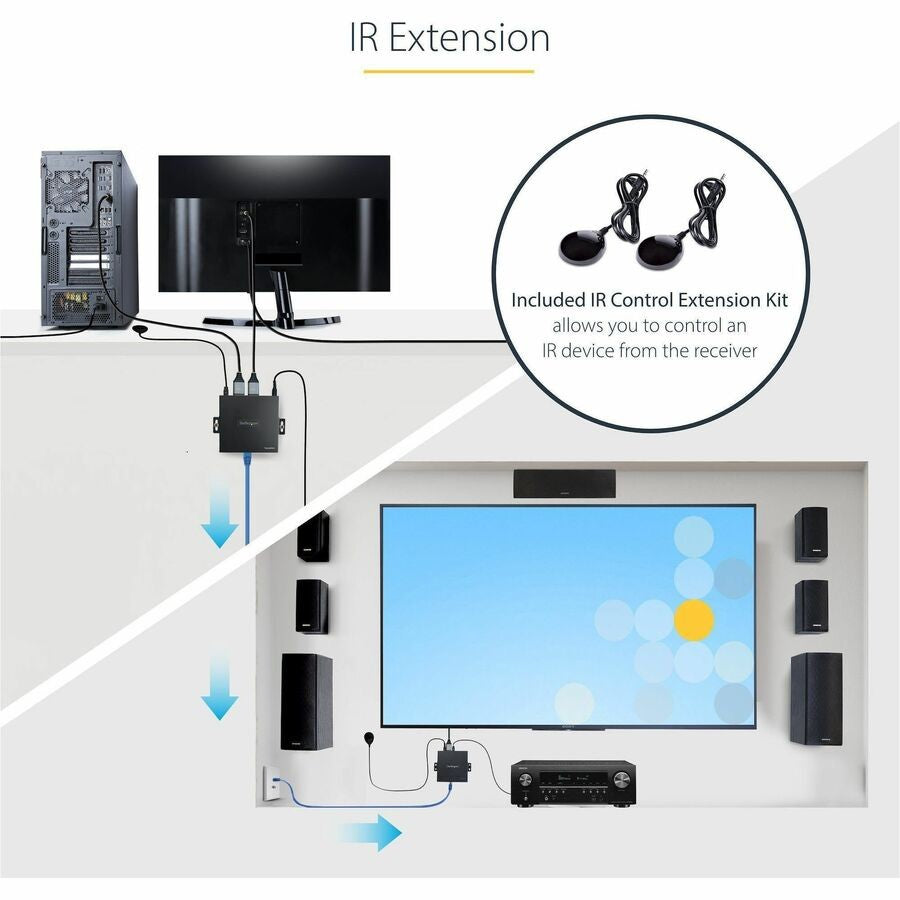

- IR Extension Kit – Includes IR blaster and receiver for remote control of source devices from the receiver location.

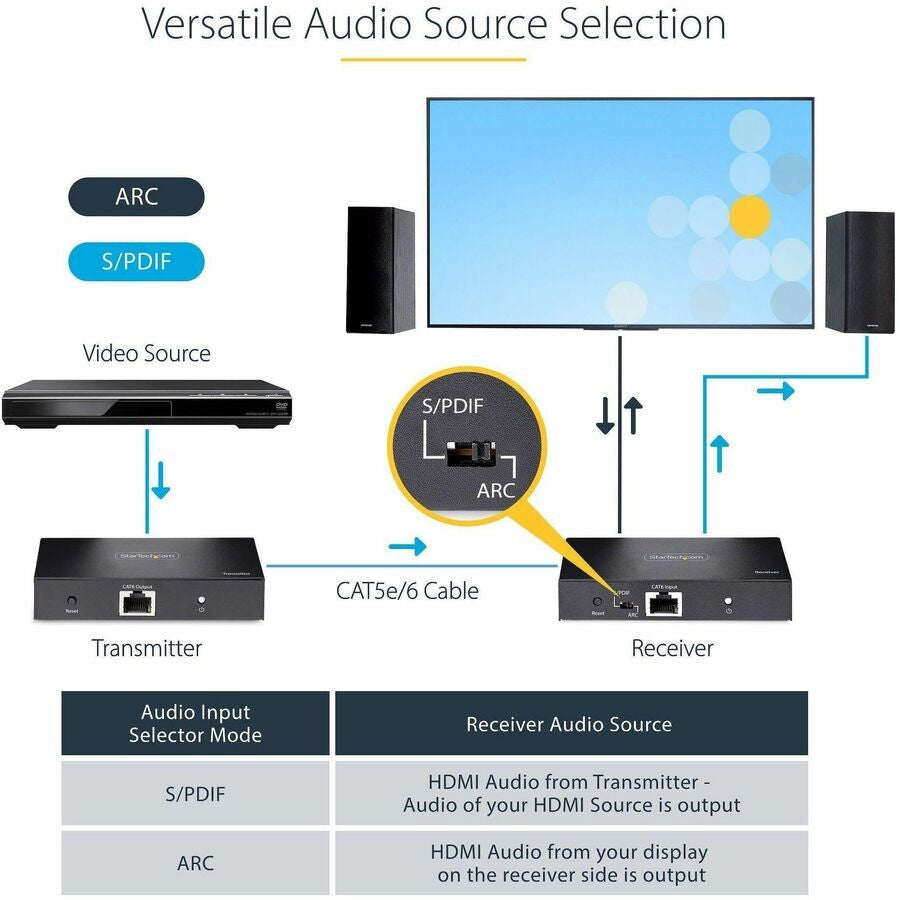

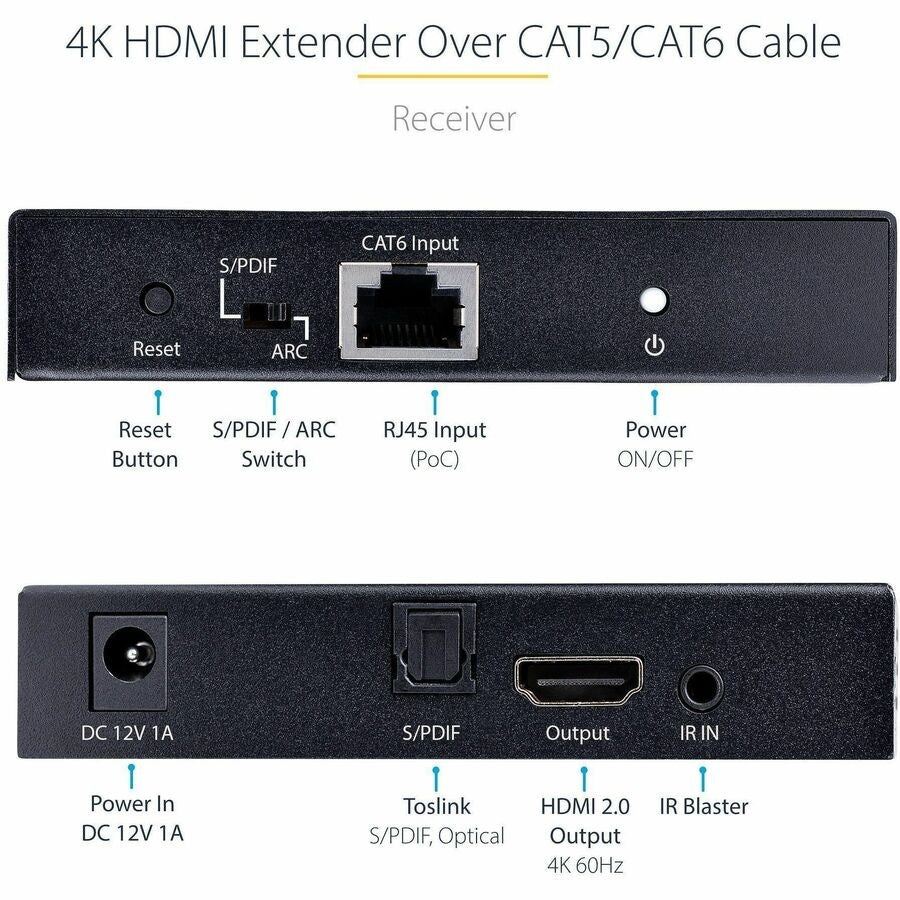

- S/PDIF Audio Out – Dedicated digital audio extraction on receiver for surround sound systems.

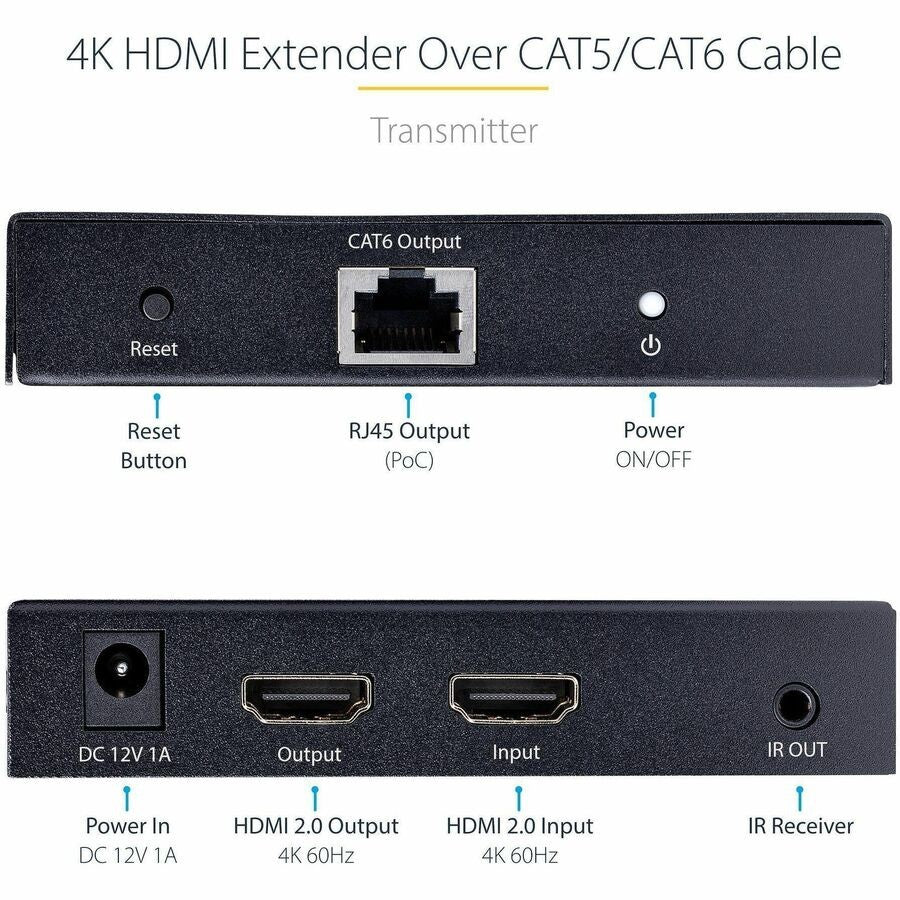

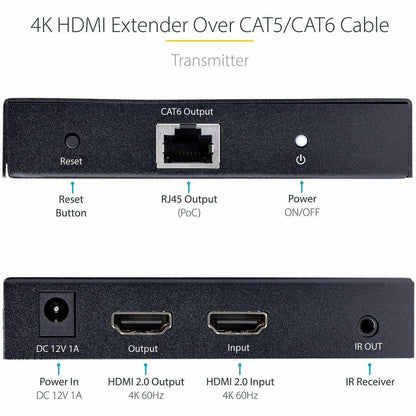

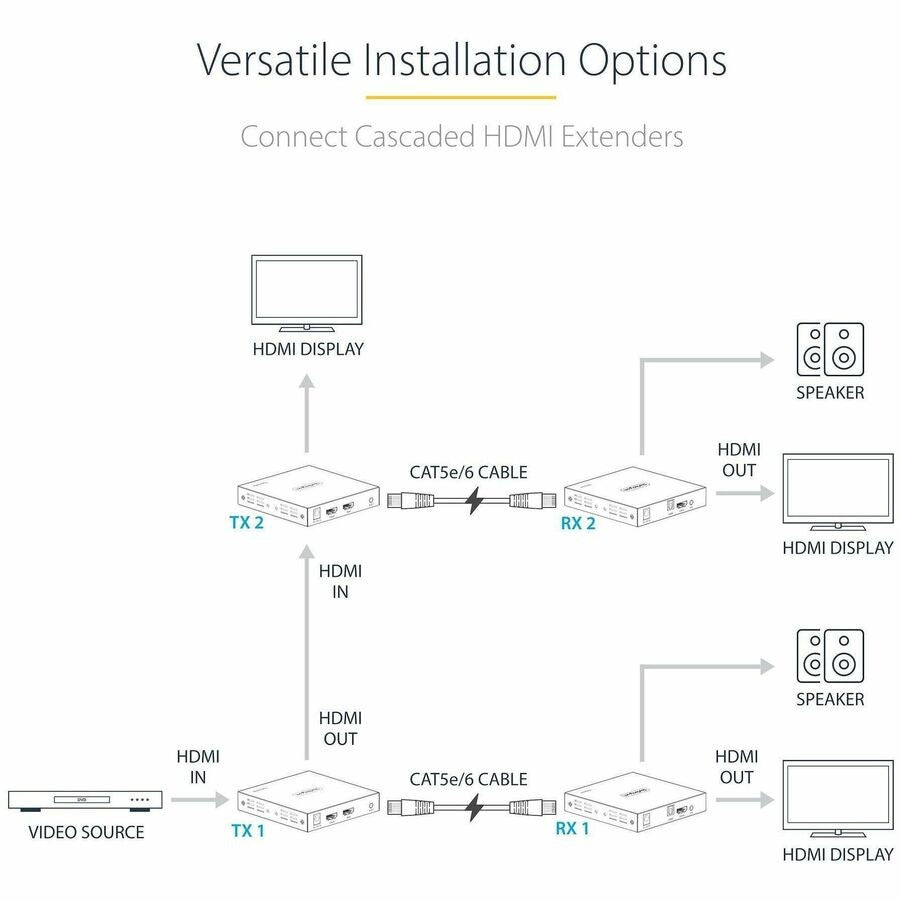

- Cascade Support – HDMI output on transmitter allows daisy-chaining additional extenders or local display connection.
- Plug-and-Play – No software or drivers required; versatile mounting with brackets and rubber feet for wall, ceiling, or table installation.
- Metal Housing – Durable black metal construction protects against vibration and provides professional rack-mount potential.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number | 4K70IC-EXTEND-HDMI |
| Product Type | HDMI Extender |
| Maximum Extended Range | 230 ft (70 m) |
| Video Resolution | 4K 60Hz, HDMI 2.0, 4:4:4 Chroma Subsampling |
| Network (RJ-45) Ports | 2 |
| HDMI Ports | 3 |
| Audio Output | S/PDIF |
| Power | Power-over-Cable (PoC), Input Voltage 230 V AC |
| Product Color | Black |
| Product Material | Metal |

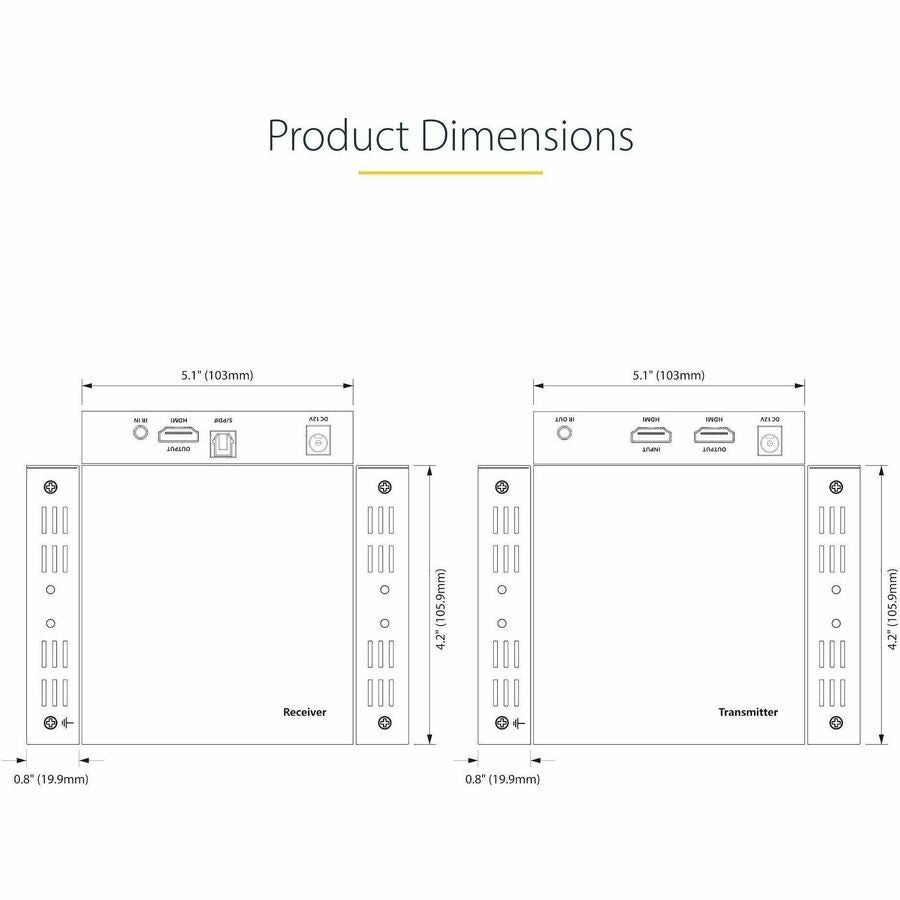

| Dimensions (H x W x L) | 1" x 3.9" x 4.2" |
| Package Weight | 2.00 lbs |
| Package Dimensions (H x W x D) | 3.30" x 9.40" x 7.10" |
| UPC | 065030899208 |
| Country of Origin | China |
| Environmental Compliance | RoHS, WEEE |
| Warranty | 2-Year Limited, Lifetime 24/5 Technical Support |
Package Contents & Installation Overview
- 1 x Local HDMI Transmitter Unit
- 1 x Remote HDMI Receiver Unit
- 1 x IR Blaster
- 1 x IR Receiver
- 8 x Rubber Feet
- 1 x Mounting Kit
- 1 x Power Adapter
- 1 x Quick-Start Guide
Plug-and-play setup: Connect HDMI source to transmitter, Ethernet cable between units, HDMI display to receiver, and power via PoC. Use mounting brackets for secure installation on walls, ceilings, or tables. Rubber feet provide vibration isolation.
Why Choose StarTech.com 4K HDMI Extender
Engineered for reliable long-distance 4K transmission with professional features like IR control, S/PDIF audio extraction, and cascade capability. Backed by 2-year warranty and lifetime technical support for dependable AV performance.
Extend your 4K HDMI setup up to 230ft—Order the StarTech.com 4K70IC-EXTEND-HDMI today!
Brand: Star
Type: HDMI Extender
MPN: 4K70IC-EXTEND-HDMI
Compatible Brand: StarTech.com
Color: Black
Country of Origin: China
Manufacturer Warranty: 2 Years
Audio Outputs: S/PDIF
Output Connection: Wired
UPC: 065030899208
