StarTech.com 4-Post 42U Open Frame 19" Server Rack – Mobile, Casters, 1322lb, Adj. Depth
StarTech.com 4-Post 42U Open Frame 19" Server Rack – Mobile, Casters, 1322lb, Adj. Depth
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech.com 4-Post 42U Mobile Open Frame Server Rack, 19" Network Rack with Casters, Rolling Rack for Computer/AV/Data/IT Equipment
This is a StarTech.com 4-Post 42U Mobile Open Frame Server Rack designed for storing servers, network, and telecommunications equipment. The StarTech.com 42U 4-Post Open Frame Server Rack w/ Casters 19" features adjustable depth from 22 to 40 inches, easy-to-read markings for rack units and depth, and a static loading capacity of up to 1322.77 lbs (600kg). MPN: 4POSTRACK42; UPC: 065030855211. It complies with industry standards including EIA/ECA-310-E, IEC 60297-3-100, and DIN 41494 for universal compatibility with most rack equipment.
Key Features of StarTech.com 42U Open Frame Rack
- Adjustable Mounting Depth – 22-40 inches to adapt to various equipment sizes.
- High Load Capacity – Supports up to 1322.77 lbs statically for heavy-duty use.

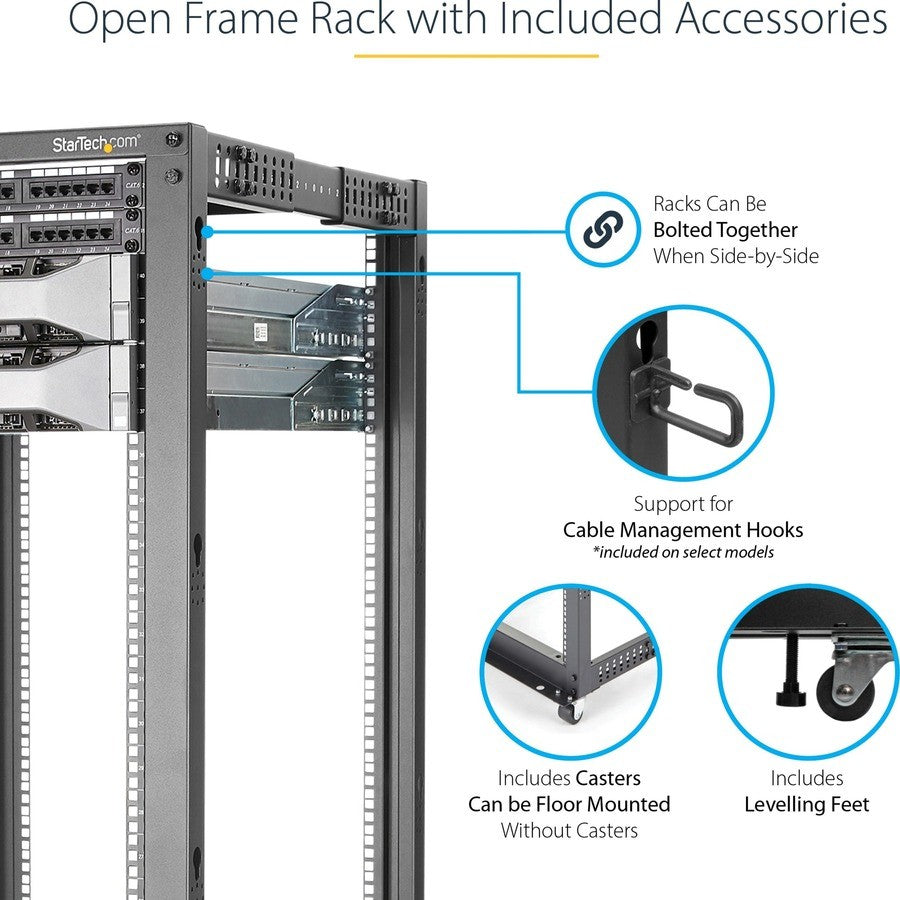

- Mobility Options – Includes casters and leveling feet for easy positioning and stability.
- Cable Management – 24 cable management hooks included for organized wiring.
- Open Frame Design – Provides maximum airflow and easy access with front and rear rails.
- Customization Ready – Pre-drilled base for floor securing; universal standards compliance.
- Included Accessories – Comprehensive hardware, tools, and grounding wires for complete setup.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number | 4POSTRACK42 |
| UPC | 065030855211 |
| Product Type | Rack Frame |
| Rack Type | Open Frame |
| Rack Height | 42U |
| Rack Width | 19" |

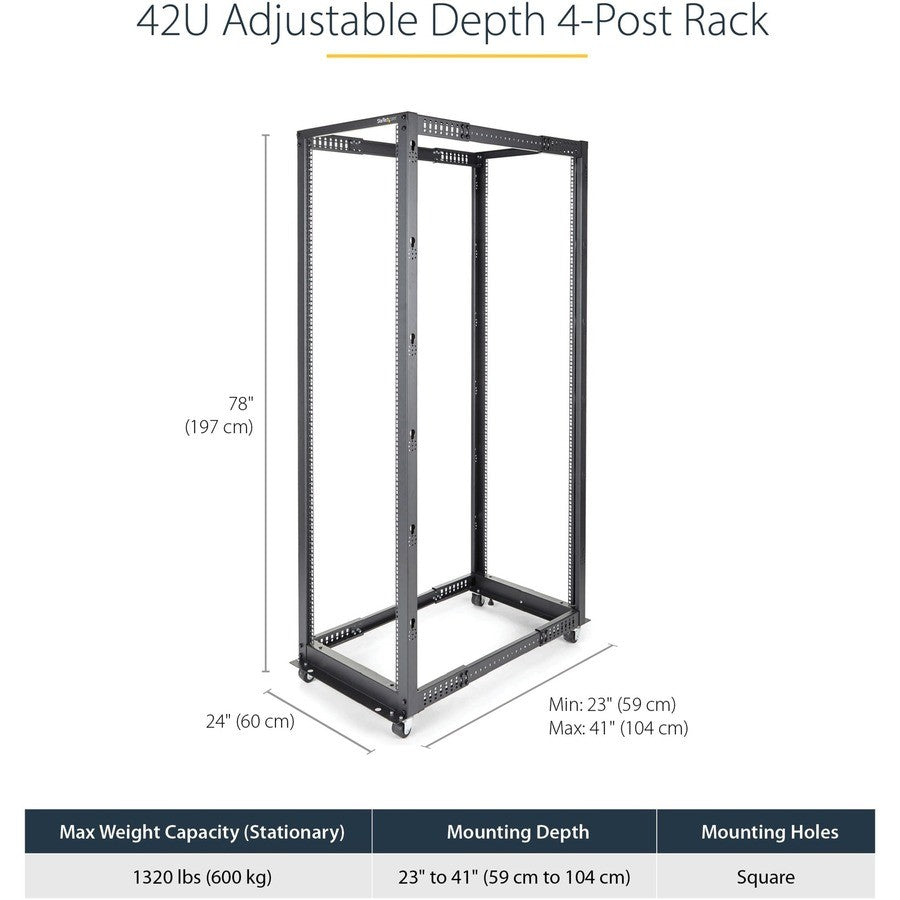

| Rack Depth | 40" (adjustable 22-40") |
| Static Weight Capacity | 1322.77 lb (600kg) |
| Form Factor | Floor Standing |
| Product Color | Black |
| Product Material | Steel, Cold Rolled Steel |

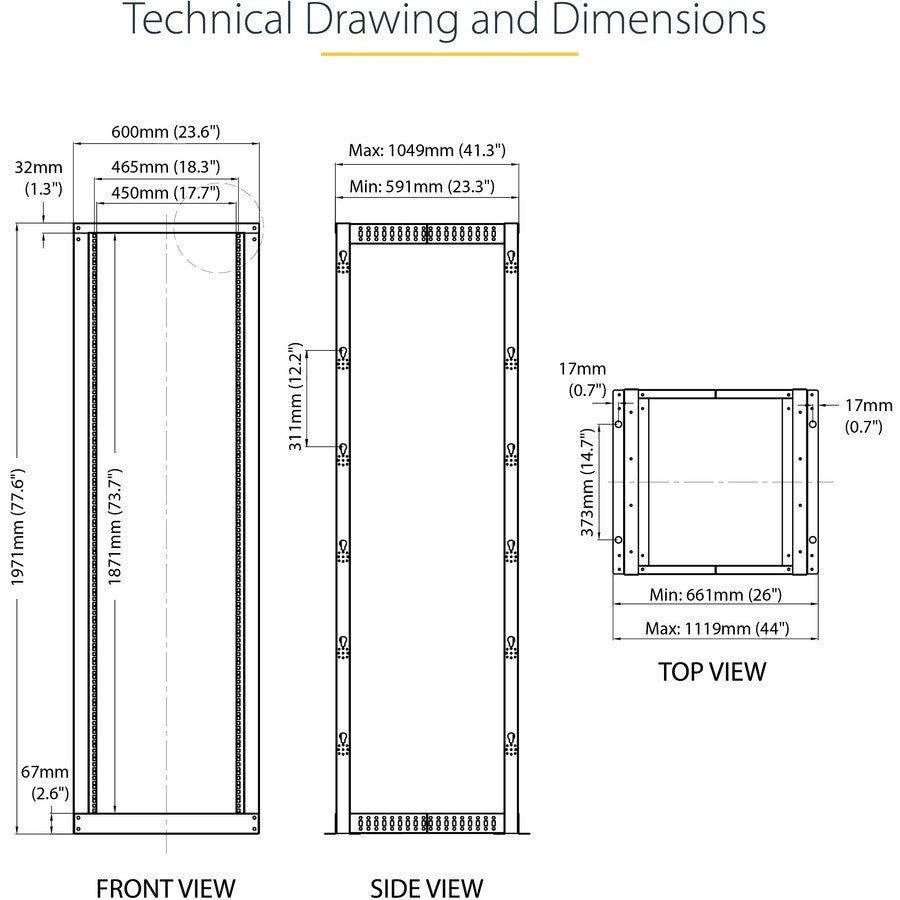

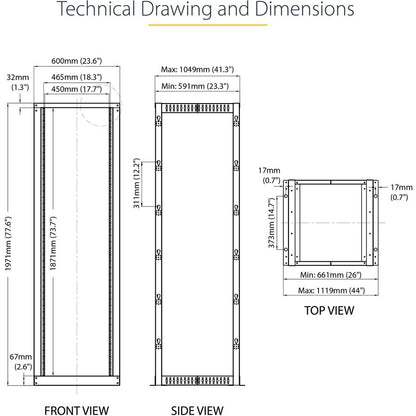

| Height | 80.3" |
| Width | 23.8" |
| Length | 41.3" |
| Weight (Approximate) | 84.88 lb |
| Front Rail | Yes |
| Rear Rail | Yes |
| Rack Post Quantity | 4 |
| Features | Casters, Leveling Feet, Cable Management |
| Application/Usage | Server, LAN Switch, KVM Switch, Patch Panel, A/V Equipment |
| Certifications & Standards | DIN 41494, EIA/ECA-310-E, IEC 60297-3-100, CE |
| Country of Origin | China |
| Environmental Compliance | RoHS, REACH |
| Packaged Quantity | 1 Each |
| Warranty | 2-Year Warranty and Free Lifetime Technical Support |

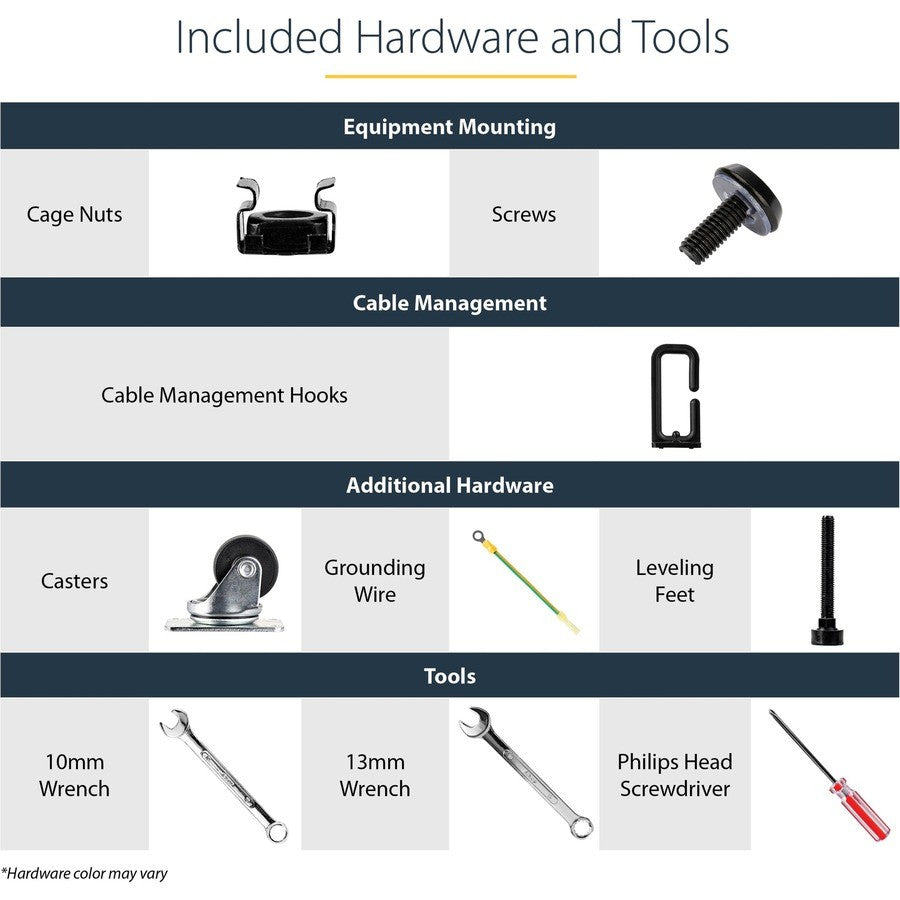

Detailed Package Contents
- 2 x Left Vertical Rail
- 2 x Right Vertical Rail
- 2 x Base Bracket
- 8 x Corner Section
- 4 x Center Section
- 2 x Top Bracket
- 50 x M8 Bolt
- 50 x M8 Washer
- 1 x M6 (10mm) Wrench
- 1 x M8 (13mm) Wrench
- 6 x Phillips Screwdriver
- 4 x M6 Grounding Wire Bolts (short)
- 4 x M6 Grounding Wire Lock Washers
- 50 x M6 Cage Nut
- 50 x PVC Cup Washer
- 50 x M6 Phillips Head Screw
- 24 x Cable Management Hook
- 24 x Hook Mounting Screw
- 4 x Casters
- 4 x Leveling Feet
- 16 x M6 Screw
- 16 x M6 Flat Washer
- 16 x M6 Flange Nut
- 4 x Grounding Wires
Assembly Notes for StarTech.com Server Rack
Assembly required. All necessary tools and hardware included for straightforward setup.
- Assemble base using brackets, corner/center sections, bolts, and washers.
- Attach vertical rails to base.
- Install top bracket.
- Add casters or leveling feet as needed.
- Mount cable management hooks and grounding wires.
Organize your IT equipment with the StarTech.com 42U rack—add to cart now!
Brand: StarTech
Type: Rack Frame
MPN: 4POSTRACK42
Country of Origin: China
Manufacturer Warranty: 2 Years
Rack Unit Height: 42 U
Number of Side Panels: 0
Mount Type: Freestanding
Rack Unit Width: 19 in
UPC: 065030855211
