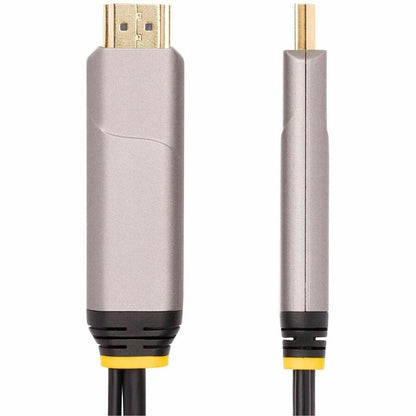

StarTech.com USB-C to HDMI 2.0 Active Optical Cable, 4K 60Hz, CL3, 30ft (9.15m), HDR, Thunderbolt 4
StarTech.com USB-C to HDMI 2.0 Active Optical Cable, 4K 60Hz, CL3, 30ft (9.15m), HDR, Thunderbolt 4
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

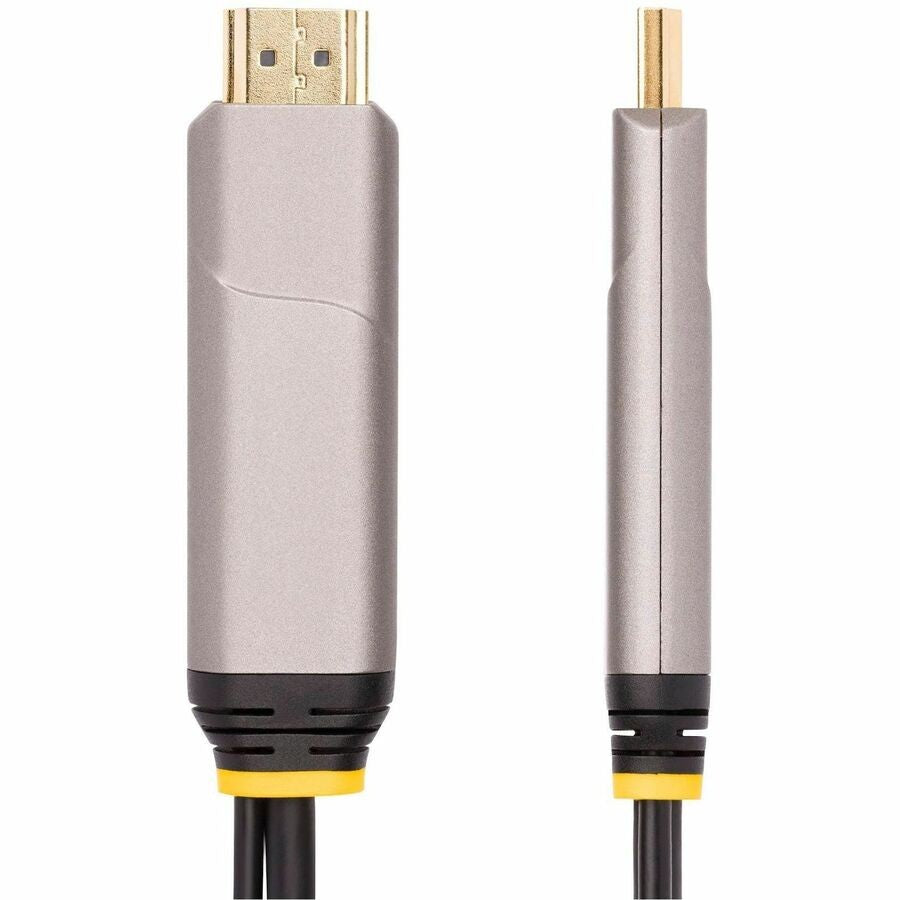

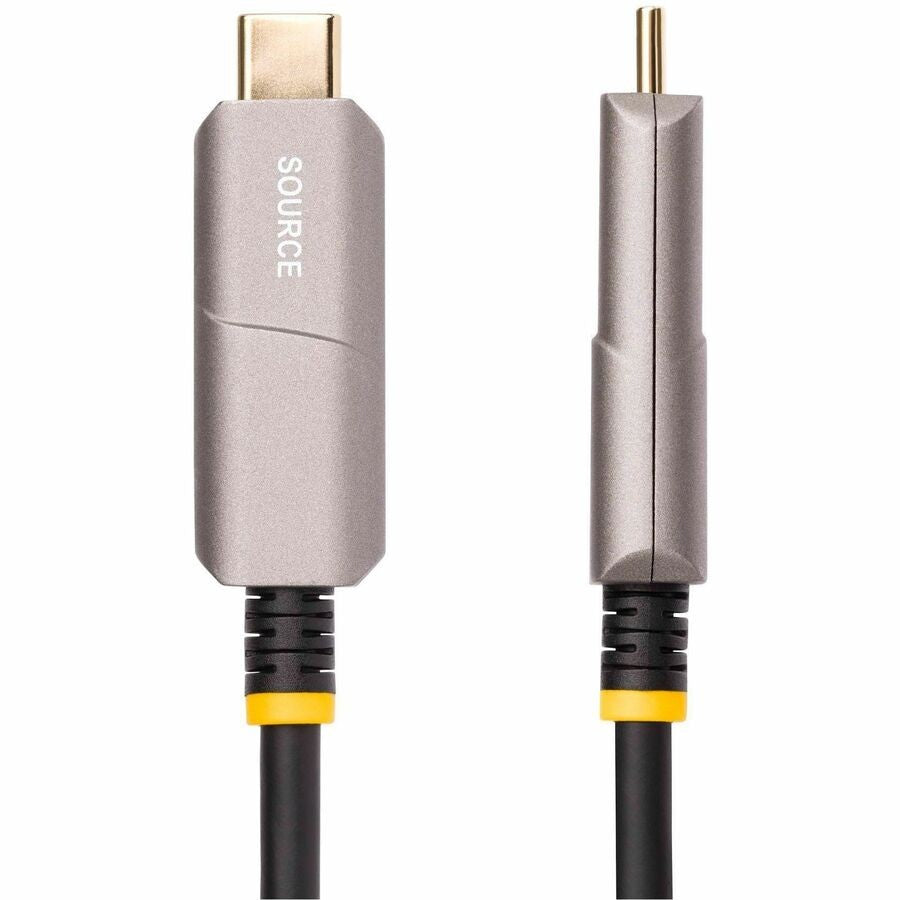

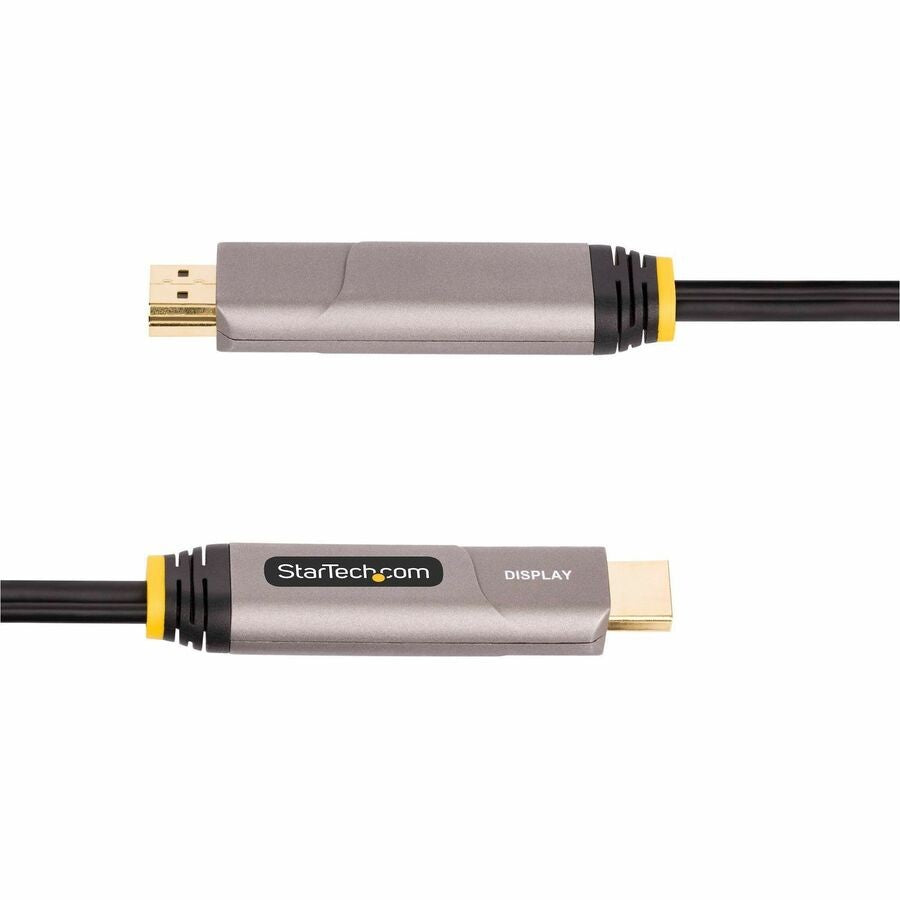

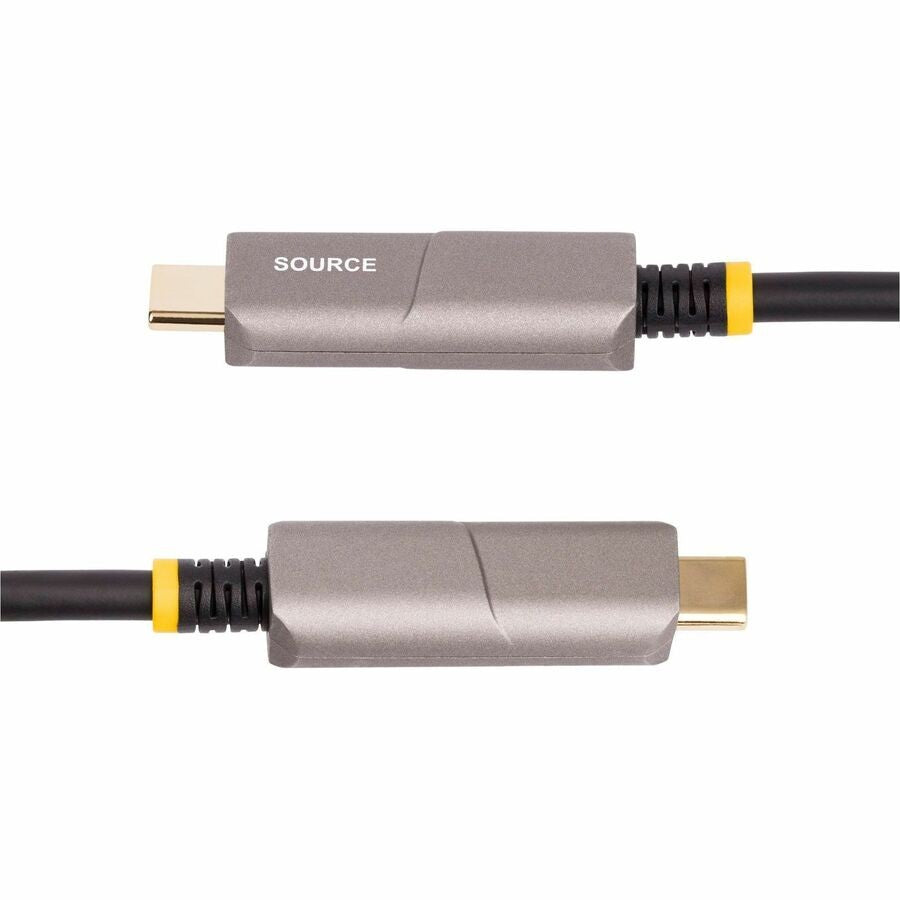

StarTech.com 30ft (9.15m) USB-C to HDMI 2.0 Active Optical Cable (AOC), 4K 60Hz, USB Type-C to HDMI Adapter Cable, CL3 Rated

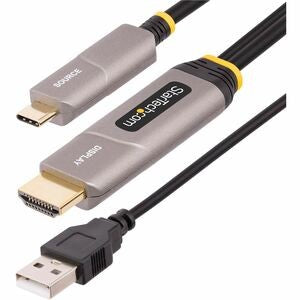

This is a StarTech.com 30ft USB-C to HDMI 4K 60Hz AOC Cable CL3, a fiber optic active optical cable (AOC) that connects DP Alt Mode-enabled USB Type-C sources to 4K 60Hz HDMI displays up to 30 feet (9.15m) away. It features an integrated adapter with a built-in 1.4ft (43.5cm) USB Type-A power pigtail for connection to a USB port or wall charger (not included). MPN: 145B-USBC-HDMI4K-AOC; UPC: 065030898201. Designed for reliable long-range transmission with OM3 multi-mode fiber, EMI shielding, and CL3-rated PVC jacket.
Advanced Features of StarTech.com USB-C to HDMI AOC Cable
- Long-Range Fiber Optic Design – OM3 multi-mode fiber overcomes copper cable limitations, reduces EMI for optimal 4K 60Hz signal quality up to 30ft with minimal degradation.

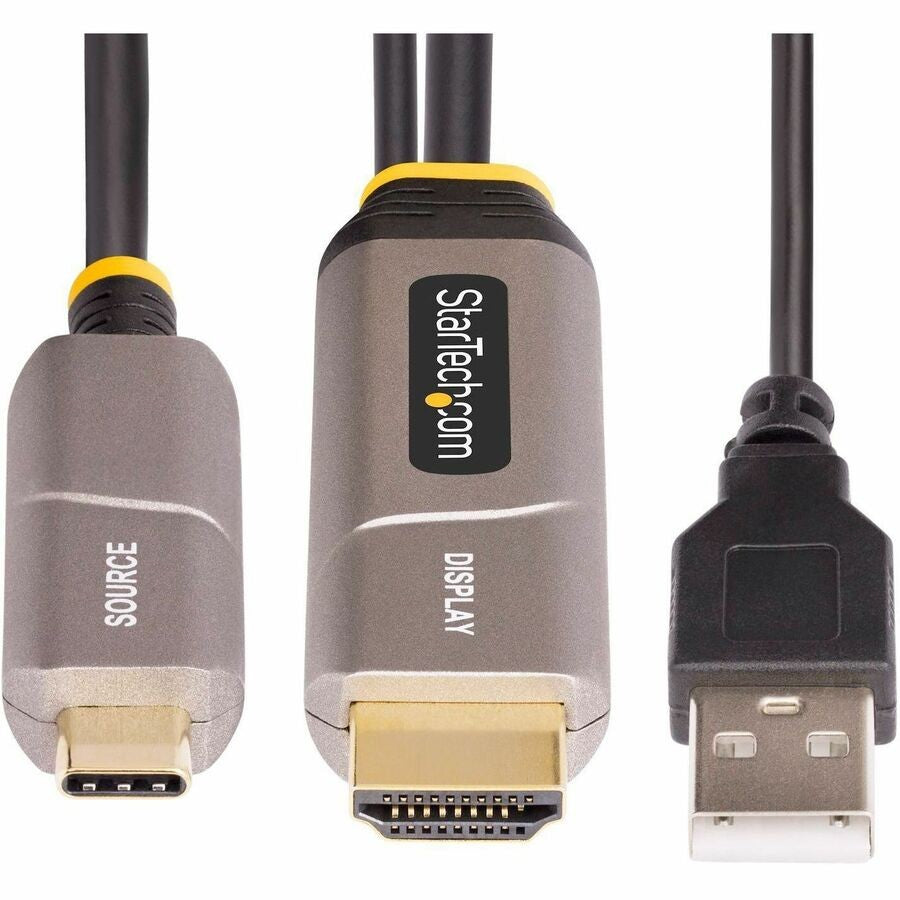

- Integrated Adapter & Power Pigtail – Combines USB-C to HDMI adapter and cable; built-in 1.4ft USB-A cable minimizes failure points; supports HDR (8/10-bit RGB, YCbCr 4:4:4, HDR10).
- Plug-and-Play Universal Compatibility – No software needed; broad OS and hardware support including Thunderbolt/USB4 devices.
- Durable CL3-Rated Construction – PVC jacket with strain relief and active booster; lightweight for wall routing, in-wall installations, storage, and transport.
- Advanced Video/Audio Protocols – HDCP 1.4/2.2, CEC, ARC, noise reducing, EMI protection for stable, clear signals.
- Environmental Standards – RoHS and WEEE compliant for eco-friendly use.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 145B-USBC-HDMI4K-AOC |
| UPC | 065030898201 |
| Product Type | A/V Cable / Fiber Optic Audio/Video Cable |
| Cable Length | 30 ft (9.15 m) |
| Cable Type | Fiber Optic / AOC Technology |
| Fiber Optic Mode | Multi-mode |
| Fiber Category | OM3 |
| Connector on First End | 1 x USB Type C - Male |
| Connector on Second End | 1 x USB 2.0 Type A - Male; 1 x HDMI 2.1 Digital Audio/Video - Male |
| Connector Gender | Male (both ends) |
| Jacket Type | CL3 |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Supported Resolution | 3840 x 2160 @ 60Hz |
| Device Supported | Audio/Video Device, Display, Wall Charger, Notebook, USB Device |
| Features | HDR Support, EMI Protection, Durable, Strain Relief, Noise Reducing, HDCP 1.4, HDCP 2.2, HDR10 Support, Consumer Electronics Control (CEC), Audio Return Channel (ARC), DisplayPort Alternate (ALT) Mode, Active |
| Color Family | Dual Color |
| Product Color | Black, Space Gray |
| Weight | 0.70 lbs |
| Package Height | 1.60 in |
| Package Width | 9.00 in |
| Package Depth | 9.30 in |
| Operating System Compatibility | Windows, macOS, ChromeOS, Linux |
| Environmental Compliance | RoHS, WEEE |
| Packaged Quantity | 1 |
Simple Setup Guide for StarTech.com USB-C to HDMI Cable
Plug-and-play installation in seconds—no tools or software required.
- Connect USB Type-C end to DP Alt Mode USB-C port on laptop or device.
- Connect HDMI male to display/monitor HDMI port.
- Plug built-in USB 2.0 Type-A power cable into available USB port or 5V wall charger.
- Power on devices; signal transmits automatically at up to 4K 60Hz.

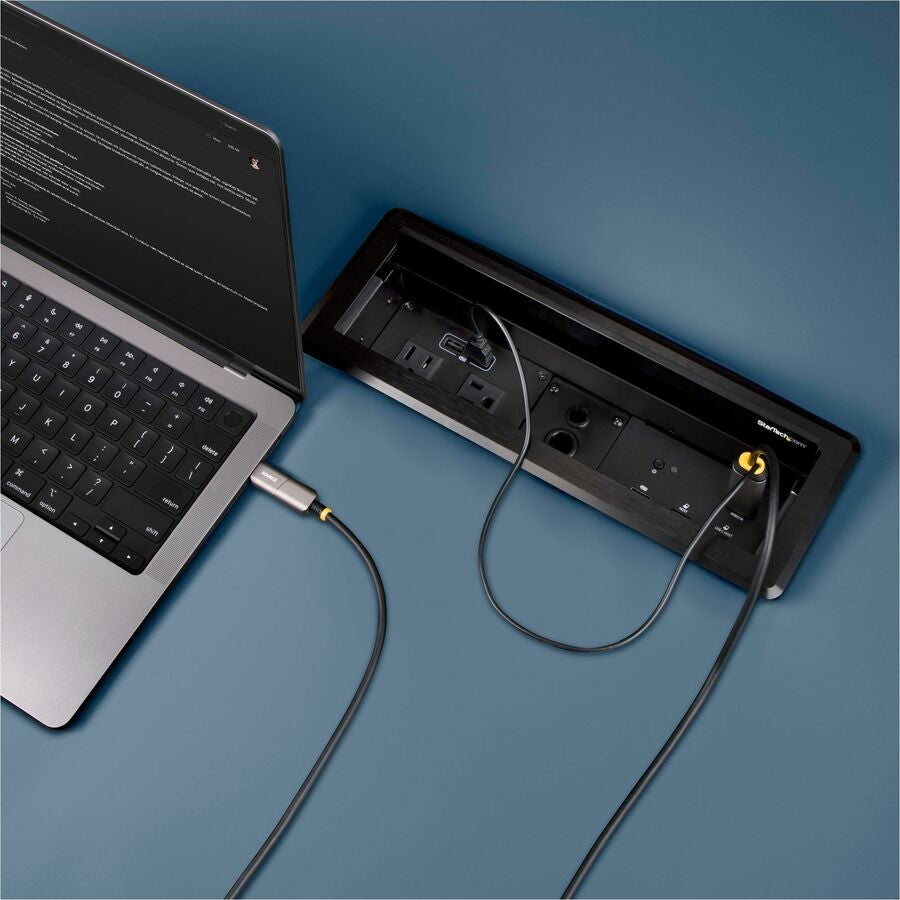

- Route cable as needed; CL3 rating allows in-wall use.
Why Choose StarTech.com 30ft USB-C to HDMI 4K 60Hz AOC Cable CL3

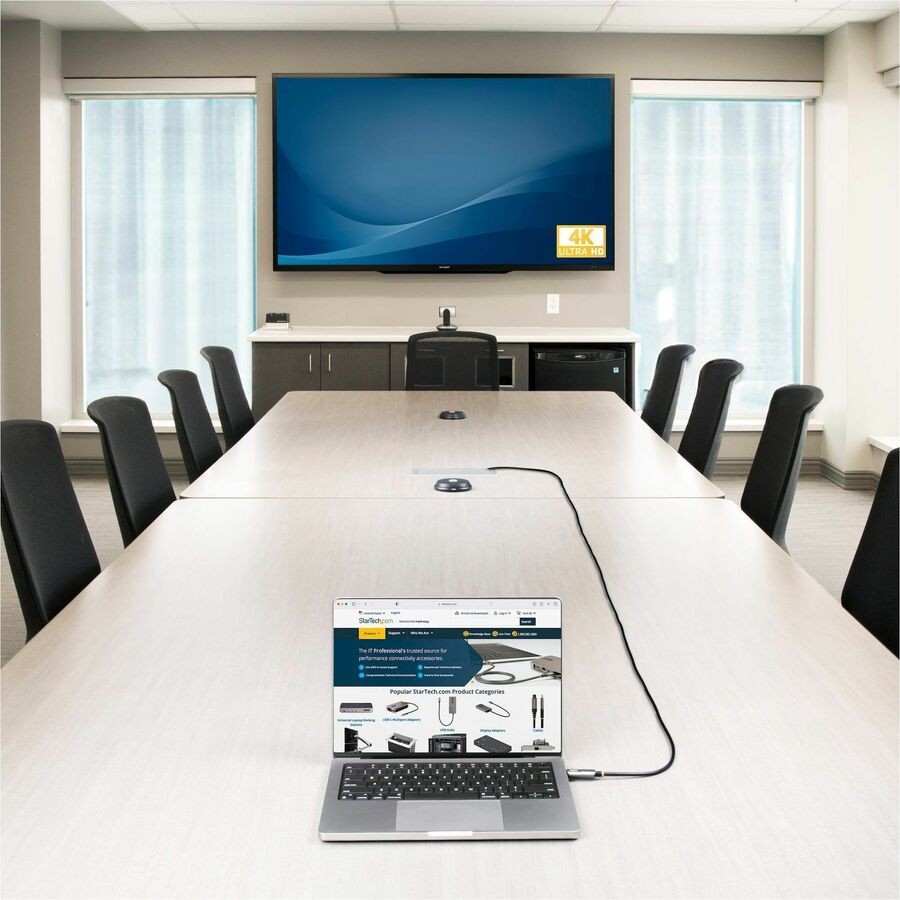

StarTech.com delivers proven long-distance performance with fiber optic reliability, integrated power solution, and full protocol support for professional AV setups, home offices, and extended display needs.
Extend your USB-C to 4K HDMI connection reliably—Order StarTech.com 30ft AOC today!
Brand: Art
Type: Cable
Features: Powered
MPN: 145B-USBC-HDMI4K-AOC
Color: Dual Color
Compatible Brand: StarTech.com
Connector A: USB Type C Male
Cable Length: 30 ft
Connector B: HDMI 2.1
Connection Split/Duplication: 1:1
UPC: 065030898201
