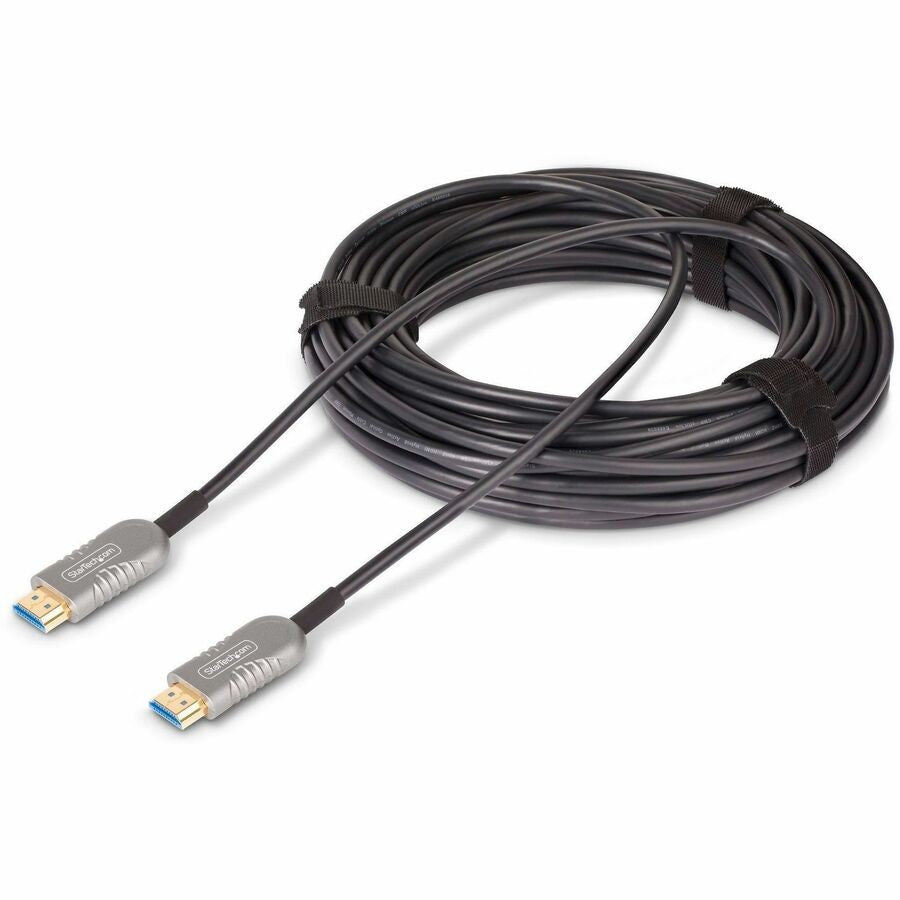

StarTech.com 30ft (9.1m) HDMI 2.1 8K AOC Plenum Cable 48Gbps
StarTech.com 30ft (9.1m) HDMI 2.1 8K AOC Plenum Cable 48Gbps
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech.com 30ft (9.1m) HDMI 2.1 8K AOC Plenum Cable 48Gbps
This is a StarTech.com 30ft (9.1m) HDMI 2.1 Hybrid Active Optical Cable (AOC), CMP Plenum Rated, designed for 8K Ultra High Speed HDMI 2.1/2.0 transmission at 48Gbps. The hybrid fiber optic A/V cable supports long-distance 8K 60Hz video and high-quality audio through plenum spaces, with fiber optic cores and copper conductors for reduced EMI. MPN: 8K-A-30F-HDMI-CABLE; UPC: 065030903042.
Key Features of StarTech.com HDMI 2.1 Hybrid AOC Cable
- Hybrid AOC Construction – Fiber optic cores for high-bandwidth 8K 60Hz video, copper for low-bandwidth signals (EDID/HDCP/eARC), shielded to reduce EMI over long distances.
- Full HDMI 2.1 Support – HBR3 up to 48Gbps, HDR10+ with 12-bit processing, eARC for uncompressed 7.1/32-channel audio, DSC 1.2a, Forward Error Correction, HDCP 2.3.

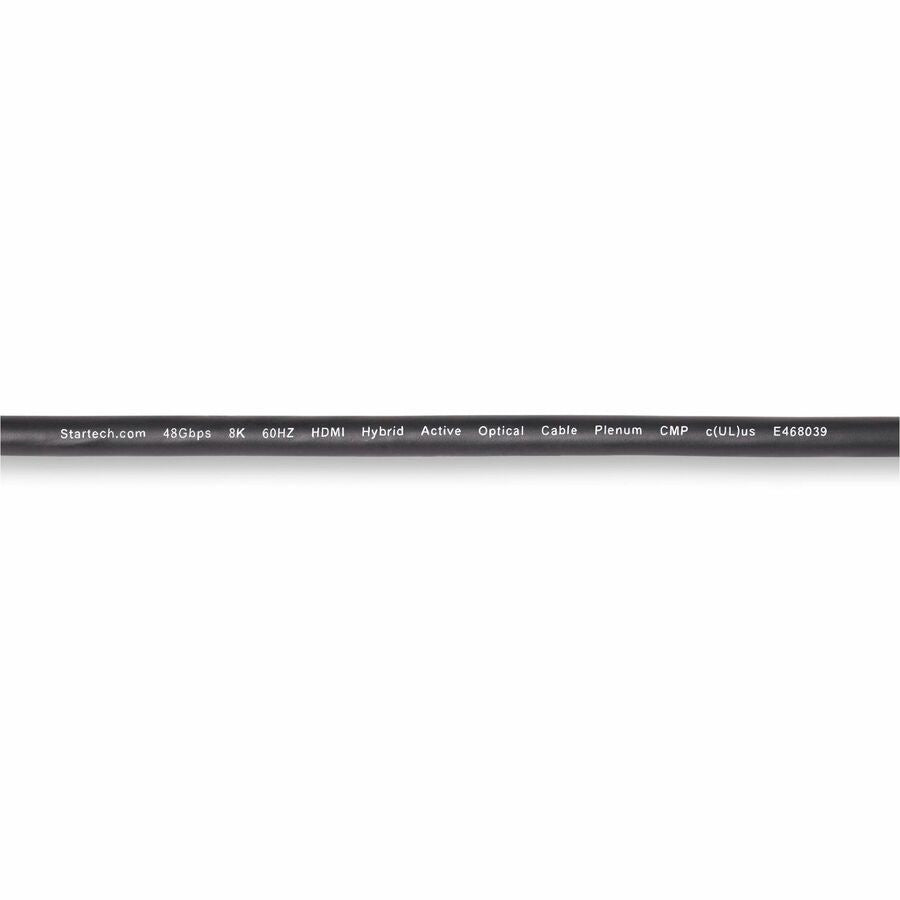

- Plenum-Rated Design – CMP jacket with low-smoke/flame characteristics for ceilings and in-wall plenum installations; Aramid-reinforced fiber core withstands over 6,000 bending cycles at 120 degrees.
- Slim and Flexible – 4.6mm (0.18in) outer diameter, slimmer than passive HDMI cables, ideal for tight spaces.
- Premium Connectors – Gold-plated HDMI 2.1 male ends, aluminum-polyester foil shielding, 28/30 AWG copper conductors.
- Device Compatibility – Supports audio/video devices requiring high-bandwidth HDMI 2.1 features.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| MPN | 8K-A-30F-HDMI-CABLE |
| Manufacturer Part Number | 8KA30FHDMICABLE |
| UPC | 065030903042 |
| Product Type | A/V Cable |
| Cable Type | Hybrid Fiber Optic |
| Cable Length | 30 ft (9.1 m) |
| Connector Type (Both Ends) | HDMI 2.1 Digital Audio/Video - Male |
| Connector Gender (Both Ends) | Male |
| Connector Details (Each End) | 1 x HDMI 2.1 Digital Audio/Video - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Shielding Material | Aluminum-polyester Foil |
| Jacket Type | CMR, CMP Plenum |
| Jacket Material | Polyvinyl Chloride (PVC) |
| American Wire Gauge | 28/30 AWG |
| Conductor Material | Copper |
| Data Transfer Rate | 48 Gbit/s |
| Cable Diameter | 4.6 mm (0.18 in) |
| Device Supported | Audio/Video Device |
| Features | Active AOC Technology, HDR10+ Support, Enhanced Audio Return Channel (eARC), Extended Display Identification Data (EDID), HDCP, Display Stream Compression (DSC) 1.2a, HDCP 2.3, Damage Resistant, Flexible |
| Product Color | Black |
| Product Material | Zinc Alloy, Copper |
| Weight | 0.70 lbs |
| Package Height | 1.40 in |
| Package Width | 9.30 in |
| Package Depth | 9.00 in |
| Packaged Quantity | 1 / Each |
| Environmentally Friendly | Yes (WEEE) |
Installation and Usage for StarTech.com 8K HDMI AOC Cable
Plug-and-play installation: Connect SOURCE end to source device and DISPLAY end to display. Suitable for plenum routing in buildings.

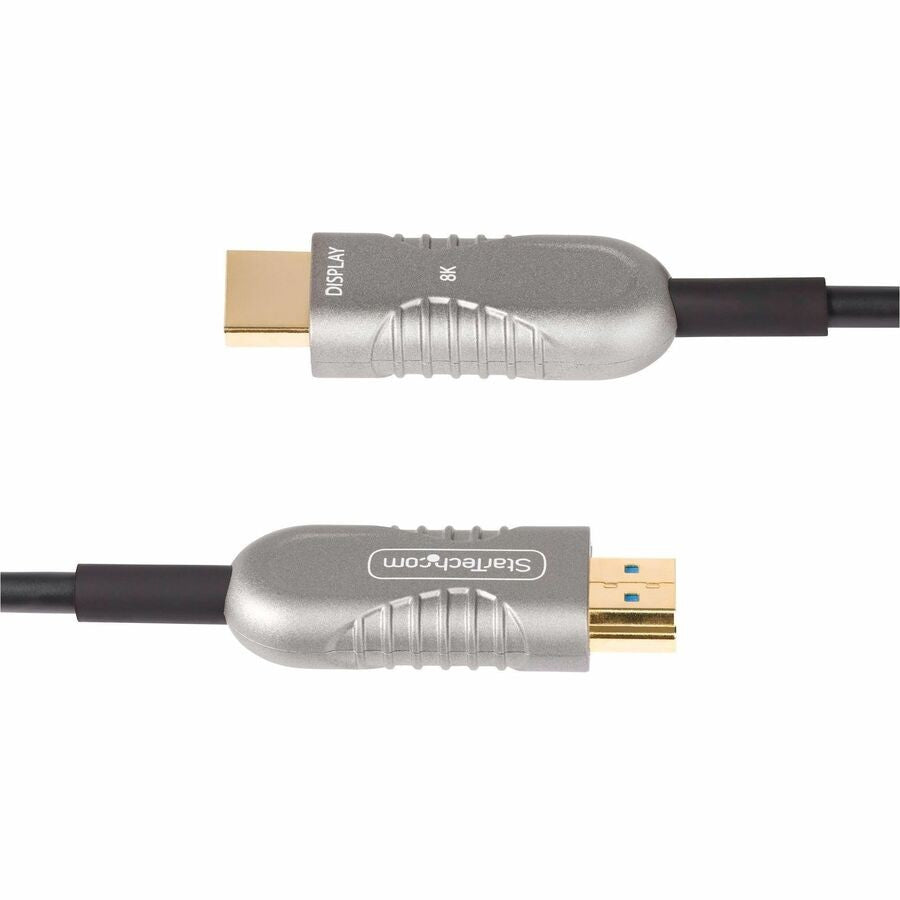

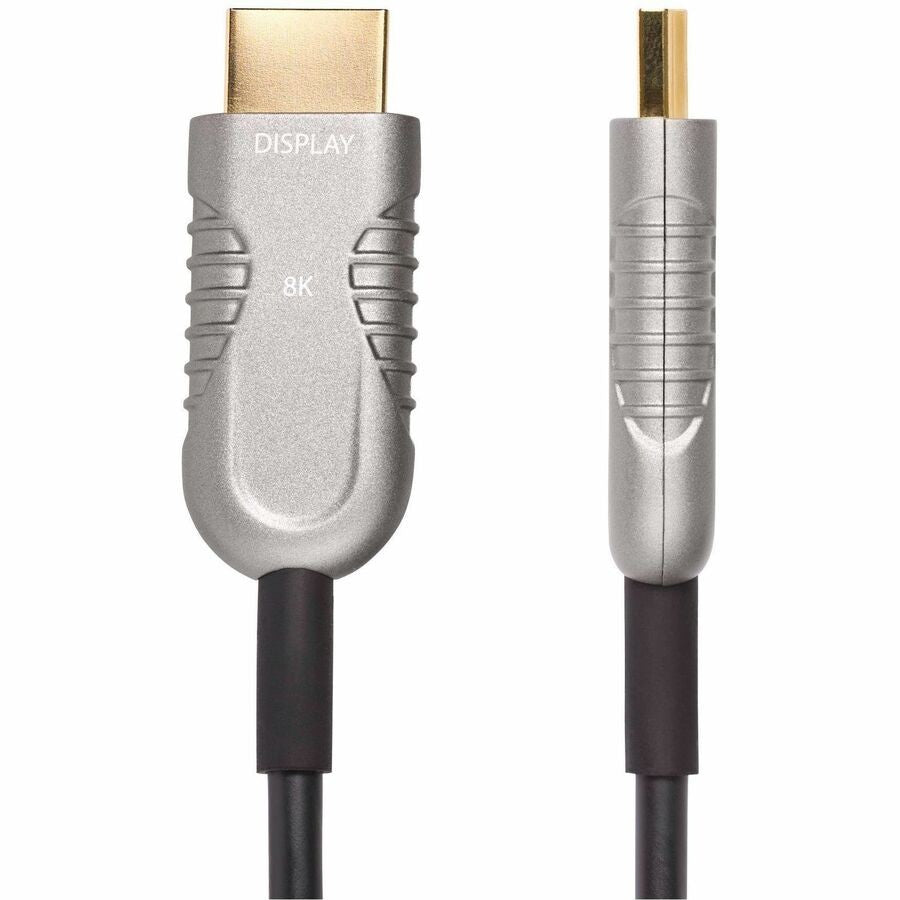

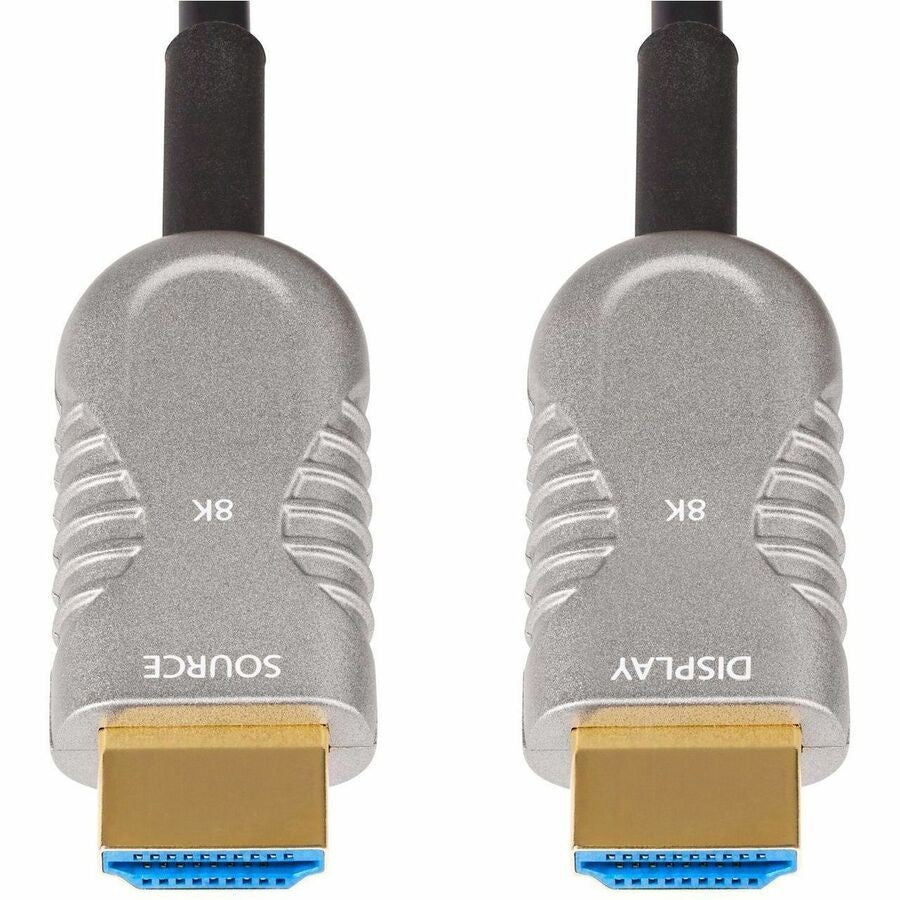

- Identify SOURCE and DISPLAY labels on connectors.
- Route cable through plenum spaces as needed.
- Secure connections for optimal signal integrity.
- Avoid exceeding bend radius; test 8K/48Gbps signal.
Why Choose StarTech.com Plenum HDMI 2.1 AOC
Engineered for professional AV installations requiring reliable long-distance 8K transmission in plenum environments, with full HDMI 2.1 feature support and durable construction.
Elevate your AV setup with StarTech.com 30ft HDMI 2.1 AOC—order now!
Brand: Artec
Type: Cable
Color: Black
Compatible Brand: StarTech.com
MPN: 8K-A-30F-HDMI-CABLE
Model: E468039
Cable Length: 30 ft
UPC: 065030903042
