Advanced Features & UASP Performance

• UASP Support (USB Attached SCSI Protocol) – Performs up to 70% faster read/40% faster write speeds over traditional USB 3.2 Gen 1 at peak performance; up to 80% reduction in processor resources. Uses efficient protocol allowing multiple simultaneous commands for optimized transfers. Supported in Windows 8, 8.1, Server 2012, Linux kernel 2.6.37 or later (UASP not supported by all OS).
• Enhanced Power Delivery – Optional LP4 connector connects to system power supply for reliable power to demanding devices.
• Versatile Installation – Includes standard profile bracket and low-profile/half-height bracket for small form-factor computers.
• Backward Compatibility – Works with existing USB 2.0/1.1 devices.
• Plug-and-Play Design – PCI Express x1 host interface for easy integration into desktop systems.

Comprehensive Technical Specifications

Package Contents & Installation Overview

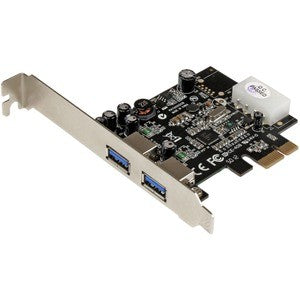

• 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Card Adapter with UASP
• 1 x Low Profile Bracket
• 1 x SATA to LP4 Cable
• 1 x Driver CD
• 1 x Instruction Manual

Installation involves inserting the card into an available PCI Express x1 slot, optionally connecting the LP4 power cable to the system power supply, and installing drivers from the included CD. Pro tip: Ensure your motherboard BIOS supports PCIe devices and update chipset drivers for optimal compatibility.

Why Choose StarTech.com PEXUSB3S25

Enhance USB connectivity with proven UASP performance, versatile power options, and broad OS support. Test results from Intel Ivy Bridge system, StarTech.com USB 3.2 Gen 1 cards, UASP-enabled enclosure, and SATA III SSD confirm superior speeds and efficiency. Ideal for PCI Express-enabled systems needing high-speed USB expansion.
