StarTech.com M.2 to U.3 NVMe SSD Adapter – PCIe Gen 4, 2242/2260/2280, TAA Compliant
StarTech.com M.2 to U.3 NVMe SSD Adapter – PCIe Gen 4, 2242/2260/2280, TAA Compliant
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

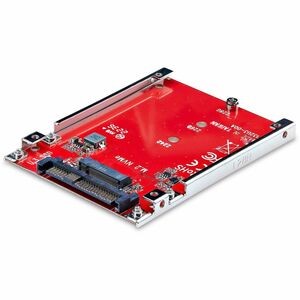

StarTech.com M.2 to U.3 Adapter - For M.2 NVMe SSDs, PCIe M.2 Drive to 2.5inch U.3 (SFF-TA-1001) Host Adapter/Converter, TAA Compliant

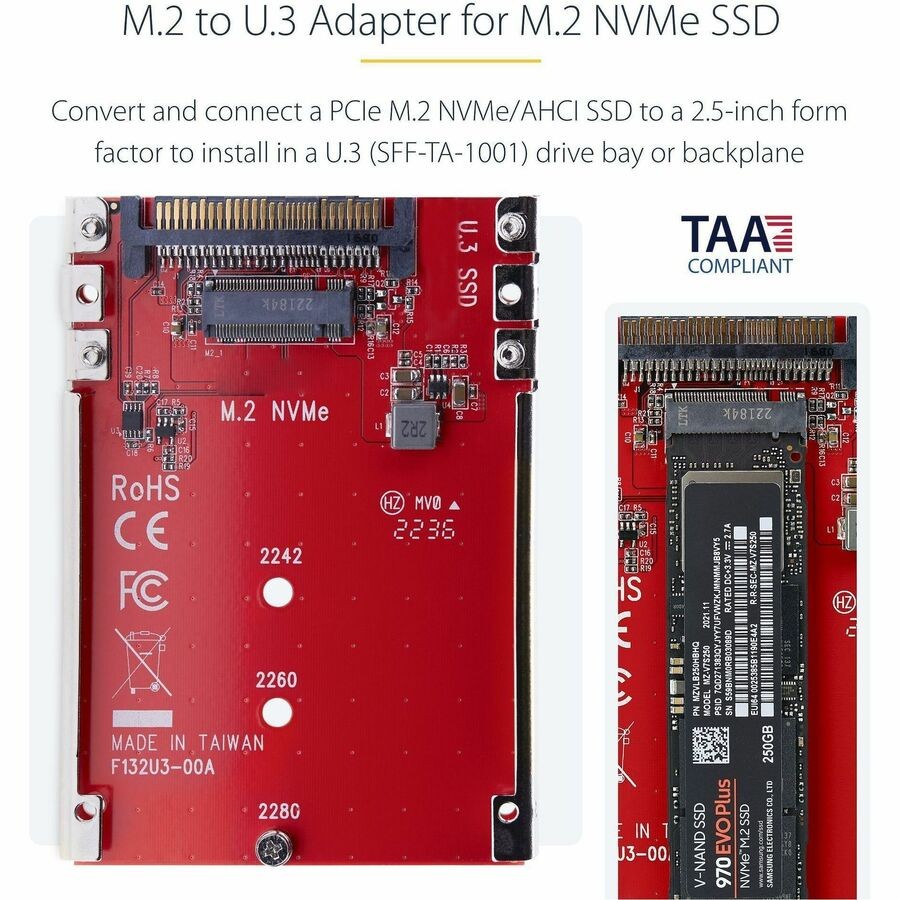

This is a StarTech.com M.2 to U.3 Adapter designed to convert and connect a PCIe M.2 NVMe SSD to a 2.5-inch form factor for installation in a U.3 drive bay or backplane. The 1M25U3M2ADAPTER (MPN: 1M25-U3-M2-ADAPTER) maintains PCIe Gen 4 performance without a chipset, supports 2242, 2260, or 2280 M.2 NVMe drives, and is TAA Compliant. UPC: 065030900744. Ideal for servers, computers, developers, and content creators needing expanded NVMe storage via U.3 (SFF-TA-1001) interfaces.
Key Features of StarTech.com M.2 to U.3 NVMe Adapter
- Performance Retention – Chipset-free design preserves PCIe Gen 4 read/write speeds for 2242/2260/2280 M.2 NVMe drives in 2.5-inch U.3 form factor.
- Hassle-Free Setup – Plug-and-play across OS; mounting hardware included for easy U.3 bay/backplane integration.
- Connectors – 1x M.2 (NVMe, M-Key, PCIe x4) drive connector; 1x U.3 (PCIe, NVMe, SFF-TA-1001) host connector.
- Reliability – S.M.A.R.T. support; 60 insertion cycles; MTBF 12,368,734 hours.
- Power – 3.3V DC at 5A output.
- Compliance – TAA Compliant; REACH, RoHS, WEEE; made in Taiwan.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number | 1M25U3M2ADAPTER / 1M25-U3-M2-ADAPTER |
| UPC | 065030900744 |
| Product Type | M.2 to U.3 Adapter |
| Product Color | Red |

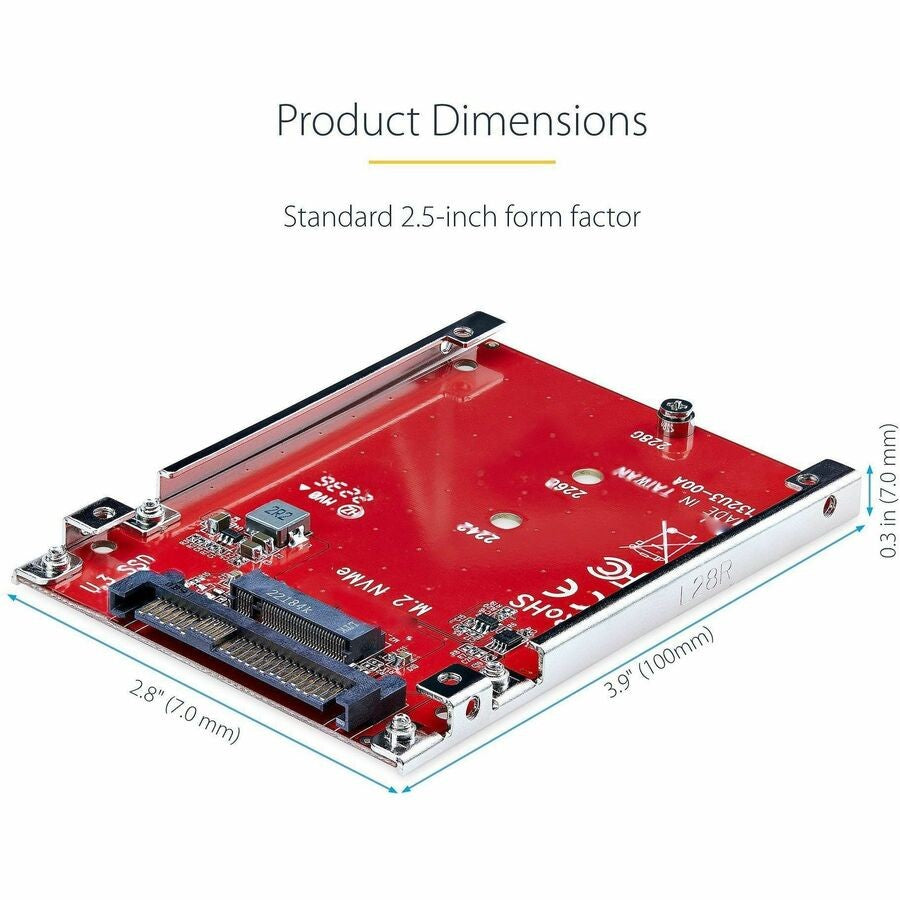

| Height | 0.3" |
| Width | 2.8" |
| Length | 3.9" |
| Weight (Approximate) | 1.31 oz |
| Drive Connectors | 1 - M.2 (NVMe, M-Key, PCIe x4) |

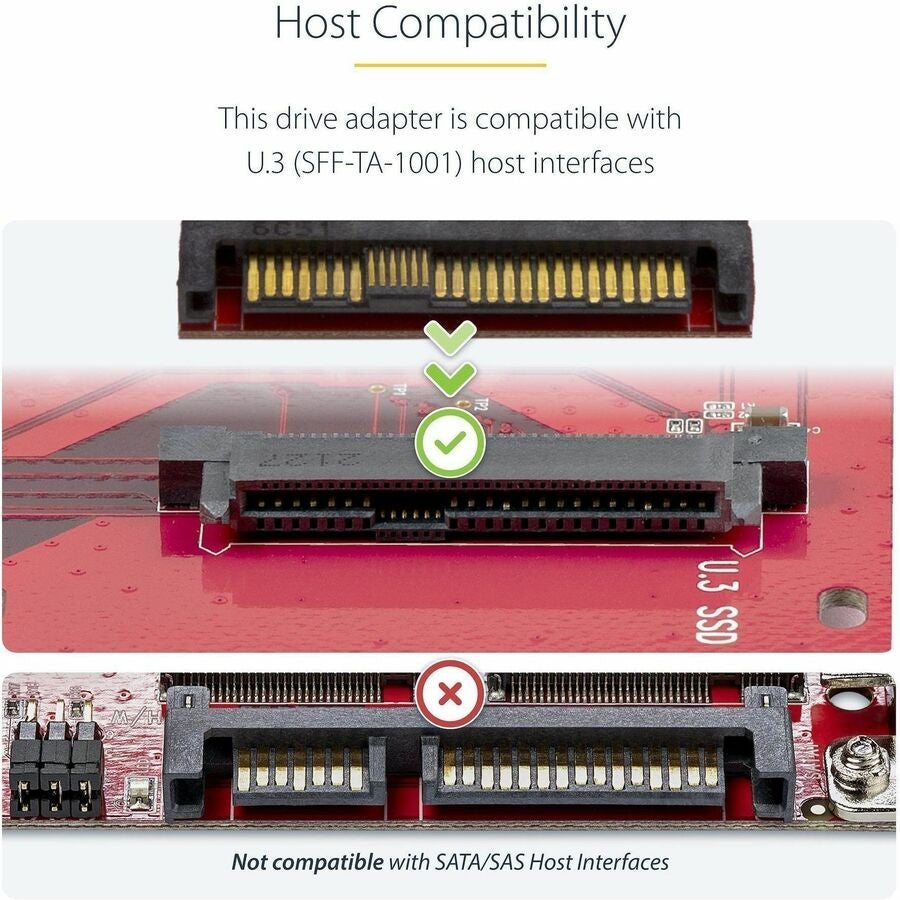

| Host Connectors | 1 - U.3 (PCIe, NVMe, SFF-TA-1001) |

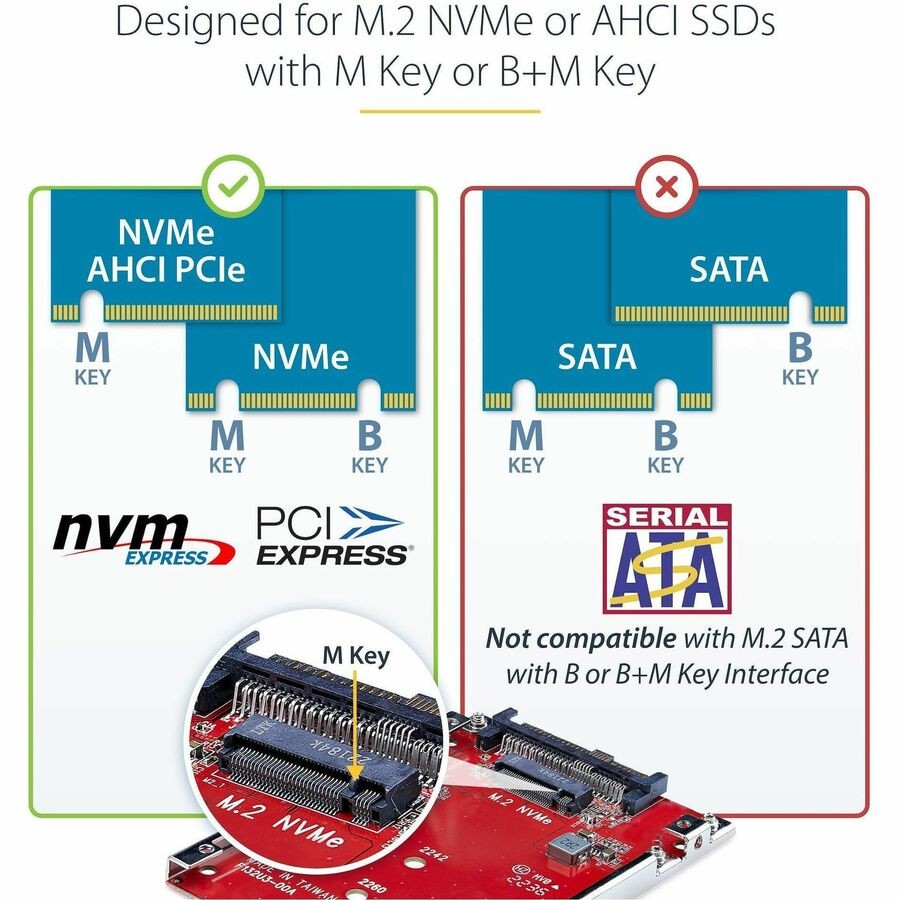

| Compatible Drive Types | M.2 (PCIe, NVMe, M-Key, NGFF) |

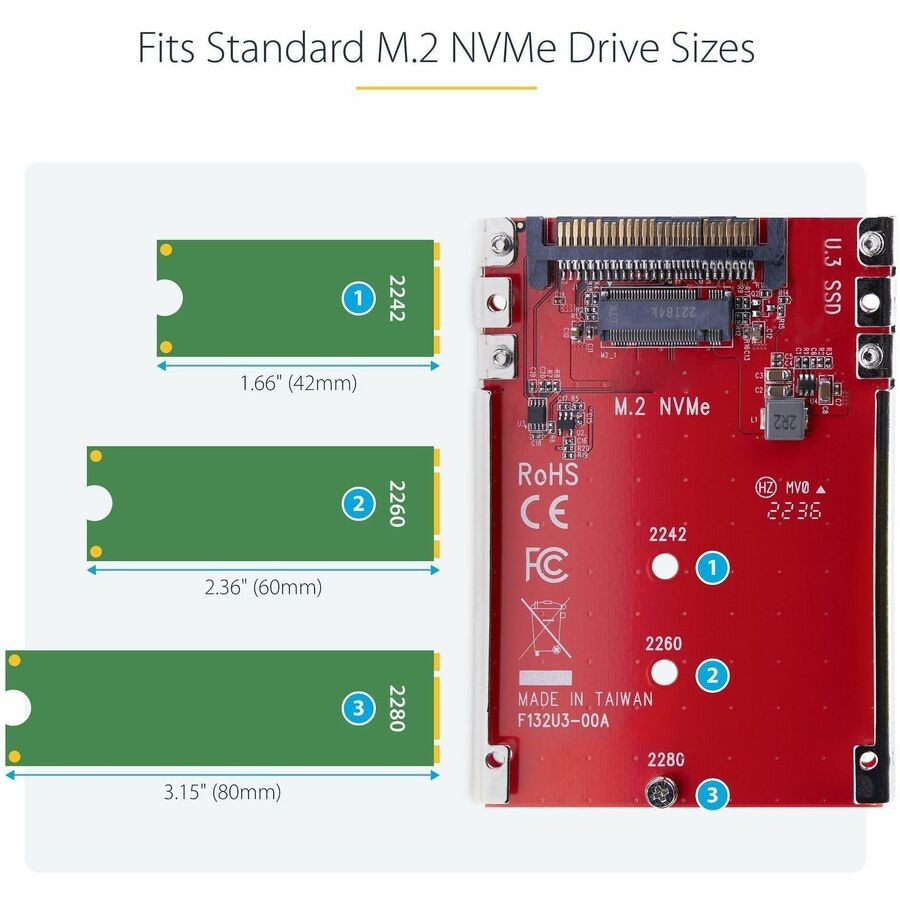

| Supported Drive Heights | 2242, 2260, 2280 |
| Number of Drives | 1 |
| Bus Type | PCI Express |
| Interface | U.3 (PCIe, NVMe, SFF-TA-1001) |
| Fan(s) | No |
| S.M.A.R.T. Support | Yes |
| Hardware RAID Supported | No |
| Insertion Rating | 60 Cycles |
| MTBF | 12,368,734 Hours |
| Output Voltage | 3.3V DC |
| Output Current | 5A |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 15% - 90% RH |

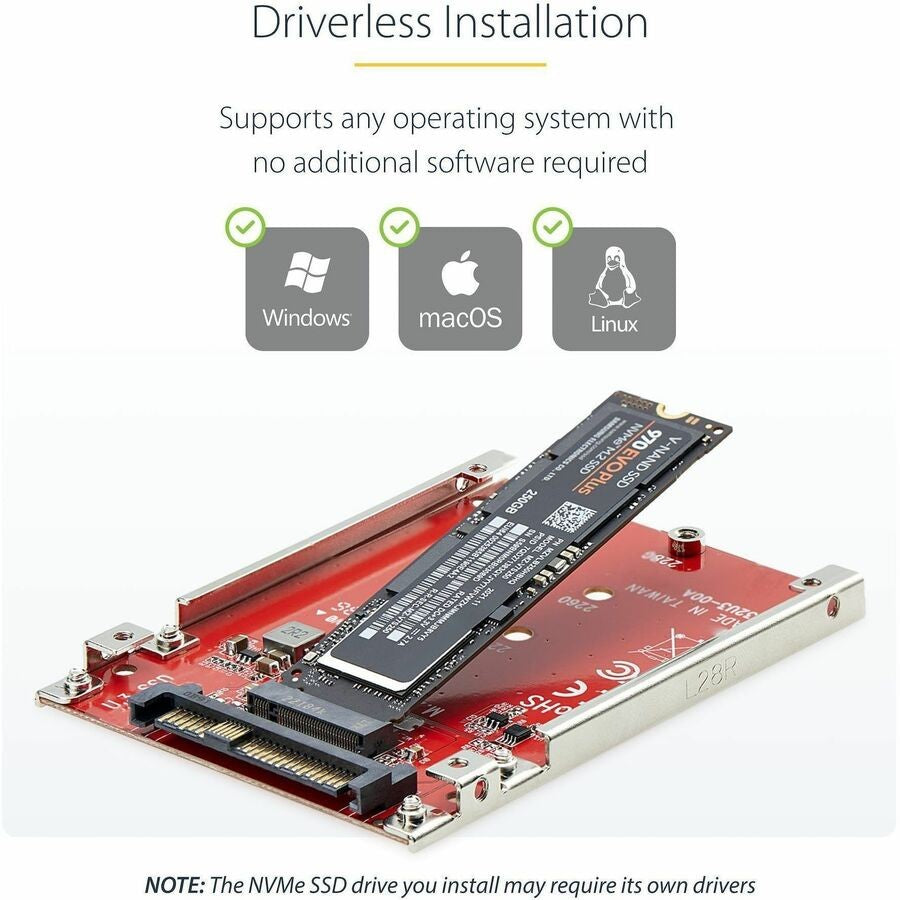

| OS Compatibility | Windows, macOS, Linux (No Drivers Required) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmental Compliance | REACH, RoHS, WEEE |
| Packaged Quantity | 1 |
Hassle-Free Installation & Usage

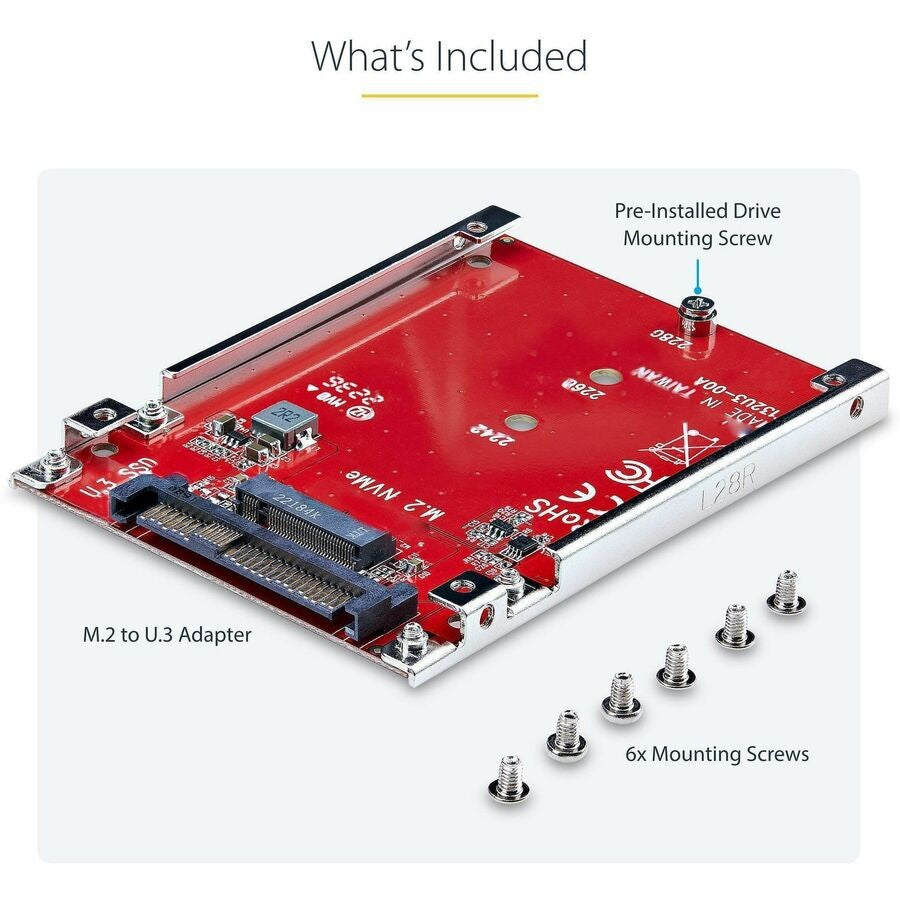

Designed for simple setup without additional drivers or software. Includes mounting hardware for M.2 drive and U.3 adapter.
- Install M.2 NVMe SSD into the adapter's M.2 slot.
- Secure with provided hardware.
- Mount adapter into U.3 drive bay or backplane.
- Connect to U.3 host—no OS drivers needed.
Why Choose StarTech.com M.2 to U.3 Adapter?
Expands storage capacity in U.3 systems while retaining full M.2 NVMe performance; reliable for data-intensive tasks in servers and workstations.
Upgrade your storage with StarTech.com 1M25U3M2ADAPTER—Order the TAA Compliant M.2 to U.3 Adapter today!
Brand: StarTech
MPN: 1M25-U3-M2-ADAPTER
Country of Origin: Taiwan
Compatible Brand: StarTech.com
Item Height: 0.3"
Item Length: 3.9"
Item Width: 2.8"
UPC: 065030900744
