Description
StarTech.com USB to Serial Hub - 16 Port - COM Port Retention - Rack Mount and Daisy Chainable - USB to RS232 Hub

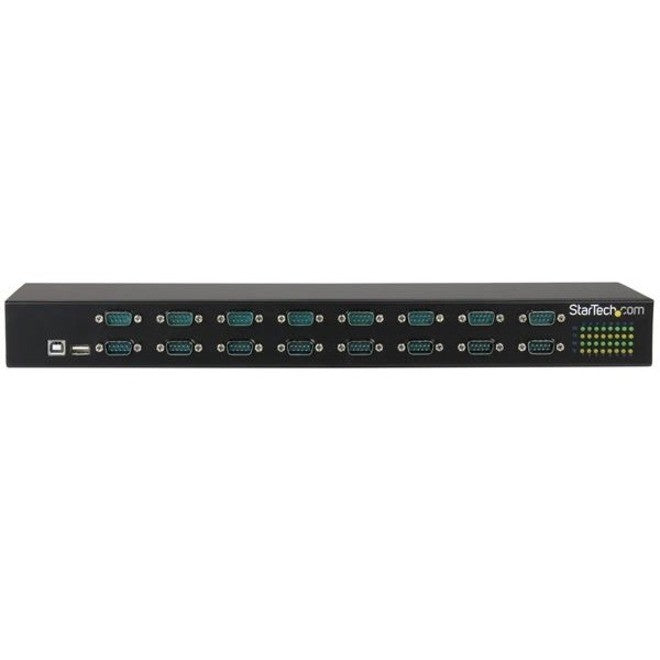

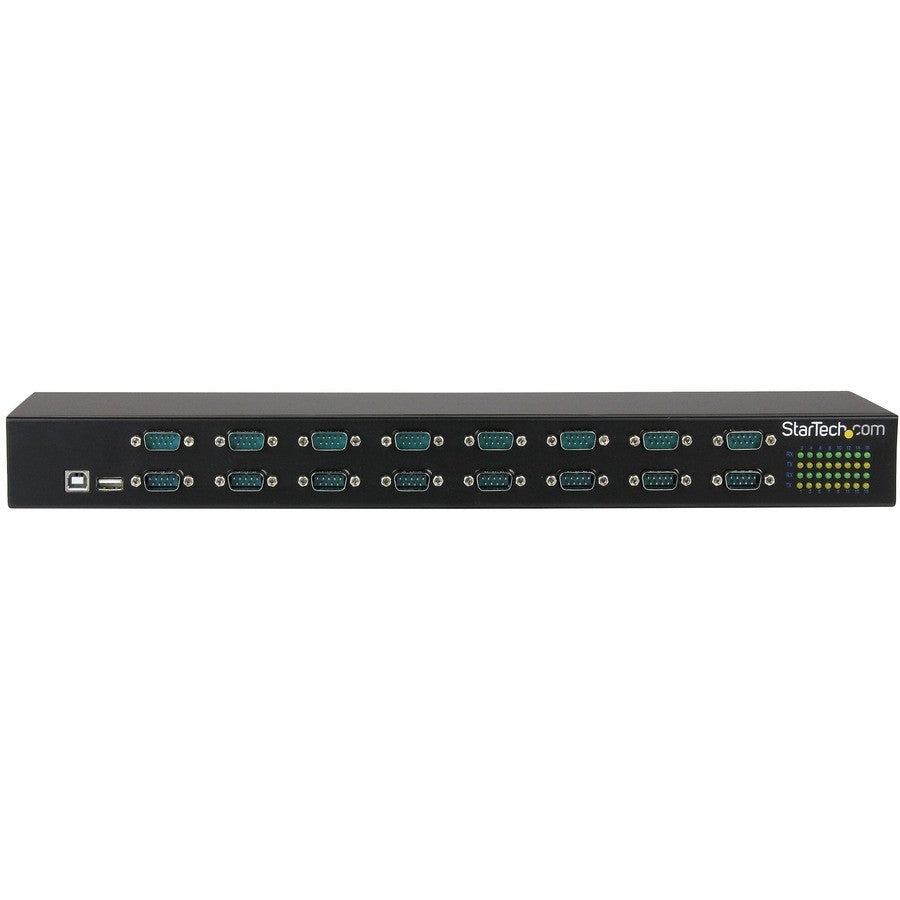

This is a 16-Port USB-to-Serial Adapter Hub from StarTech.com, model ICUSB23216FD, designed to add RS232 serial capability to industrial settings via a single USB connection. It features a sturdy rack-mountable all-metal chassis, daisy-chain support for scalability, and COM port retention for consistent port assignments. UPC: 065030864763. Ideal for industrial automation, kiosks, security systems, and more, with versatile power options including AC adapter and terminal block.
Key Features and Benefits
- 16 RS232 Serial Ports powered by one USB port, enabling full control of serial devices from PC, Linux, or Mac systems.
- Daisy-Chain Capability connects multiple hubs for expanded port count up to 64 ports cost-effectively.
- COM Port Retention automatically re-assigns the same COM values upon reconnection, simplifying management.
- Rack-Mountable Design fits standard 19-inch racks; also supports DIN rail mounting for industrial setups.
- Rugged Industrial Build all-metal chassis with extended temperature range of -40°C to 85°C (-40°F to 185°F) for harsh environments.

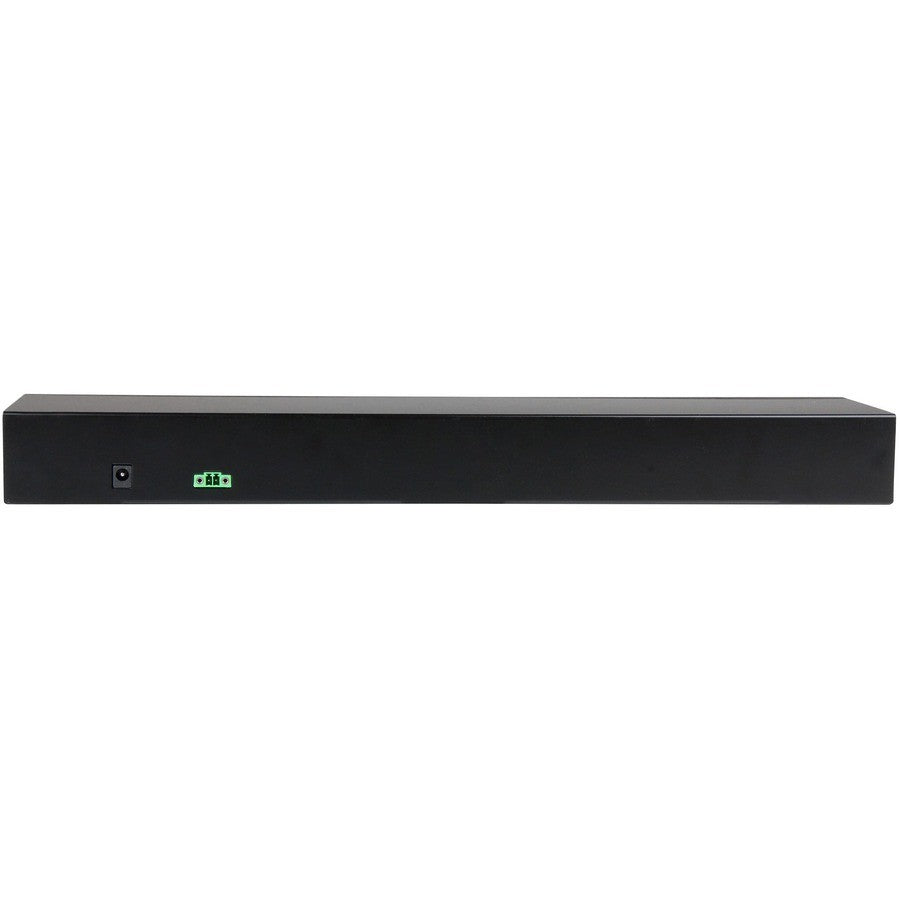

- Dual Power Options universal AC adapter (NA/EU/UK/AU) or terminal block for flexible deployment.
- Broad OS Support compatible with Windows CE/XP/Vista/7/8/10/11, Windows Server editions, macOS 10.6+, and Linux Kernel 3.0+ LTS.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ICUSB23216FD |
| UPC | 065030864763 |
| Product Type | Serial Hub / USB to Serial Hub |
| Host Interface | USB |
| Platform Supported | PC, Linux, Mac |
| Number of Serial Ports (External) | 16 (RS232) |
| Form Factor | External, Rack Mountable, DIN Rail Mountable |
| Height | 1.8" |
| Width | 4.7" |
| Weight (Approximate) | 3.53 lb |
| Operating Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Power Options | AC Adapter, Terminal Block |
| Chassis Material | All-Metal |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Packaged Quantity | 1 |
OS Compatibility
- Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
- Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
- macOS 10.6 to 10.15, 11.0, 12.0, 13.0
- Linux Kernel 3.0.x and up (LTS Versions Only)
Package Contents
- 16-Port USB-to-Serial Adapter Hub
- 1 x USB Cable
- 2 x Rack Mounting Brackets
- 8 x Rack Mounting Screws
- 2 x DIN Rail Mounting Brackets
- 4 x DIN Rail Mounting Screws
- 4 x Washers
- 4 x Nuts
- 1 x Universal Power Adapter (NA/EU/UK/AU)
- 1 x Driver CD
- 1 x Quick Start Guide
Why Choose StarTech.com 16-Port USB to RS232 Serial Hub
This industrial-grade hub offers scalable serial expansion with reliable performance in demanding environments, COM retention for seamless operation, and versatile mounting options for rack or DIN rail integration.
Expand your serial connectivity with the StarTech.com ICUSB23216FD—order now!
Brand: Art
Type: Serial Hub / USB to Serial Hub
Features: Powered
MPN: ICUSB23216FD
Color: Black
Compatible Brand: StarTech.com
Country of Origin: Taiwan
Connector A: USB
Connection Split/Duplication: 1:16
Item Height: 1.8 in
Item Width: 4.7 in
Unit Quantity: 1
UPC: 065030864763
