StarTech.com 16-Outlet 1U Rackmount Metered PDU Surge 125V/15A TAA
StarTech.com 16-Outlet 1U Rackmount Metered PDU Surge 125V/15A TAA
Low stock: 4 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech.com 16-Outlet Horizontal Rack Mount Metered PDU, 1U Server Power Strip w/Surge Protector, 125V/15A, 8ft (2.4m) Power Cord, TAA
This is a StarTech.com 16-Outlet 1U Rack Mount Metered PDU with surge protection, designed for server racks and data centers. Featuring a built-in 8ft (2.4m) NEMA 5-15P power cord and 16x NEMA 5-15R outlets (12 rear, 4 front), it provides real-time metering of voltage (V), current (Amp), wattage (W), and power factor (PF) via a large backlit LCD display. MPN: 16NM8-RACK-MOUNT-PDU; UPC: 065030902588. TAA compliant for professional environments.
Metered PDU Features & Power Safety

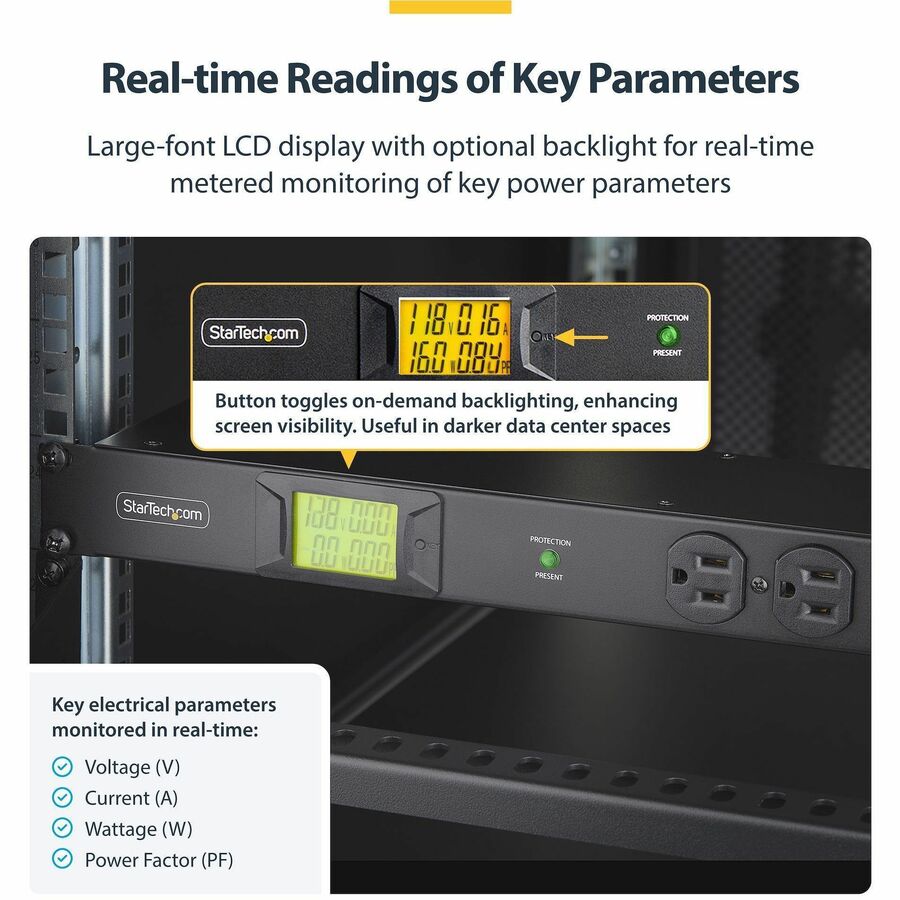

- Real-Time Metering – Large-font backlit LCD displays V, A, W, PF for load management and early issue detection.

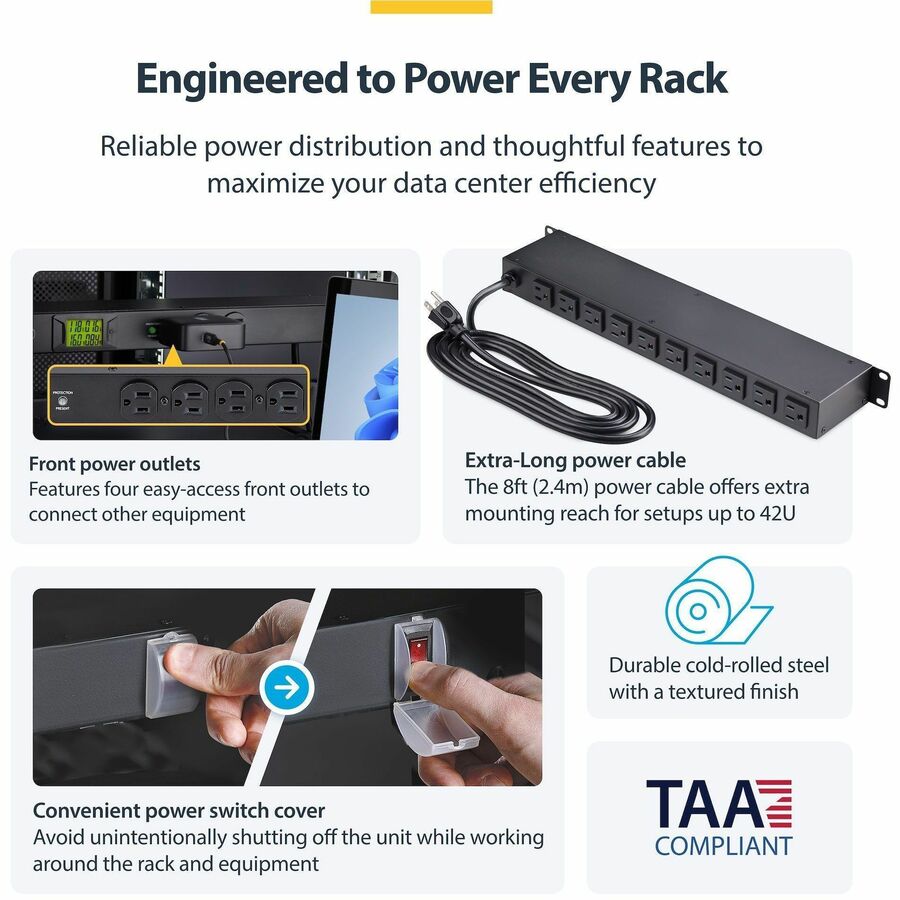

- 16 NEMA 5-15R Outlets – 12 rear, 4 front for flexible connectivity in server rooms and data centers.
- Surge Protection & 15A Circuit Breaker – Mechanical trigger resettable breaker with safety cover; LED confirms protection status.
- Rackmount Design – Durable cold-rolled steel with textured finish; 1U horizontal mount.
- 8ft (2.4m) NEMA 5-15P Cord – Built-in for easy installation.
- TAA Compliant – Meets government procurement standards; constructed for long-lasting sturdiness.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number | 16NM8-RACK-MOUNT-PDU |
| Product Name | 16-Outlets PDU |
| Product Type | PDU |
| PDU Type | Metered |
| Plug/Connector Type | NEMA 5-15P |
| Plug/Connector Detail | 1 x NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 16 x NEMA 5-15R (12 rear, 4 front) |
| Protection Type | Surge Protection, Circuit Breaker |
| Features | LCD Display, LED Status Indicator |
| Input Voltage | 120 V AC |
| Output Voltage | 125 V AC |
| Input Current | 15 A |
| Circuit Breaker | Yes (15A resettable) |
| Product Color | Black |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 8 ft (2.4m) |

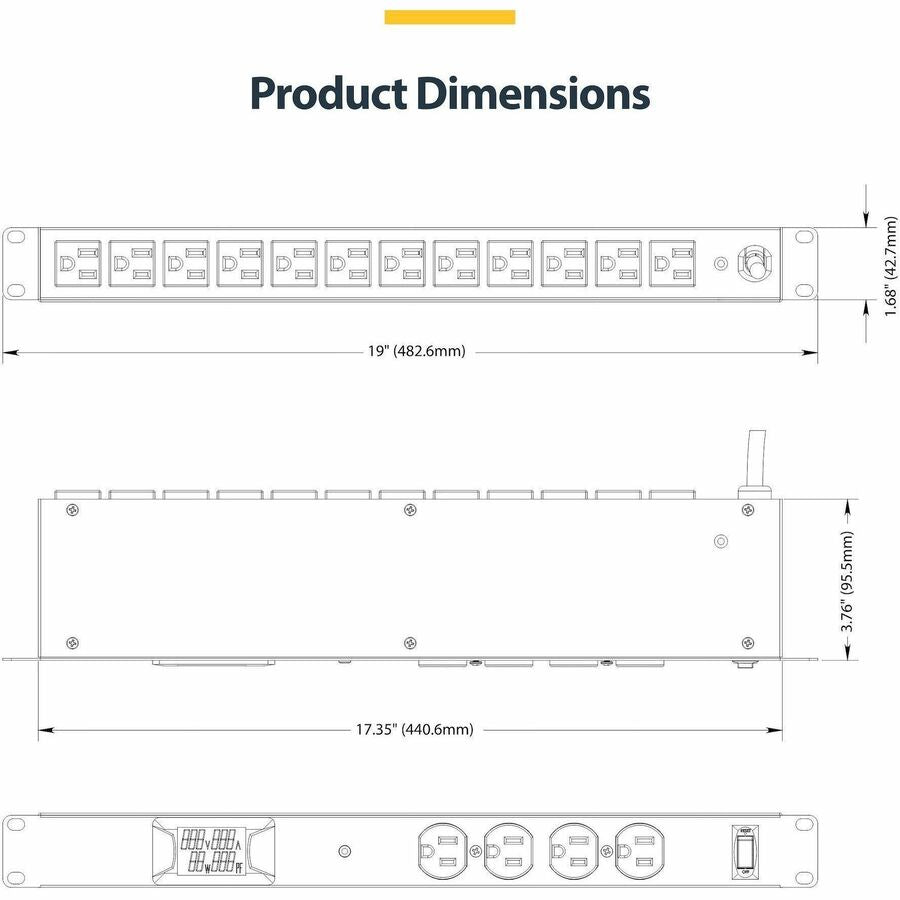

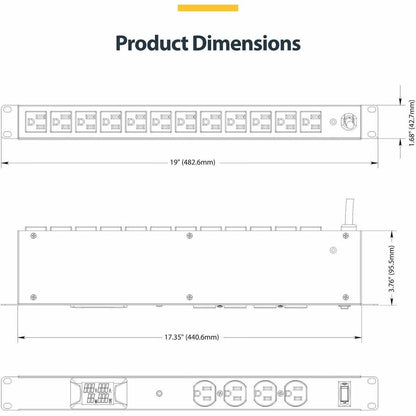

| Height | 1.7" |
| Width | 19" |
| Length/Depth | 3.8" |
| Weight (Approximate) | 4.40 lb |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | 14°F (-10°C) |
| Maximum Storage Temperature | 122°F (50°C) |
| Minimum Operating Humidity | 5% |
| Maximum Operating Humidity | 95% |
| Application/Usage | Server Rack/Cabinet, Data Center |
| Certifications & Standards | EIA-310-D, UL 60950-1, UL1449 VPT 500V |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| UPC | 065030902588 |
Package Contents & Rack PDU Design
- 16-Outlets PDU
- Quick-Start Guide
- Cold-rolled steel construction for durability in professional environments.
Why Choose StarTech.com Metered Rack PDU?
Provides essential metering and surge protection for stable operation of critical rack equipment, with TAA compliance and robust build for data centers and server rooms.
Power your server rack reliably—Order the StarTech.com 16-Outlet 1U Metered PDU today!
Brand: Artec
Type: PDU
Features: Rack Mountable
Color: Black
Compatible Brand: StarTech.com
MPN: 16NM8-RACK-MOUNT-PDU
Voltage Compatibility: 120 V
Model: 16NM8-RACK-MOUNT-PDU
Number of Outlets: 16
Maximum Input Current: 15 A
Item Height: 1.7 in
Item Width: 19 in
Item Length: 3.8 in
UPC: 065030902588
