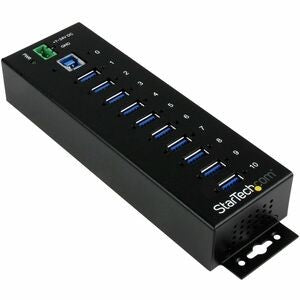

StarTech.com 10 Port Industrial USB 3.0 Hub - ESD and Surge Protection - DIN Rail or Surface-Mountable Metal Housing
This is a TAA compliant 10-port industrial USB 3.0 hub designed for harsh environments like factories, product labs, conference rooms, and workstations. Featuring a rugged metal housing with ESD and surge protection on each port, it supports wide-range 7-24V DC power input and versatile DIN rail or surface mounting. MPN: ST1030USBM; UPC: 065030863001. Backward compatible with legacy USB devices and supporting USB battery charging up to 2.4A per port.
Key Features of StarTech.com Industrial USB 3.0 Hub
- Rugged Metal Housing – Heavy-duty construction withstands industrial conditions with wide operating temperature range of 0°C to 70°C.
- ESD and Surge Protection – Protects each of the 10 USB 3.0 ports to safeguard connected devices.
- Flexible Power Input – 7-24V DC terminal block for custom power setups; optional external adapter ITB20D3250 available separately.
- USB Battery Charging 1.2 – Delivers up to 2.4A per port, maximum 50W total for faster mobile device charging.

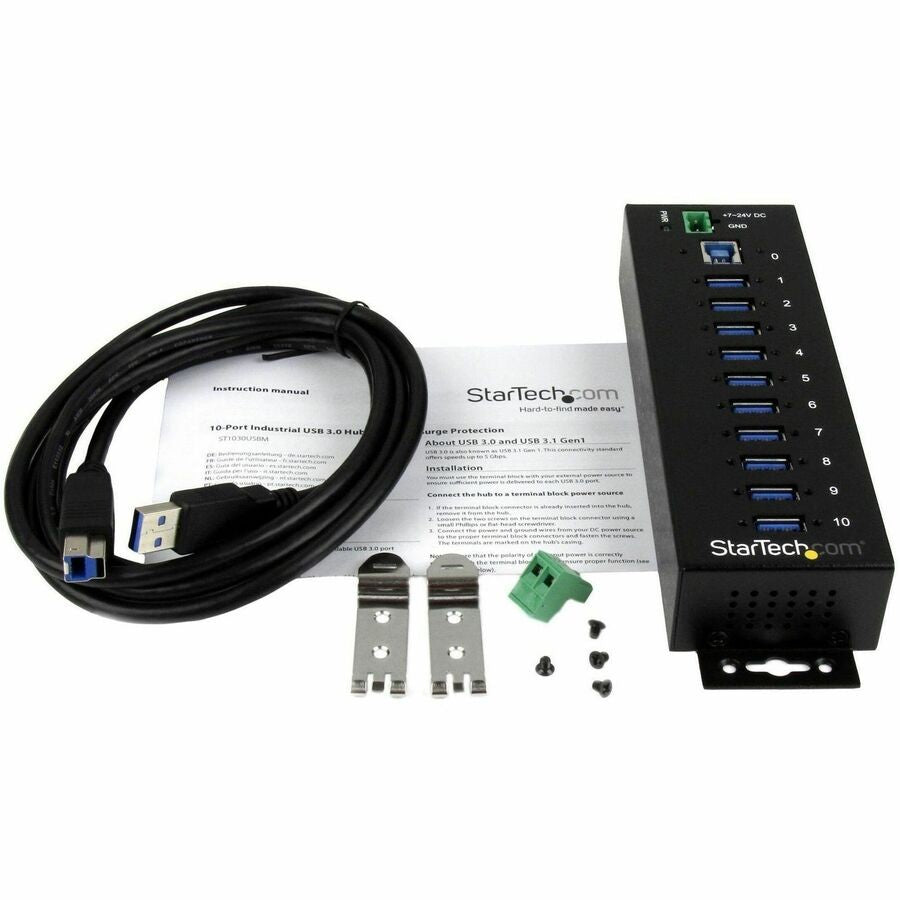

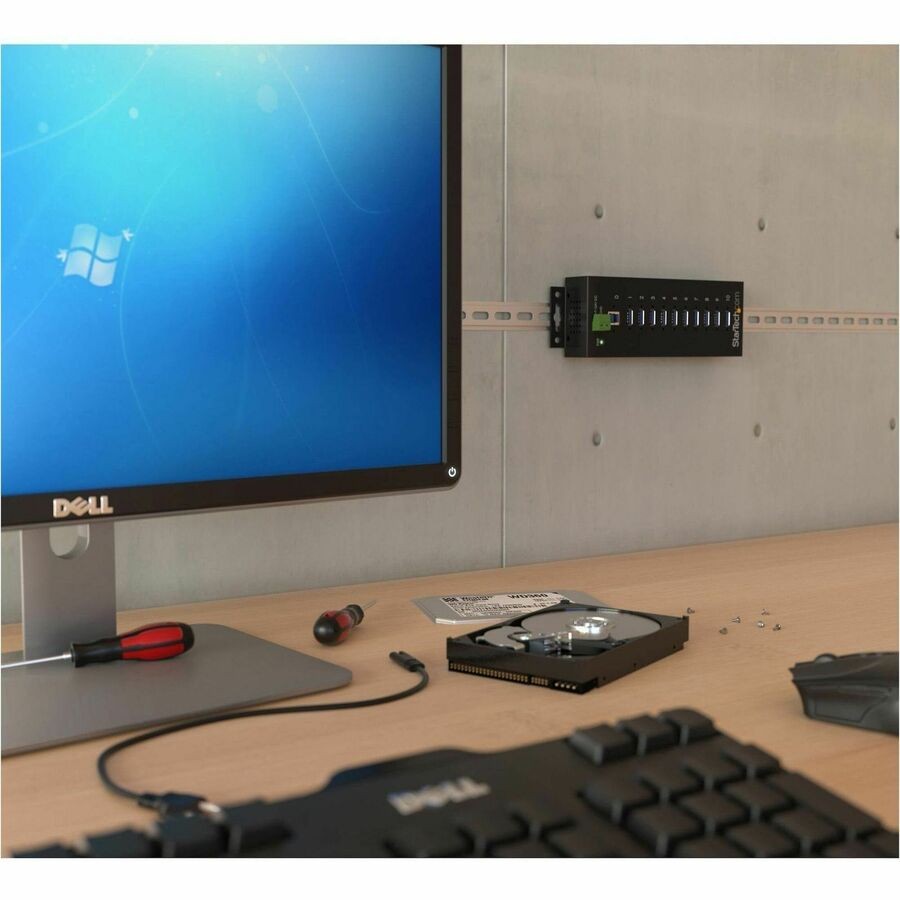

- Versatile Mounting – Built-in brackets and included DIN rail kit for wall, desk, or rack installation.
- Full USB 3.0 Performance – 5Gbps bandwidth, backward compatible with USB 3.0 and 1.x peripherals.
- TAA Compliant – Meets government procurement standards; made in Taiwan.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number | ST1030USBM |
| Product Name | 10-Port Industrial USB 3.0 Hub |
| Product Type | USB Hub |
| UPC | 065030863001 |
| Host Interface | USB 3.0 Type A |
| Total Number of USB Ports | 10 |
| Number of USB 3.0 Ports | 10 |
| USB Bandwidth | 5Gbps |
| Power Input | 7-24V DC Terminal Block |
| Charging Support | USB Battery Charging 1.2; 2.4A per port, 50W total |
| Operating Temperature | 0°C to 70°C |
| Protection | ESD and Surge Protection per USB Port |
| Housing Material | Industrial Grade Metal |
| Color | Black |
| Form Factor | External |
| Height | 1.2" |
| Width | 2.2" |
| Length | 7.8" |
| Weight (Approximate) | 12.59 oz |
| Platform Supported | PC |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | 2-Year Warranty and Free Lifetime Technical Support |
Installation and Setup Guide
Versatile mounting and power options allow quick deployment in industrial settings. Pro tip: Ensure stable power source within 7-24V DC range for optimal performance.
- Connect the included USB 3.0 host cable to your PC or host device.
- Wire the terminal block to a 7-24V DC power supply.
- Mount using built-in brackets to surface or attach DIN rail kit for rail installation.
- Plug in USB devices to the 10 ports; hub auto-detects and supports charging.
- Verify operation across 0°C to 70°C environment.
Why Choose StarTech.com ST1030USBM
Built for scalability in demanding environments, this hub offers reliable connectivity, protection features, and flexible installation backed by a 2-year warranty and lifetime support.
