StarTech.com 10/100 Ethernet Extender Kit Up to 800m (0.5mi)
StarTech.com 10/100 Ethernet Extender Kit Up to 800m (0.5mi)
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech.com 10/100 Ethernet Extender Kit, Up to 0.5mi (800m), Long-Range LAN Over Single Pair Wire/RJ45 UTP, For Remote IP Camera/WiFi AP
This is a StarTech.com 10/100 Ethernet Extender Kit designed to extend network connectivity over UTP cable up to 0.5mi (800m). The kit includes two unmanaged LAN extender units (local and remote) that use pairs of wires in UTP, Cat5, Cat5e, or Cat6 RJ45 terminated cable, or RJ11 copper cable for maximum compatibility. Achieve 100Mbps over 984ft (300m) with one pair or 10Mbps over 0.5mi (800m) with two pairs. MPN: C2-ETHERNET-EXTENDER; UPC: 065030907439. Ideal for remote IP cameras, WiFi APs, surveillance, VoIP, and automation.
Key Features of StarTech.com 10/100 Ethernet Extender Kit
- Long-Range Extension – Extends beyond standard 328ft (100m) UTP limit to 0.5mi (800m) at 10Mbps using two wire pairs or 984ft (300m) at 100Mbps with one pair.
- Dual-Speed 10/100Mbps – Ethernet signal booster for efficient connectivity; supports WoL (Wake-on-LAN), 16K Jumbo frames, 802.1Q VLAN tagging, and PXE boot as a transparent bridge.

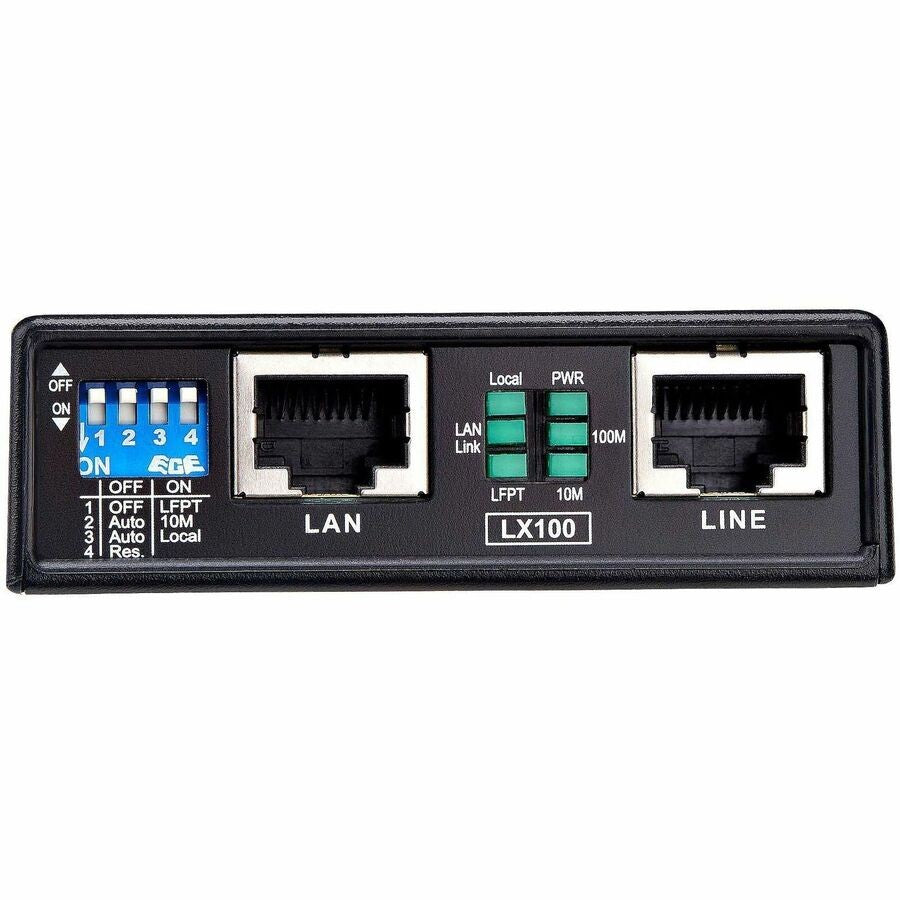

- Thoughtful Design – Ships ready-to-use with remote and local units; DIP switches for custom settings, status LEDs for quick network assessment.

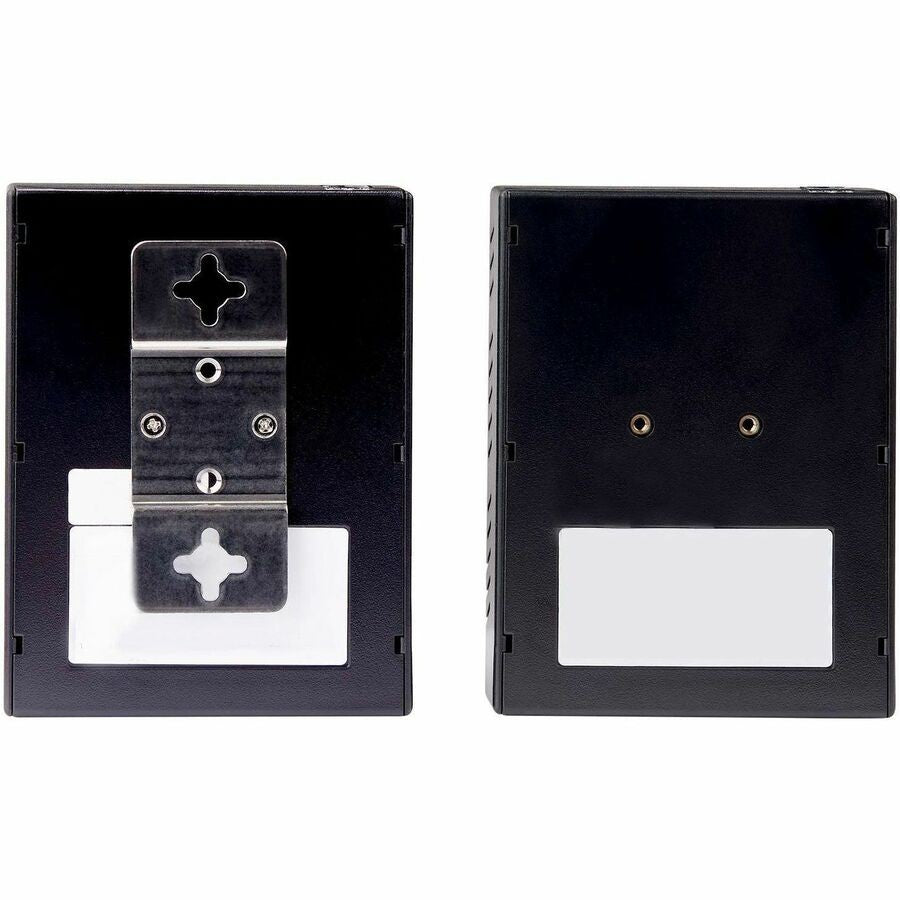

- Versatile Installation – Wall-mountable with included hardware; uses UTP Cat5/5e/6 or RJ11 cable between units.
- Reliable Applications – Perfect for remote WiFi APs, IP cameras, branch offices, equipment control, VoIP, and automation.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number | C2-ETHERNET-EXTENDER |
| Product Name | Network Extender |
| Product Type | Network Extender |
| Packaged Quantity | 2 |
| Maximum Data Transfer Rate | 12.50 MB/s (100Mbps) |
| Maximum Operating Distance | 2624.67 ft (0.5mi / 800m) |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Input Voltage | 240 V AC |
| Color Family | Black |
| Product Color | Black |
| Product Material | Plastic/Steel |
| Height (per unit) | 2.9" |
| Width (per unit) | 3.8" |
| Length (per unit) | 0.9" |
| Weight | 1.40 lbs |
| Package Height | 5.20" |
| Package Width | 6.00" |
| Package Depth | 7.20" |
| UPC | 065030907439 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |

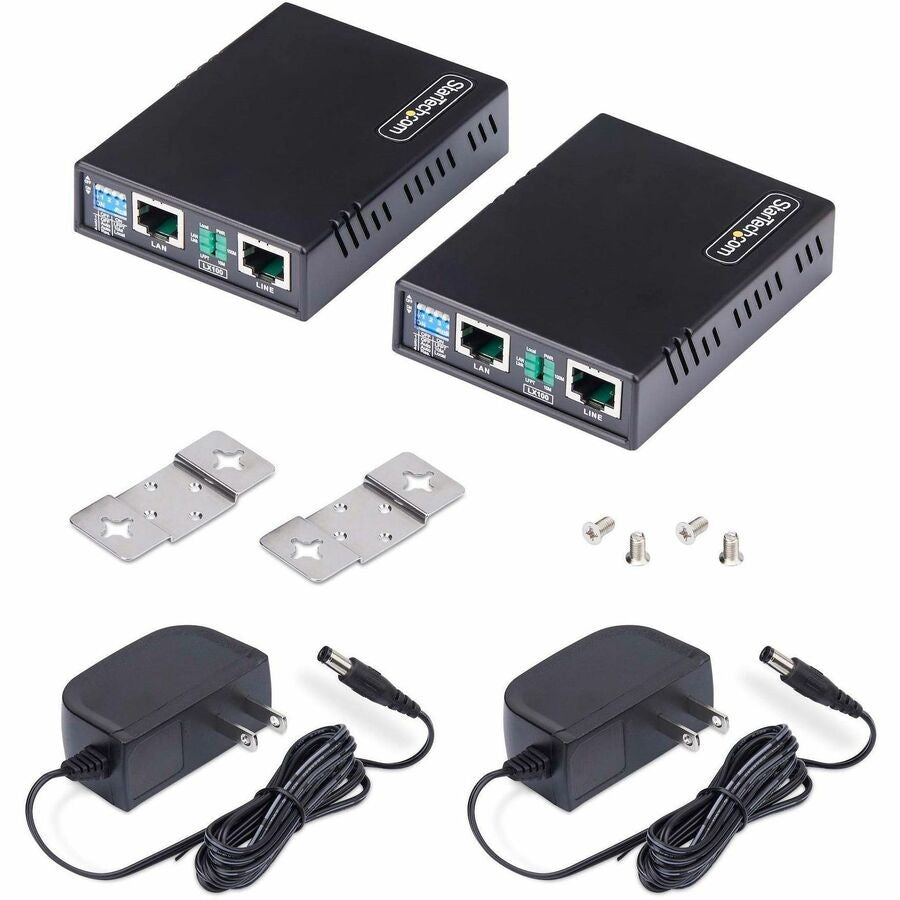

Package Contents and Setup Overview
- 2 x Network Extender (local and remote units)
- 2 x Power Adapter
- 2 x Mounting Bracket
- 4 x Mounting Screws
- 1 x Quick-Start Guide
Kit ships ready for standard setup. Connect RJ45 Ethernet to LAN port on local unit, link units via UTP/RJ11 cable, power on, and adjust DIP switches as needed for custom configurations. Status LEDs indicate link, speed, and power.
Versatile Uses for StarTech.com Ethernet Extender
Deploy for Internet access to remote offices, remote WiFi access points, IP-based video surveillance, equipment management, VoIP telephony, building automation, and more. Functions as a plug-and-play bridge without configuration for most setups.
Extend your network up to 800m with StarTech.com 10/100 Ethernet Extender Kit—Order today!
Brand: StarTech
Type: Extender
Model: LX100
Color: Black
MPN: C2-ETHERNET-EXTENDER
Number of LAN Ports: 4
Maximum LAN Data Rate: 100 Mbps
Connectivity: Wired-Ethernet (RJ-45)
Ports: Ethernet (RJ-45)
Item Height: 2.9"
Item Length: 0.9"
Item Width: 3.8"
UPC: 065030907439
