StarTech 5-Port USB 3.2 10Gbps PCIe Card 4x USB-C 1x USB-A Internal
StarTech 5-Port USB 3.2 10Gbps PCIe Card 4x USB-C 1x USB-A Internal
Low stock: 5 left
Save 16%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech 5-Port USB 3.2 10Gbps PCIe Card 4x USB-C 1x USB-A Internal

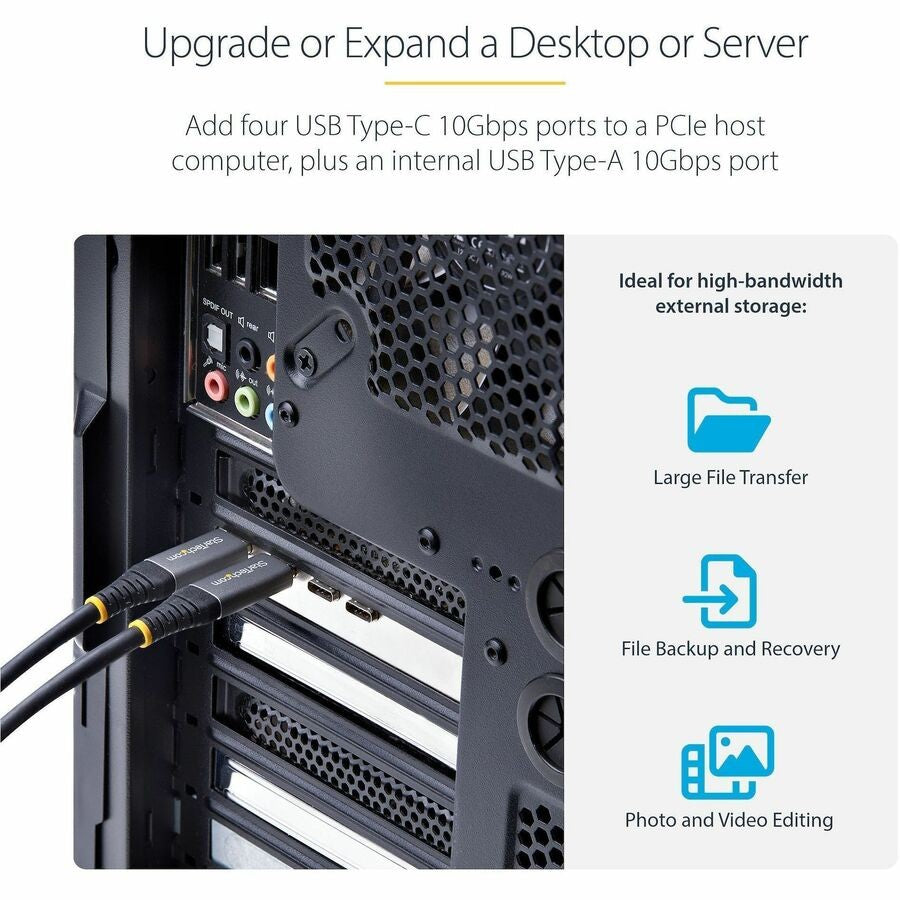

This is a StarTech 5-Port USB PCIe Card that upgrades or expands desktop or server USB connectivity with four external USB Type-C 10Gbps ports and one internal USB Type-A 10Gbps port via a single PCI Express x4 slot. Featuring the ASM3142 controller, it supports USB 3.2 Gen 2 speeds up to 10Gbps (1.25 GB/s) across all ports. MPN: PS4C3IA3-USB-C-CARD; UPC: 065030909174. Manufacturer: StarTech.com.
Key Features of StarTech 5-Port USB 3.2 PCIe Expansion Card

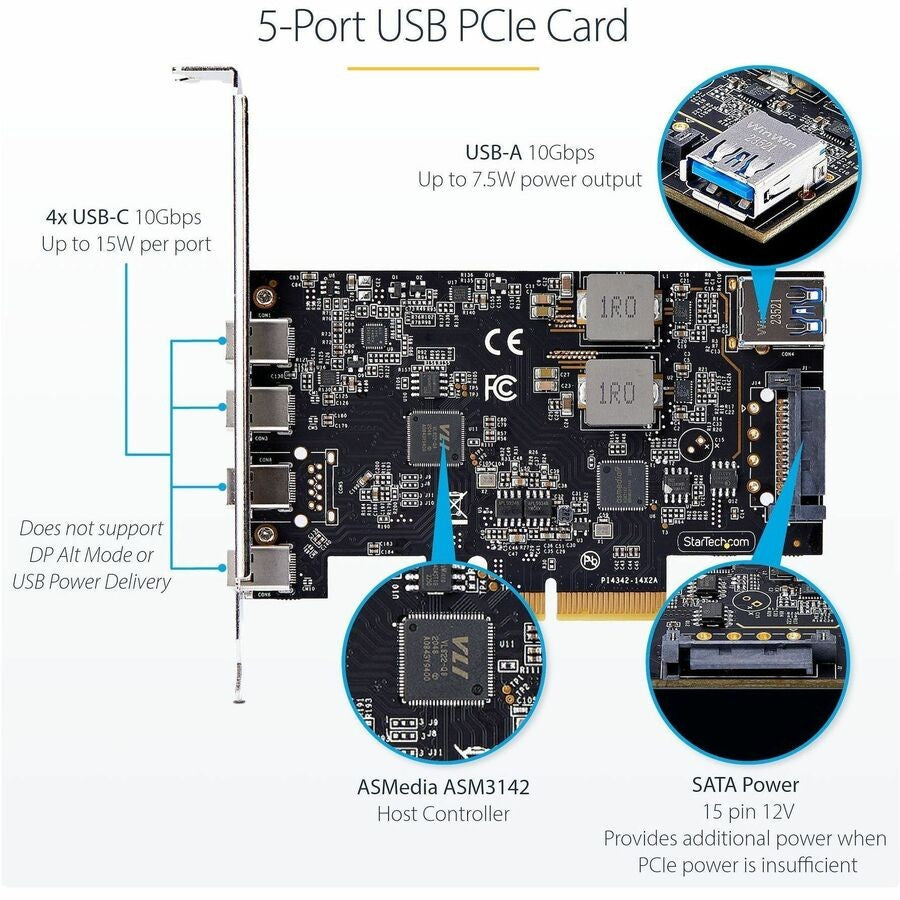

- High-Speed USB 3.2 Gen 2 – ASM3142 controller delivers up to 10Gbps for fast file transfers, high-res photo/video editing on external storage.
- Port Configuration – 4x external USB-C ports + 1x internal USB-A port for versatile connectivity.
- Supplemental SATA Power – Provides 5V 3A (15W) per USB-C port and 5V 1.5A (7.5W) on USB-A when motherboard power is insufficient.
- Bracket Options – Pre-installed full-profile bracket; low-profile bracket included for SFF desktops/servers.

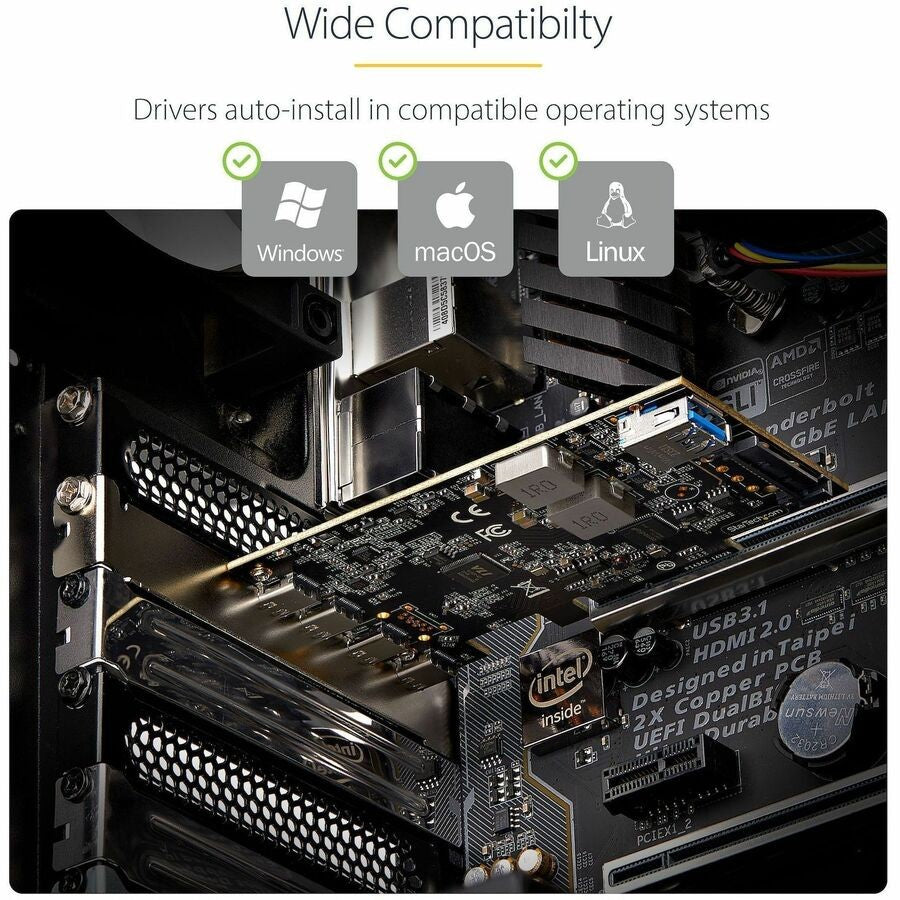

- Broad OS Support – Auto-install drivers for Windows, macOS, Linux; compatible with PC, Mac platforms.
- Environmental Compliance – RoHS and WEEE certified.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | StarTech.com |
| Manufacturer Part Number (MPN) | PS4C3IA3-USB-C-CARD |
| UPC | 065030909174 |
| Product Type | USB Adapter / PCIe Expansion Card |
| Controller Chipset | ASM3142 |
| Host Interface | PCI Express 3.0 x4 |
| Compatible Slots | PCIe x4, x8, x16 |
| USB Version | USB 3.2 Gen 2 |
| Data Transfer Rate | 10Gbps / 1.25 GB/s |
| Total USB Ports | 5 |
| USB Port Types | 4x External USB Type-C, 1x Internal USB Type-A |
| Power Input | Supplemental SATA Power Connector (1x) |
| Port Power Output | USB-C: 5V 3A (15W); USB-A: 5V 1.5A (7.5W) |
| Color | Black |

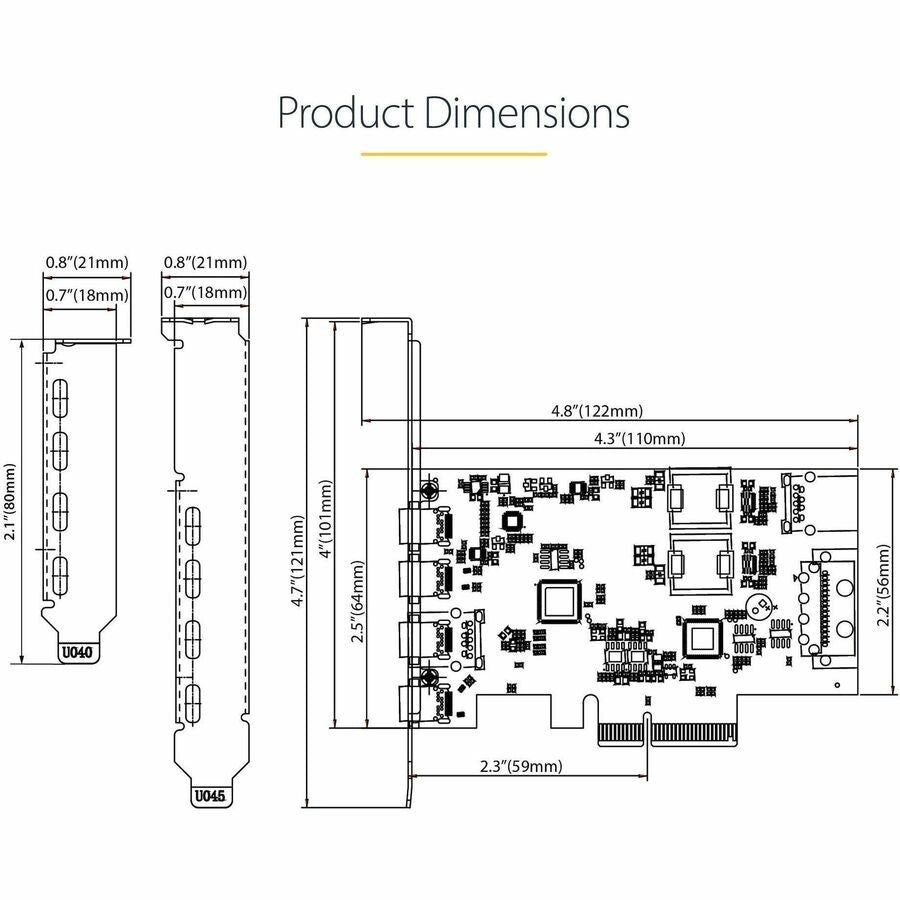

| Card Dimensions (H x W x L) | 0.9" x 4.8" x 4.8" |
| Card Weight | 2.10 oz (Approximate) |
| Package Dimensions (H x W x D) | 1.4" x 5.7" x 8.4" |
| Package Weight | 0.3 lb |
| Application/Usage | Desktop, Server, Hard Drive |
| Platform Supported | PC, Mac |
| Operating Systems Supported | Windows 7/8/8.1/10/11, Windows Server 2008 R2/2012 R2/2016/2019/2022, macOS Big Sur/Monterey/Sonoma/Ventura, Mac OS X 10.13 High Sierra/10.14 Mojave/10.15 Catalina, Linux 3.5+ |
| Hardware Platforms | Intel, AMD, Apple Silicon |
| Country of Origin | Malaysia |
| Environmental Compliance | RoHS, WEEE |
| Manufacturer Warranty | 2 Years |

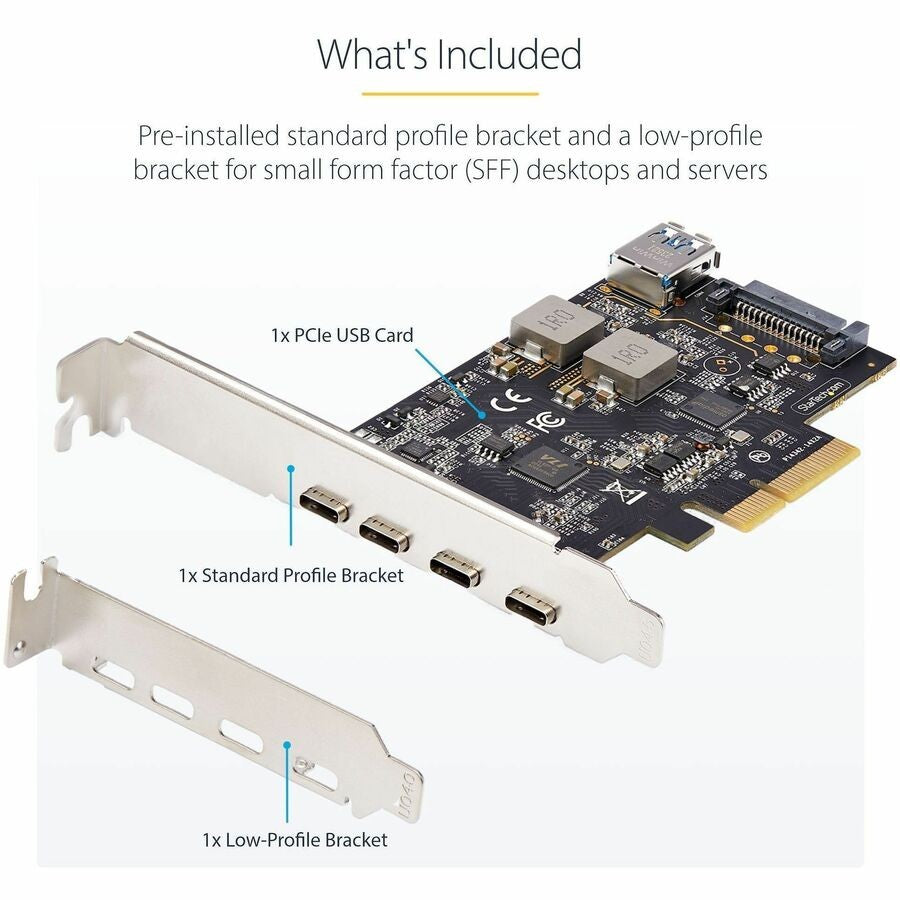

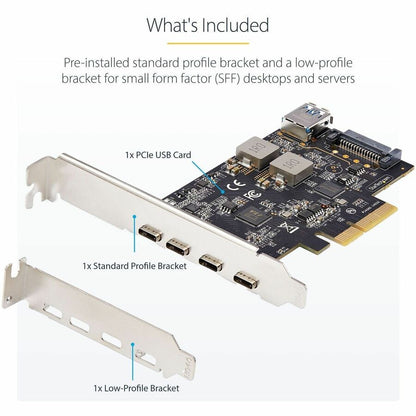

Package Contents
- USB PCIe Adapter Card
- 1 x Full-Profile Bracket (Pre-installed)
- 1 x Low-Profile Bracket
- 1 x Quick-Start Guide
Installation Overview for StarTech USB PCIe Card
- Power off system and open case; locate available PCIe x4/x8/x16 slot.
- Install card into slot; secure with bracket (swap to low-profile if needed for SFF).
- Connect SATA power cable if using high-power devices.
- Close case, power on; drivers auto-install on supported OS.
- Pro Tip: Update motherboard BIOS for optimal PCIe compatibility; verify ports in Device Manager.
Expand your USB connectivity with the StarTech 5-Port PCIe Card—Order now!
Brand: Artec
Type: USB Adapter / PCIe Expansion Card
MPN: PS4C3IA3-USB-C-CARD
Compatible Brand: StarTech.com
Country of Origin: Malaysia
Manufacturer Warranty: 2 Years
Compatible Port: PCI Express x4
Number of Ports: 5 Ports
Maximum Data Rate: 10 Gbps
UPC: 065030909174
