StarTech 2-Port PCIe 10GbE Dual RJ45 NIC BCM57416 PR210B
StarTech 2-Port PCIe 10GbE Dual RJ45 NIC BCM57416 PR210B
Low stock: 5 left
Save 16%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

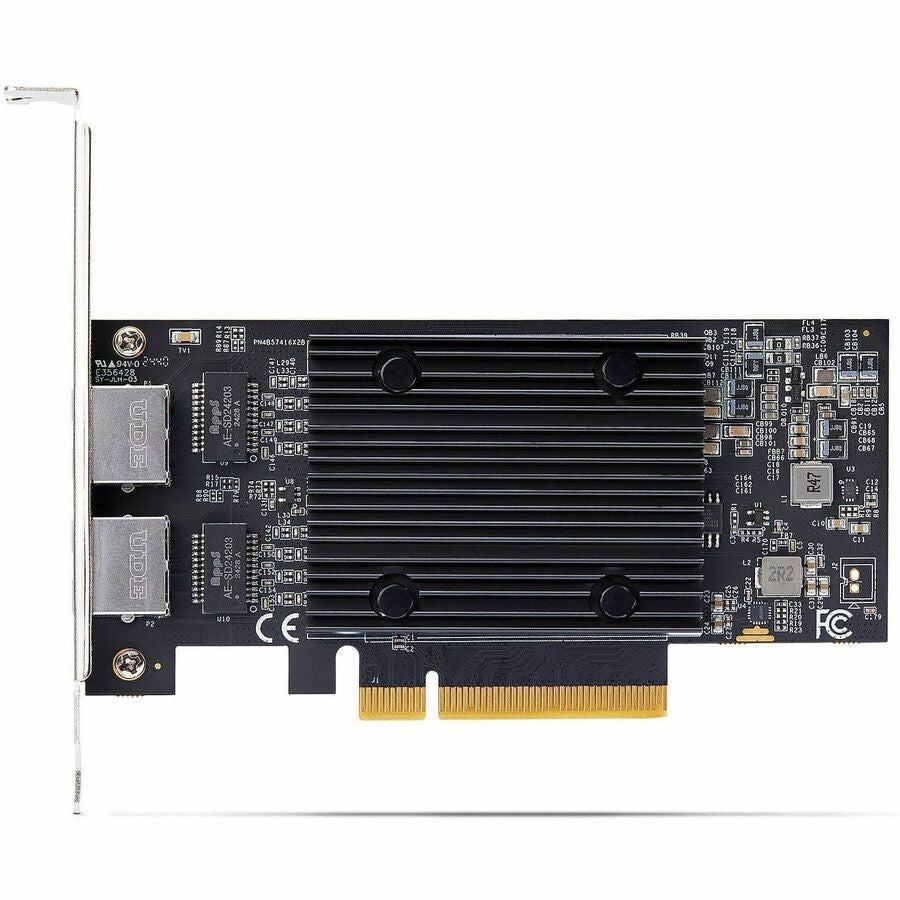

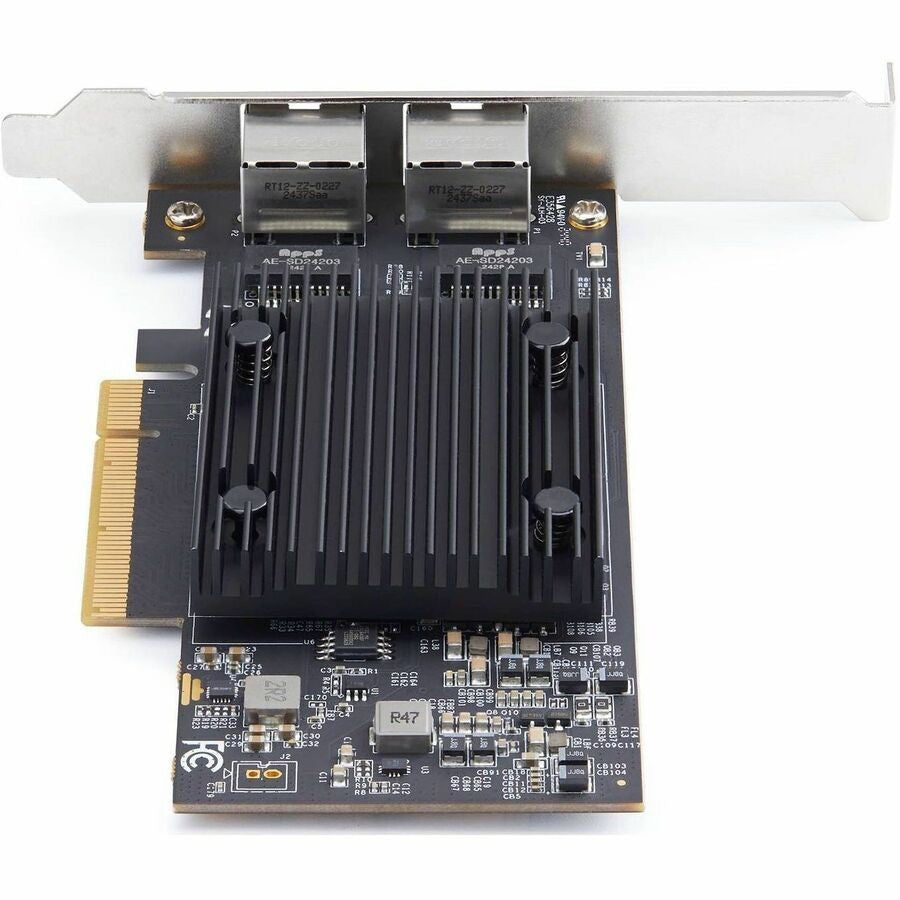

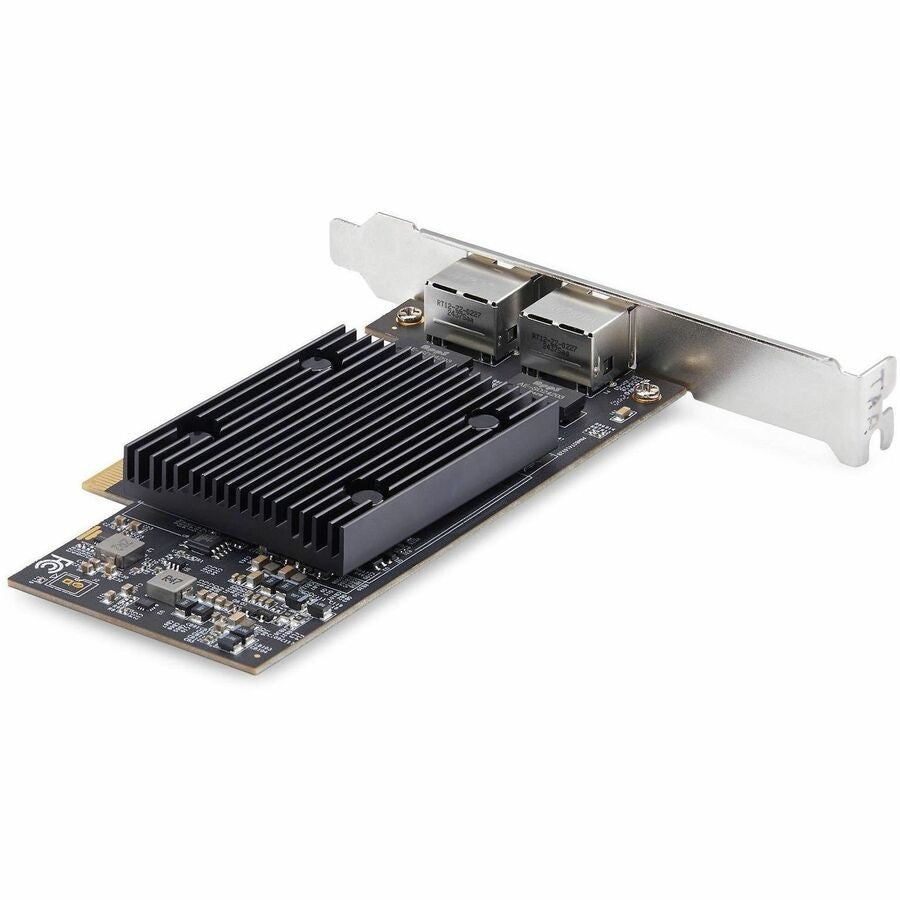

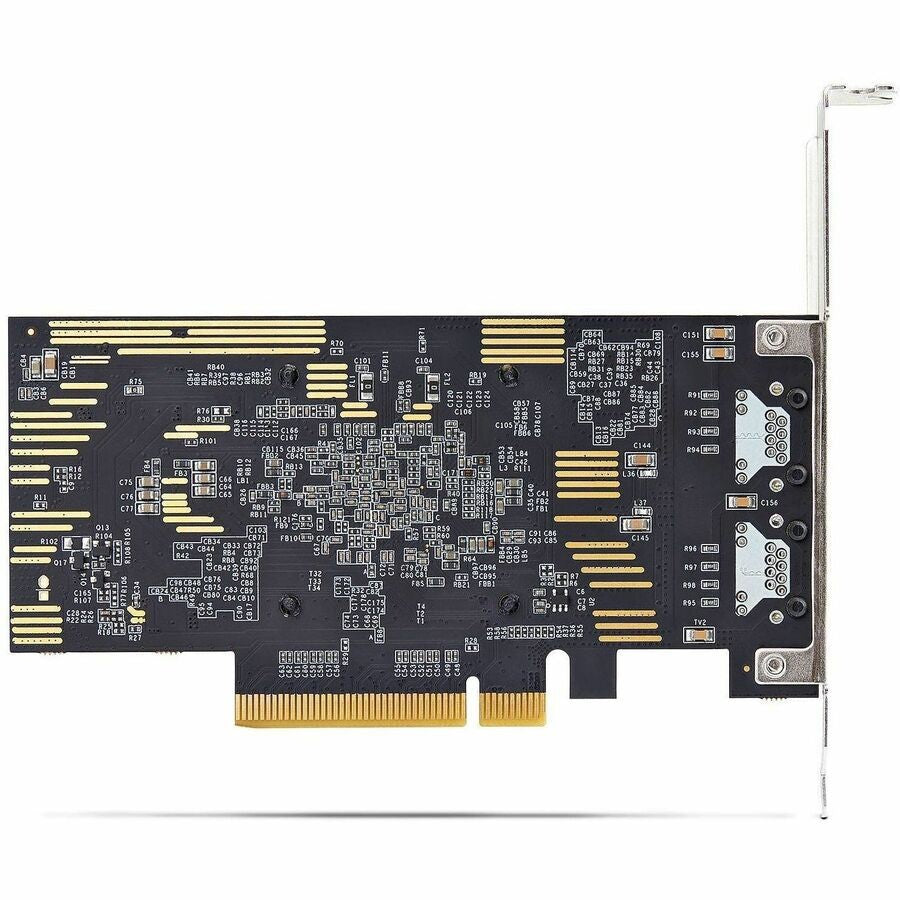

StarTech 2-Port PCIe 10Gb Ethernet Network Card, Dual RJ45 10GBase-T/Gigabit, Broadcom BCM57416 Chipset, NIC Card, Windows & Linux
This is a StarTech 2-Port PCIe 10Gb Ethernet Network Card (MPN: PR210B-NETWORK-CARD, UPC: 065030916905) featuring the Broadcom BCM57416 chipset. It adds two 10Gbps RJ45 ports via a single PCI Express slot to servers, workstations, or desktops, supporting 10GBase-T over twisted pair cabling with compatibility for Windows, Linux, and various server OS. Ideal for high-bandwidth tasks like data backups and FTP transfers.
High-Performance Dual-Port 10GbE Features
- Broadcom BCM57416 Chipset – Delivers reliable 10Gbps per port (20Gbps total bidirectional throughput) with IEEE 802.1Q VLAN support.

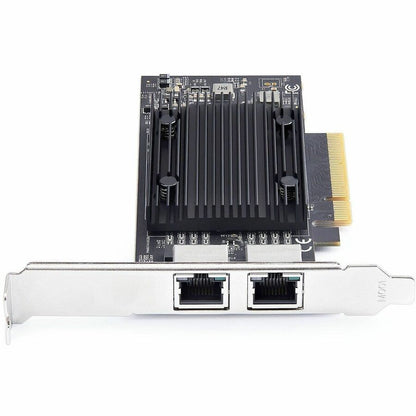

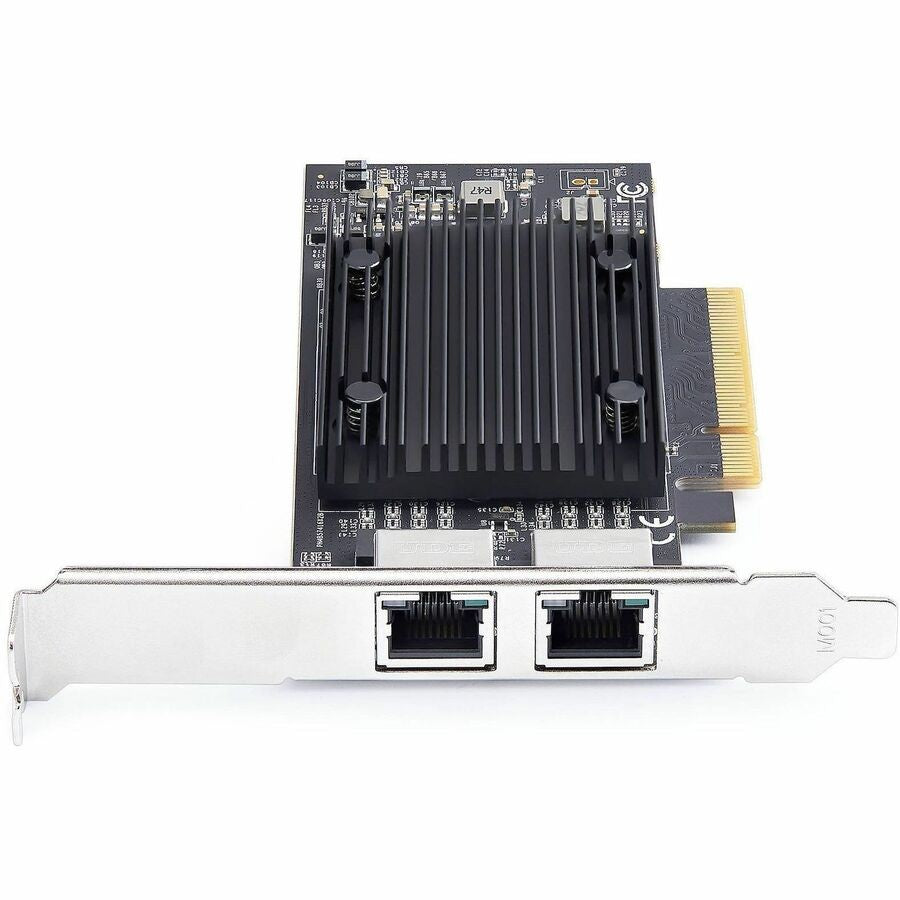

- Dual RJ45 10GBase-T Ports – Backward compatible with 1G/2.5G/5G Ethernet; supports Cat6 up to 55m, Cat6A up to 100m (328 ft max distance).
- Advanced Networking Capabilities – Jumbo frames, PXE boot, VLAN tagging, Auto-MDIX, promiscuous mode, and LED indicators for status monitoring.
- PCIe 2.0 x8 Interface – Requires x8 or higher slot; versatile for client/server/workstation upgrades.

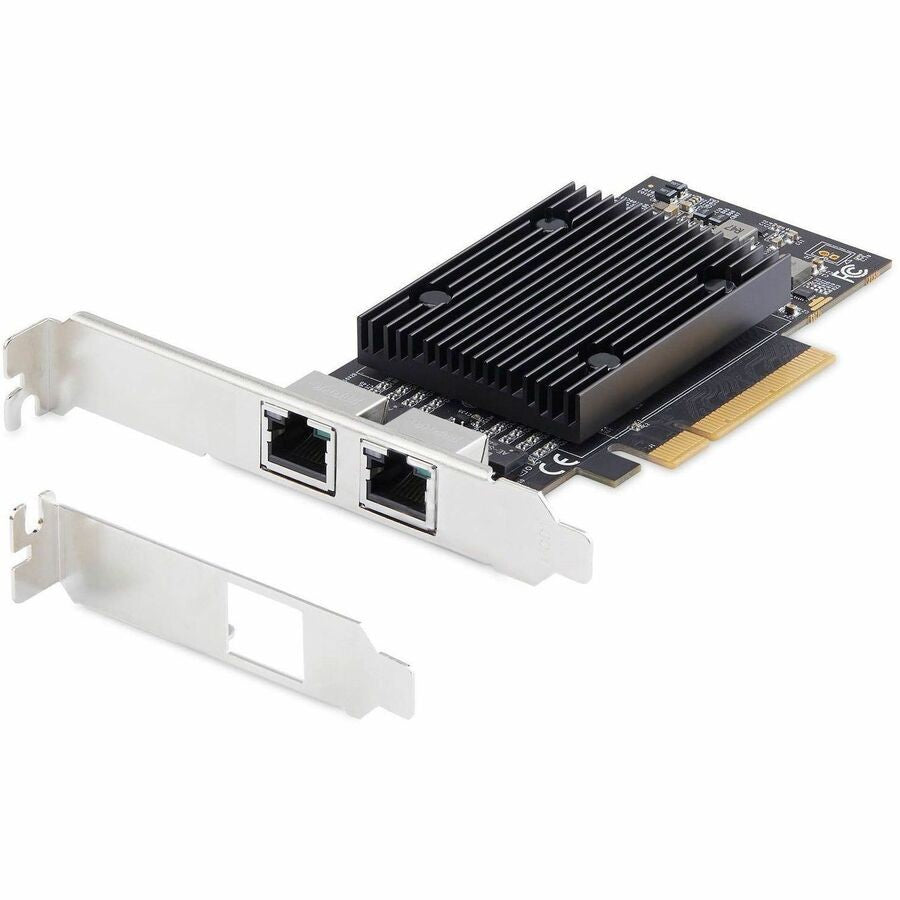

- Dual-Profile Design – Includes full-height and low-profile brackets for any chassis form factor.
- Broad OS Support – Windows 7/8/8.1/10/11, Windows Server 2008 R2/2012/2012 R2/2016/2019/2022, Linux 2.4/2.6.x-5.15.x LTS, Ubuntu 22.04.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| MPN | PR210B-NETWORK-CARD |
| UPC | 065030916905 |
| Ethernet Controller Manufacturer | Broadcom |
| Ethernet Controller Model | BCM57416 |
| Host Interface | PCI Express 2.0 x8 |
| Total Number of Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Network Technology | 10GBase-T |
| Media Type Supported | Twisted Pair |
| Maximum Data Transfer Rate | 20 Gbit/s |
| Maximum Operating Distance | 328.08 ft |
| Features | Jumbo Frames Support, PXE Support, VLAN Tagging, Automatic Medium-dependent Interface Crossover (Auto-MDIX), Promiscuous Mode, LED Indicator |
| Form Factor | Plug-in Card |
| Bracket Height | Low Profile |
| Product Color | Black |
| Height | 0.9" |
| Width | 4.8" |
| Weight (Approximate) | 4.30 oz |
| Application/Usage | Server, Workstation, Desktop |
| Operating System Compatibility | Windows 10, Windows 11, Windows 8, Windows 7, Windows Server 2002, Windows Server 2019, Windows Server 2016, Windows Server 2012, Linux, Ubuntu 22.04, Windows Server 2022, Windows 8.1, Windows Server 2008 R2, Windows Server 2012 R2, Linux 2.4 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Country of Origin | Taiwan |
| Manufacturer Warranty | 2 Year |
| Package Weight | 0.50 lb |
| Package Dimensions (HxWxD) | 1.40" x 5.60" x 8.40" |
Easy Installation Guide
Designed for quick setup in any standard PCIe chassis; power off system before installing.

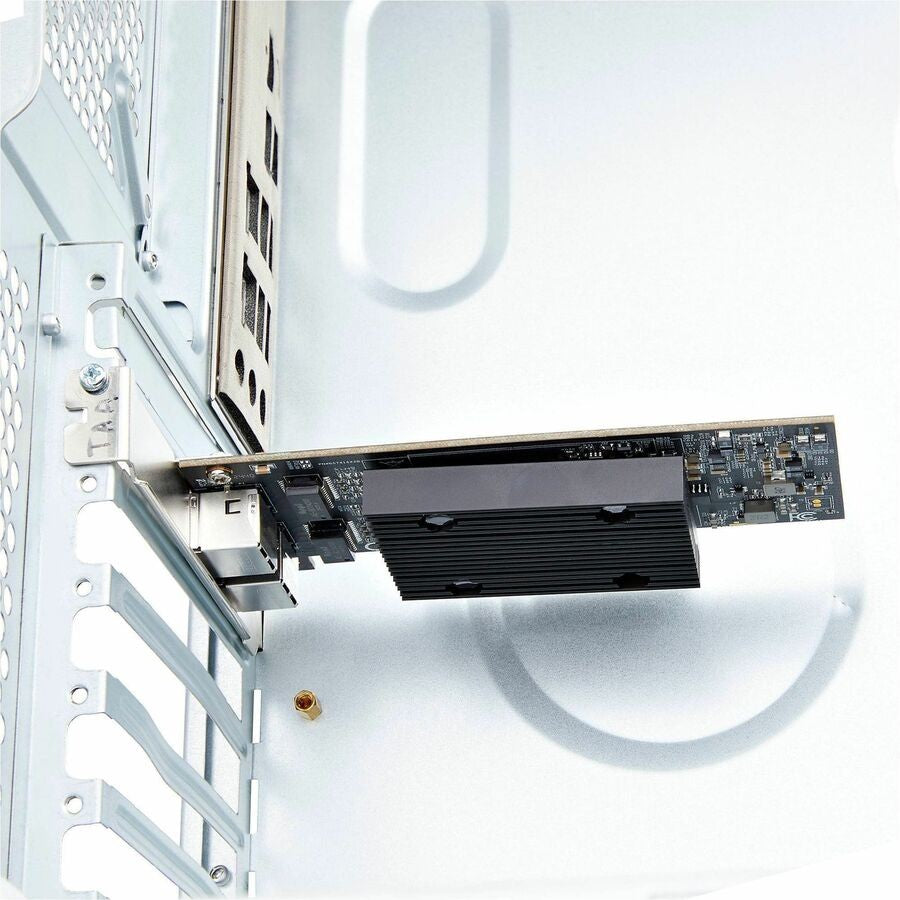

- Shut down and open chassis; locate available PCIe x8 or higher slot.
- Remove bracket cover; insert card firmly until seated.
- Secure with screw; attach low-profile or full-height bracket as needed.
- Close chassis, power on; install drivers from StarTech support or OS detection.

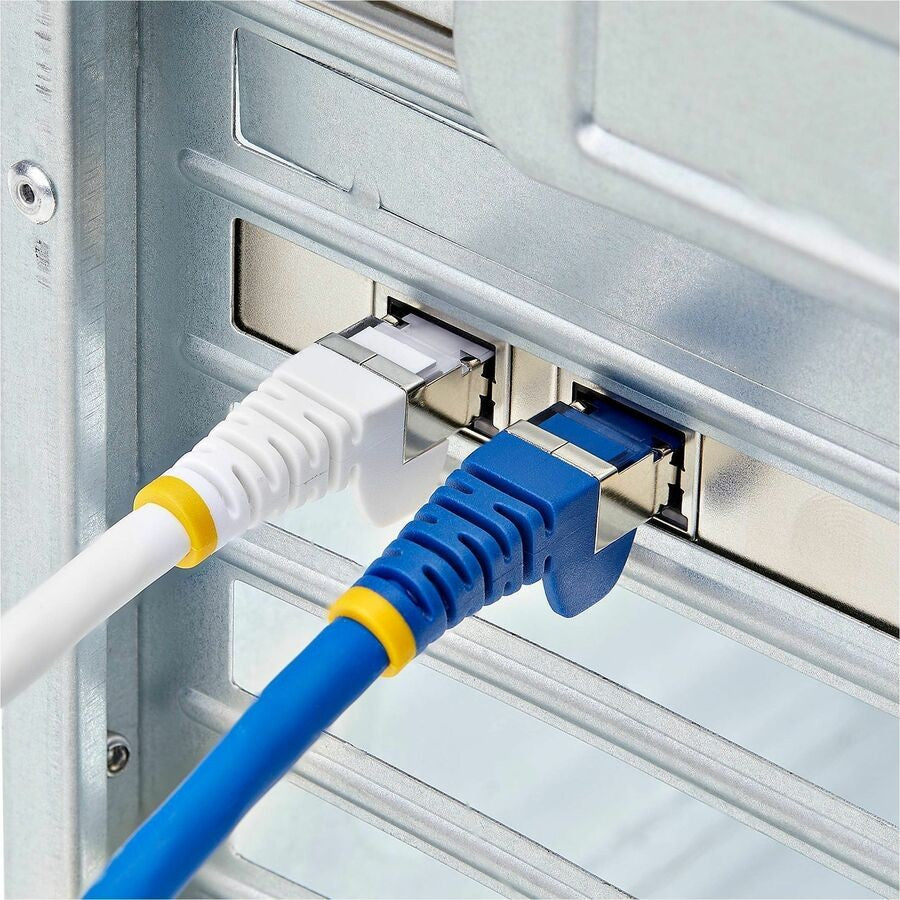

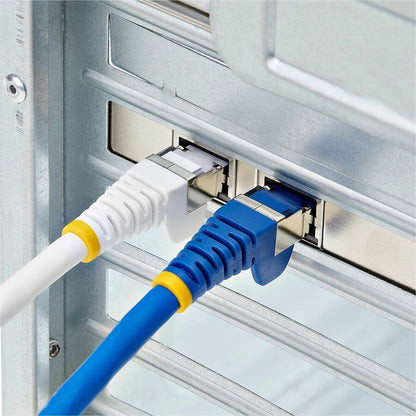

- Connect Cat6/6A cables to RJ45 ports; verify LEDs for link/activity.
Pro tip: Update motherboard BIOS for optimal PCIe compatibility; test with iperf for throughput.
Why Choose StarTech PR210B-NETWORK-CARD
This dual-port 10GbE NIC provides cost-effective high-speed networking with Broadcom reliability, TAA compliance, and extensive OS support for demanding environments.
Upgrade to 10Gb Ethernet performance—add to cart now!
Brand: StarTech.com
Material: Metal
Model: BCM57416
MPN: PR210B-NETWORK-CARD
Country of Origin: Taiwan
Connectivity: Wired
UPC: 065030916905
