Detailed Compatibility Matrix

Key Product Features

• G-Force™ Technology – Advanced valving provides quicker response, improved tire-to-road contact, and enhanced safety during sudden maneuvers.

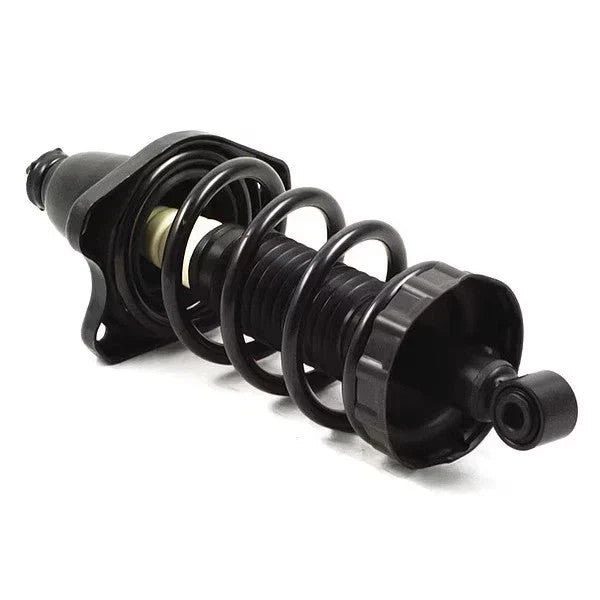

• Ready-to-Install – Includes the strut, coil spring, upper mount, bearing, spring seat, and dust boot. No special tools or spring compression required.
• StableSteer™ Valving – Improves tire contact with the road for consistent control and a smoother, more predictable ride.
• Super-Finished Chrome Piston Rod – Provides superior corrosion resistance and ensures a leak-proof seal for significantly extended product life.
• Drawn Over Mandrel (DOM) Tubing – Reduces internal friction and wear, leading to a quieter operation and increased durability.

Technical Specifications

Installation Guide

Save up to 1.5 hours of labor with this pre-assembled unit:

1. Safety First: Jack up the rear of the vehicle and support it with jack stands. Remove the rear left wheel.
2. Disconnect: Unbolt the lower strut mounting bolt and the upper mounting nuts (accessible from the trunk/bed area).
3. Removal: Carefully lower the suspension arm and remove the old, worn-out strut assembly.
4. Installation: Slide the G57414 ReadyMount into position. Align the upper studs first and loosely secure the nuts.
5. Final Torque: Tighten all bolts to Honda factory torque specifications. Note: Always tighten suspension bolts while the vehicle is at its normal ride height (loaded).
6. Alignment: A professional 4-wheel alignment is highly recommended after any strut replacement.

Why Choose Gabriel?

With over 100 years of innovation, Gabriel is a pioneer in the shock absorber industry. The Ultra ReadyMount series is rigorously tested on US roads to ensure it handles the specific weight and center of gravity of the Honda Ridgeline. By replacing the entire assembly, you ensure that the spring rate and damping are perfectly matched, restoring your truck's "new car" feel and load-carrying capacity.
