Rear Complete Strut Assembly for Chevy Trailblazer GMC Envoy XL / XUV 2002-2009
Rear Complete Strut Assembly for Chevy Trailblazer GMC Envoy XL / XUV 2002-2009
Low stock: 1 left
Save 30%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

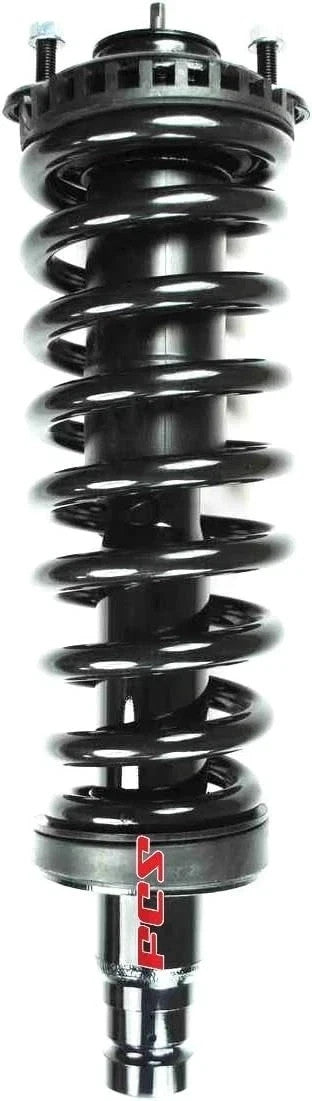

FCS Rear Complete Strut & Spring Assembly – Restore Your SUV's Ride
Revitalize your vehicle's handling with the FCS 1336324 Complete Strut Assembly. This all-in-one solution is engineered to restore factory ride height and original damping characteristics. By replacing the entire unit, you eliminate the need for dangerous spring compressors, making this the safest and fastest way to upgrade your suspension. Perfect for DIY enthusiasts and professional mechanics alike.
Ideal for models with factory coil springs or as a "Pneumatic-to-Coil" conversion kit.
Fits BOTH Rear Left (Driver) and Rear Right (Passenger) sides.
Detailed Compatibility Matrix
| Make | Model | Year Range | Notes |
|---|---|---|---|
| Chevrolet | Trailblazer / EXT | 2002 – 2009 | All Trims, 2WD & 4WD |
| GMC | Envoy / XL / XUV | 2002 – 2009 | All Trims, 2WD & 4WD |
| Buick | Rainier | 2004 – 2007 | 2WD & AWD Models |
| Oldsmobile | Bravada | 2002 – 2004 | 2WD & AWD Models |
| Saab | 9-7x | 2005 – 2009 | 4.2L I6 & 5.3L V8 |
| Isuzu | Ascender | 2003 – 2008 | All Models |
Key Product Features
- Ready-to-Install Design – Pre-assembled with a new coil spring, strut mount, boot, and bumper. No special tools or spring compressors required.
- Premium Valving Technology – Tuned specifically for midsize GM SUVs to provide a balance of comfort and precise control.
- Restores Ride Height – High-quality steel coil springs prevent sagging and ensure proper ground clearance for towing or hauling.
- Certified Quality – Manufactured in ISO9001 and IATF16949 certified facilities to ensure OEM-level durability.
- Corrosion Resistant – Features a protective coating on the strut body and spring to resist road salt and moisture damage.
Technical Specifications
| Specification | Details |
|---|---|
| Brand / MPN | FCS Automotive / 1336324 |
| Position | Rear (Left or Right) |
| Components Included | Strut, Coil Spring, Upper Mount, Dust Boot |
| Weight | 19.0 lbs (8.6 kg) |
| Installation Time | Approx. 45-60 minutes per side |
| Spring Type | Variable Rate Coil Spring |
Installation Instructions
- Safety: Jack up the rear of the vehicle and secure with stands. Remove the rear wheels.
- Support: Use a floor jack to slightly support the rear axle or lower control arm.
- Upper Mounting: Remove the three nuts on the upper strut mount (accessible from inside the cargo area or behind trim panels).
- Lower Mounting: Unbolt the lower strut mounting bolt. Carefully remove the old assembly.
- New Unit: Slide the FCS 1336324 into place. Bolt the upper nuts first, then line up the lower bolt.
- Torque: Tighten all fasteners to manufacturer specs. Always perform a professional wheel alignment after suspension work.
Why Choose FCS Automotive?
FCS is a global leader in suspension technology, providing reliable aftermarket solutions that match the fit and feel of original equipment. The 1336324 Complete Strut Assembly is the perfect choice for owners looking to eliminate suspension noise, reduce tire wear, and bring back that "new car" feeling to their Chevy Trailblazer or GMC Envoy.
Upgrade your SUV's comfort and safety—Order your FCS Complete Strut today!
Brand: FCS
Type: Strut & Spring Assembly
OE/OEM Part Number: 1336324
Number in Pack: 1
Items Included: Coil Spring
Manufacturer Part Number: 1336324
Features: 100% Accuracy of Fit
Placement on Vehicle: Rear
Country of Origin: United States
