Key Features

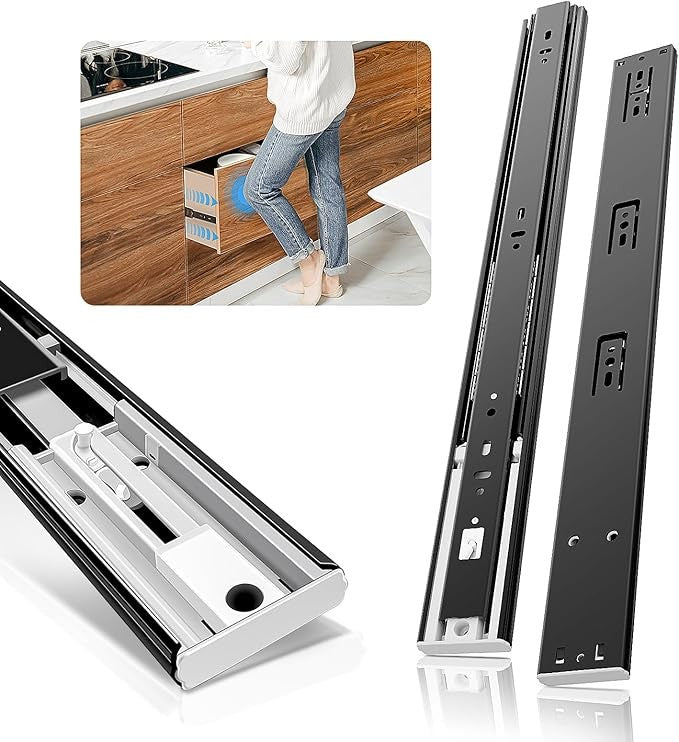

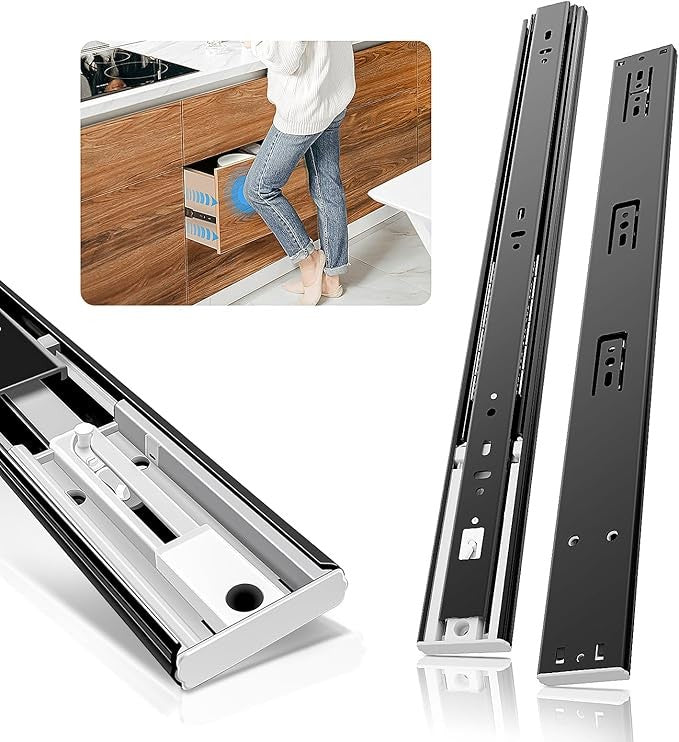

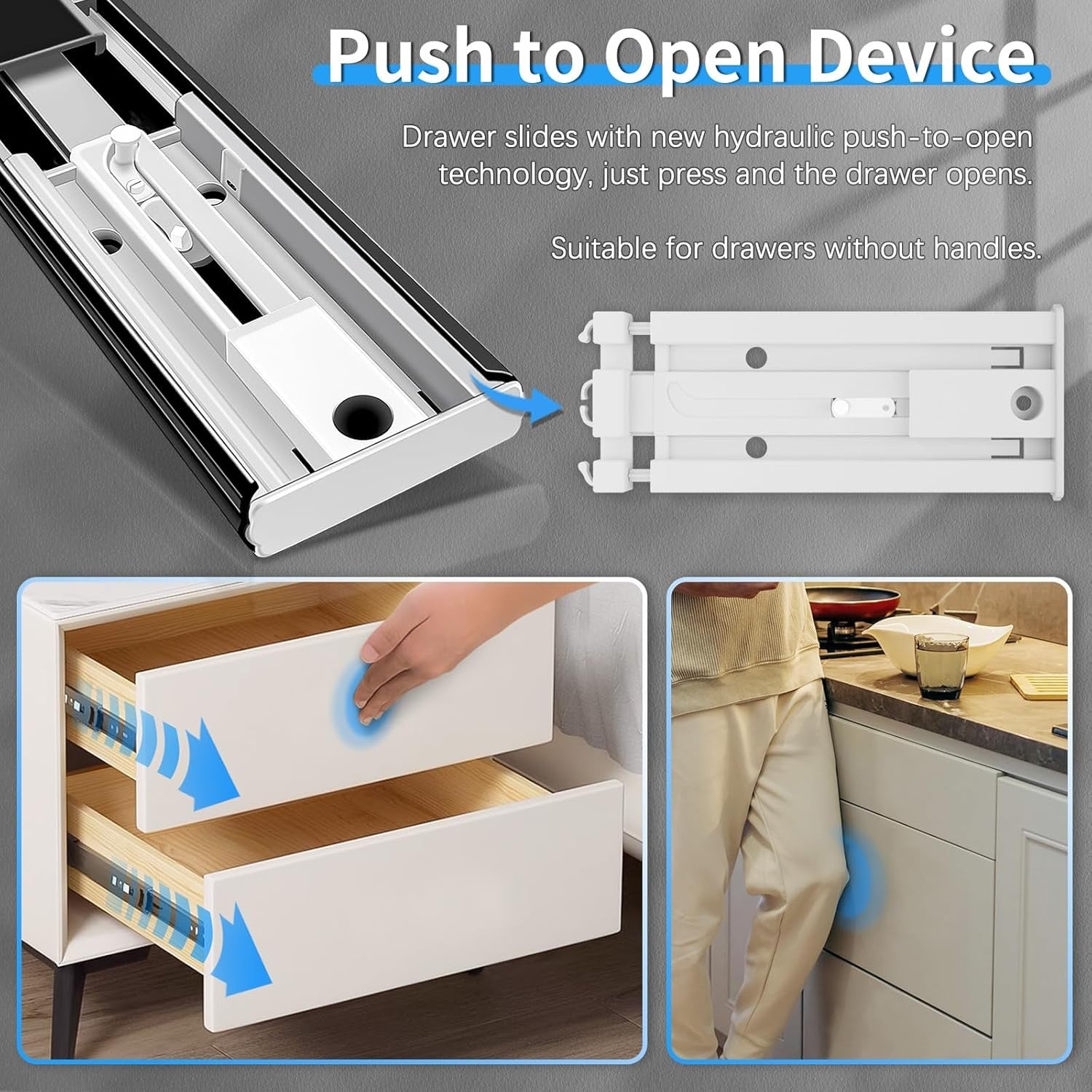

• Push-to-Open Mechanism – A gentle push on the drawer face triggers automatic release, providing hands-free access — ideal for kitchens, bathrooms, or any time your hands are full.
• 3-Fold Full Extension Ball Bearing Design – Three-section telescoping construction with recirculating ball bearings allows the drawer to extend fully, giving complete access to drawer contents with smooth, quiet gliding action.

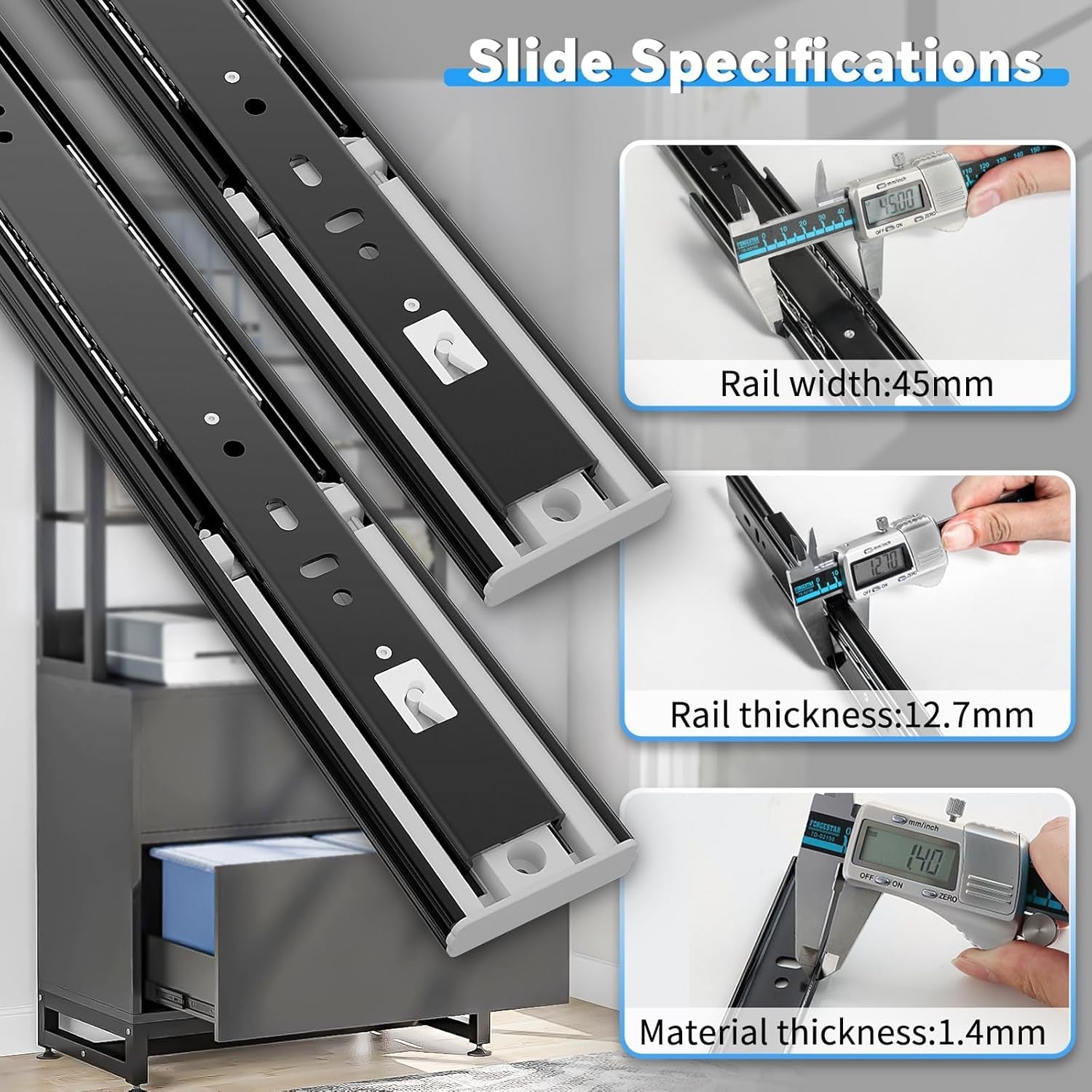

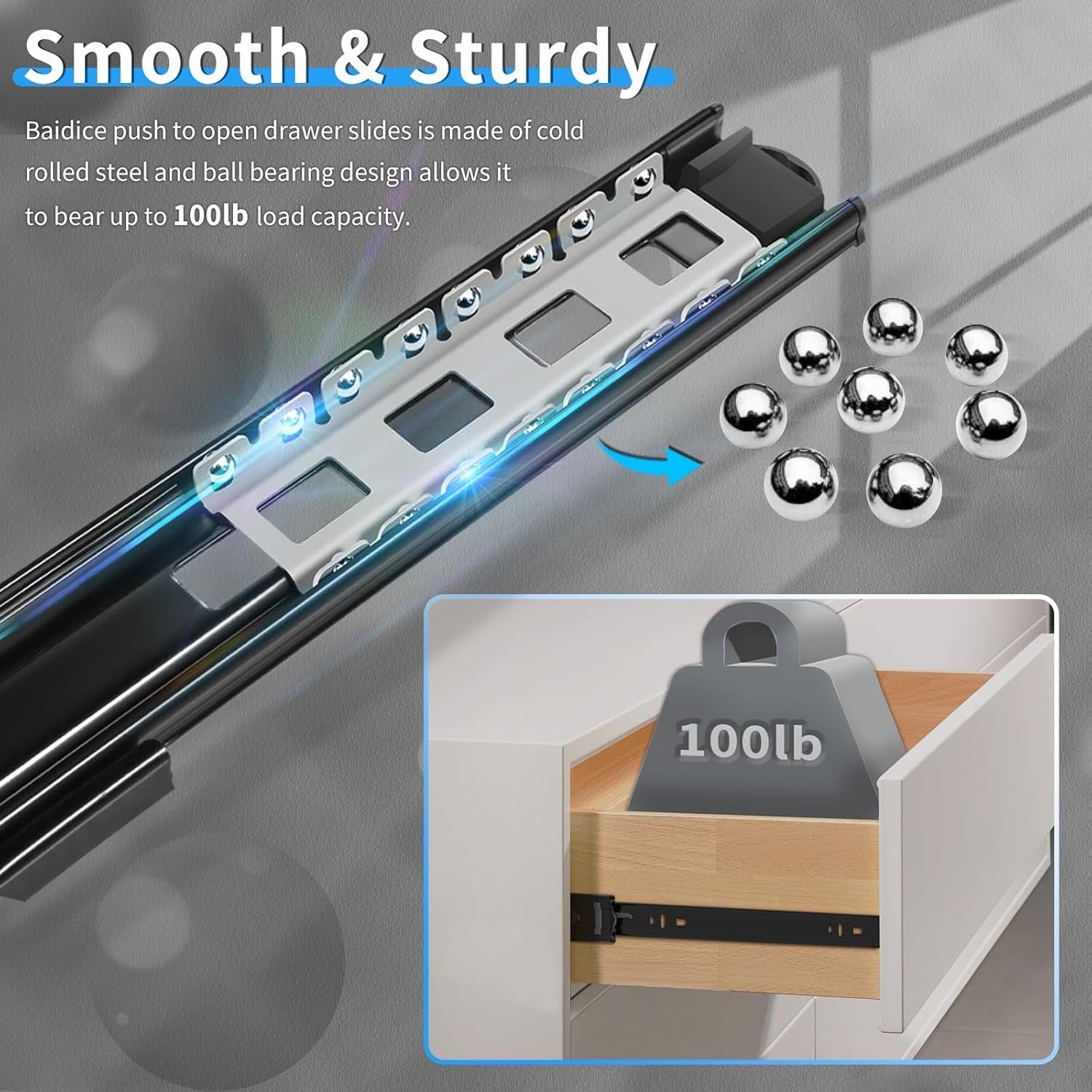

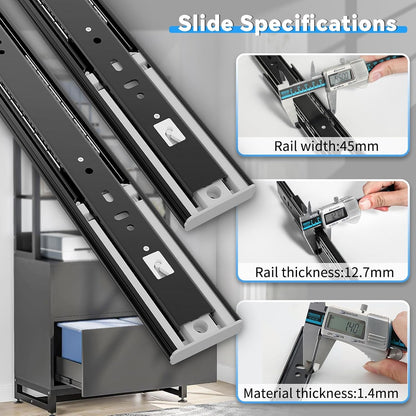

• 100 lb Load Capacity – Heavy-duty 1.2 mm Q235 cold-rolled steel construction supports up to 100 lb per pair, suitable for demanding daily use in kitchens and furniture.
• Electrocoated Black Finish – Electrophoretic black coating provides corrosion and rust resistance while delivering a clean modern appearance that complements black cabinet hardware.

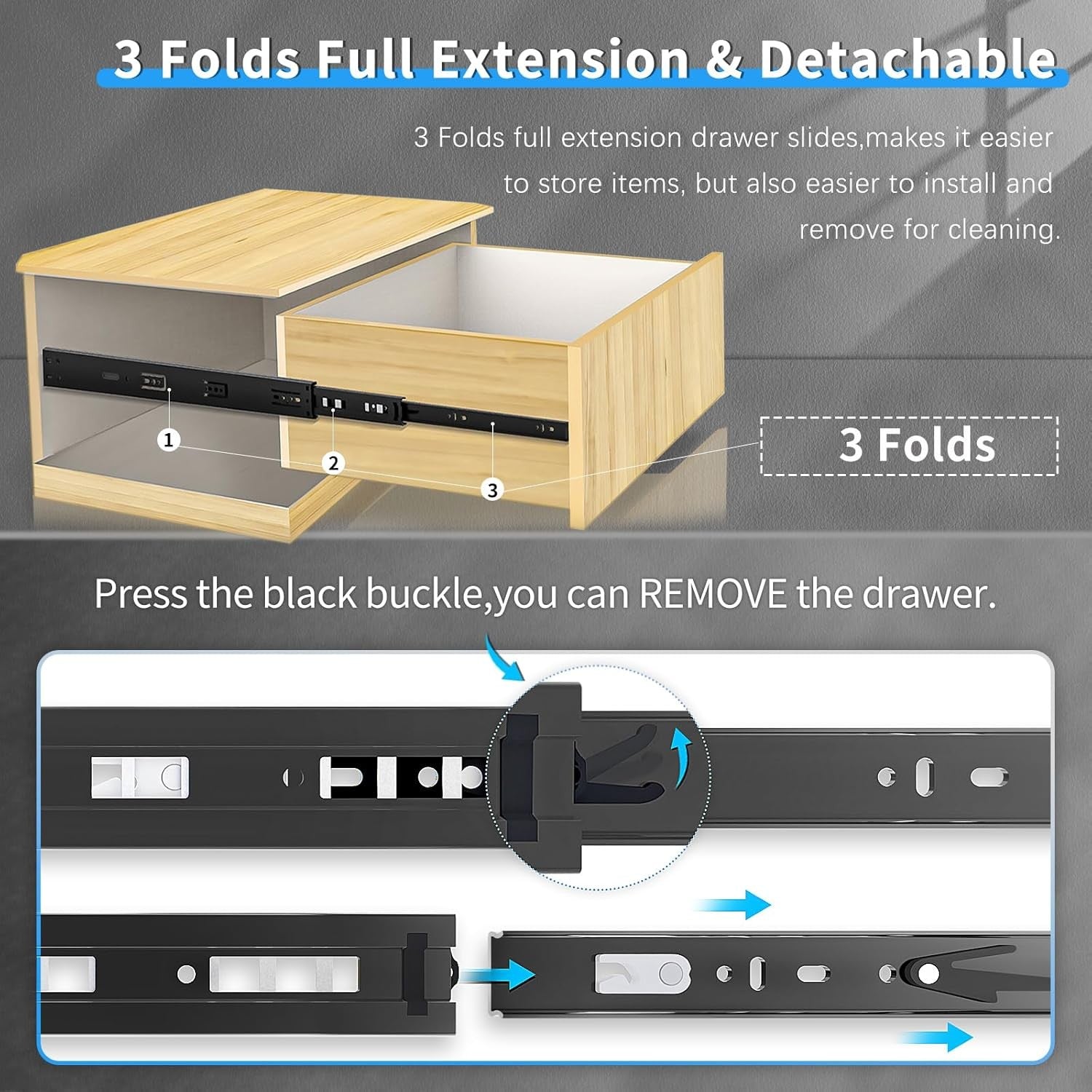

• Detachable Rear Buckle – The rear buckle allows the drawer to be removed and reattached easily for cleaning, adjustments, or reinstallation without tools.
• Rubber Silent Pad – Built-in rubber silent pad dampens noise during operation, reducing sound to approximately 35 decibels for quiet drawer movement.
• Side Mount Installation – Designed for standard side-mount cabinet rail installation; requires 0.5 inch (12.7–13 mm) clearance on both the left and right sides of the drawer.

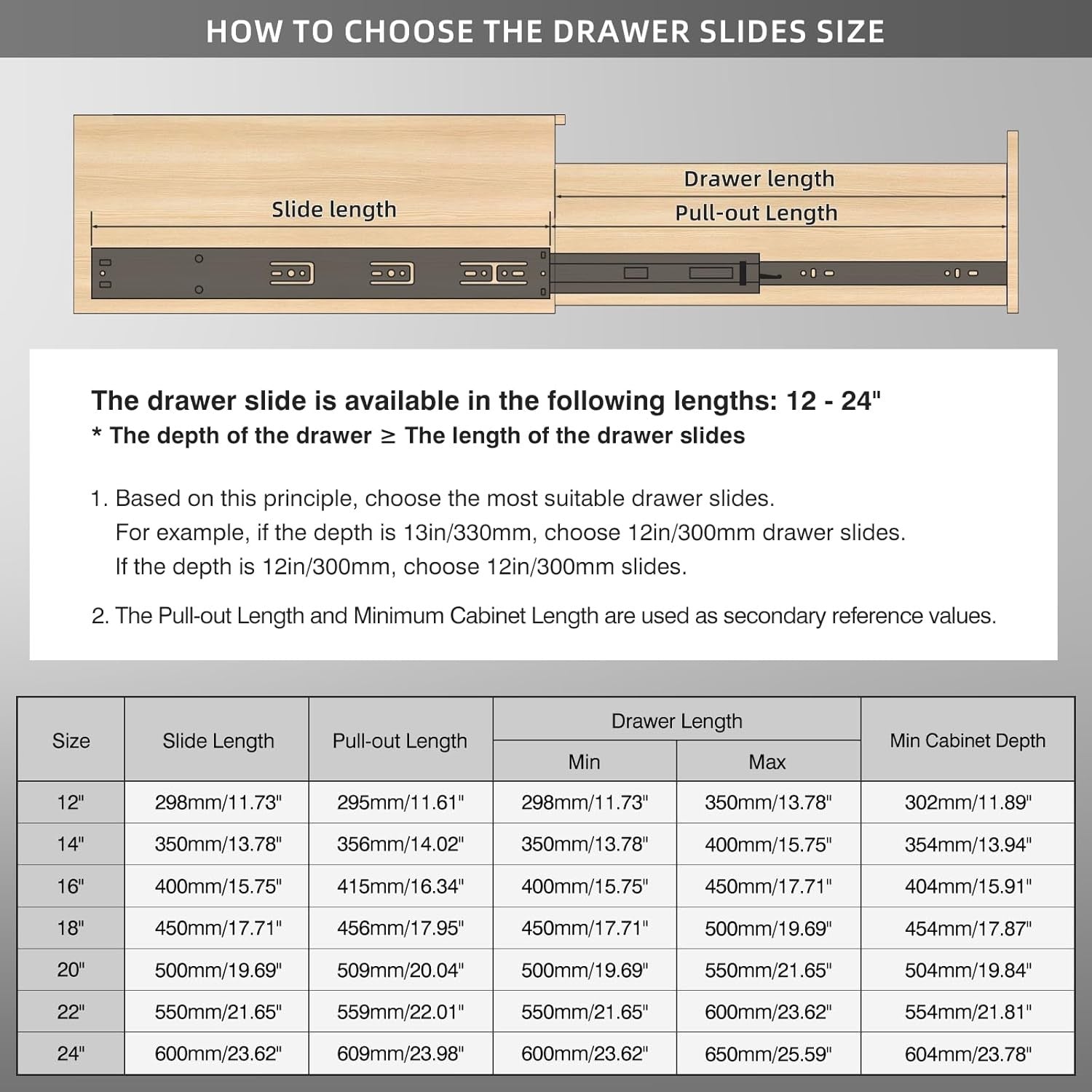

• Wide Length Range – Available in sizes from 12 to 24 inches to fit a variety of cabinet and drawer depths, including a 19.69-inch model suited to drawer inner depths of 20–22 inches or greater.
• Includes Mounting Hardware – Each pair comes with 8 screws for straightforward installation without sourcing additional fasteners.
• Modern Style – Clean black finish and handleless operation suit modern, minimalist, and contemporary cabinet designs.

Technical Specifications

Use Cases & Compatibility

The BAIDICE F1245 push-to-open drawer slides are suited to a wide range of handleless cabinet and furniture applications, including:

• Kitchen cabinets – Handleless push-to-open access is especially practical when carrying groceries or cooking with wet hands.
• Bathroom vanities – Black finish complements modern vanity hardware; full extension allows easy access to stored items.
• Bedroom dressers and nightstands – Quiet 35 dB operation and smooth ball bearing glide suit bedroom furniture.
• Office furniture and filing cabinets – Heavy-duty 100 lb capacity handles document storage and office supplies.
• DIY furniture builds – Side-mount design and included screws make these slides straightforward to fit into custom-built cabinetry.

These slides require a 0.5 inch (12.7–13 mm) clearance on both sides of the drawer. For the 19.69-inch model, the drawer inner depth should be 20–22 inches or greater. Select the slide length that matches your drawer depth from the available 12–24 inch range.

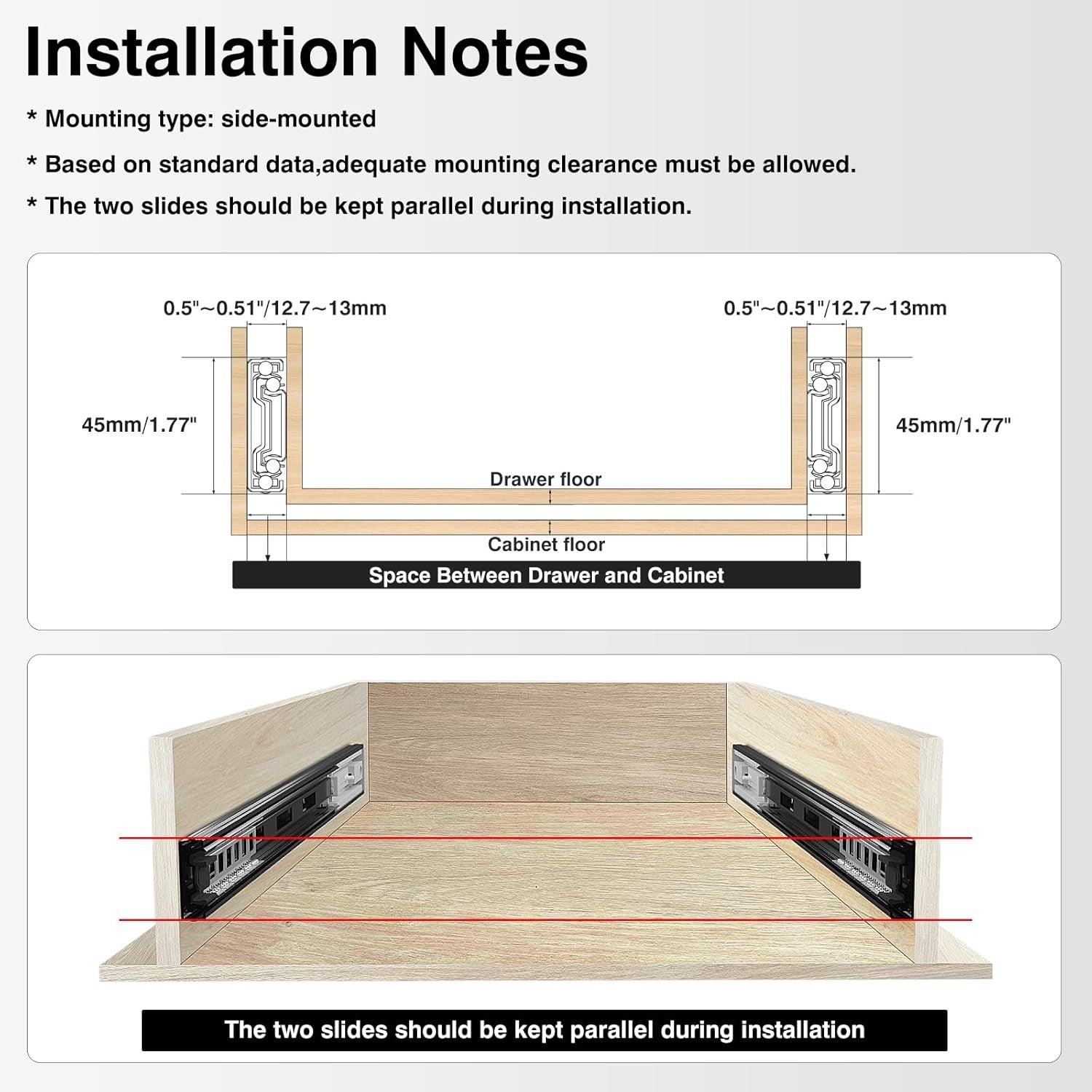

Installation Notes

1. Push the inner ball bearing carriage to the top (rear) of each slide before beginning installation.
2. Ensure 0.5 inch (12.7–13 mm) clearance is available on both the left and right sides of the drawer opening.
3. For the 19.69-inch model, confirm the drawer inner depth is 20–22 inches or greater.
4. Secure each slide to the cabinet and drawer using the included screws.
5. Test the push-to-open function by gently pressing the drawer face to confirm smooth release and retraction.
6. Use the rear buckle to detach the drawer from the slides if adjustments are needed.

What Is Included

• 1 Pair BAIDICE Push to Open Full Extension Drawer Slides (2 slides) – Black, MPN F1245
• 8 mounting screws
