Description

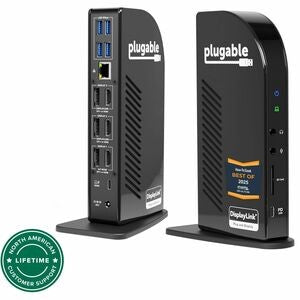

Plugable UD-ULTC4K USB-C Triple 4K Docking Station 100W Power Delivery
This is a USB-C Triple 4K Display Docking Station from Plugable Technologies, model UD-ULTC4K (UPC: 819927011460). The Plugable 4K USB C Docking Station Triple Monitor with 100W Power Delivery supports up to three 4K@60Hz displays via flexible combinations of DisplayPort and HDMI ports, delivers 100W power delivery to compatible laptops, and provides extensive connectivity including USB 3.0 ports, Gigabit Ethernet, SD card reader, and audio jacks. Designed as a universal USB C Dock for Thunderbolt 3/4 and USB-C Windows and Mac setups, it challenges proprietary OEM docks with cross-platform support for Windows, macOS, and ChromeOS in mixed-fleet environments.
Advanced Triple Display and Connectivity Features
- Triple 4K@60Hz Support – Up to three 4K displays using any mix of 3x DisplayPort and 3x HDMI ports, eliminating dongle needs for flexible setups.
- 100W Power Delivery – 96W certified charging for power-hungry laptops like MacBook Pro 16" or Dell Precision series, no separate adapter required.
- Ports Aplenty – 10Gbps front USB-C (20W PD), 4x USB 3.0 (5Gbps), SD card reader, Gigabit Ethernet, 3.5mm audio in/out for complete workspace expansion.
- Replaceable Host Cable – Detachable USB-C cable for easy maintenance and IT deployments, unlike fixed OEM designs.
- Universal Cross-Platform – Full support across Windows, macOS, ChromeOS without brand limitations, ideal for business fleets.
- Enterprise-Ready Build – U.S.-based support, robust I/O upgrade over OEM docks lacking peripherals.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Plugable Technologies |
| Brand Name | Plugable |
| Manufacturer Part Number | UD-ULTC4K |
| Product Model | UD-ULTC4K |
| Product Name | USB-C Triple 4K Display Docking Station |
| Product Type | Docking Station |
| Connectivity Technology | Wired |
| Device Supported | Notebook |
| Number of Displays Supported | 3 |
| Screen Mode Supported | 4K |
| Supported Resolutions | 3840 x 2160, 2560 x 1440, 2560 x 1080, 1920 x 1080, 1600 x 900, 1280 x 1024, 1280 x 800, 1280 x 720, 1024 x 768, 800 x 600, 640 x 480 |
| Ethernet Technology | Gigabit Ethernet |
| Host Interface | USB Type C |
| Total Number of USB Ports | 5 |
| Number of USB 3.0 Ports | 5 |
| Number of USB Type-A Ports | 4 |
| USB Type-C | Yes; 1 x USB-C Front (USB 3.0, 5Gbps) |
| Number of USB Type-C Ports | 1 |
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| DisplayPort | Yes; Version 1.2 |
| Number of DisplayPort Outputs | 2 |
| HDMI | Yes |
| HDMI Version | 1.4 / 2.0 (per port type) |
| Number of HDMI Outputs | 1 |
| Audio Line In | Yes (3.5mm) |
| Audio Line Out | Yes (3.5mm Headphone) |
| Microphone | Yes |
| Operating System Supported | macOS, Windows |
| Power Delivery | 100W (96W certified), USB Power Delivery Compliant (PD 2.0) |
| Maximum Power Supply Wattage | 60 W |
| Power Adapter | In: AC 120-240V 50/60Hz; Out: DC 100W (20V/5A) |
| Physical Height | 7.90" |
| Physical Width | 2.90" |
| Weight (Approximate) | 1.37 lb |
| Package Weight | 3.20 lb |
| Package Dimensions | Height: 3.70", Width: 9.70", Depth: 6.20" |
| Country of Origin | Taiwan |
| UPC | 819927011460 |
| MPN | UD-ULTC4K |

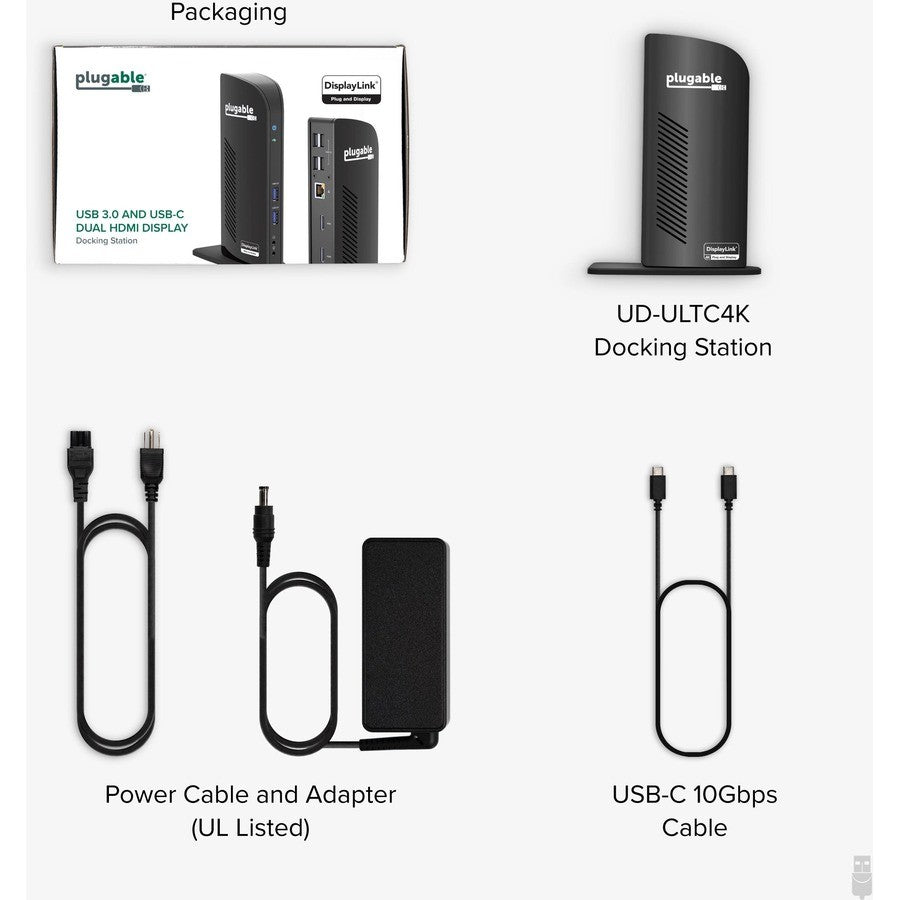

| Package Contents | USB-C Triple 4K Display Docking Station, 1 x USB-C to USB-C Cable, 1 x 100W Power Adapter |

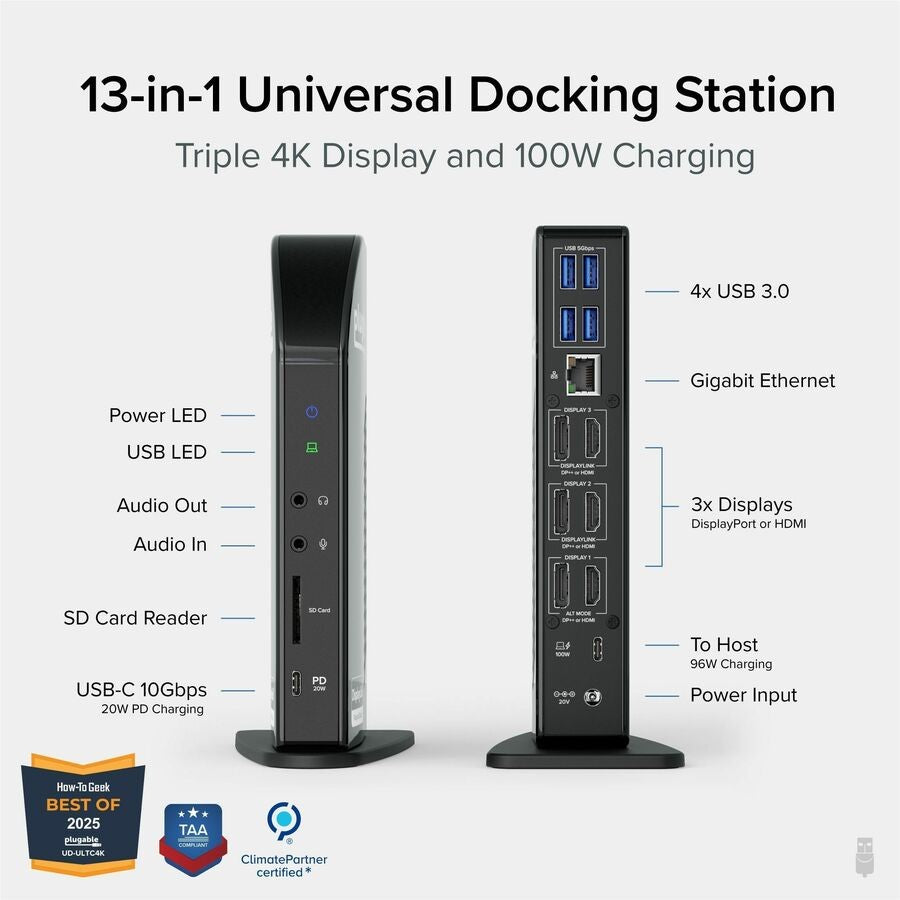

| Port Breakdown | 1x USB-C host (100W PD), 2x DisplayPort 1.2 (DisplayLink), 1x DisplayPort 1.2 (Alt Mode), 2x HDMI 2.0 (DisplayLink), 1x HDMI 2.0 (Alt Mode), 4x USB 3.0 (5Gbps), 1x USB-C (10Gbps, 20W PD), 1x SD Card Reader, 1x Gigabit Ethernet, 1x 3.5mm Audio In |
Why Choose Plugable UD-ULTC4K Docking Station
Built to outperform proprietary docks like HP G5/G2 or Dell WD19S, the UD-ULTC4K offers unmatched display flexibility, full power delivery, and peripheral expansion for business and professional use. Enterprise-ready with replaceable cable and U.S. support for reliable, future-proof deployments.
Expand your productivity with Plugable UD-ULTC4K USB-C Triple 4K Dock—Order now!
Brand: Plugable
Type: Docking Station
Compatible Brand: Plugable
Color: Black
Model: UD-ULTC4K
Compatible Model: UD-ULTC4K
MPN: UD-ULTC4K
Country of Origin: Taiwan
Ports: Audio Out
Compatible Product Line: Universal
Item Height: 7.90 in
Item Width: 2.90 in
UPC: 819927011460
