Plugable UD-7400PD USB-C 5-Display Docking Station, 140W PD, HDMI 2.1 8K, 4K@60Hz, 2.5GbE, 7x USB (UD-7400PD)
Plugable UD-7400PD USB-C 5-Display Docking Station, 140W PD, HDMI 2.1 8K, 4K@60Hz, 2.5GbE, 7x USB (UD-7400PD)
Low stock: 5 left
Save 13%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

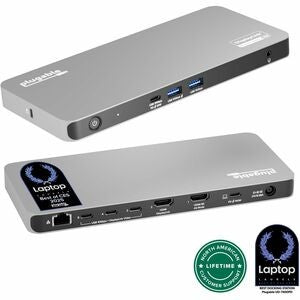

Plugable UD-7400PD USB-C 5-Display Docking Station 140W HDMI 2.1
This is a Plugable USB-C 5-Display Docking Station with HDMI 2.1 and 140W Charging (model UD-7400PD) that connects up to five 4K displays for MacBook, Windows, and Thunderbolt 4 laptops. Engineered with USB-C and DisplayLink technologies, it supports one HDMI 2.1 port up to 8K@30Hz, one HDMI 2.0 port at 4K@60Hz, and three USB-C DisplayLink ports each at 4K@60Hz (drivers required). It delivers 140W Power Delivery to the host laptop via USB-C and 30W to front USB-C devices, plus 2.5Gbps Ethernet, front USB-A 10Gbps ports (one with BC 1.2 fast charging), 3.5mm audio jack, and Kensington lock slot. MPN: UD-7400PD; UPC: 819927013488. Compatible with systems featuring 10Gbps USB-C ports with video output.
Key Features of Plugable UD-7400PD USB C Docking Station 5 Monitors
- Five-Display Support – One HDMI 2.1 (8K@30Hz), one HDMI 2.0 (4K@60Hz), three USB-C DisplayLink (4K@60Hz each, driver required) for multitasking workflows.

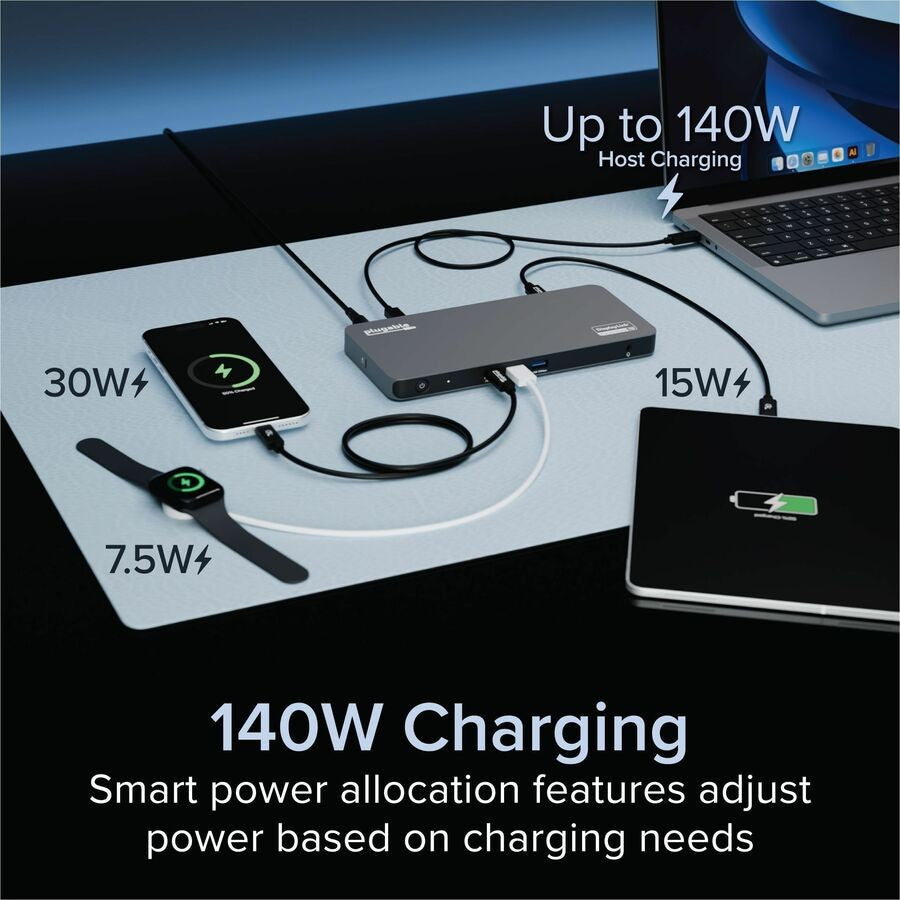

- 140W Host Charging – Powers high-performance laptops via rear USB-C USB 3.2 Gen 2 (10Gbps) port with Power Delivery pass-through.

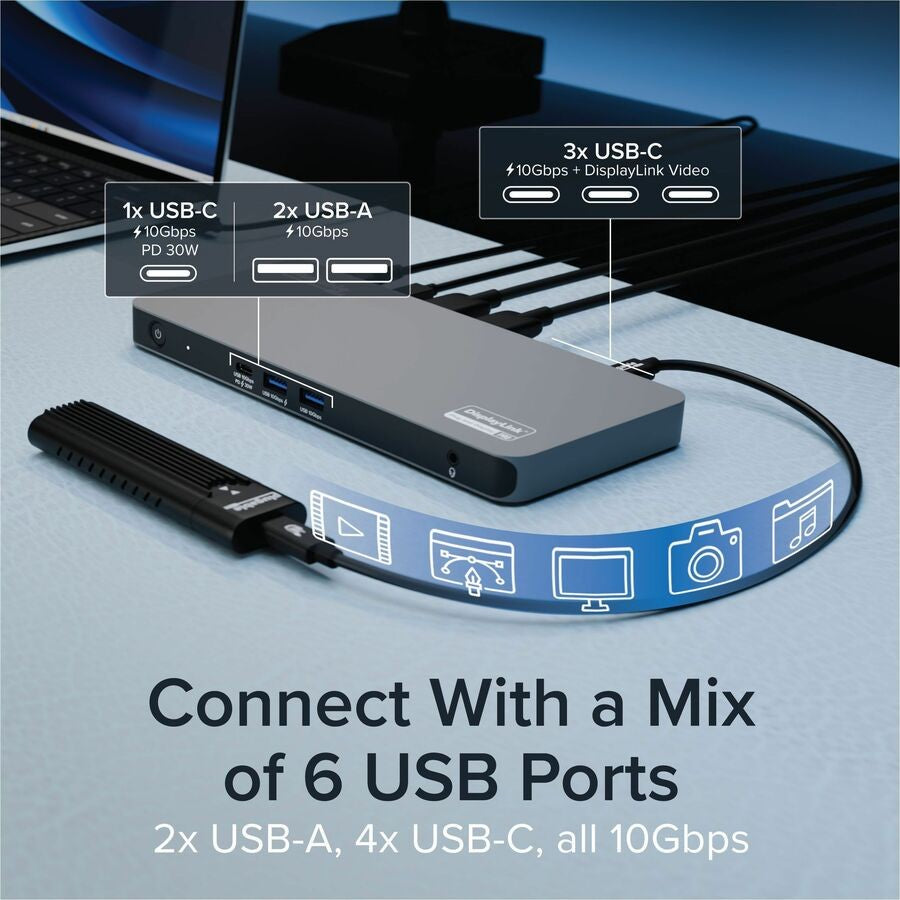

- Front 30W USB-C PD – Charges smartphones or tablets alongside two USB-A 10Gbps ports (one BC 1.2).
- 2.5Gbps Ethernet – RJ-45 port for stable, fast network connections ideal for video conferencing and large files.
- DockTag OSD – On-screen display shows dock status, asset details, and QR code for setup/support access.
- Additional Connectivity – 3.5mm headphone/microphone combo jack, Kensington security slot, Wake-on-LAN, LED power indicator.
- Compact Design – No Thunderbolt required; wired connectivity with 3.28 ft USB-C host cable included.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Plugable |
| Manufacturer | Plugable Technologies |
| MPN / Model | UD-7400PD |
| UPC | 819927013488 |
| Product Type | Docking Station |
| Connectivity Technology | Wired |
| Device Supported | Notebook, Computer |
| Number of Displays Supported | 5 |
| Screen Modes Supported | 8K @ 30Hz, 4K @ 60Hz, 8K @ 60Hz |
| Supported Resolutions | 7680 x 4320, 3840 x 2160 |
| Host Interface | USB 3.2 (Gen 2) Type-C |
| Total USB Ports | 7 |
| USB Type-A Ports | 2 x USB 3.2 Gen 2 (10Gbps), 1 with BC 1.2 |
| USB Type-C Ports | 5 (1 x USB-C 10Gbps PD 30W front, 3 x USB-C 10Gbps DisplayLink Video 4K@60Hz, 1 x USB-C 10Gbps PD 140W host) |
| HDMI Outputs | 2 (1 x HDMI 2.1, 1 x HDMI 2.0) |
| Network (RJ-45) | Yes, 2.5 Gigabit Ethernet |
| Headphone/Microphone Port | Yes, 3.5mm combo |
| USB Power Delivery | 140W (host), 30W (front) |
| Maximum Power Supply | 180W |
| Power Source | Power Adapter |
| Maximum Data Transfer Rate | 1.25 GB/s (10Gbps) |
| Cable Length | 3.28 ft (USB-C host cable) |
| Dimensions (H x W x D) | 0.70" x 8.30" x 3.70" |
| Weight (Approximate) | 1.08 lb |
| Features | Power Delivery Pass-through, LED Power Indicator, Security Lock (Kensington), Wake-on-LAN, DockTag OSD |
| Operating Systems Supported | Windows 10 and later, macOS 11.0 Big Sur and later |
| Package Quantity | 1 |
Package Contents
- Plugable USB-C 5-Display Docking Station with HDMI 2.1 and 140W Charging (UD-7400PD)
- 1 x Power Adapter (180W)
- 1 x Power Cable
- 1 x Quick Start Guide
- 1 x USB-C Cable (3.28 ft)
Why Choose Plugable UD-7400PD Docking Station
Expand productivity with multi-monitor support, robust charging, and versatile ports in a compact form factor suitable for MacBook Pro, MacBook Air, Windows laptops, and Thunderbolt 4 systems without requiring Thunderbolt docking.
Enhance your setup with the Plugable UD-7400PD 5-display dock—order now!
Brand: Plugable
Type: Docking Station
Compatible Brand: Plugable
Color: Silver
Model: UD-7400PD
MPN: UD-7400PD
Ports: Audio Out
Compatible Product Line: For Apple MacBook
Unit Quantity: 1
Item Height: 0.70 in
Item Width: 8.30 in
Item Length: 3.70 in
UPC: 819927013488
