Plugable UD-3900C4 14-in-1 USB-C Quad 4x HDMI Dock, 96W PD, GbE, SD, 4x USB 3.0, DisplayLink+MST, TAA (UD-3900C4)
Plugable UD-3900C4 14-in-1 USB-C Quad 4x HDMI Dock, 96W PD, GbE, SD, 4x USB 3.0, DisplayLink+MST, TAA (UD-3900C4)
Low stock: 5 left
Save 23%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Plugable 14-in-1 USB C Docking Station with 4x HDMI, Quad Dock with 100W Charging, 4x HDMI Displays
This is a Plugable UD-3900C4 14-in-1 USB-C Quad HDMI Docking Station that expands your notebook or monitor setup to four displays using a combination of DisplayLink technology for displays one and two, and Multi-Stream Transport (MST) Alt Mode for displays three and four. All four HDMI outputs support resolutions up to 1080p at 60Hz, with additional capabilities for 4K and 2K modes. Featuring 100W Power Delivery (96W max for laptop charging), Gigabit Ethernet, SD card reader, and multiple USB ports, MPN: UD-3900C4, UPC: 819927012627. Manufacturer: Plugable Technologies.

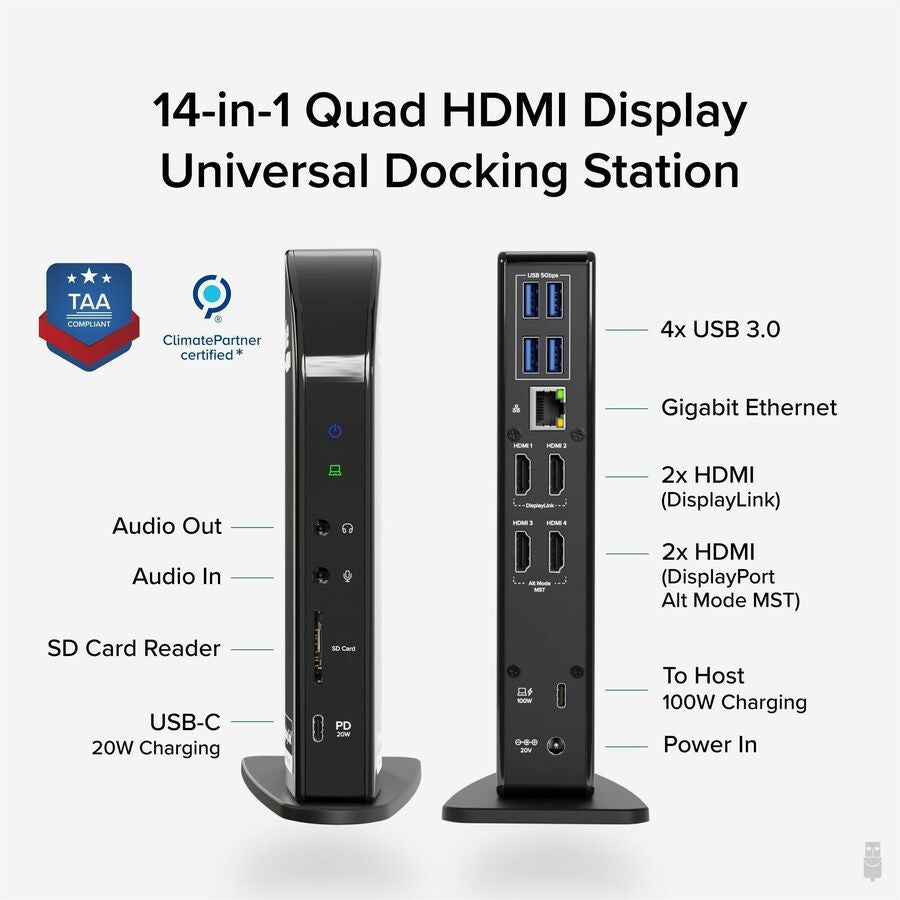

Key Features of Plugable UD-3900C4 USB-C Quad HDMI Dock

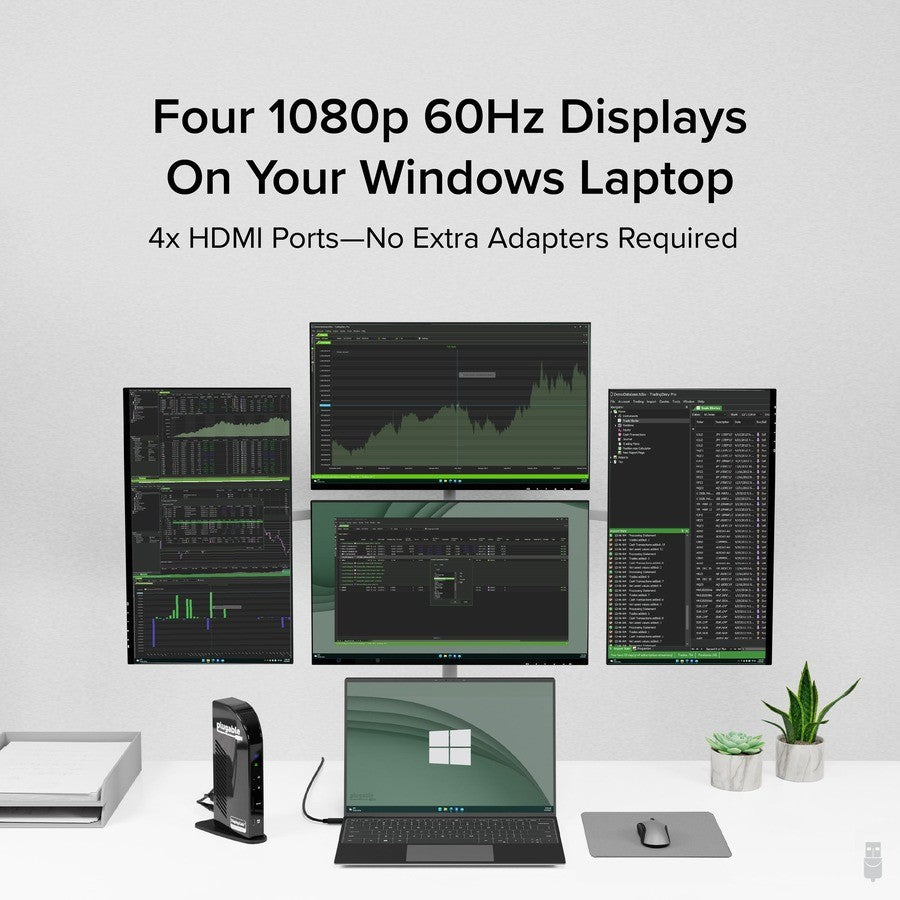

- Quad 4x HDMI Outputs – Drives four displays at up to 1080p@60Hz via DisplayLink (displays 1-2) and MST Alt Mode (displays 3-4); supports 4K/2K screen modes and resolutions including 1920x1080 and 3840x2160.

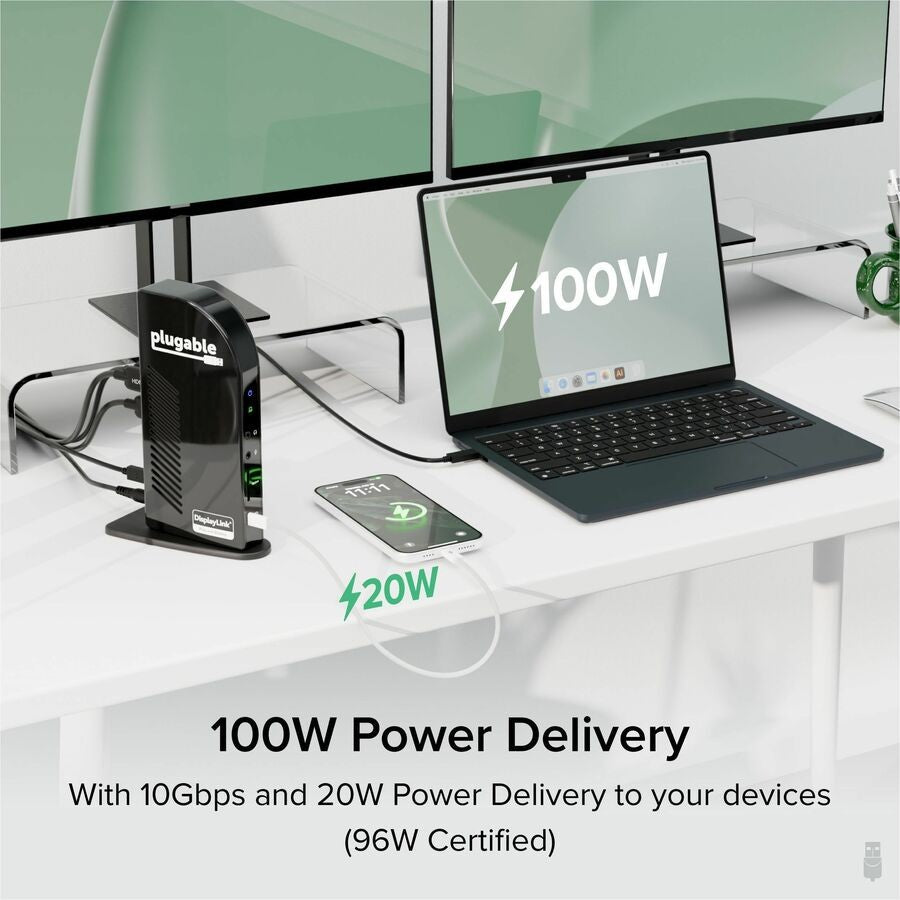

- 100W USB-C Power Delivery – Delivers up to 96W charging to laptop via single USB-C host cable; additional USB-C port provides 20W charging.
- 4x USB 3.0 Type-A Ports – Data transfer up to 5Gbps for legacy devices.
- Gigabit Ethernet (RJ-45) – Wired network connectivity for stable internet.
- SD Card Reader – Supports SD, SDHC, SDXC, MultiMediaCard (MMC) for storage and photo transfers.
- Audio Ports – 3.5mm audio-out and audio-in jacks.
- Additional Ports – DisplayPort 1.4, headphone/microphone combo port.
- Wired Connectivity – Supports notebooks and monitors; Thunderbolt compatible hosts.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Plugable Technologies |
| Brand Name | Plugable |
| Product Model | UD-3900C4 |
| Manufacturer Part Number | UD-3900C4 |
| UPC | 819927012627 |
| Product Type | Docking Station |
| Connectivity Technology | Wired |
| Device Supported | Notebook, Monitor |
| Memory Card Reader | Yes |
| Memory Card Supported | SD, SDHC, SDXC, MultiMediaCard (MMC) |
| Number of Displays Supported | 4 |
| Screen Mode Supported | 4K, 2K |
| Supported Resolutions | 1920 x 1080, 3840 x 2160 |
| Ethernet Technology | Gigabit Ethernet |
| Host Interface | USB Type C |
| Number of USB 3.0 Ports | 4 |
| Number of USB Type-A Ports | 4 |
| USB Type-C | Yes; 100W (96W Max PD Profile) charging |
| Number of USB Type-C Ports | 1 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes; Version 1.4 |
| Headphone/Microphone Combo Port | Yes |
| HDMI | Yes; 4 Ports; Version 2.0 |
| Thunderbolt | Yes |
| Operating System Supported | Windows, macOS, ChromeOS 100 or later |
| Maximum Power Supply Wattage | 100 W |
| Height | 7.90" |
| Width | 2.80" |
| Weight (Approximate) | 1.07 lb |
| Compliance | TAA Compliant |

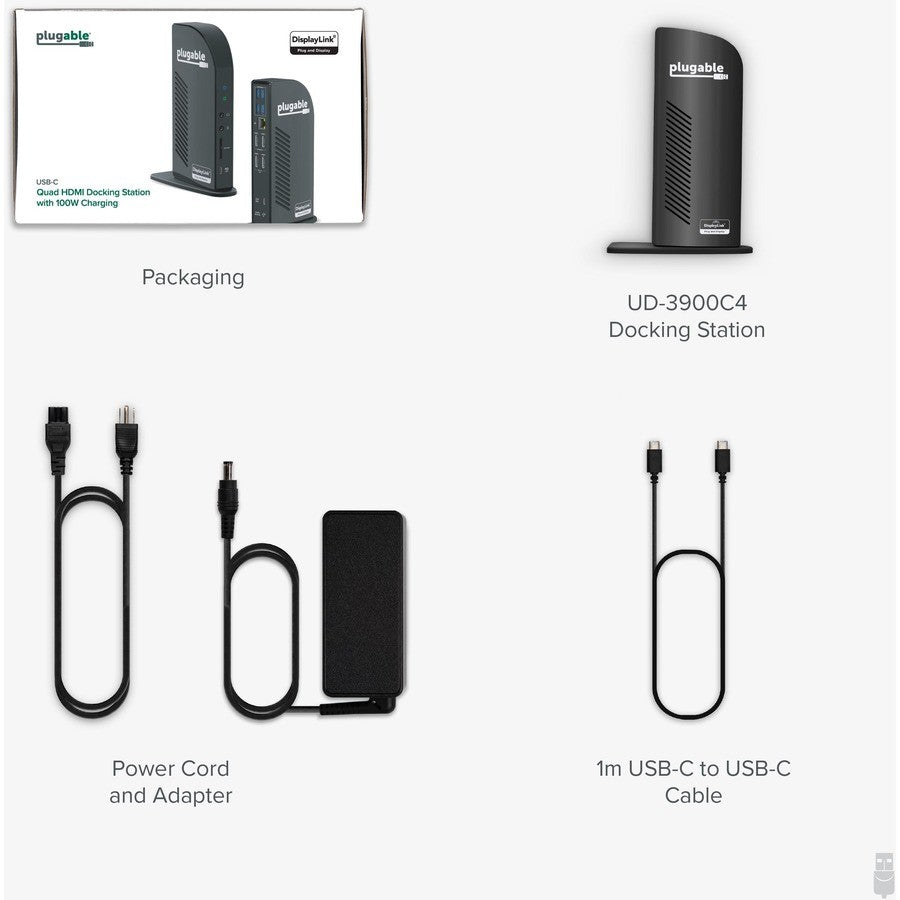

Package Contents & Setup Overview
- Plugable USB-C Quad HDMI Docking Station
- 1x Power Adapter
- 1x USB-C to USB-C Cable
- 1x Quick Start Guide

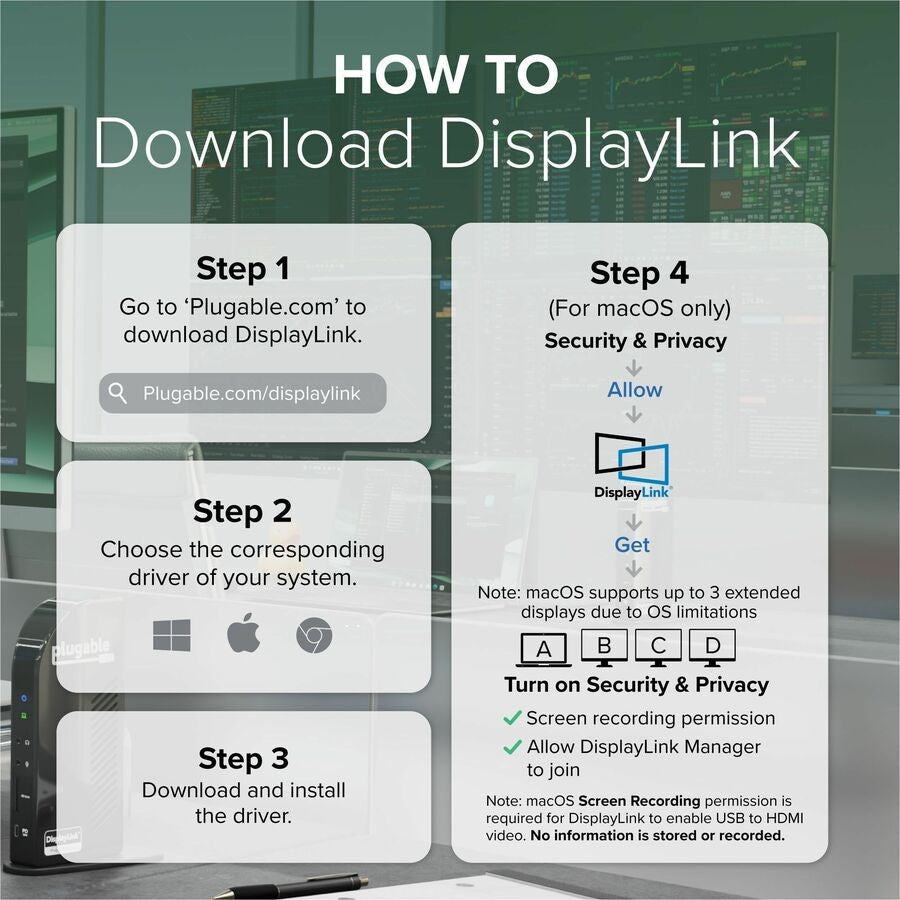

Connect via USB-C host cable to your compatible system. Power on the dock. Displays and peripherals auto-detect on supported OS. Download DisplayLink drivers if prompted on Windows.
Why Choose Plugable UD-3900C4 Quad HDMI Dock
Delivers versatile multi-monitor expansion with robust charging, peripheral connectivity, and TAA compliance for professional setups requiring four HDMI displays from a single USB-C connection.
Expand to quad displays with Plugable 14-in-1 USB-C docking station—Order the UD-3900C4 today!
Brand: Plugable
Type: Docking Station
Compatible Brand: Plugable
Color: Black
Model: UD-3900C4
Compatible Model: UD-3900C4
MPN: UD-3900C4
Ports: Audio Out
Item Height: 7.90 in
Item Width: 2.80 in
UPC: 819927012627
