OWC Thunderbolt 3 Mini Dock 5-Port Dual 4K HDMI USB Gigabit Ethernet
This is a bus-powered Thunderbolt 3 docking station from OWC that expands your laptop's connectivity with dual 4K HDMI outputs, dual USB ports, and Gigabit Ethernet. The OWC 5-Port Thunderbolt mini Dock with Dual 4K HDMI, Dual USB + Gigabit Ethernet (MPN: OWCTB3MDK5P, UPC: 810586035101) harnesses Thunderbolt 3 for fast data transfers up to 40Gb/s bandwidth, supporting two 4K@60Hz displays. Built by Other World Computing with a lightweight aluminum housing and tethered 7.2-inch Thunderbolt 3 cable for portable use.

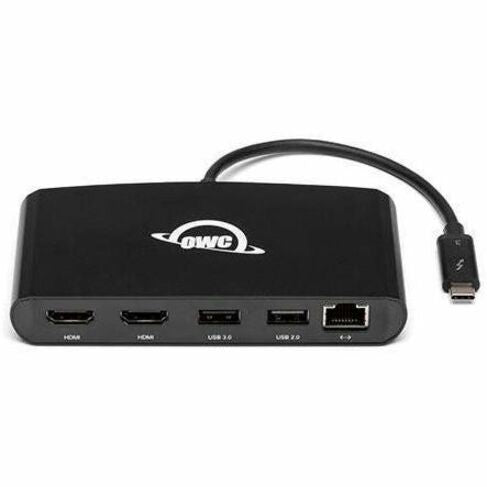

Key Features of OWC Thunderbolt 3 Mini Dock

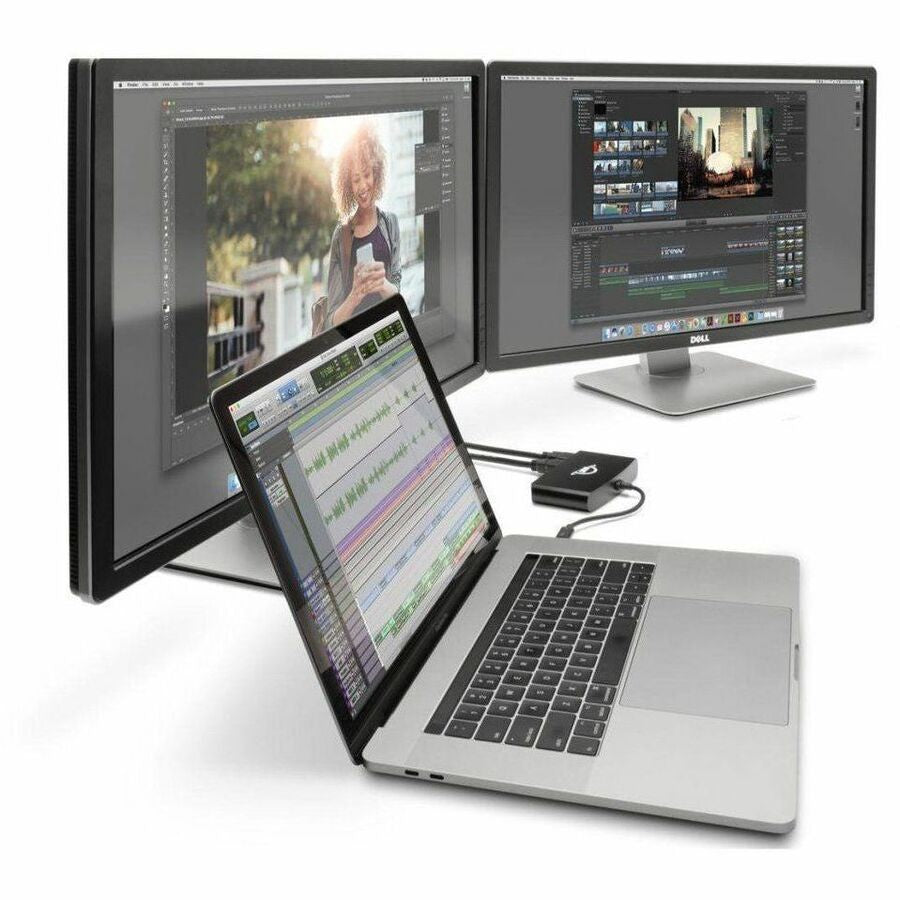

- Dual 4K@60Hz HDMI Displays – Utilizes full Thunderbolt 3 bandwidth for extended or mirrored modes on two external 4K monitors plus laptop screen.
- Bus-Powered Design – No external power adapter needed; draws from Thunderbolt 3 host for portable workflow.
- Gigabit Ethernet Port – Provides reliable wired networking for faster downloads and stable connections over Wi-Fi.
- Dual USB Ports – 1x USB 3.0 (5Gb/s) and 1x USB 2.0 for peripherals, charging small devices, keyboards, mice, drives, printers.
- OWC Dock Ejector Software – One-click safe disconnection of attached drives on Mac and Windows to prevent data loss.

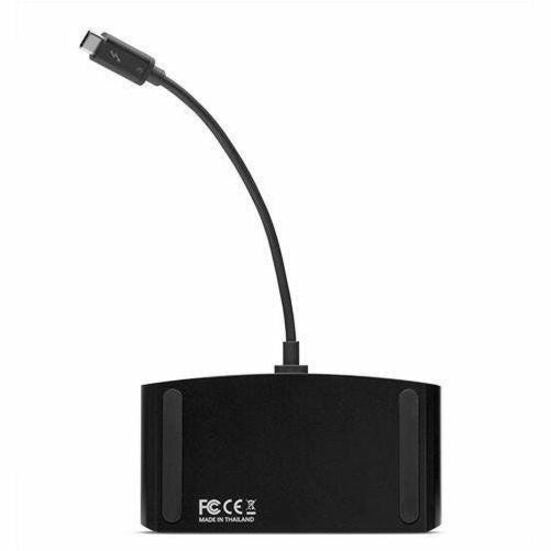

- Compact Aluminum Build – Black finish, lightweight at 5.29 oz, fits in gear bags; eliminates extra cables.
- Environmental Compliance – Meets RoHS and REACH standards.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | OWC (Other World Computing) |
| Manufacturer Part Number | OWCTB3MDK5P |
| UPC | 810586035101 |
| Product Type | Docking Station |
| Connectivity Technology | Wired (Thunderbolt 3) |
| Device Supported | Notebook, Desktop PC |
| Host Interface | Thunderbolt 3 (up to 40Gb/s bandwidth) |
| Number of Displays Supported | 2 |
| Screen Mode Supported | 4K |
| Supported Resolutions | 3840 x 2160 @ 60Hz |
| Maximum Data Transfer Rate | 5 GB/s |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 1 |
| Number of USB 2.0 Ports | 1 |
| Network (RJ-45) Ports | 1 (Gigabit Ethernet) |
| HDMI Outputs | 2 |
| Thunderbolt | Yes |
| Power Source Type | Thunderbolt 3 (Bus-Powered) |
| Product Color | Black |
| Height | 0.75" |
| Width | 4.88" |
| Length | 2.6" |
| Weight (Approximate) | 5.29 oz |
| Operating Systems Supported | Mac OS X 10.12 Sierra, 10.13 High Sierra, 10.14 Mojave, 10.15 Catalina, 11.x Big Sur, 12.x Monterey, 13.x Ventura, 14.x Sonoma; Windows 10 (64-bit), Windows 11, Windows Server 2016 |
| Package Contents | Thunderbolt mini Dock; Quick Start Guide; User Guide; OWC Dock Ejector software download; User Guide for Dock Ejector |
| Warranty | 2 Year OWC Limited Warranty |
Why Choose OWC Thunderbolt 3 Mini Dock
Engineered for precision performance and compatibility with Thunderbolt 3 devices, this mini dock offers expanded ports in a portable form factor. Includes OWC Dock Ejector for safe drive ejection and backed by rigorous quality testing.
Expand your setup with OWC Thunderbolt 3 Mini Dock—order today!
Brand: OWC
Type: Docking Station
Compatible Brand: OWC (Other World Computing)
Color: Black
MPN: OWCTB3MDK5P
Manufacturer Warranty: 2 Years
Ports: HDMI
Compatible Product Line: For Apple MacBook Pro
Compatible Laptop Size: 13 in Laptop
Material: Aluminum
Item Height: 0.75 in
Item Width: 4.88 in
Item Length: 2.6 in
UPC: 810586035101
