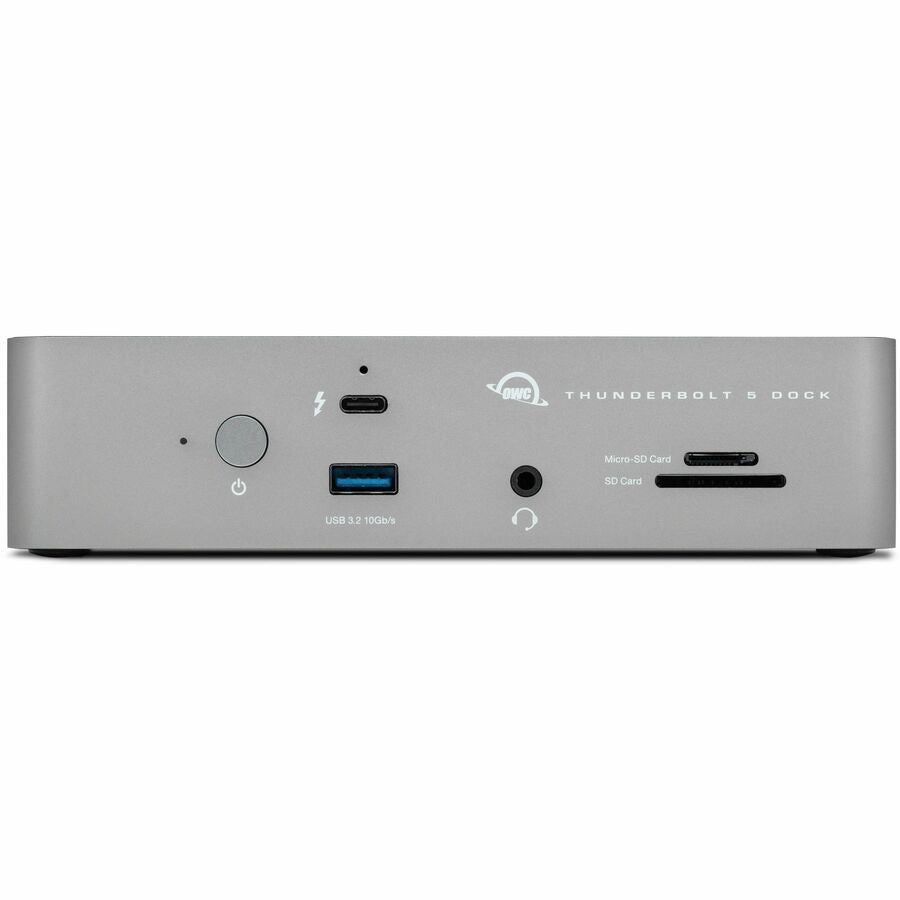

OWC 11-Port Thunderbolt 5 Dock with 140W Power Delivery - 2.5GbE - Up to 3 Displays
This is an OWC 11-Port Thunderbolt 5 Dock designed for advanced connectivity, featuring 140W power delivery, 2.5GbE Ethernet, and support for up to three displays. Manufacturer: Other World Computing (OWC); MPN: OWCTB5DOCK11P; UPC: 810179170752. It provides Thunderbolt 5 speeds of 80Gb/s bi-directional data and up to 120Gb/s video stream performance, with universal USB-C compatibility for Macs, iPads, PCs, Chromebooks, tablets, and more.

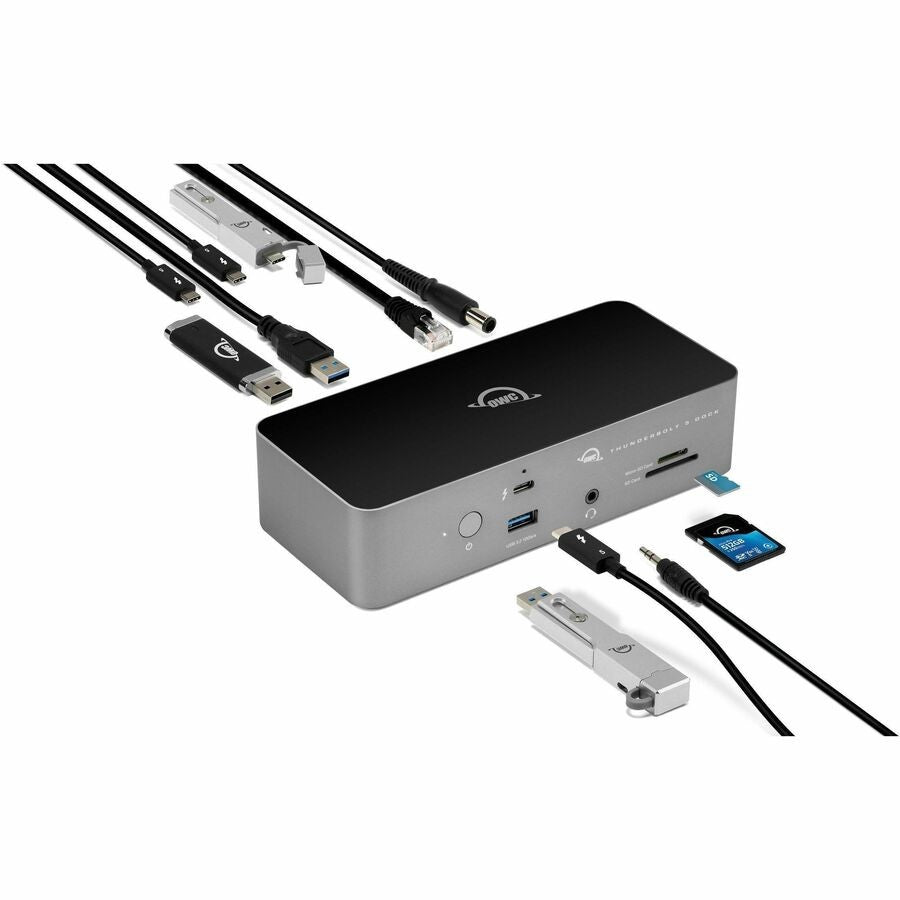

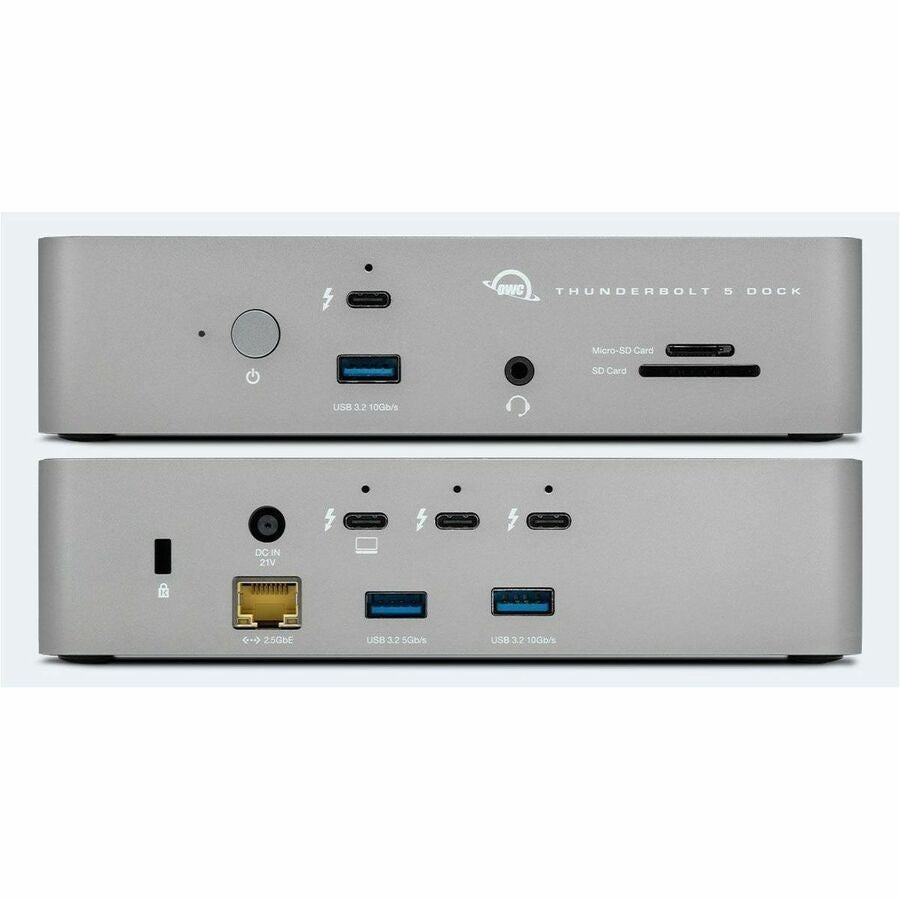

Advanced Connectivity Features

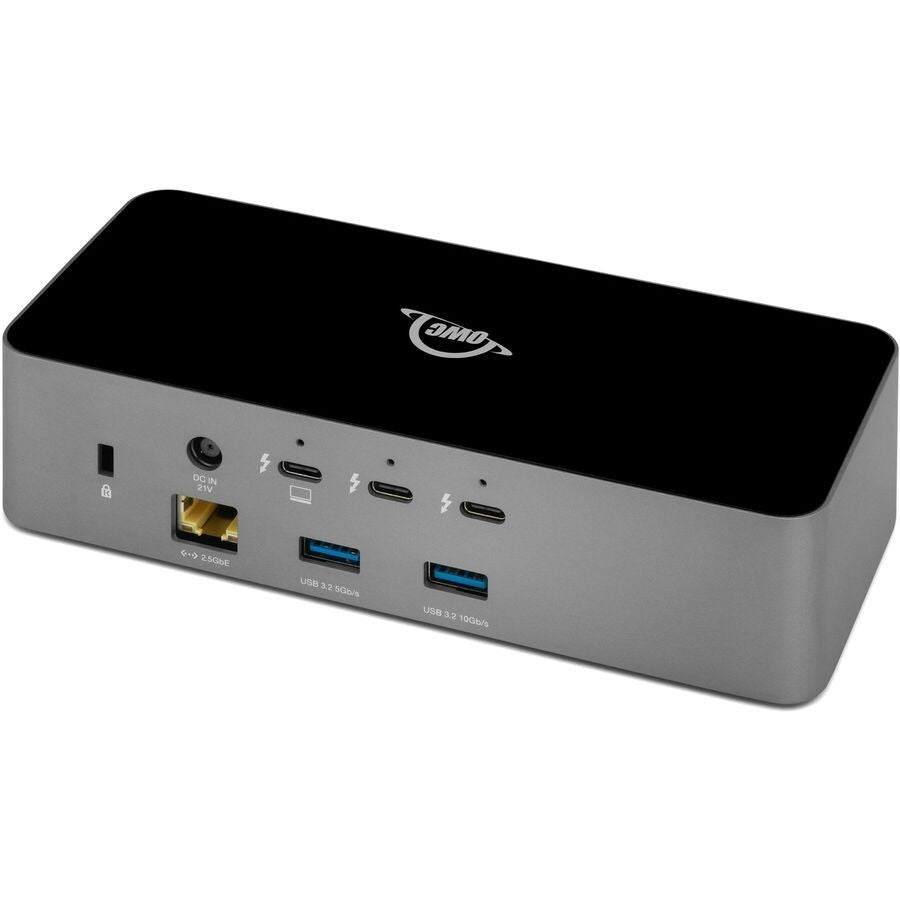

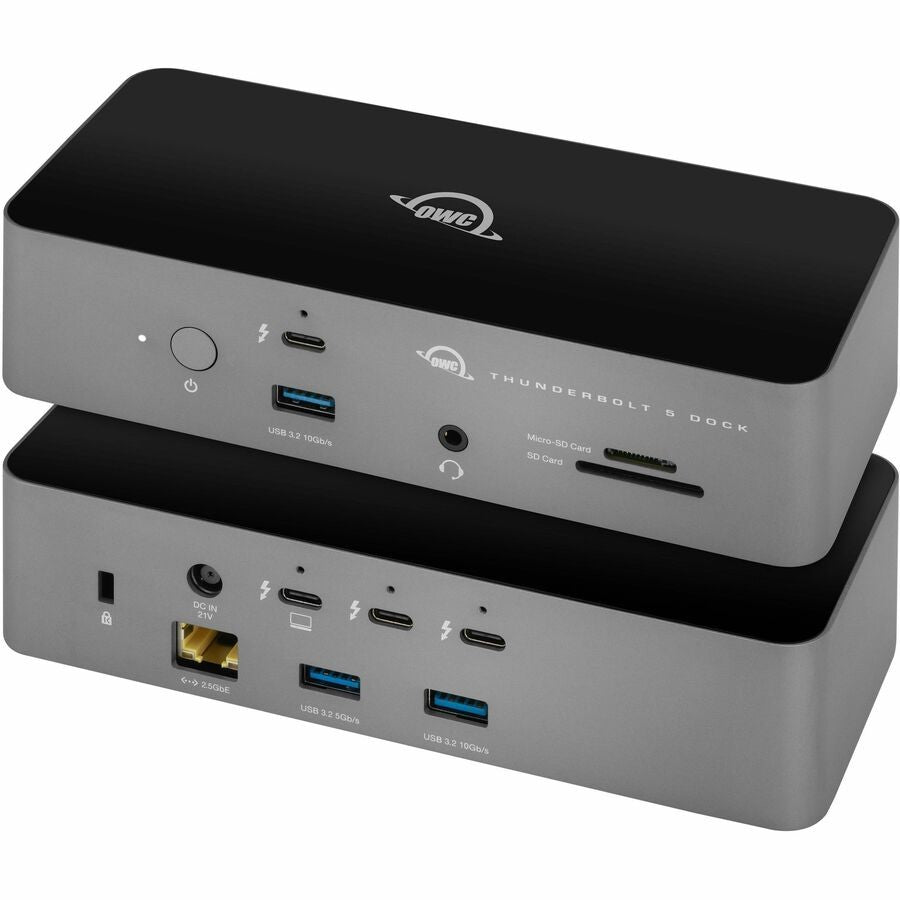

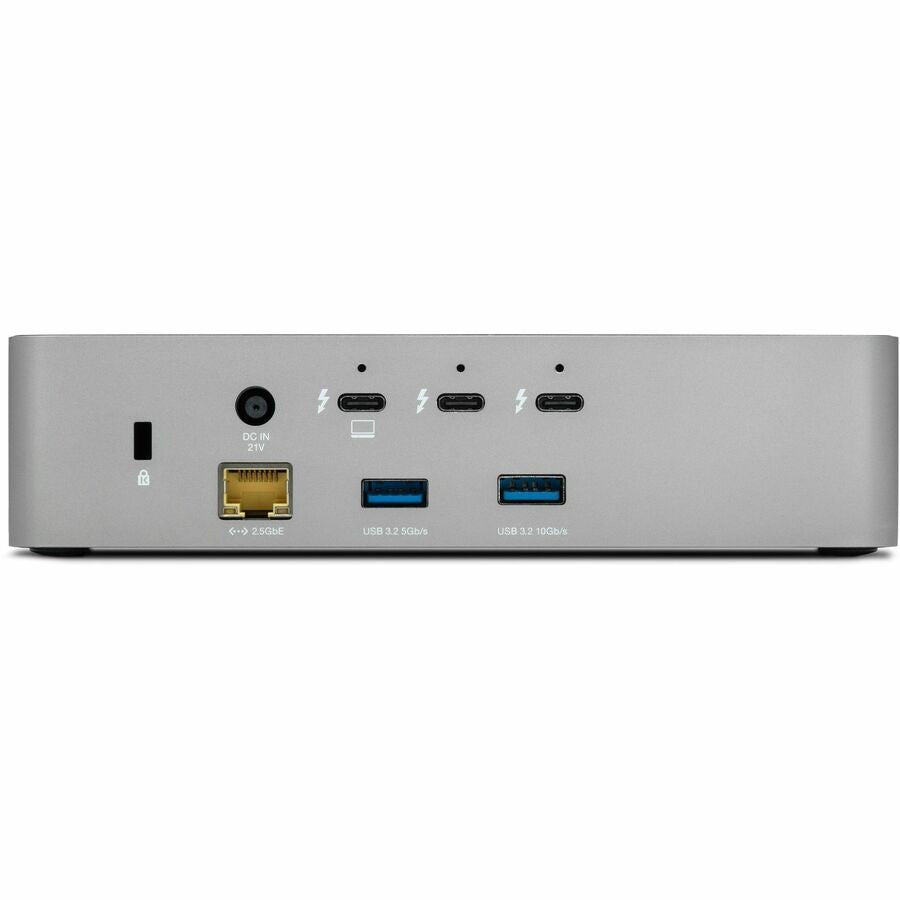

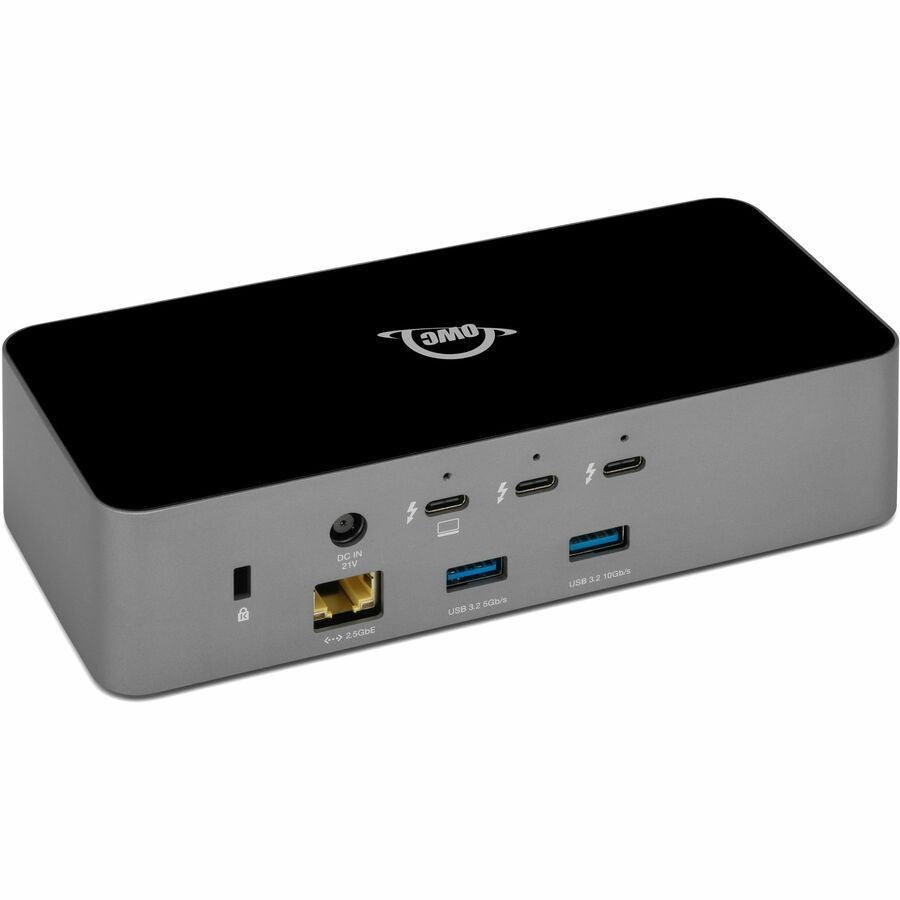

- Thunderbolt 5 Host Port (1x) with up to 140W PD pass-through charging for notebooks, tablets, and more.
- Thunderbolt 5 Ports (3x total downstream) enabling up to three 8K HDR displays at 60Hz with DSC on Windows (or 30Hz without), two 6K on Macs.
- USB-A Ports: 2x USB 3.2 Gen 2 (10Gb/s), 1x USB-A (5Gb/s); total 3 USB Type-A ports.
- 2.5 Gigabit Ethernet (1x RJ-45) for high-speed wired networking.

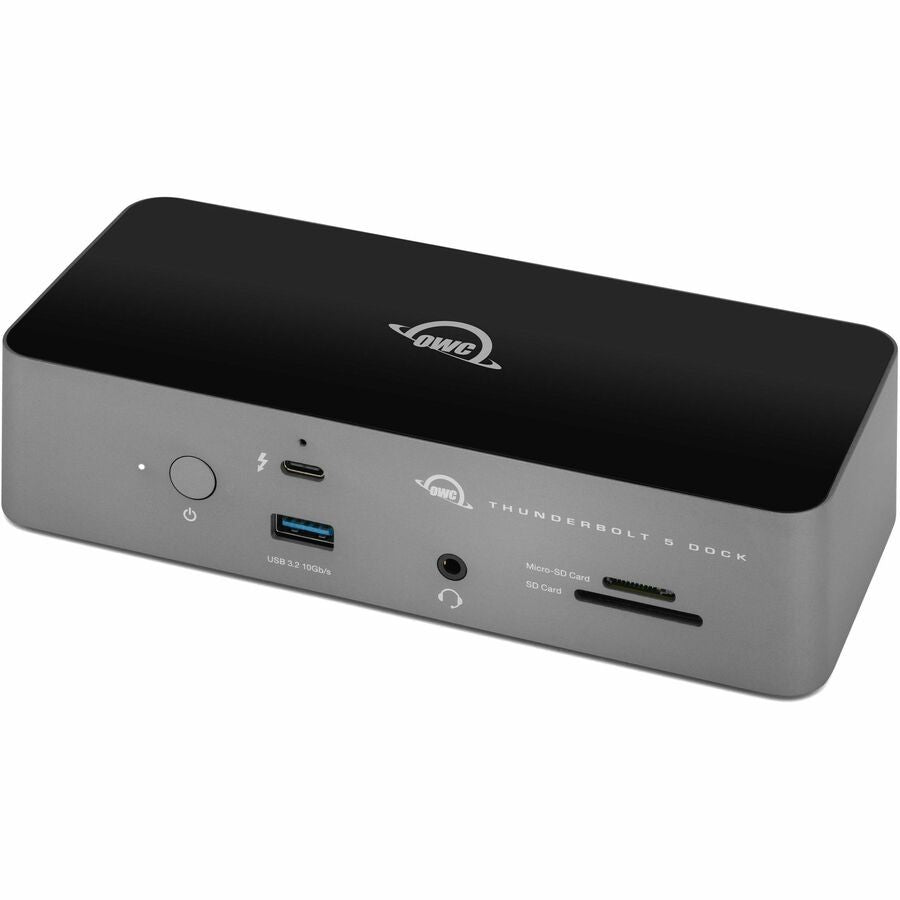

- Memory Card Readers: microSDXC, SDXC, microSD, SD.
- Headphone/Microphone Combo Port and audio in/out support.
- Screen Modes: 8K @ 60Hz/120Hz/30Hz, 4K @ 144Hz, 6K; resolutions up to 7680 x 4320, 6016 x 3384, 3840 x 2160.
- Features: Security lock slot, power delivery pass-through, maximum data transfer 10 GB/s, wired connectivity, memory card reader.
- Supports monitors, notebooks, tablets, desktops, headphones, microphones, workstations, keyboards, mice, hard drives.
- 1.0m (3.28 ft) Thunderbolt cable included for seamless setup.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | OWC (Other World Computing) |
| Manufacturer Part Number | OWCTB5DOCK11P |
| UPC | 810179170752 |
| Product Type | Docking Station |
| Host Interface | Thunderbolt 5 |
| Thunderbolt Ports Quantity | 4 (1 Host, 3 Downstream) |
| Total USB Ports | 3 (USB Type-A) |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 (2x 10Gb/s, 1x 5Gb/s) |
| Ethernet Technology | 2.5 Gigabit Ethernet (1x RJ-45) |
| Headphone/Microphone Combo Port | Yes |
| USB Power Delivery | 140W |
| Number of Displays Supported | 3 |
| Supported Resolutions | 7680 x 4320, 3840 x 2160, 6016 x 3384 |
| Screen Mode Supported | 8K @ 60Hz, 4K @ 144Hz, 8K, 8K @ 120Hz, 6K, 8K @ 30Hz |
| Maximum Data Transfer Rate | 10 GB/s |
| Memory Card Supported | microSDXC, SDXC, microSD, SD |
| Cable Length | 3.28 ft (1.0m Thunderbolt Cable) |
| Product Color | Space Gray |
| Form Factor | Desktop |
| Dimensions (HxWxD) | 1.70" x 7" x 3.10" |
| Weight (Approximate) | 1.20 lb |
| Power Source Type | Power Supply |
| Country of Origin | Thailand |
| Environmental Compliance | RoHS, REACH |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2 Year |
Package Contents & Additional Details
- Thunderbolt 5 Dock
- 1.0M (39") Thunderbolt Cable
- External Power Supply and Power Cable
- Quick Start Guide for OWC Thunderbolt 5 Dock
- User Guide for OWC Thunderbolt 5 Dock
- OWC Dock Ejector for Mac and Windows (software download)
- User Guide for OWC Dock Ejector
Connectivity Technology: Wired. Charging Capability: Yes. Features include security lock and power delivery pass-through. Thunderbolt 5 offers 80Gb/s bi-directional data (up to 120Gb/s video), backward compatible with Thunderbolt 4 (40Gb/s), Thunderbolt 3 (20-40Gb/s), USB4 (40-80Gb/s), USB-C (up to 20Gb/s).
Maximize productivity with the OWC 11-Port Thunderbolt 5 Dock—Order today!
Brand: OWC
Type: Docking Station
Compatible Brand: OWC (Other World Computing)
Color: Gray
MPN: OWCTB5DOCK11P
Material: Aluminum
Country of Origin: Thailand
Manufacturer Warranty: 2 Years
Ports: Audio Out
Compatible Product Line: Universal
Item Height: 1.70 in
Item Width: 7 in
Item Length: 3.10 in
UPC: 810179170752
