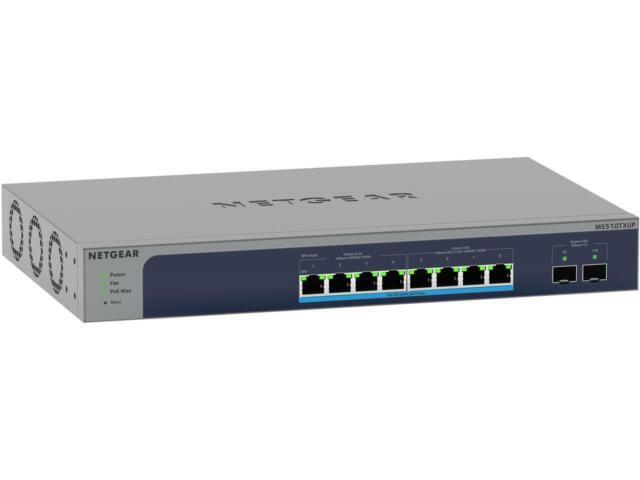

Netgear MS510TXUP Ethernet Switch
This is a Netgear MS510TXUP Ethernet Switch manufactured by Netgear Inc. It is an 8-port multi-gigabit Ethernet switch with 2 SFP+ uplink ports designed for SMB networks supporting high-speed data voice and video applications.
The switch provides 4 x 1G/2.5G ports and 4 x multi-gig/10G ports along with 8 x Ultra60 PoE++ ports delivering a 295 W PoE budget. It supports Layer 2+/Lite L3 features including advanced VLAN ACL QoS IGMP Snooping and IPv6 management. Non-blocking switching delivers 140 Gbps bandwidth. The unit accepts Cat5E cabling for 2.5G and 5G speeds and includes optional NETGEAR Insight cloud management.
Key Features

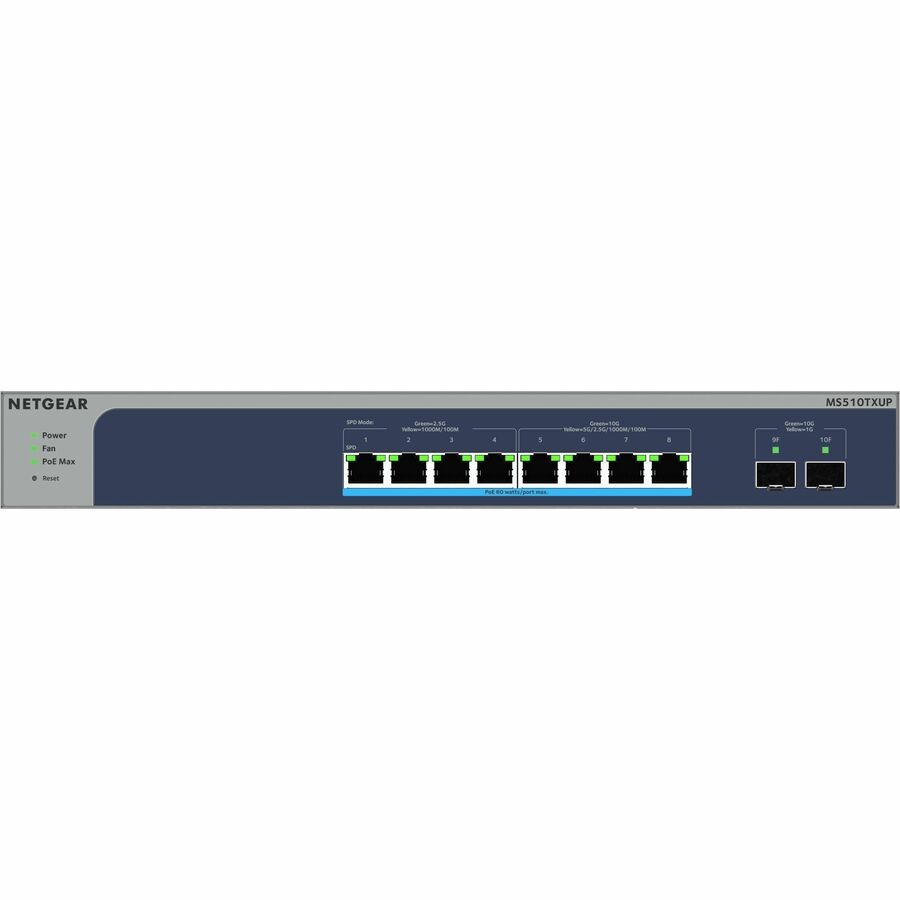

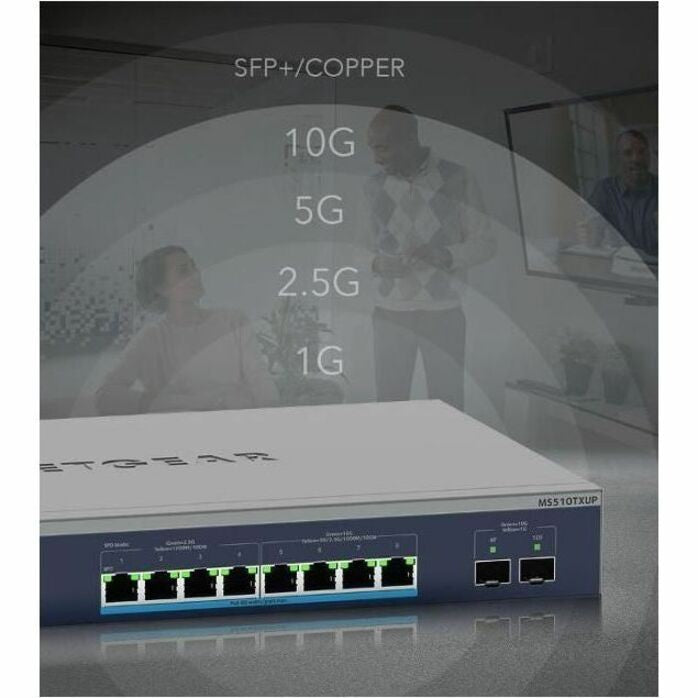

- 4 x 1G/2.5G ports and 4 x multi-gig/10G ports
- 8 x Ultra60 PoE++ ports with 295 W PoE budget
- 2 dedicated 10G SFP+ fiber uplink ports
- Non-blocking switching with 140 Gbps bandwidth

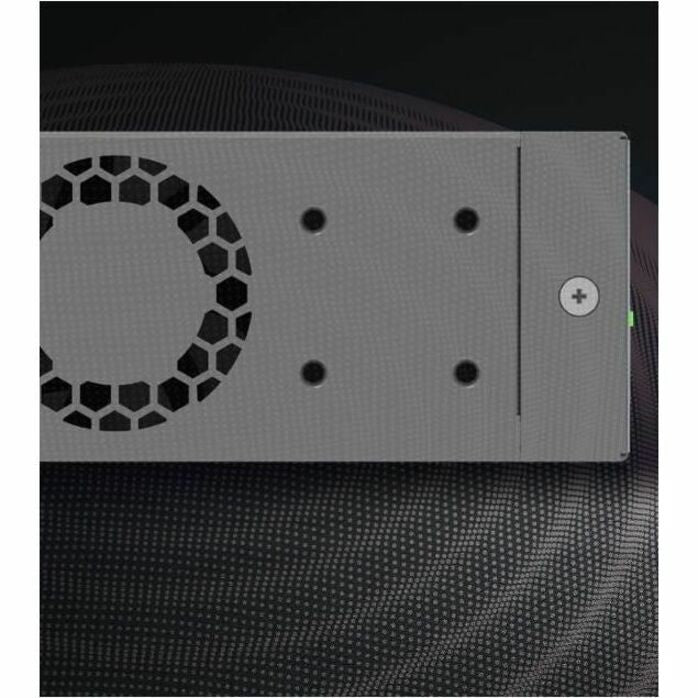

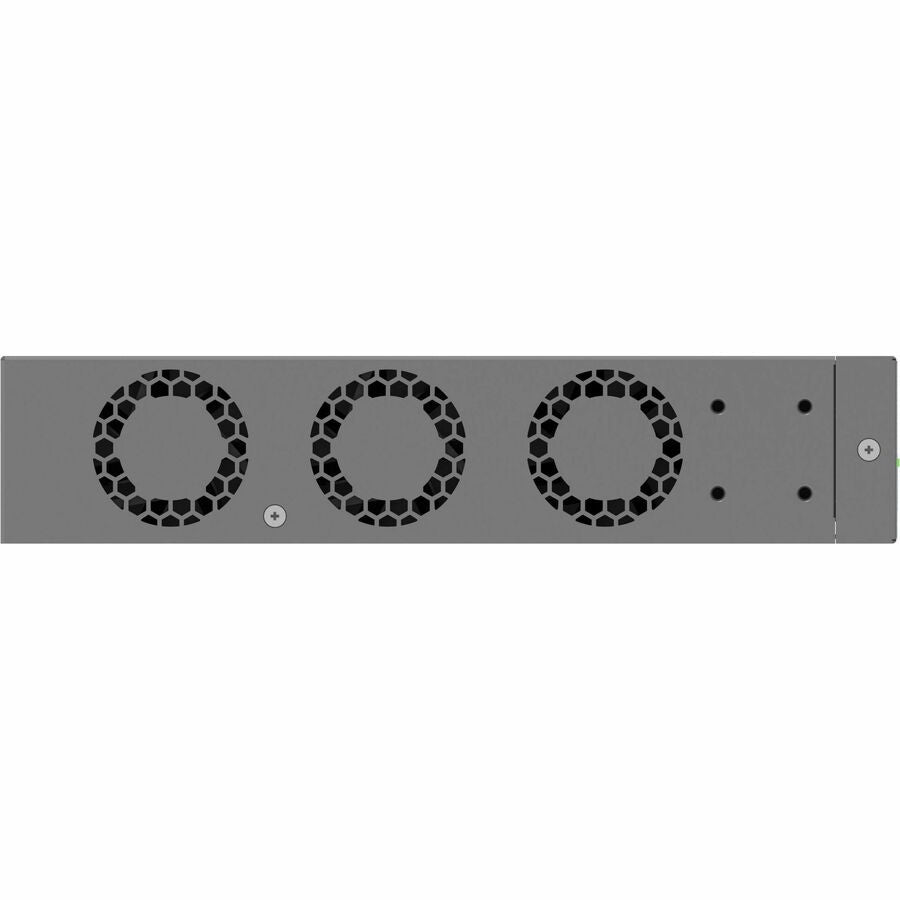

- Temperature- and load-based fan-speed control with maximum 33 dBA acoustic noise
- Advanced VLAN support and L2/L3/L4 access control lists including 802.1x port authentication
- Advanced per-port PoE controls with operation scheduling
- Advanced QoS for traffic prioritization including port-based 802.1p and L2/L3/L4 DSCP
- Auto denial-of-service prevention
- IGMP Snooping and Querier for multicast optimization
- Egress rate limiting and priority queuing
- Port mirroring for network monitoring
- Energy Efficient Ethernet IEEE 802.3az
- IPv6 management including QoS ACL multicast and static/dynamic address assignment
- Form factor supports rack-mountable or desktop installation
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | NETGEAR |
| Manufacturer | Netgear Inc |
| Product Model | MS510TXUP |
| Manufacturer Part Number | MS510TXUP-100NAS |
| UPC | 606449152388 |
| Product Type | Ethernet Switch |
| Total Network Ports | 8 |
| Uplink Port | Yes |
| Modular | Yes |
| Port Details | 4 x 2.5 Gigabit Ethernet PoE++ 4 x 10 Gigabit Ethernet PoE++ 2 x 10 Gigabit Ethernet Expansion Slot |
| Media Supported | Twisted Pair Optical Fiber |
| Ethernet Technology | 2.5 Gigabit Ethernet 10 Gigabit Ethernet |
| Network Technology | 1000Base-T 1000Base-X |
| Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Layer Supported | 3 |
| Manageable | Yes |
| Switch Management Type | Smart Managed |
| PoE RJ-45 Port | Yes |
| PoE Budget | 295 W |
| Power Source | Power Supply |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 380 W |
| Form Factor | Rack-mountable Desktop |
| Height | 1.7 inches |
| Width | 13 inches |
| Depth | 8.1 inches |
| Weight Approximate | 5.53 lb |
| Country of Origin | Thailand |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center CEC |
| Environmental Compliance | Registration Evaluation Authorization and Restriction of Chemicals REACH Battery Directive |
Package Contents
- MS510TXUP Ethernet Switch
- Power Cord
- Mounting Kit
- Rubber Footpads For Tabletop Installation
- Quick Installation Guide
Country of Origin: Thailand
Network Connectivity: Wired-Ethernet (RJ-45)
UPC: 606449152388
Network Management Type: Partially Managed
MPN: MS510TXUP100NAS
Item Length: 13"
Supported Wireless Protocols: Wi-Fi 802.1x
Item Height: 1.7"
RAID Levels: 10+0
Item Width: 8.1"
Network Type: ATA over Ethernet
Brand: NETGEAR
Maximum LAN Data Rate: 10 Gbps
Form Factor: Rack Mountable
Maximum Data Transfer Rate: 10 Gbps
Ethernet Technology: Gigabit Ethernet (1000-Mbit/s)
Layer: 3
Number of WAN Ports: 8
Type: Ethernet Switch
Model: Netgear MS510TXUP
Number of LAN Ports: 8
Interface: Ethernet (RJ-45)
Product Line: NETGEAR ProSafe
