NETGEAR MS305E 5-Port 2.5G Ethernet Switch
NETGEAR MS305E 5-Port 2.5G Ethernet Switch
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

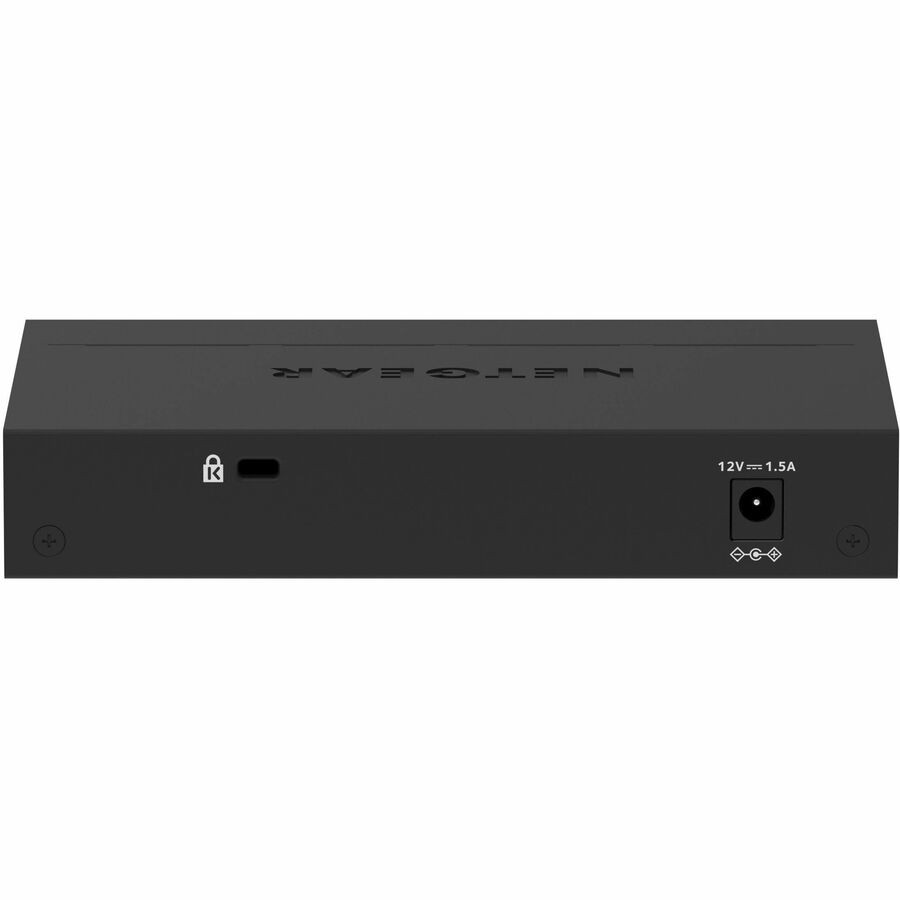

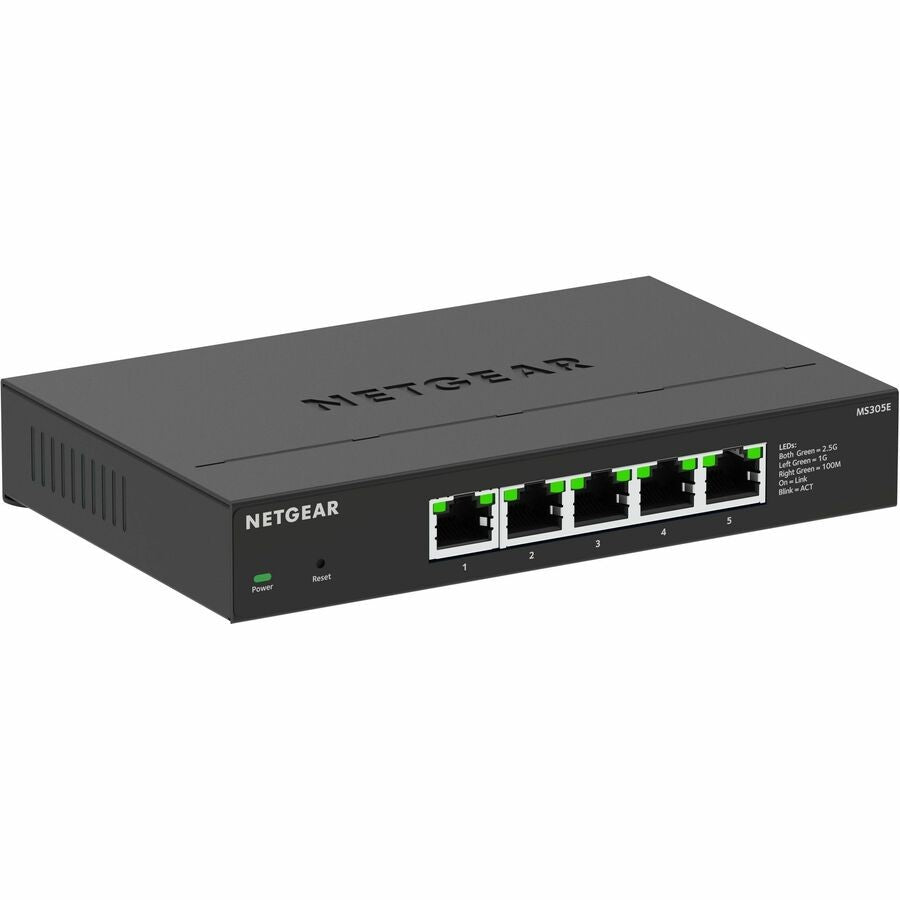

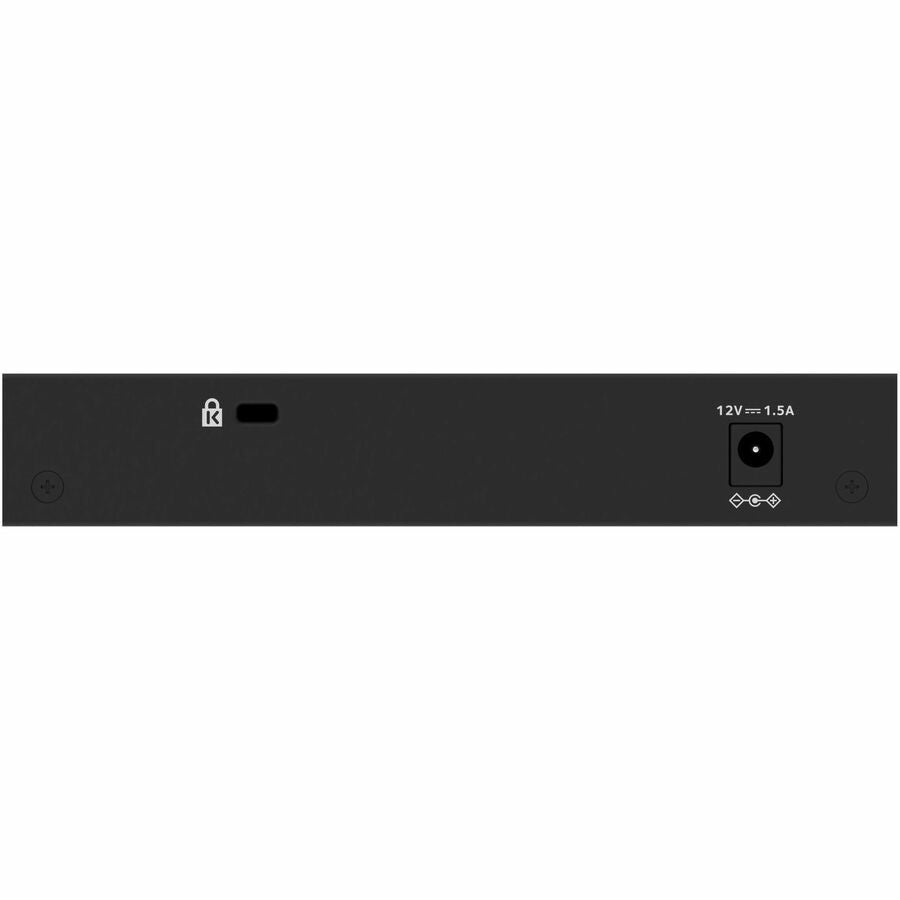

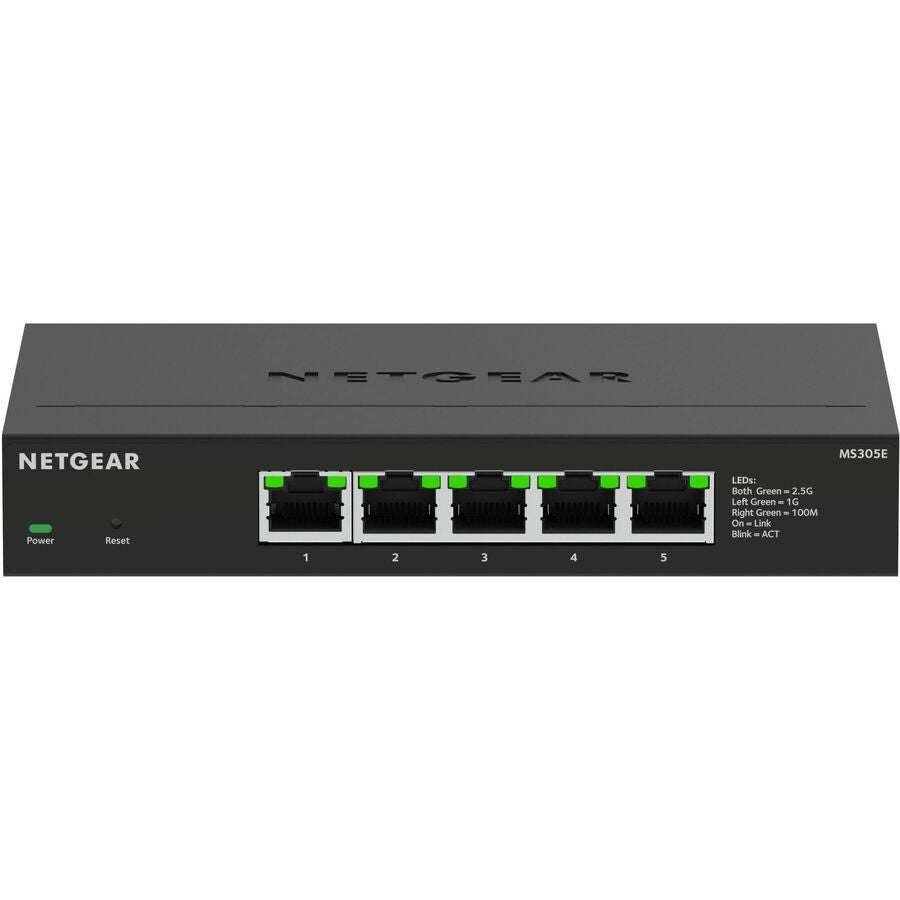

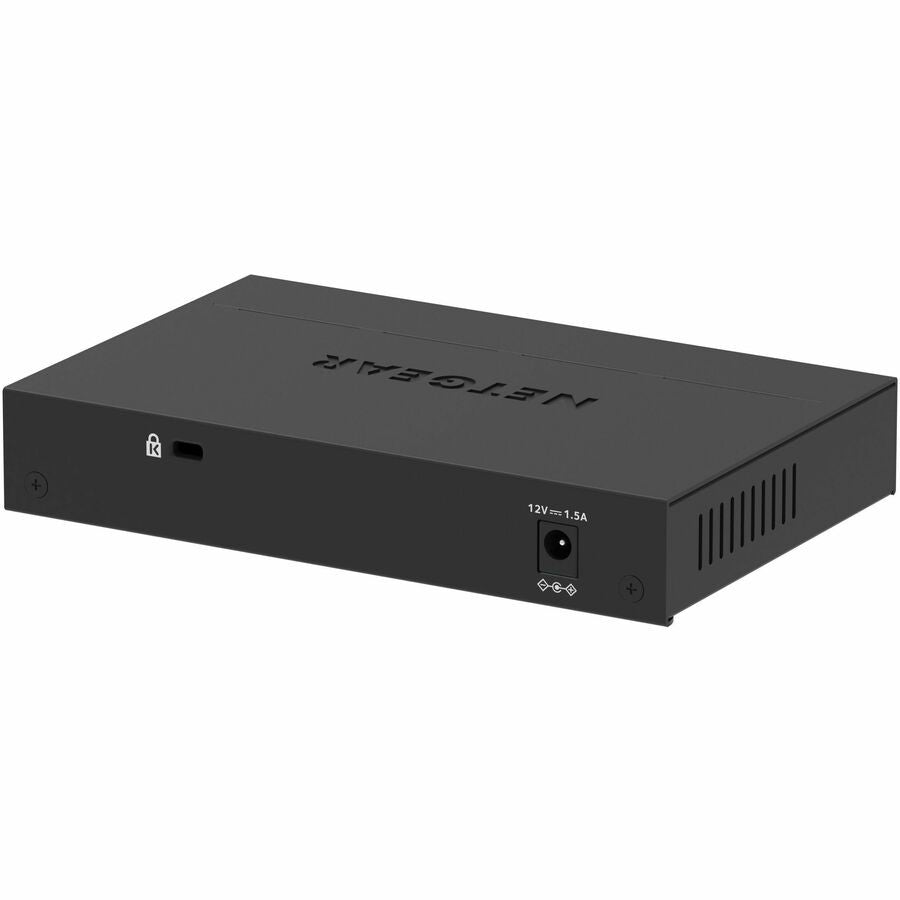

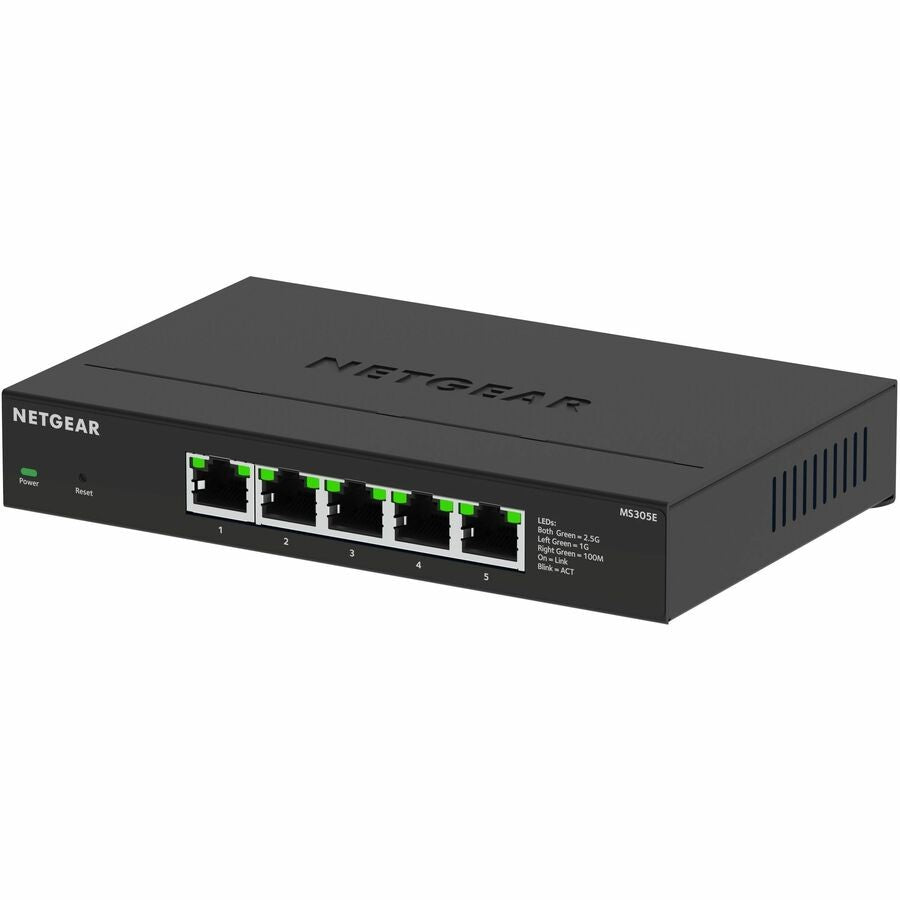

NETGEAR MS305E 5-Port 2.5G Ethernet Switch
This is the NETGEAR MS305E Ethernet Switch. It expands wired connectivity for SOHO networks with five 2.5G Multi-Gigabit ports in a durable metal case. The switch integrates into business environments and provides network monitoring, traffic prioritization, VLANs, QoS, IGMP Snooping, and an intuitive web-based GUI.
NETGEAR MS305E Ethernet Switch models belong to the MS300 series and serve as an upgrade from plug-and-play unmanaged switches by delivering essential networking features at an affordable price. The device supports desktop or wall-mount installation and operates without a fan for silent performance.
Key Features
- Five 2.5G Multi-Gig ports with 2.5GBase-T network technology
- Network configuration and management through web browser-based GUI
- VLAN support for traffic segmentation
- Quality of Service for traffic prioritization
- Auto denial-of-service prevention
- Cable test for troubleshooting connection issues
- Loop detection and broadcast storm controls
- Rate limiting for bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support
- Fanless silent operation
- Desktop and wall-mount options
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | NETGEAR |
| Manufacturer | Netgear, Inc |
| Product Series | MS300 |
| Product Model | MS305E |
| Manufacturer Item Number | MS305E-100NAS |
| UPC | 606449170641 |
| Product Type | Ethernet Switch |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Network Technology | 2.5GBase-T |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3bz, IEEE 802.3az, IEEE 802.3ad |
| Manageable | No |
| Switch Management Type | Easy Smart Managed Essentials |
| MTBF | 4273003 Hour |
| Power Source | Power Adapter |
| Power Consumption | 5.60 W |
| Product Material | Metal |
| Form Factor | Desktop Enclosure, Wall Mountable |
| Height | 1.1" |
| Width | 6.2" |
| Depth | 4" |
| Weight | 15.87 oz |
| Features | Fanless, Plug and Play |
| Application/Usage | Network, Business |
| Certifications & Standards | CE Class A (EN55032+EN55035), UKCA Class A, FCC Part 15 Class A, ISED Class A, VCCI Class A, RCM, KC, BSMI |
Package Contents
- MS305E Ethernet Switch
- Power Adapter
- Rubber Feet
- Installation Guide
Brand: NETGEAR
Type: Ethernet Switch
Model: MS305E
Network Management Type: Unmanaged
Form Factor: Desktop Enclosure, Wall Mountable
Number of LAN Ports: 5
Interface: Ethernet (RJ-45)
Network Connectivity: Wired-Ethernet (RJ-45)
Layer: 3
MPN: MS305E-100NAS
UPC: 606449170641
