NETGEAR AV Line M4250-10G2XF-PoE+ 10-Port Ethernet Switch
NETGEAR AV Line M4250-10G2XF-PoE+ 10-Port Ethernet Switch
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

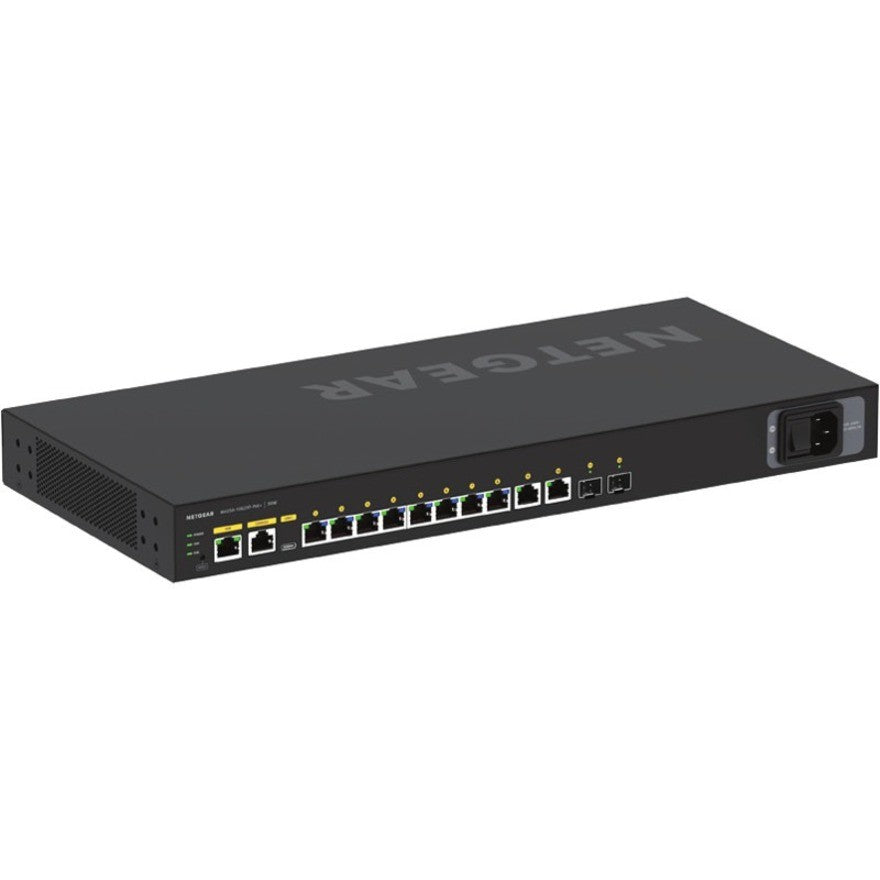

Netgear AV Line M4250-10G2XF-PoE+ Ethernet Switch
This is a 10-port manageable Layer 3 Ethernet switch from the Netgear AV Line M4250 series. The Netgear AV Line M4250-10G2XF-PoE+ Ethernet Switch is engineered for AV over IP applications with pre-configured support for audio and video encoders and decoders. It features 8 x Gigabit Ethernet PoE+ ports, 2 x Gigabit Ethernet network ports, and 2 x 10 Gigabit Ethernet SFP+ expansion slots. The switch supports optical fiber and twisted pair media with 1000Base-T and 10GBase-X network technology. Power consumption is rated at 25 W with a 240 W PoE budget. The unit is designed for 1U rack-mountable installation and includes advanced Layer 2 and Layer 3 switching capabilities.
Key Features of Netgear AV Line M4250-10G2XF-PoE+ Ethernet Switch
- Pre-configured for audio and video over IP out of the box with zero configuration for encoders and decoders.
- AV web-based GUI available at switch IP address port 8080 with port-based profiles for Dante, Q-SYS, AES67, NVX, SVSI, NDI, and additional AV codecs.
- NETGEAR IGMP Plus multicast automation for simplified star deployments when connected with other M4250, M4300, or M4500 switches.
- Software-controlled fan adjustments for optional fanless operation based on ambient temperature and PoE loads.
- Reversed mounting capability with additional rackmount ears for recessed installation by 2 inches.
- Threaded holes on bottom (4xM5 for 50x100mm VESA) and front (1xM10 for clamps) for universal mounting options.
- High-end NETGEAR Layer 2 / Layer 3 switching engine shared across the M4250 series with static, RIP, and PIM-SM/DM/SSM multicast routing.
- Advanced classifier-based hardware implementation for L2 MAC, L3 IP, and L4 UDP/TCP transport ports.
- Selectable Port-Channel / LAG with L2/L3/L4 hashing for fault tolerance and load sharing.
- Voice VLAN with SIP, H323, and SCCP protocol detection plus LLDP-MED for IP phones.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | NETGEAR |
| Product Line | AV Line |
| Product Model | M4250-10G2XF-PoE+ |
| Manufacturer Item Number | GSM4212PX-100NAS |
| UPC | 606449149579 |
| Product Type | Ethernet Switch |
| Total Number of Network Ports | 10 |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+; 2 x Gigabit Ethernet Network; 2 x 10 Gigabit Ethernet Expansion Slot |
| Media Type Supported | Optical Fiber; Twisted Pair |
| Ethernet Technology | Gigabit Ethernet; 10 Gigabit Ethernet |
| Network Technology | 1000Base-T; 10GBase-X |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Layer Supported | 3 |
| Manageable | Yes |
| PoE RJ-45 Port | Yes |
| PoE Budget | 240 W |
| Power Consumption | 25 W |
| Power Source | Power Supply |
| Power Plug Type | Type C |
| Plug/Connector Type | IEC 60320 C14 |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 7.9" |
| Weight | 9.60 lbs |
| Country of Origin | Thailand |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS); Waste Electrical and Electronic Equipment Directive (WEEE); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Physical and Environmental Details
The Netgear AV Line M4250-10G2XF-PoE+ Ethernet Switch measures 1.7 inches in height, 17.3 inches in width, and 7.9 inches in depth with a weight of 9.60 lbs. It supports rack-mountable installation in a standard 1U form factor and is manufactured in Thailand. The switch is environmentally friendly and complies with ErP, RoHS, WEEE, and REACH standards.
Maximum LAN Data Rate: 10 Gbps
Layer: 3
Country of Origin: Thailand
UPC: 606449149579
Network Management Type: Fully Managed
MPN: GSM4212PX-100NAS
RAID Levels: 10+0
Network Connectivity: Wired-Ethernet (RJ-45)
Brand: NETGEAR
Form Factor: Rack Mountable
Maximum Data Transfer Rate: 10 Gbps
Ethernet Technology: Gigabit Ethernet (1000-Mbit/s)
Type: Ethernet Switch
Model: NETGEAR GSM4212PX-100NAS
Number of LAN Ports: 12
Interface: Ethernet (RJ-45)
