NETGEAR AV Line M4250-10G2XF-PoE++ 10-Port Ethernet Switch
NETGEAR AV Line M4250-10G2XF-PoE++ 10-Port Ethernet Switch
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

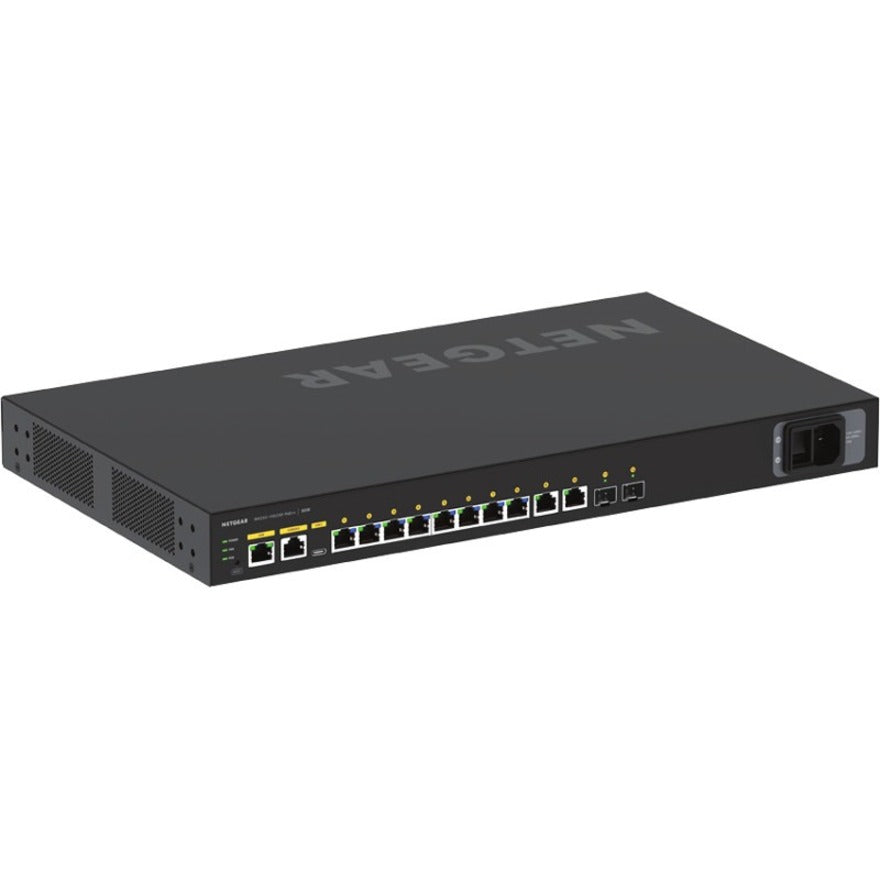

NETGEAR AV Line M4250-10G2XF-PoE++ 10-Port Ethernet Switch
This is a Netgear AV Line M4250-10G2XF-PoE++ Ethernet Switch designed for AV over IP installations. It supports 1Gb audio and video over IP with pre-configured profiles for Dante, Q-SYS, AES67, NVX, SVSI, NDI, Kramer KDS, Aurora Multimedia, ZeeVee, Atlona and SDVoE. The switch provides zero-configuration connectivity for encoders and decoders along with an AV web-based GUI at port 8080 for installers.
NETGEAR M4250 series switches share a high-end Layer 2 / Layer 3 engine with static routing, RIP, PIM-SM/DM/SSM multicast routing, DHCP Server and PTPv2 Transparent Clock. IGMP Plus delivers multicast automation across M4250, M4300 and M4500 switches in star topologies. The unit includes 10 ports total, 720 W PoE budget, 2 SFP+ expansion slots and reversible rack mounting options.
Key Features
- 10 ports with 8 x Gigabit Ethernet PoE++ ports, 2 x Gigabit Ethernet network ports and 2 x 10 Gigabit Ethernet SFP+ expansion slots
- 720 W PoE budget supporting 15.4 W, 30 W, 60 W, 75 W and 90 W AVoIP endpoints
- Pre-configured AV profiles for audio and video codecs with port-based profiles accessible via AV GUI
- Software-controlled fan adjustments for optional fanless operation based on temperature and PoE load
- Threaded holes for VESA 50x100 mm mounting and 1x M10 clamp mounting outside the rack
- Reversed mounting ears and recessed mounting option of 2 inches for cabling clearance
- Advanced classifier-based hardware implementation for L2 MAC, L3 IP and L4 UDP/TCP filtering
- Selectable LAG with 802.3ad/802.1AX hashing for fault tolerance and load sharing
- Voice VLAN with SIP, H.323 and SCCP detection plus LLDP-MED for IP phones
- DOT1X, MAB and Captive Portal authentication methods for BYOD environments
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | NETGEAR |
| Product Line | AV Line |
| Product Model | M4250-10G2XF-PoE++ |
| Manufacturer Item Number | GSM4212UX-100NAS |
| UPC | 606449149616 |
| Total Number of Network Ports | 10 |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE++; 2 x Gigabit Ethernet Network; 2 x 10 Gigabit Ethernet Expansion Slot |
| Media Type Supported | Optical Fiber; Twisted Pair |
| Ethernet Technology | Gigabit Ethernet; 10 Gigabit Ethernet |
| Network Technology | 1000Base-T; 10GBase-X |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Layer Supported | 3 |
| Manageable | Yes |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 720 W |
| Power Source | Power Supply |
| Power Consumption | 26.30 W |
| Plug/Connector Type | IEC 60320 C14 |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 10.1" |
| Weight (Approximate) | 8.44 lb |
| Country of Origin | Thailand |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS); Waste Electrical and Electronic Equipment Directive (WEEE); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Model: M4250-10G2XF-PoE++
Maximum Data Transfer Rate: 10 Gbps
Maximum LAN Data Rate: 10 Gbps
Country of Origin: Thailand
UPC: 606449149616
Network Management Type: Fully Managed
MPN: GSM4212UX-100NAS
Item Height: 1.7
RAID Levels: 10+0
Network Connectivity: Wired-Ethernet (RJ-45)
Brand: NETGEAR
Form Factor: Rack Mountable
Ethernet Technology: Gigabit Ethernet (1000-Mbit/s)
Layer: 3
Number of WAN Ports: 2
Type: Ethernet Switch
Number of LAN Ports: 10
Interface: Ethernet (RJ-45)
