NETGEAR 24-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch 4 SFP+
NETGEAR 24-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch 4 SFP+
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

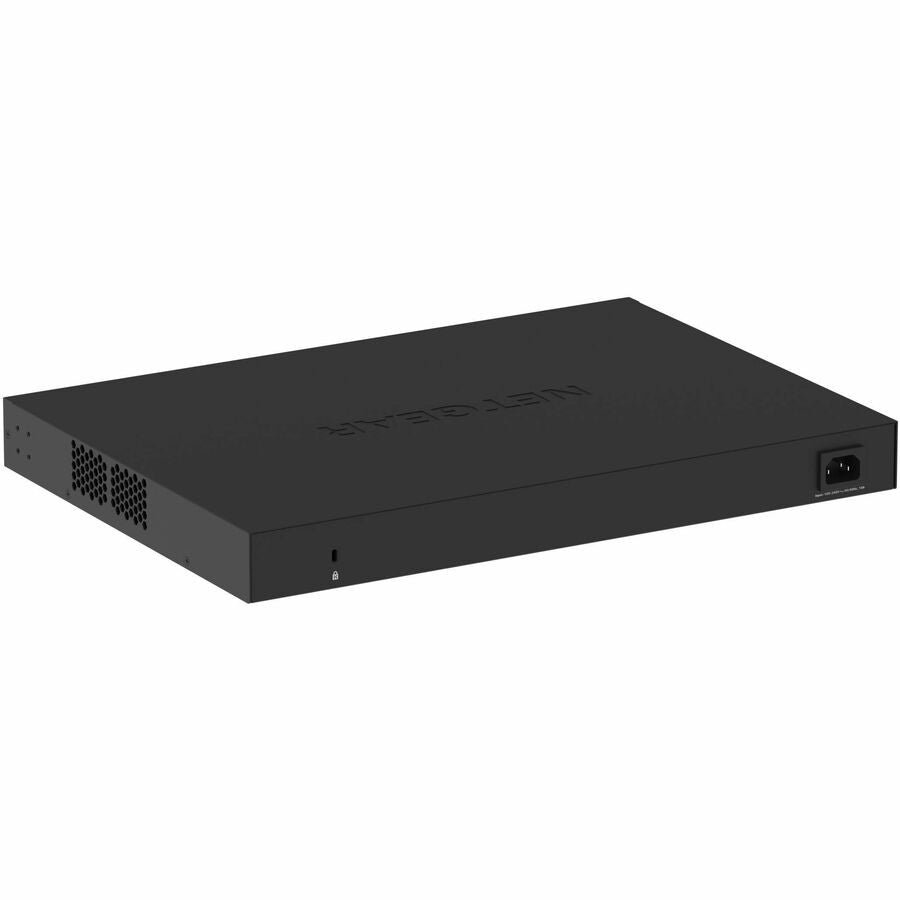

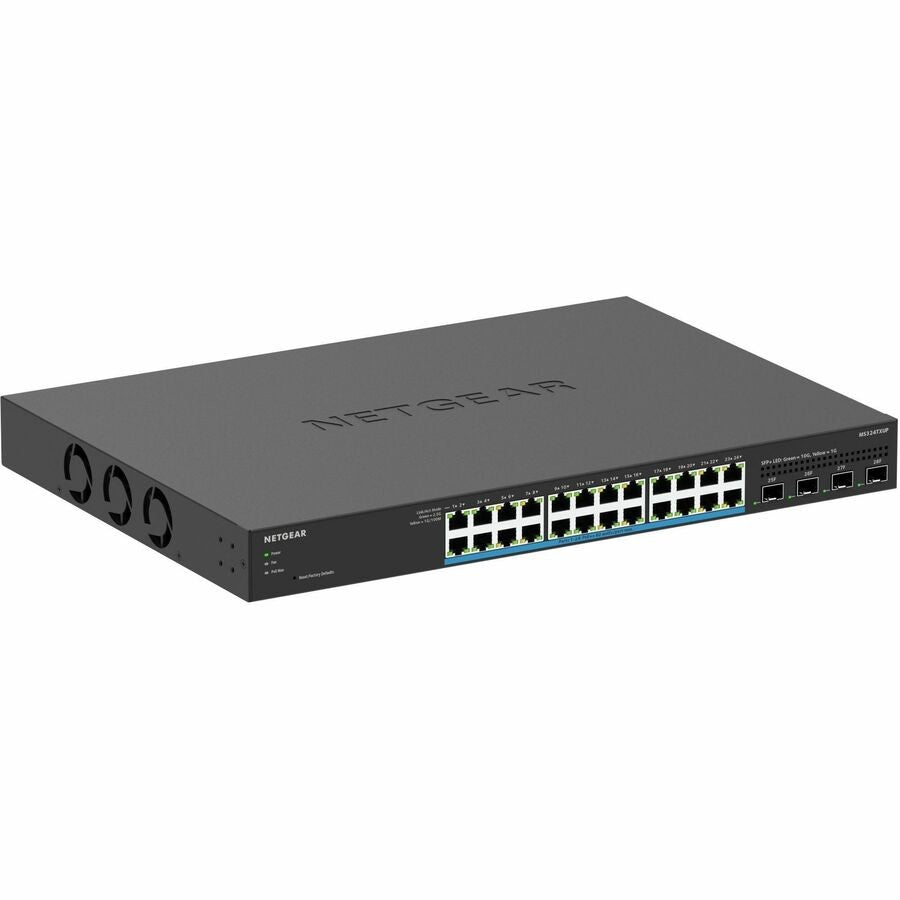

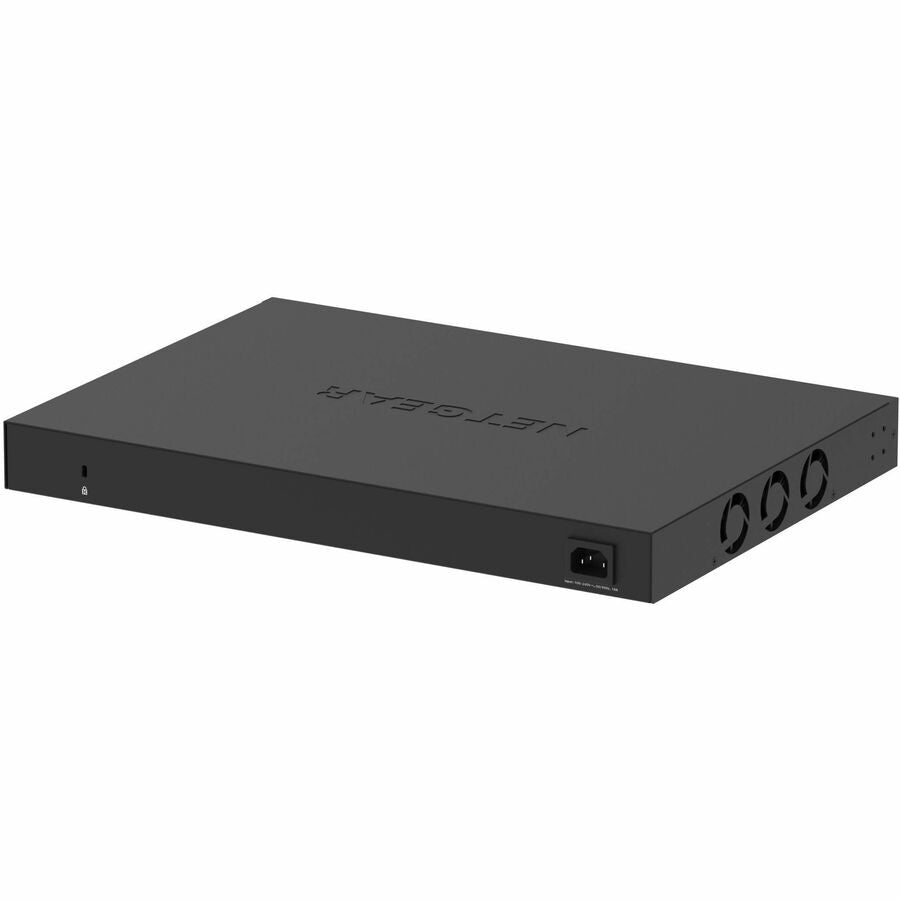

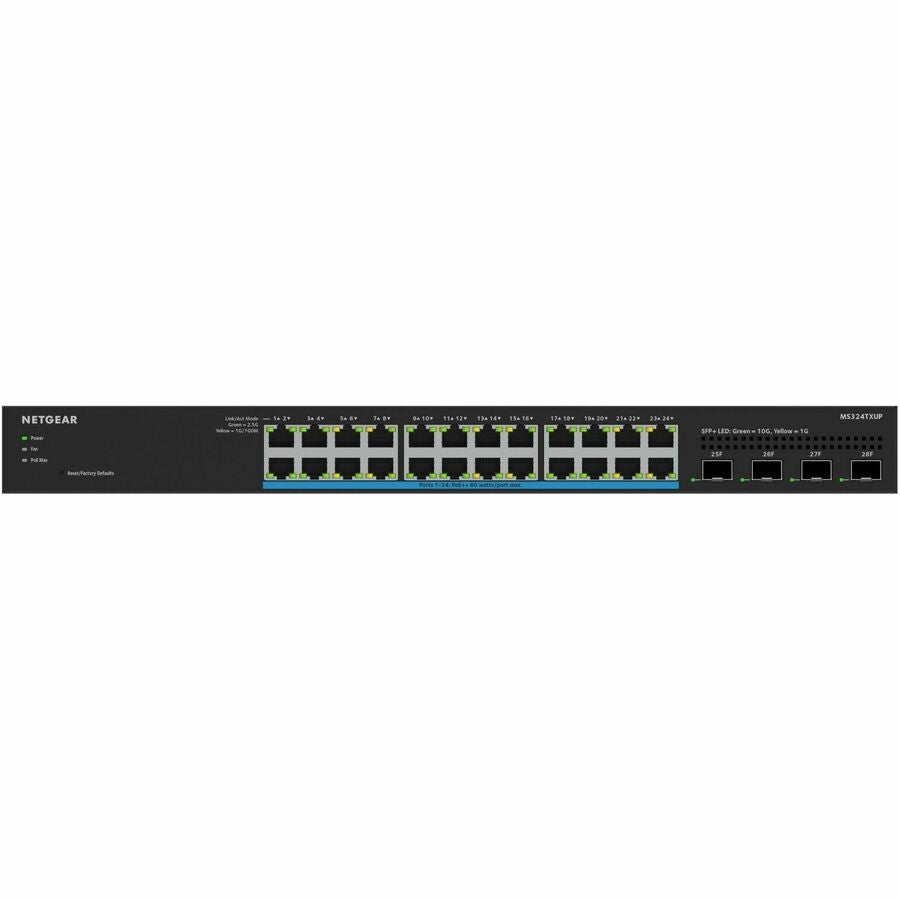

Netgear 24-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch with 4 SFP+ Ports
This is a Netgear 24-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch with 4 SFP+ Ports. The device is manufactured by NETGEAR under model MS324TXUP and manufacturer item number MS324TXUP-100NAS. It provides 24 network ports with 2.5 Gigabit Ethernet Ultra60 PoE++ support plus four 10 Gigabit Ethernet SFP+ expansion slots.
The switch supports twisted pair and optical fiber media, operates at Layer 4, and includes smart managed functionality with NETGEAR Insight Cloud management. It delivers a 720 W PoE budget and consumes up to 765 W from a single internal power supply.
Key Features
- 24 x 2.5 Gigabit Ethernet Ultra60 PoE++ ports
- 4 x 10 Gigabit Ethernet SFP+ expansion slots
- Supports 2.5GBase-T and 10GBase-X network technology
- Ultra60 PoE++ with 720 W total budget
- Smart managed switch with Layer 4 support
- Compatible with Cat5E cabling for 2.5G speeds
- Form factor supports desktop, rack-mountable, and table top installation
- Networking standards include IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.1Q, IEEE 802.3ad, and others
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | NETGEAR |
| Manufacturer | Netgear, Inc |
| Product Model | MS324TXUP |
| Manufacturer Item Number | MS324TXUP-100NAS |
| UPC | 606449165258 |
| Product Type | Ethernet Switch |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 24 x 2.5 Gigabit Ethernet Ultra60 PoE++; 4 x 10 Gigabit Ethernet Expansion Slot |
| Media Type Supported | Twisted Pair; Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 2.5GBase-T; 10GBase-X |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Layer Supported | 4 |
| Manageable | Yes |
| Switch Management Type | Smart Managed |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 720 W |
| Power Source | Power Supply |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 765 W |
| Form Factor | Desktop; Rack-mountable; Table Top |
| Height | 1.7" |
| Width | 12.2" |
| Depth | 17.3" |
| Weight (Approximate) | 9.78 lb |
| Networking Standards | IEEE 802.1x; IEEE 802.1p; IEEE 802.3az; IEEE 802.3bt; IEEE 802.3af; IEEE 802.3at; IEEE 802.1Q; IEEE 802.3ad; IEEE 802.3x; IEEE 802.1D; IEEE 802.1w; IEEE 802.1s; IEEE 802.1ab |
Package Contents
- 24-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch with 4 SFP+ Ports
- Power Cord
- Mounting Kit Rack Mount
- Rubber Footpads for Tabletop Installation
- Installation Guide
Application/Usage
VoIP Phone; Business; Wireless Access Point; Surveillance; Network
Brand: NETGEAR
Type: Ethernet Switch
Model: MS324TXUP
Form Factor: Rack Mountable
MPN: MS324TXUP-100NAS
UPC: 606449165258
