MSI G506T-8S2CP GeForce RTX 5060 Ti Shadow 2X OC+ 8GB GDDR7, PCIe 5.0, 4608 CUDA, 2.62GHz, DLSS 4
MSI G506T-8S2CP GeForce RTX 5060 Ti Shadow 2X OC+ 8GB GDDR7, PCIe 5.0, 4608 CUDA, 2.62GHz, DLSS 4
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

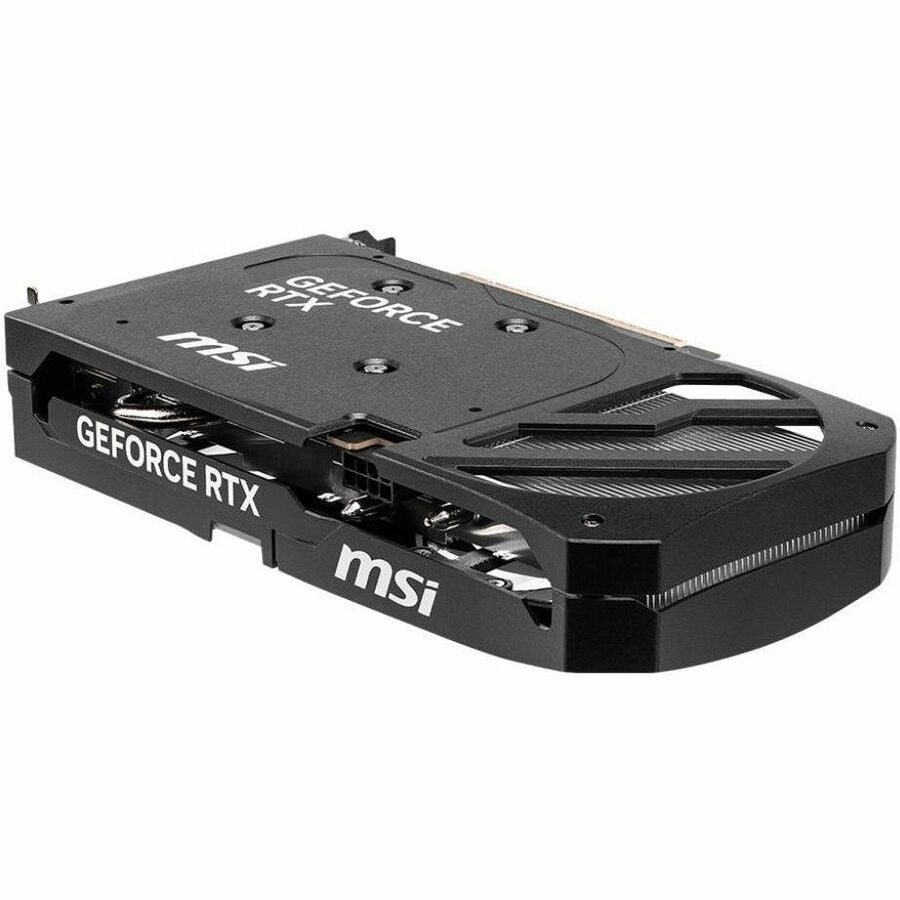

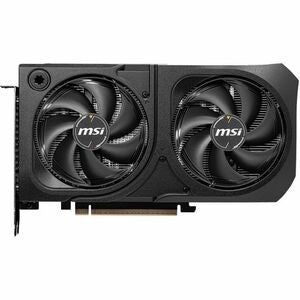

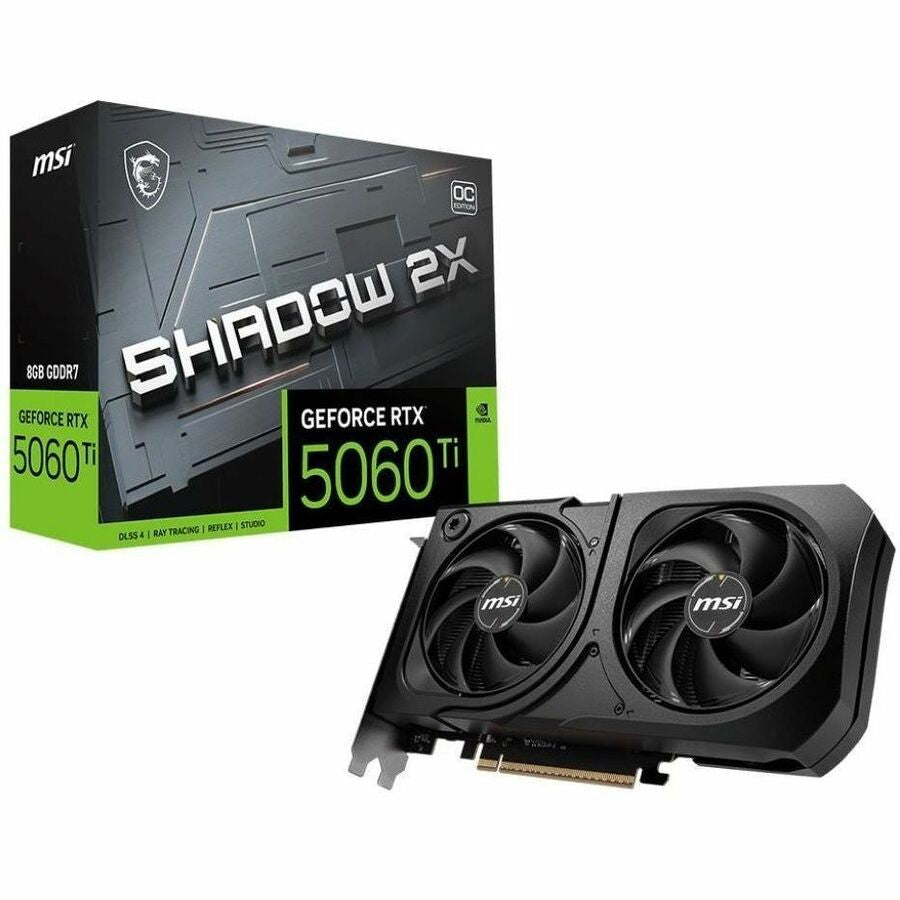

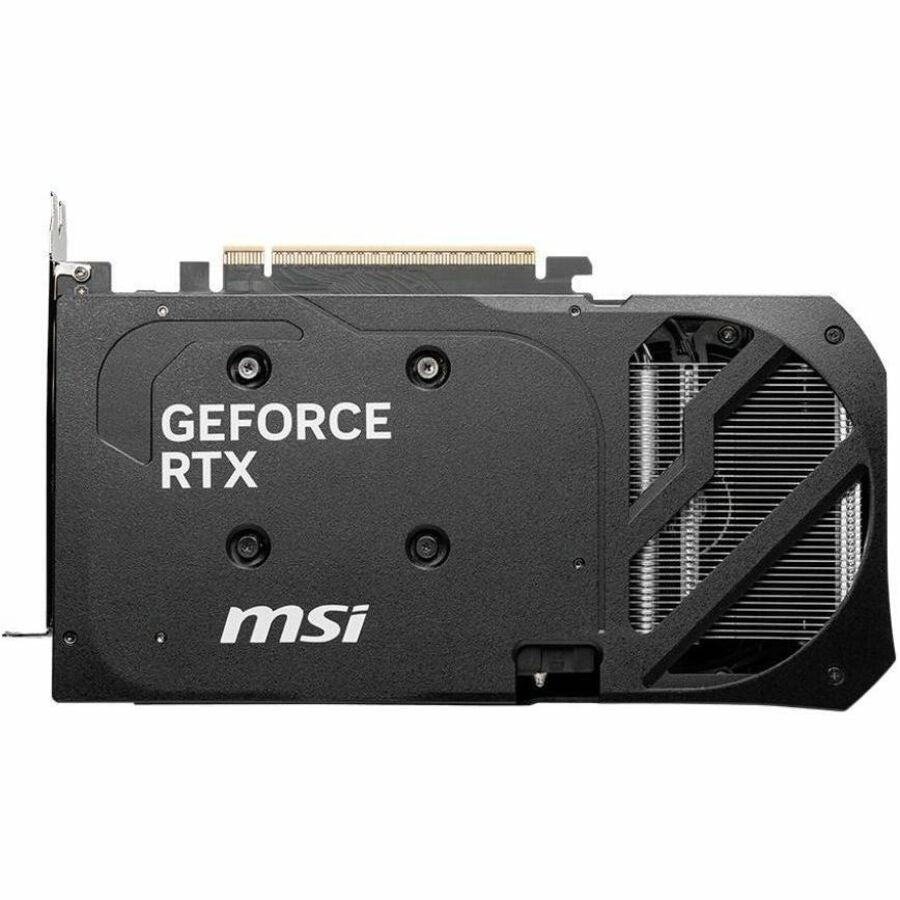

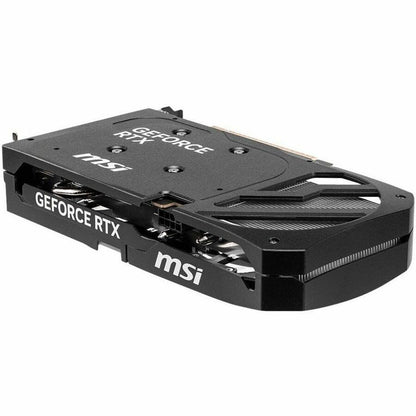

MSI RTX 5060 Ti Shadow 2X OC+ 8GB GDDR7 Graphics Card
This is a MSI GeForce RTX 5060 Ti 8G SHADOW 2X OC PLUS Graphic Card featuring NVIDIA Blackwell Architecture, 8 GB GDDR7 memory, and a 2.62 GHz GPU boost clock. Designed for gamers and creators, it supports PCI Express 5.0 x16, up to 4 monitors at 7680 x 4320 resolution, with 3x DisplayPort and 1x HDMI outputs. MPN: G506T-8S2CP; UPC: 824142421321. The MSI SHADOW series delivers performance-focused cooling with a dual-fan thermal design on a large heatsink for quieter operation.
Advanced Features & NVIDIA Technologies
- NVIDIA Blackwell Architecture – Ultimate platform with Fifth-Gen Tensor Cores for max AI performance using FP4 and DLSS 4, new Streaming Multiprocessors optimized for neural shaders, and Fourth-Gen Ray Tracing Cores for Mega Geometry.
- AI-Enhanced Graphics – NVIDIA DLSS 4 with Multi Frame Generation, NVIDIA Reflex 2 with Frame Warp for game-winning responsiveness.
- True-to-Life Graphics – Full ray tracing with neural rendering, supports Digital Humans and AI Assistants via NVIDIA ACE.
- Creator Tools – NVIDIA Studio tools, NVIDIA Broadcast with ninth-gen NVENC, NVIDIA app for Game Ready and Studio Drivers.
- Display & Cooling – NVIDIA G-SYNC compatible, dual-fan cooler with large heatsink for efficient, quiet cooling; supports 4608 CUDA Cores, ray tracing, fuse protection, AI-powered capabilities.
- Dual-Fan Thermal Design – Ensures great cooling performance with quieter experience, ideal for upgrading or building gaming rigs.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | MSI |
| Brand Name | MSI |
| Product Line | Shadow 2X |
| Product Model | G506T-8S2CP |
| Product Name | GeForce RTX 5060 Ti 8G SHADOW 2X OC PLUS Graphic Card |
| Manufacturer Part Number | G506T-8S2CP |
| UPC | 824142421321 |
| Product Type | Graphic Card |
| Chipset Manufacturer | NVIDIA |
| Chipset Line | GeForce |
| Chipset Series | RTX |
| Chipset Model | RTX 5060 Ti |
| GPU Boost Clock | 2.62 GHz |
| CUDA Cores | 4608 |
| Standard Memory | 8 GB |
| Memory Technology | GDDR7 |
| Memory Clock Speed | 1.75 GHz |
| Bus Width | 128 bit |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Number of Monitors Supported | 4 |
| Maximum Digital Display Resolution | 7680 x 4320 |
| Host Interface | PCI Express 5.0 x16 |

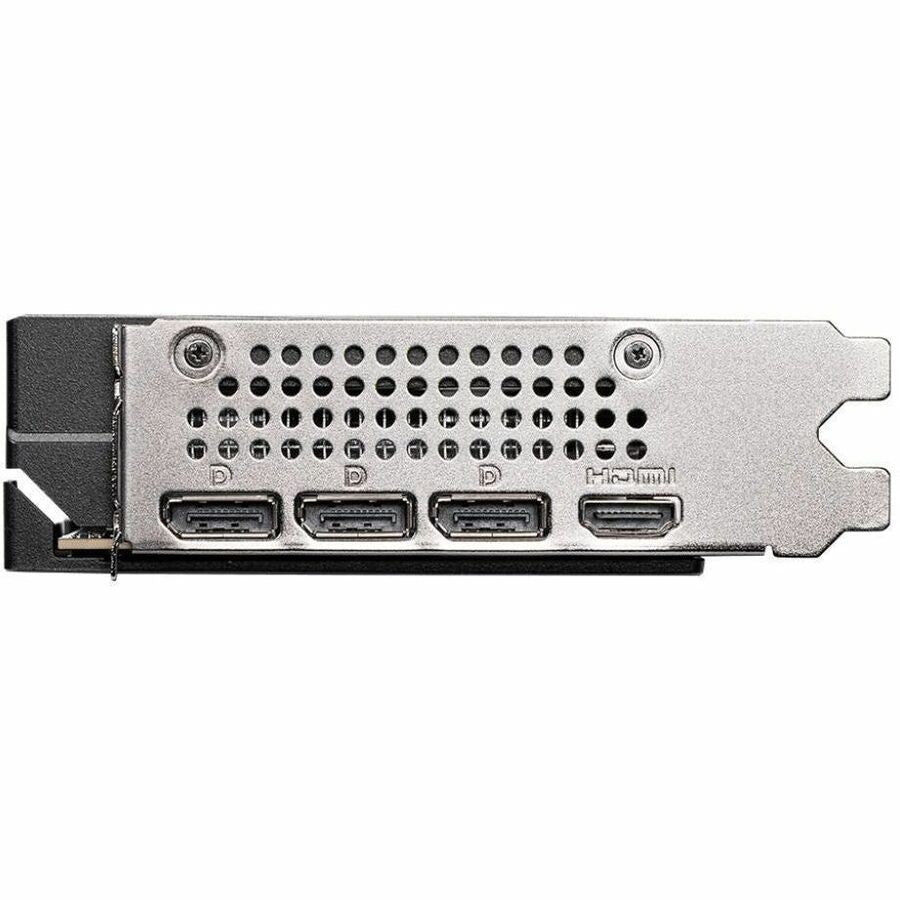

| Number of DisplayPort Outputs | 3 |
| Number of HDMI Outputs | 1 |
| Power Connector | 1x 8-pin |
| Power Supply Wattage | 600 W |
| Form Factor | Plug-in Card |
| Cooler Type | Fan Cooler |
| Height | 1.6" |
| Width | 5" |
| Length | 8.9" |
| Weight (Approximate) | 1.22 lb |
| Platform Supported | PC |
| Features | Dual-fan Cooler, Ray Tracing, Fuse Protection, AI-powered: Yes |
| Manufacturer Warranty | 3 Year |
| Country of Origin | CHINA |
Installation & Maintenance Guide
Professional installation recommended for optimal performance and safety. Requires compatible PC motherboard with PCIe 5.0 x16 slot and 600W power supply.
- Power off PC, unplug, and open case. Pro tip: Ground yourself to prevent static damage.
- Remove slot cover, insert card into PCIe x16 slot, secure bracket.
- Connect 1x 8-pin power cable from PSU.
- Close case, power on, install latest NVIDIA drivers via NVIDIA app.
- Maintenance: Dust fans periodically with compressed air; monitor temps with software.
Why Choose MSI RTX 5060 Ti Shadow 2X OC+
Performance-focused design with NVIDIA Blackwell innovations, efficient dual-fan cooling, and comprehensive AI, ray tracing, and creator features make it ideal for gaming rigs and upgrades.
Elevate your PC with MSI RTX 5060 Ti graphics power—add to cart now!
Brand: MSI
Chipset/GPU Model: G506T-8S2CP
MPN: G506T-8S2CP
Country of Origin: China
Manufacturer Warranty: 3 Years
Chipset Manufacturer: NVIDIA
Memory Size: 8 GB
Connectors: DisplayPort
Power Cable Requirement: 8-Pin PCI-E
APIs: CUDA
Cooling Component Included: Fan with Heatsink
Item Height: 1.6"
Item Width: 5"
Item Length: 8.9"
UPC: 824142421321
