MSI MAG A650GN II 650W ATX Power Supply, 80 PLUS Gold, Non-Modular, ATX 3.1, PCIe 5.1, 10-Year Warranty
MSI MAG A650GN II 650W ATX Power Supply, 80 PLUS Gold, Non-Modular, ATX 3.1, PCIe 5.1, 10-Year Warranty
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

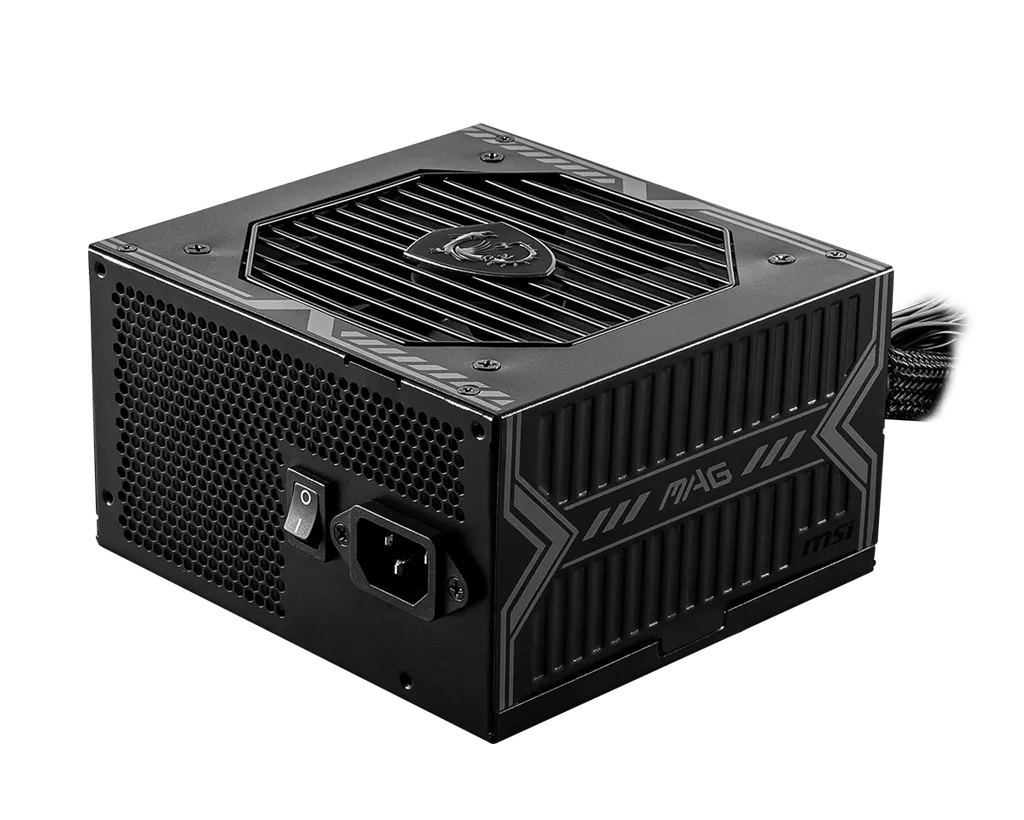

MSI MAG A650GN II 650W Non-Modular Gold Power Supply
This is a MSI MAG A650GN II 650W non-modular ATX power supply with black flat cables, designed for stable power delivery in desktop PCs. Certified 80 PLUS Gold for high efficiency, this US market model features a 120mm fan, Japanese capacitors, ATX 3.1 and PCIe 5.1 compatibility, and a 10-year manufacturer warranty. MPN: MAGA650GNII; UPC: 824142443118. Built in Vietnam with dimensions suited for standard PC cases.
Key Features of MSI MAG A650GN II 650W PSU
- 650W Capacity – Delivers reliable power for mid-to-high-end gaming and productivity builds, supporting modern GPUs and CPUs.
- 80 PLUS Gold Certification – Ensures up to 90% efficiency at typical loads, reducing heat and energy waste.
- Non-Modular Design with Black Flat Cables – Fixed cables simplify installation while flat design aids airflow and cable management in tight spaces.
- ATX 3.1 / PCIe 5.1 Ready – Compatible with next-gen components, including native support for PCIe 5.0 graphics cards.
- 120mm Fluid Dynamic Bearing Fan – Provides quiet cooling with optimized temperature control.
- 100% Japanese 105°C Capacitors – Enhances durability and stability under load.
- 10-Year Warranty – Backed by MSI for long-term reliability.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | MSI |
| Model | MAG A650GN II |
| MPN | MAGA650GNII |
| UPC | 824142443118 |
| Power Output | 650W |
| Efficiency Certification | 80 PLUS Gold |
| Modularity | Non-Modular |
| Cable Type | Black Flat Cables |
| Form Factor | ATX |
| Standard Compliance | ATX 3.1 / PCIe 5.1 Ready |
| Fan Size | 120mm Fluid Dynamic Bearing |
| Capacitors | 100% Japanese 105°C |
| Weight | 5.00 lbs |
| Dimensions (H x W x D) | 4.60" x 7.90" x 11.60" |
| Country of Origin | VIET NAM |
| Warranty | 10 Years |
Installation Guide for MAG A650GN II Power Supply
Standard ATX installation takes 15-30 minutes with basic tools; perform in a static-free environment.
- Power off and unplug your PC; remove side panel.
- Mount PSU in case using screws; orient fan outward for exhaust.
- Connect 24-pin ATX, CPU 8-pin/4+4-pin, PCIe cables to motherboard/GPU as needed.
- Route black flat cables through case grommets for tidy management. Pro tip: Use zip ties for bundling unused cables.
- Secure cables away from fans; double-check connections.
- Close case, plug in AC cord, power on and test stability.
- Maintenance: Dust fan monthly; no liquids near unit.
Why Choose MSI MAG A650GN II?
MSI delivers proven reliability with Gold-rated efficiency, extended warranty, and future-proof standards support for enduring PC builds.
Power your system reliably—Order the MSI MAG A650GN II 650W Gold PSU today!
Brand: MSI
Features: Flat
Compatible Model: MAG A650GN II
Compatible Brand: MSI
MPN: MAGA650GNII
Theme: Gaming
Manufacturer Warranty: 10 Years
Country of Origin: Vietnam
Item Height: 4.60 in
Item Width: 7.90 in
Item Length: 11.60 in
Item Weight: 5.00 lbs
Type: Does not apply
UPC: 824142443118
