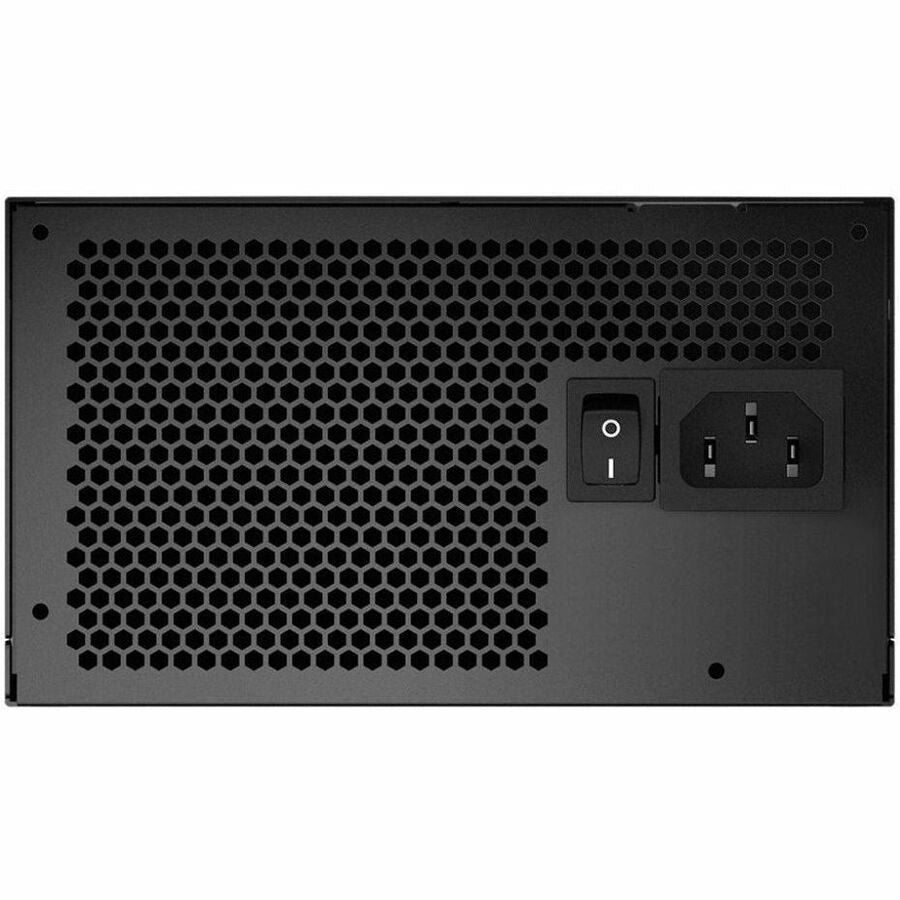

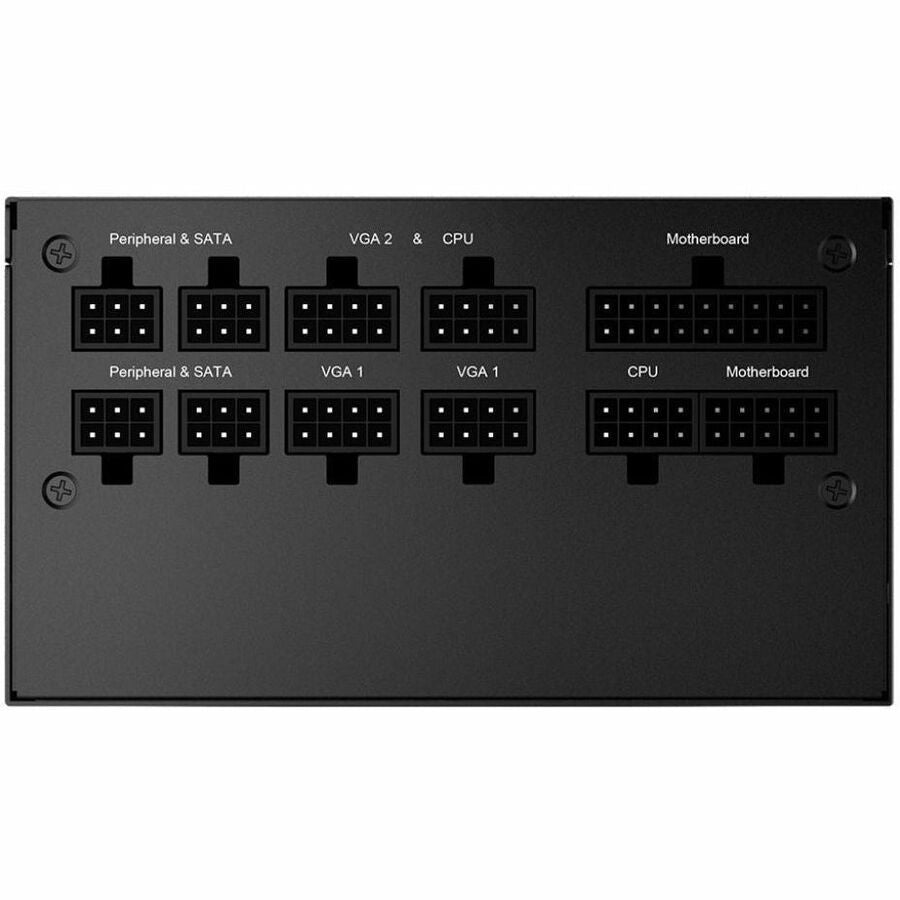

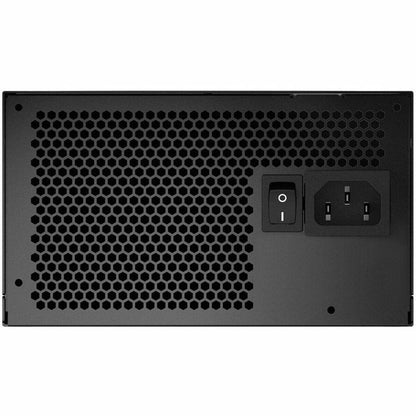

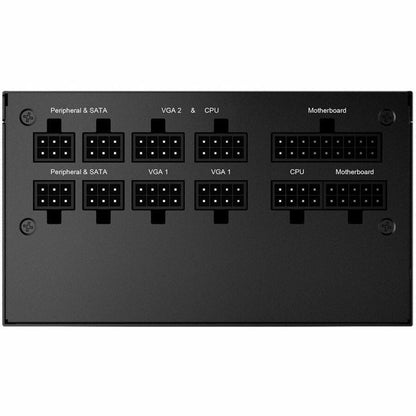

MSI MAG A650GL 650W 80+ Gold Modular PSU
MSI MAG A650GL 650W 80+ Gold Modular PSU
Low stock: 5 left
Save 16%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
MSI MAG A650GL 650W 80+ Gold Modular PSU
This is an internal ATX power supply unit delivering 650W of power with 80 PLUS Gold efficiency certification. The MSI MAG A650GL 650W Power Supply features fully modular cabling, a single 120mm fan for cooling, and support for NVIDIA SLI configurations. Manufacturer: MSI; MPN: MAGA650GL; UPC: 824142319246. Designed for gaming systems with NVIDIA GeForce RTX and AMD GPUs, it offers versatile connector options for various graphics card power designs.
Key Features of MSI MAG A650GL 650W Power Supply
- 80 PLUS Gold Efficiency – Achieves 90% efficiency for reduced energy waste and lower operating temperatures.
- Fully Modular Design – Detachable cables improve airflow and cable management in PC builds.
- 4 +12V Rails – Provides stable power delivery for high-demand components like GPUs.
- NVIDIA SLI Supported – Compatible with multi-GPU setups for enhanced gaming performance.
- RTX and AMD GPU Ready – Supports modern graphics cards with flexible IO connector configurations.
- Single 120mm Fan – Quiet cooling solution for reliable operation under load.
- Environmentally Friendly – Meets energy efficiency standards with reduced environmental impact.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | MSI |
| Brand Name | MSI |
| Product Model | MAG A650GL |
| Product Name | MAG A650GL 650W Power Supply |
| Manufacturer Part Number | MAGA650GL |
| UPC | 824142319246 |
| Product Type | Power Supply |
| Form Factor | Internal |
| Output Power | 650 W |
| Efficiency | 90%; 80 Plus Gold |
| Modular | Yes |
| Number of Fans | 1 |
| Number of +12V Rails | 4 |
| Output Voltage | 5 V DC; 3.3 V DC; 12 V DC; -12 V DC |
| Output Voltage Detail | 5 V DC @ 20 A; 3.3 V DC @ 20 A; 12 V DC @ 25 A; 12 V DC @ 30 A; -12 V DC @ 0.3 A; 5 V DC @ 2.5 A |
| Output Current | 20 A; 25 A; 30 A; 300 mA; 2.50 A |
| NVIDIA SLI Supported | Yes |
| Height | 3.4" |
| Width | 5.9" |
| Depth | 6.3" |
| Weight | 5.7 lbs |
| Country of Origin | China |
| Manufacturer Warranty | 5 Year |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Gold |
Installation & Maintenance for MSI MAG A650GL PSU
Standard ATX installation in desktop PC cases; professional builders recommend verifying case clearance for 160mm depth.
- Power off and unplug system; discharge static.
- Mount PSU in case with fan facing intake or exhaust per airflow design.
- Connect modular cables only as needed: 24-pin ATX, EPS, PCIe for GPU, SATA/Molex for drives.
- Secure cables with ties; ensure no loose connections.
- Test power-on; monitor voltages under load.
- Maintenance: Dust fan periodically with compressed air; check cables yearly.
Why Choose MSI MAG A650GL 650W Power Supply
Engineered for reliable power in gaming rigs with Gold-rated efficiency, modular flexibility, and broad GPU compatibility, backed by a 5-year warranty.
Power your gaming PC with MSI MAG A650GL 650W 80+ Gold Modular PSU!
Brand: MSI
Type: Power Supply
Color: Black
Features: Modular
Compatible Brand: For MSI
Model: MAG A650GL
MPN: MAGA650GL
Compatible Model: MAG A650GL
Country of Origin: China
Manufacturer Warranty: 5 Years
Maximum Power: 650 W
Connectors: 24 Pin
Form Factor: ATX
Cooling: 1 Fan
Item Height: 3.4"
Item Width: 5.9"
Item Length: 6.3"
UPC: 824142319246
