MSI MAG 1000W 80+ Gold Modular ATX 3.1 Power Supply
This is a fully modular 1000W ATX 3.1 power supply from MSI's MAG series, designed for gamers and high-performance PC builds. The MSI MAG 1000W Power Supply features 80 PLUS Gold certification for efficient power delivery, ATX 3.1 compliance with support for up to 2x total power excursion and 3x GPU power excursion, and a compact internal form factor. Manufacturer Part Number: MAGA1000GLPCIE5II; UPC: 824142377116. It includes flat modular cables for easy management and a cable pack for unused connectors.
Key Features of MSI MAG 1000W Power Supply
- MAG UNITE AS ONE – Military-inspired design symbolizing sturdiness and durability for gaming rigs.
- ATX 3.1 Ready – Handles 2x total power excursion and 3x GPU power excursion, stable with high-end graphics cards.
- 80 PLUS Gold Certification – Up to 90% efficiency, reducing energy consumption and heat.

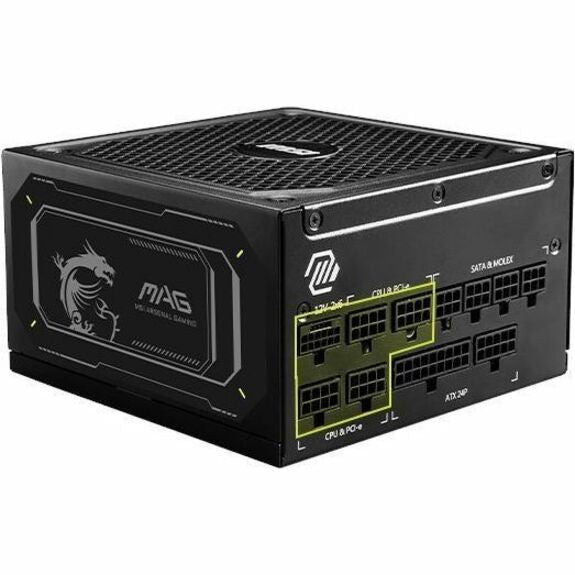

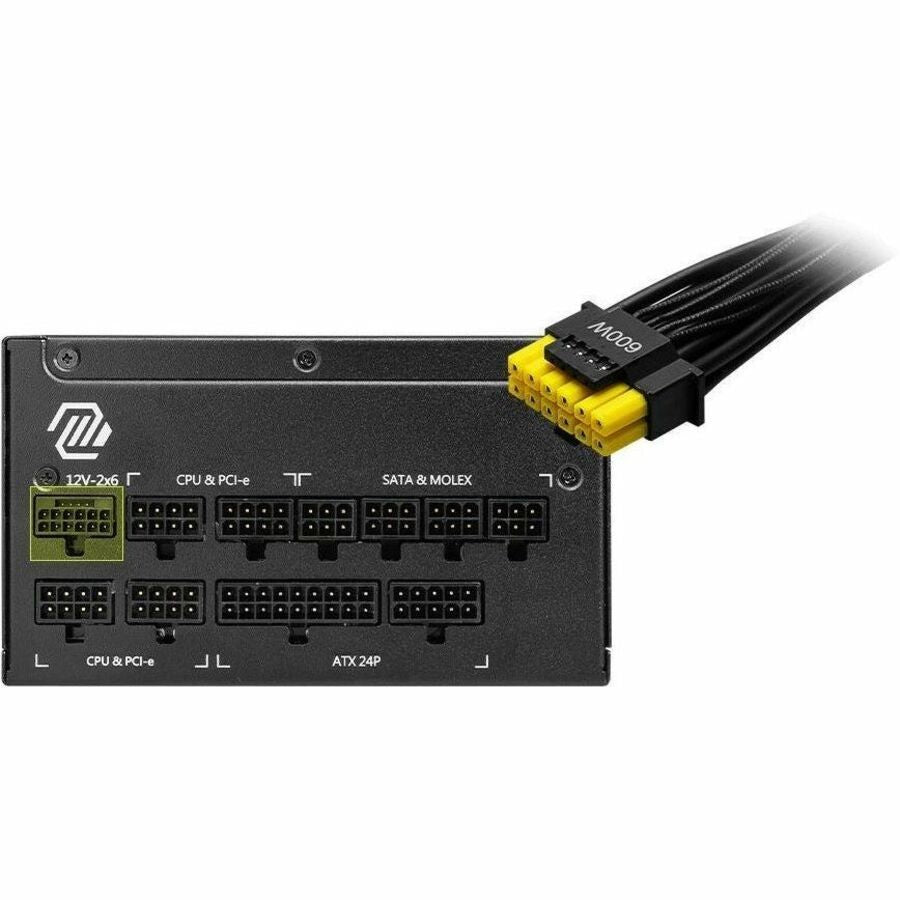

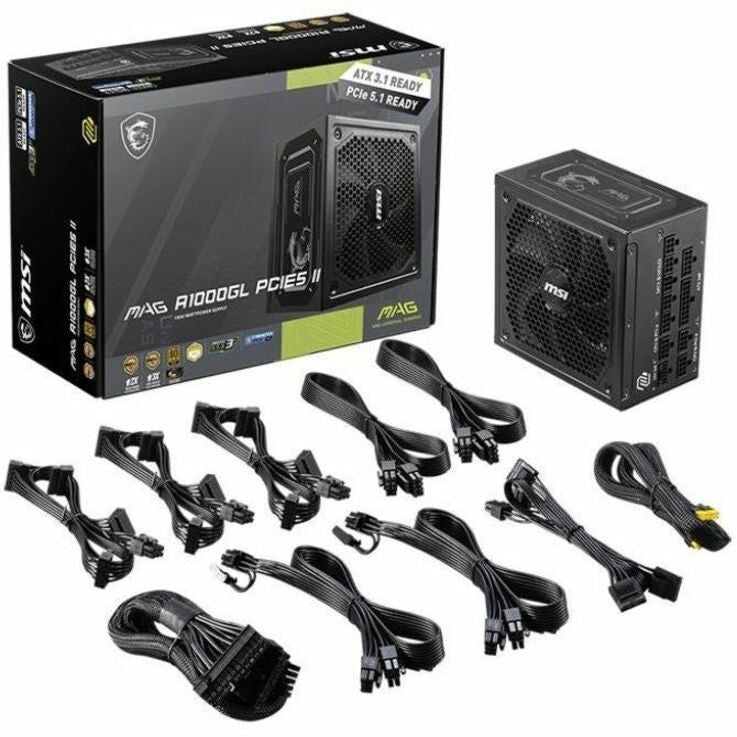

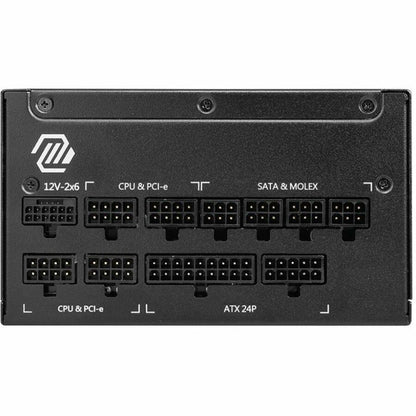

- Fully Modular Design – Use only needed connectors to minimize cable clutter; includes storage pack for extras.
- Flat Cables – Simplifies cable management for better airflow and organization.

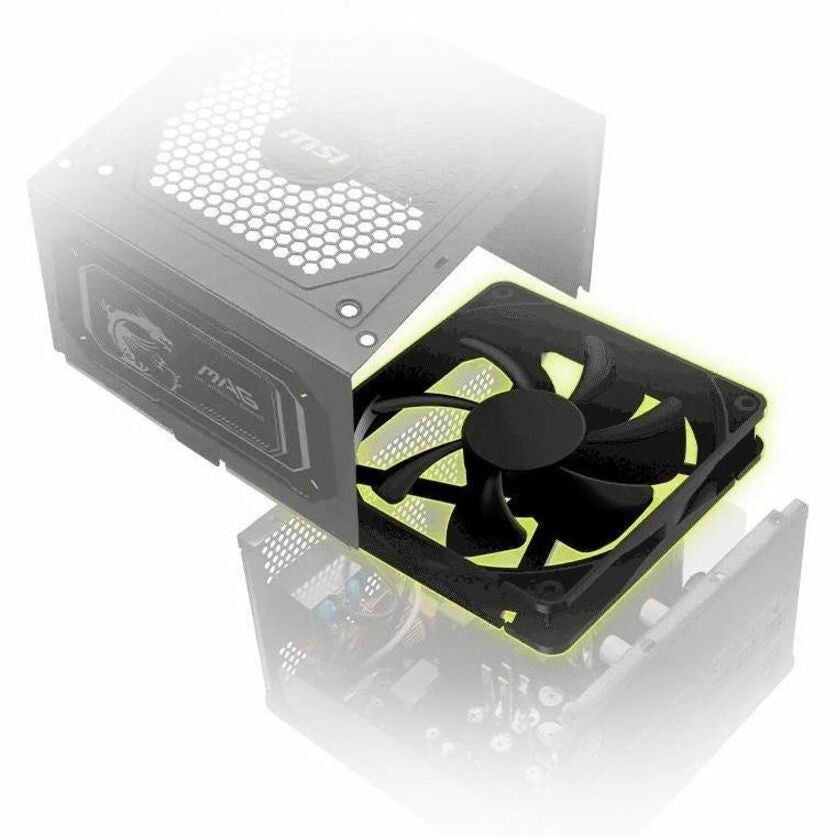

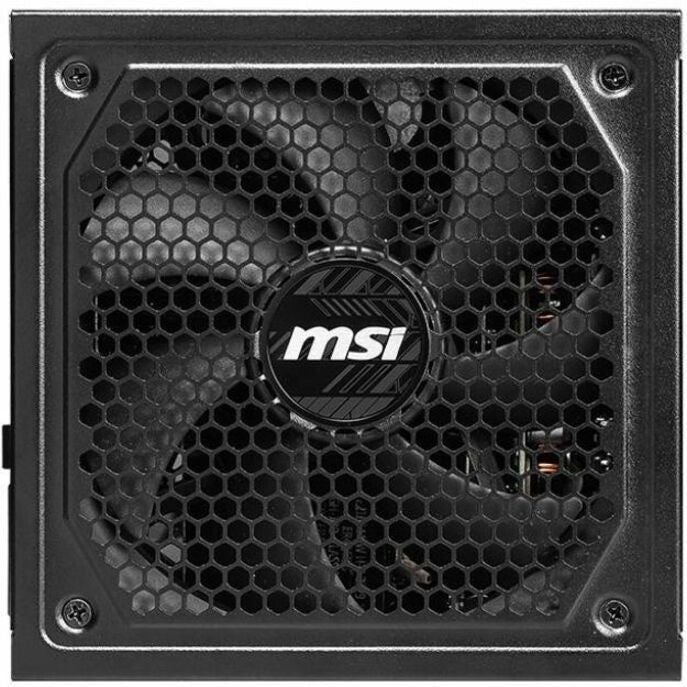

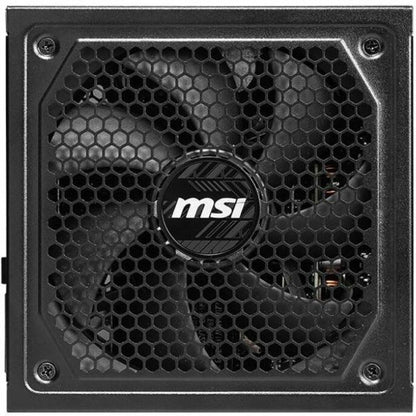

- 135mm Fluid Dynamic Bearing Fan – Balances cooling and low noise levels.
- Half-Bridge LLC + SR + DC/DC Topology – Higher efficiency, stable voltage, quick adjustments for various loads.
- Comprehensive Protections – Over Current, Over Temperature, Over Voltage, Over Power, Under Voltage, Short Circuit.
- NVIDIA SLI Supported – Compatible with multi-GPU setups.
- Compact and Reliable – MTBF of 150,000 hours.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | MSI |
| Brand Name | MSI |
| Product Series | MAG |
| Product Name | MAG 1000W Power Supply |
| Manufacturer Part Number | MAGA1000GLPCIE5II |
| UPC | 824142377116 |
| Product Type | Power Supply |
| Form Factor | Internal |
| Specification Compliance | ATX 3.1 |
| Energy Efficiency Certification | 80 Plus Gold |
| Efficiency | 90% |
| Power Factor Correction (PFC) | Active |
| Output Power | 1000 W |
| Input Voltage | 120 V AC / 230 V AC |
| Input Frequency | 60 Hz |
| Number of Fans | 1 |
| Fan Diameter | 135 mm |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Protection Type | Over Current, Over Temperature, Over Voltage, Over Power, Under Voltage, Short Circuit |
| Modular | Yes |
| NVIDIA SLI Supported | Yes |
| Features | Compact, Reliability |
| MTBF | 150000 Hour |
| PCI Express Connector | Yes |

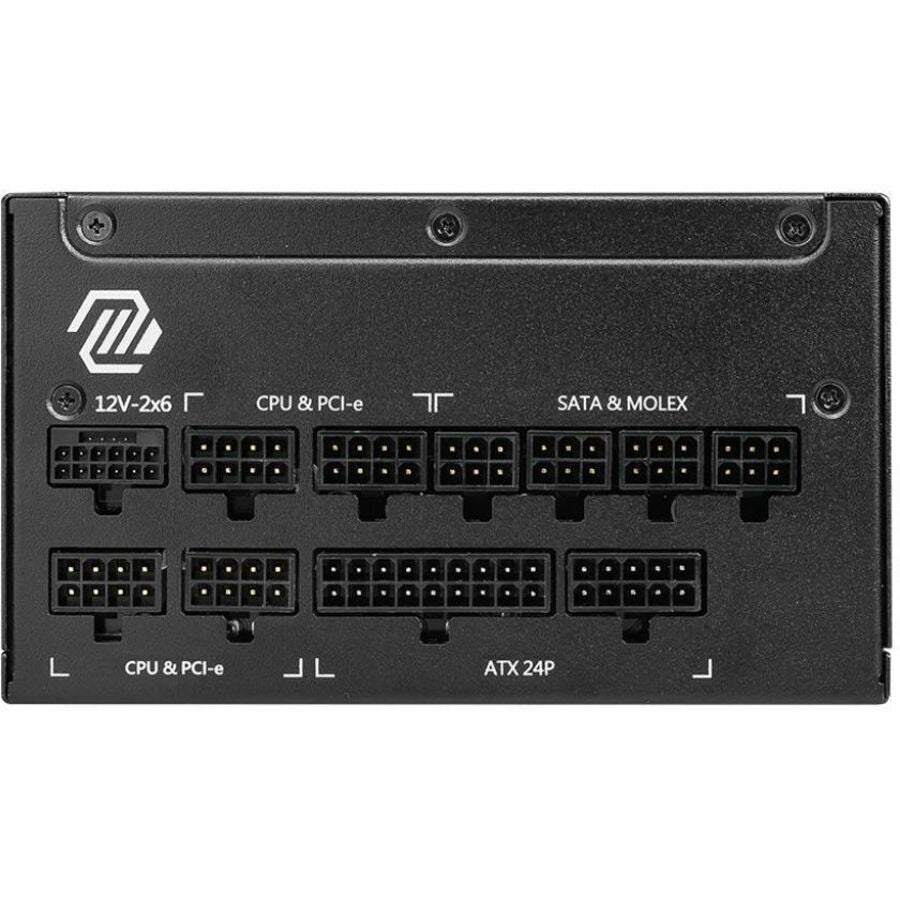

| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Number of SATA Power Connectors | 12 |
| Number of 4-pin Molex Power Connectors | 4 |
| Physical Height | 4.7" |
| Physical Width | 4.7" |
| Physical Depth | 1" |
| Weight | 7.50 |
| Shipping Height | 5.20 |
| Shipping Width | 9.40 |
| Shipping Depth | 11.60 |
| Length Description | Short |
Why Choose MSI MAG 1000W Power Supply
Built for demanding gaming setups, the MSI MAG 1000W delivers reliable power with advanced topology for stable performance across scenarios. Its modular design and efficient cooling make it ideal for clean, high-airflow PC builds supporting modern GPUs and ATX 3.1 standards.
Power up your gaming PC with MSI MAG 1000W 80+ Gold Modular ATX 3.1 Power Supply—Order today!
Brand: MSI
Type: Power Supply
Color: Black
Features: Modular
Model: MAG 1000G
MPN: MAGA1000GLPCIE5II
Maximum Power: 1000 W
Connectors: 20+4 Pin
Voltage Compatibility: 120 V
Form Factor: ATX
Maximum Wattage: 1000 W
Cooling: 1 Fan
UPC: 824142377116
