MSI MAG 1000W 80+ Gold Fully Modular ATX 3.1 PCIe 5.1 PSU
This is a MSI MAG 1000W Power Supply, a fully modular internal ATX power supply unit designed for high-performance gaming PCs, streaming setups, and AI PCs. Featuring ATX 3.1 and PCIe 5.1 compliance with native 12V-2x6 connectors, it supports NVIDIA 50 series graphics cards with 220% total power excursion capability. MPN: MAGA1000GLSPCIE5; UPC: 824142398074. It delivers 1000W output with 80 PLUS Gold efficiency, active PFC, and a single +12V rail for stable power delivery under heavy loads.
Key Features and Performance Highlights
- Native 12V-2x6 Connector – PCIe 5.1 ready for next-gen GPUs like NVIDIA 50 series without adapters.
- 220% Total Power Excursion – Handles power spikes for demanding graphics cards and AI workloads.
- 80 PLUS Gold Certified – Up to 90% efficiency for reduced energy waste and lower operating temperatures.
- Dual Color 12V-2x6 Cable – Distinctive design for easy identification and cable management.

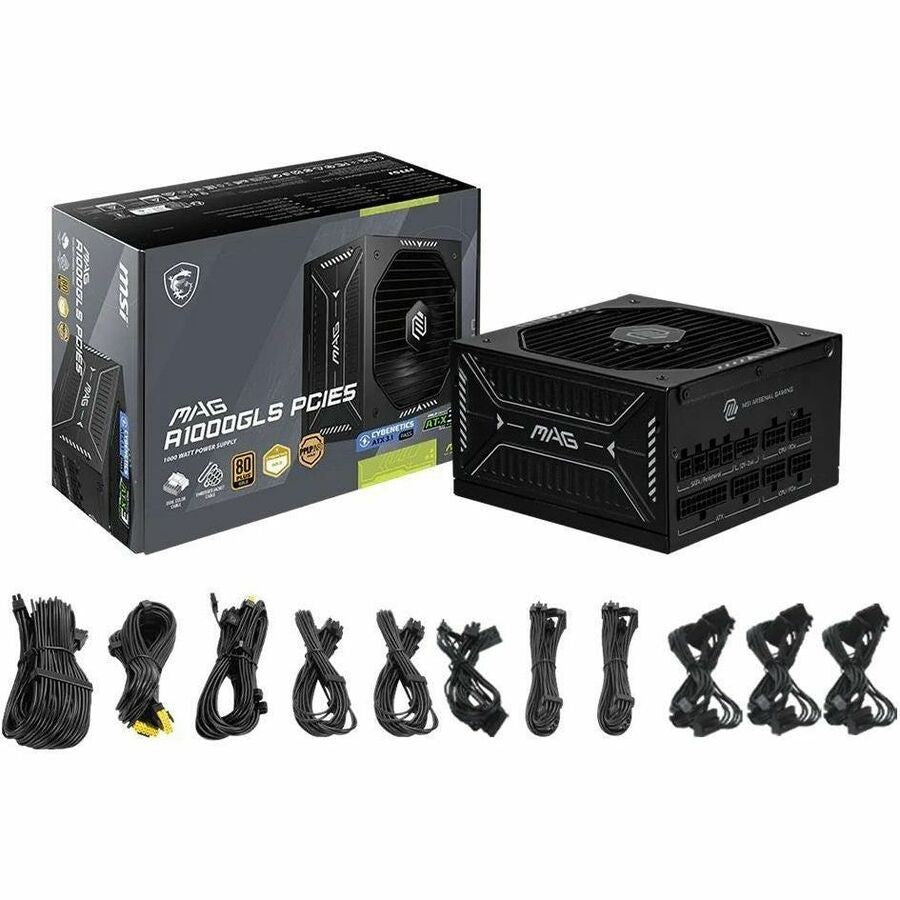

- Fully Modular Design – Detachable cables for cleaner builds and improved airflow.

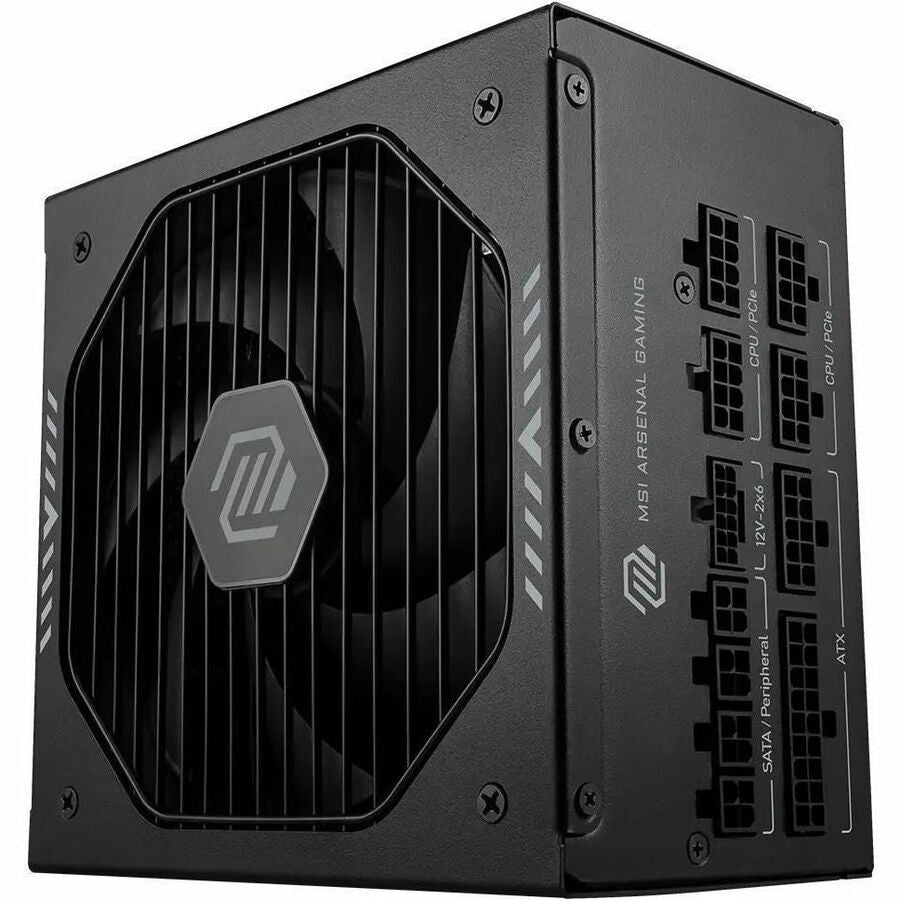

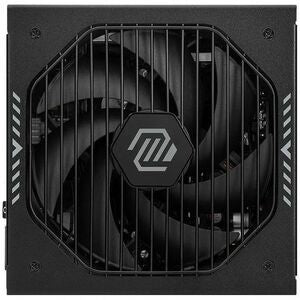

- 135mm Fluid Dynamic Bearing Fan – Low noise operation with "Midnight Sound Level" for quiet computing.
- Comprehensive Protections – Over Current, Over Temperature, Over Power, Short Circuit, Over Voltage, Under Voltage, Surge & Inrush, No Load.
- Advanced Thermal Solutions – Ensures cool, stable operation during intense gaming sessions.
- Robust MAG Series Construction – Metallic-like hardness and excellent heat dissipation for durability.
- On/Off Switch and Low Noise Features – User-friendly controls and serene performance.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | MSI |
| Brand Name | MSI |
| Product Series | MAG |
| Product Name | MAG 1000W Power Supply |
| Manufacturer Part Number | MAGA1000GLSPCIE5 |
| UPC | 824142398074 |
| Product Type | Power Supply |
| Form Factor | Internal |
| Specification Compliance | ATX 3.1, PCIe 5.1 |
| Power Factor Correction (PFC) | Active |
| Efficiency | 90% |
| Energy Efficiency Certification | 80 Plus Gold |
| Number of Fans | 1 |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Diameter | 135 mm |
| Modular | Yes (Fully Modular) |
| Features | On/Off Switch, Low Noise |
| Number of +12V Rails | 1 |
| Input Voltage | 120 V AC, 230 V AC |
| Input Voltage Range | 100 V AC - 240 V AC |
| Input Frequency | 47-63 Hz |
| Output Power | 1000 W |
| Output Voltage | 5 V DC, 3.3 V DC, 12 V DC, -12 V DC, 5 V SB |
| Output Voltage Detail | 5 V DC @ 20 A, 3.3 V DC @ 20 A, 12 V DC @ 83.3 A, -12 V DC @ 0.3 A, 5 V SB @ 3 A |
| Output Current | 20 A, 83.30 A, 300 mA, 3 A |
| PCI Express Connector | Yes (PCI Express Version 5.1) |
| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Number of SATA Power Connectors | 11 |
| Number of 4-pin Molex Power Connectors | 4 |
| Protection Type | Over Current, Over Temperature, Over Power, Short Circuit, Over Voltage, Under Voltage, Surge & Inrush Protection, No Load |
| Height | 3.4" |
| Width | 5.9" |
| Depth | 5.9" |
| Weight (Approximate) | 7.54 lb |
| Country of Origin | VIET NAM |
| Manufacturer Warranty | 10 Year |
Why Choose MSI MAG 1000W Power Supply
The MSI MAG series is engineered for stability and durability, featuring robust construction with excellent heat dissipation to support critical gaming components during prolonged high-load sessions. Its fully modular design, combined with PCIe 5.1 readiness and advanced protections, provides reliable power for modern builds handling NVIDIA 50 series GPUs and AI PCs.
Power your PC with MSI MAG 1000W 80+ Gold Fully Modular PSU—Order today!
Brand: MSI
Type: Power Supply
Color: Black
Features: Modular
Model: MAG A1000GLS
MPN: MAGA1000GLSPCIE5
Manufacturer Warranty: 10 Years
Maximum Power: 1000 W
Connectors: 4+4 CPU
Voltage Compatibility: 120 V
Form Factor: ATX
Maximum Wattage: 1000 W
Cooling: 1 Fan
Item Height: 3.4 in
Item Width: 5.9 in
Item Length: 5.9 in
UPC: 824142398074
