Middle Atlantic UD1 1U Utility Rack Drawer 14" Ext 14.5" Depth
Middle Atlantic UD1 1U Utility Rack Drawer 14" Ext 14.5" Depth
Low stock: 4 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Middle Atlantic UD1 1U Utility Rack Drawer 14" Ext 14.5" Depth

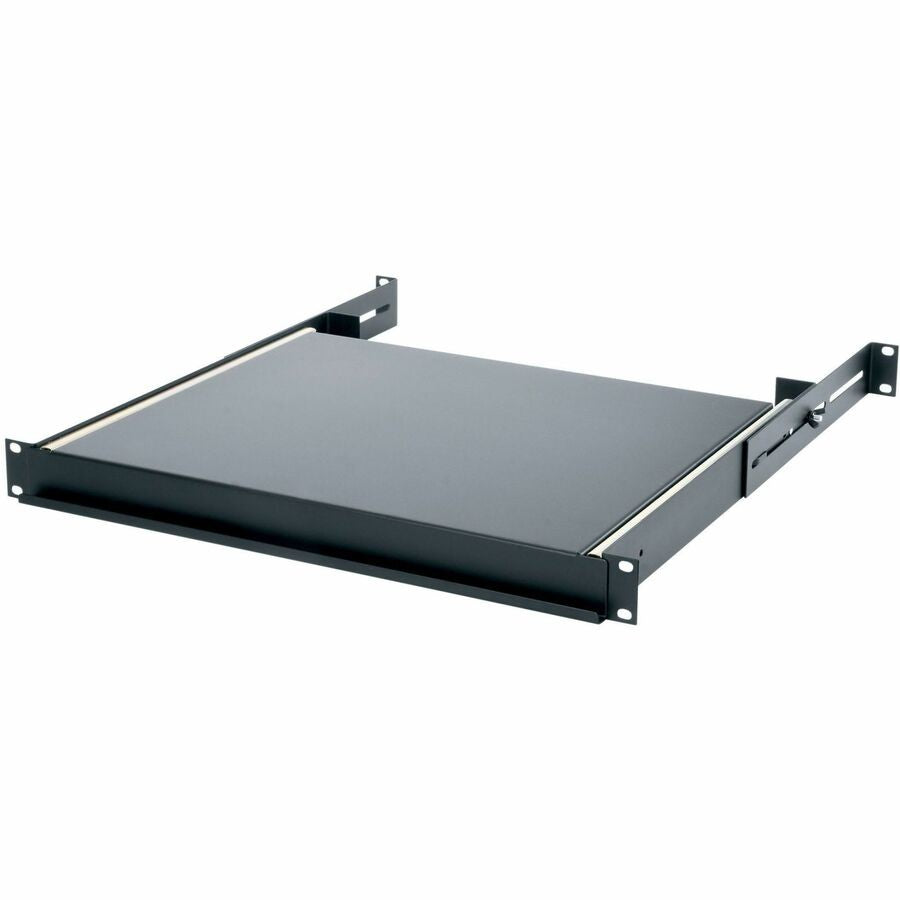

This is a 1RU utility rack drawer from the Middle Atlantic UD Series, model UD1, designed for economical rack storage solutions. Constructed of durable steel with full extension ball bearing slides, it offers 14 inches of extension and internal dimensions of 15-7/8 inches wide by 14-1/2 inches deep. MPN: UD1; UPC: 656747112041. The Middle Atlantic UD Series 1RU Utility Rack Drawer supports up to 50 lb and includes a rear cable entry for optimized management, making it ideal for AV and server rack applications.
Key Features of Middle Atlantic UD1 Rack Drawer
- Full Extension Ball Bearing Slides – Extend 14 inches for complete access to stored items.
- Versatile Design – Drawer flips to serve as a writing surface.
- Rear Cable Entry – Enables optimized cable management within the rack.
- Fully Assembled – Ships ready to install in standard 19-inch racks.
- Steel Construction – 20-gauge bottom ensures long-lasting durability.
- UL Listed – Meets safety standards; compliant with EIA/TIA and RoHS.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand Name | Middle Atlantic |
| Manufacturer | MID ATLANTIC LEGRAND AV INC / Legrand Group |
| Manufacturer Part Number | UD1 |
| Product Series | UD |
| Product Model | UD1 |
| Product Type | Rack Drawer |
| Product Color | Black |
| Product Material | Steel |
| Base/Bottom Material Gauge | 20 |
| Rack Height | 1U |
| Rack Width | 19" |
| Height | 1.8" |
| Width | 15.8" |
| Depth | 13.3" |
| Internal Dimensions | 15-7/8" Wide x 14-1/2" Deep |
| Slide Extension | 14" |
| Maximum Weight Capacity | 50 lb |
| Weight (Approximate) | 11.40 lb |
| UPC | 656747112041 |
| Country of Origin | MEXICO |
| Packaged Quantity | 1 |
| Additional Information | UL Listed; Cable entry point at rear; EIA/TIA |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Manufacturer Warranty | 3 Year |
Installation and Usage for UD1 Utility Rack Drawer
Ships fully assembled for quick integration into compatible racks.
- Verify rack space: Confirm 1U availability in 19" wide EIA/TIA rack.
- Slide into rack rails: Secure with provided mounting hardware.
- Test extension: Ensure full 14" pull-out and 50 lb load stability.
- Route cables: Utilize rear entry for management.
- Pro Tip: Periodically check slides for smooth operation in dusty environments.
Why Choose Middle Atlantic UD Series Rack Drawer
Provides reliable storage with versatile functionality, steel durability, and compliance standards for professional AV and IT rack setups.
Enhance your rack organization with the Middle Atlantic UD1—add to cart now!
Brand: Atlantic
Type: Rack Drawer
MPN: UD1
Country of Origin: Mexico
Manufacturer Warranty: 3 Years
Rack Unit Height: 1 U
Rack Unit Width: 19 in
UPC: 656747112041
