Key Features

• Universal Design - Reversible for left- or right-handed doors, fits 28" to 42" wide and 1.75" to 2" thick doors.
• Heavy-Duty Steel - Durable construction meets ANSI Grade-1 standards for high-traffic areas.
• Matte Black Finish - Sleek, modern look complements various architectural styles.
• Complete Installation Kit - Includes a 6-pin SC4 brass cylinder, steel pull plate, and all necessary hardware.
• ADA and UL Compliant - Meets UL 305 and ADA requirements for accessibility and safety.

Technical Specifications

Compatibility Notes

This rim exit device is suitable for:

• Single doors or pairs of doors (with mullion)
• Wood or metal doors, 28" to 42" wide and 1.75" to 2" thick
• Indoor and outdoor commercial or residential applications

Note: Verify door dimensions and handing requirements before installation to ensure proper fit.

Installation Guide

Install your new exit device with ease using these steps:

1. Gather Tools: Prepare a drill, screwdriver, measuring tape, and level.
2. Review Template: Use the included full-scale drilling template to mark mounting points on the door.
3. Prepare the Door: Drill holes as indicated on the template for the exit device and cylinder.
4. Mount Exit Device: Secure the exit device to the door using the provided hardware, ensuring it is level.
5. Install Cylinder and Pull Plate: Attach the 6-pin SC4 brass cylinder and steel pull plate on the exterior side.
6. Test Functionality: Operate the push bar to confirm smooth latch engagement and secure locking.
7. Finalize: Adjust the dogging device if constant open access is needed, and verify all components are securely fastened.

Why Choose This Exit Device?

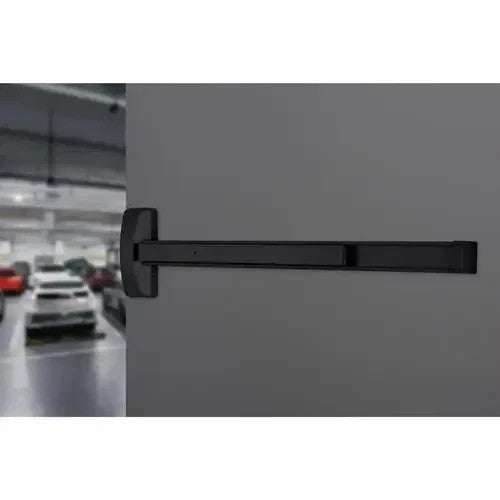

The Brinks Commercial 32-Inch Rim Exit Device is built for durability and ease of use in demanding environments. Its corrosion-resistant steel construction and 3-hour UL fire rating ensure reliable performance in emergencies. With a smooth hydraulic push bar requiring less than 5 lbs. of force, it meets ADA accessibility standards, making it ideal for schools, offices, retail spaces, and more. The sleek matte black finish adds a modern touch to any door, while the included hardware simplifies installation.
