Key Design Features

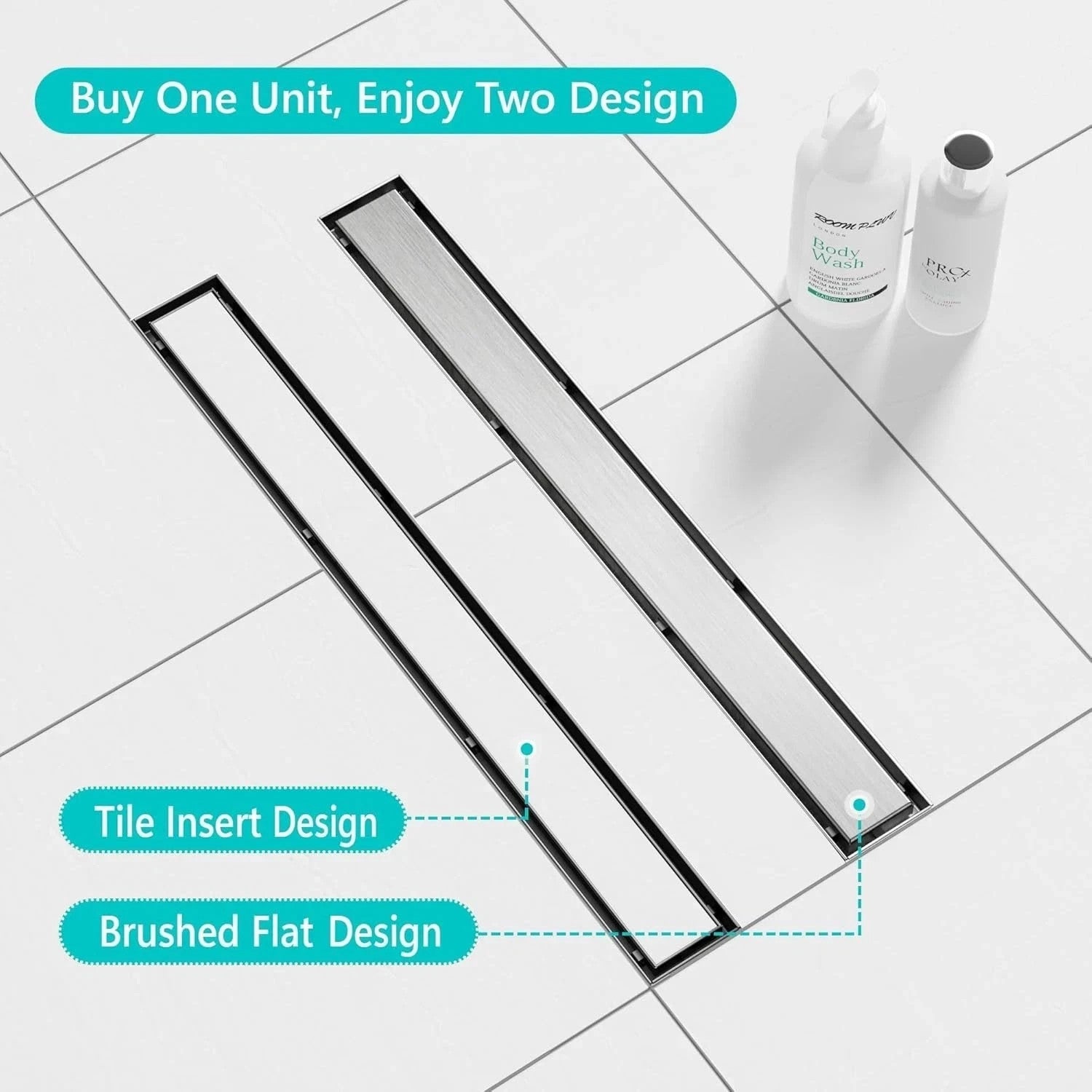

• 2-in-1 Reversible Grate – Choose between a sleek brushed steel finish or a customized tile-inlay look to match your shower floor perfectly.

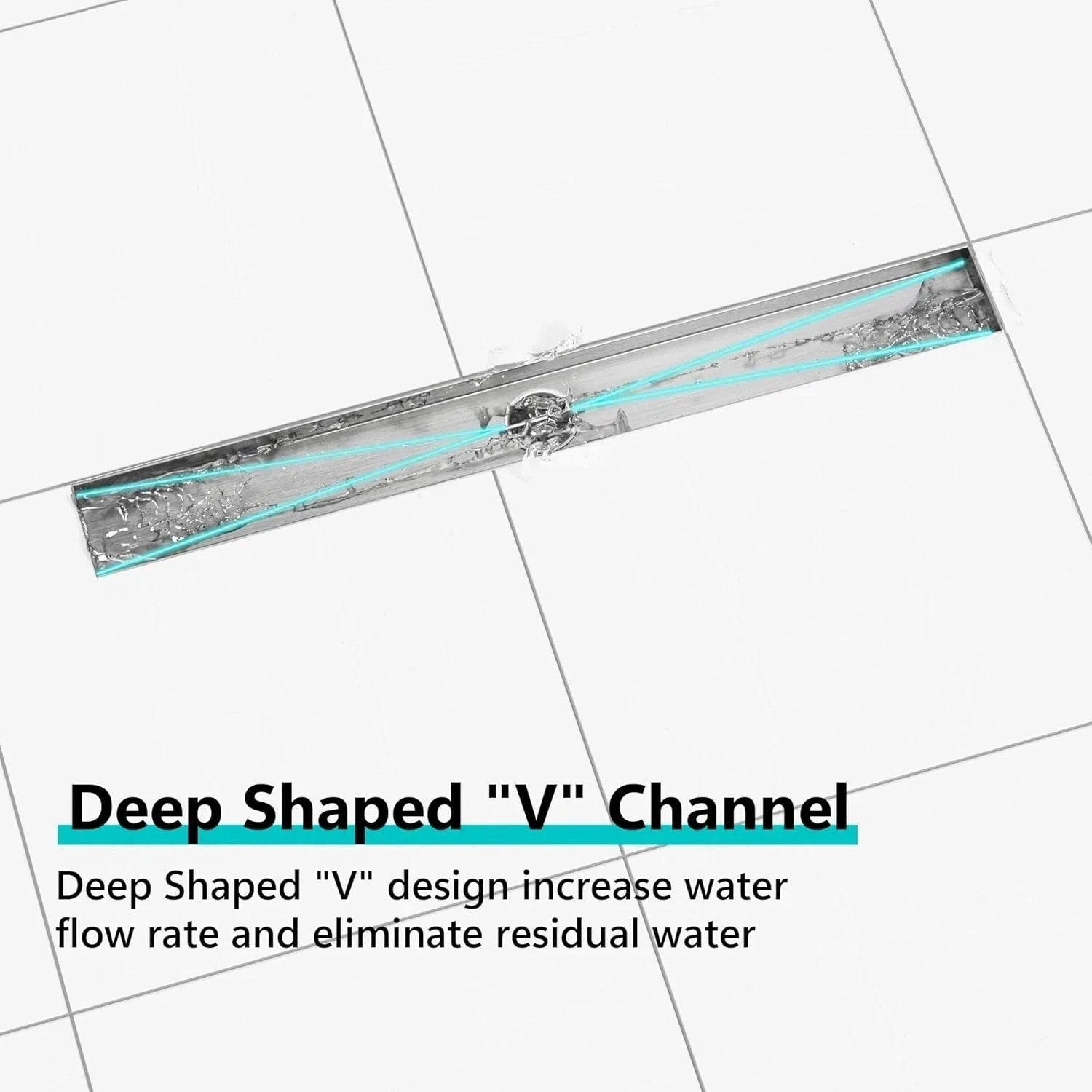

• Enhanced V-Slope Profile – The internal "V" shaped channel design accelerates water flow to the central 2-inch outlet, effectively eliminating standing water and sediment buildup.
• AISI 304 Stainless Steel – Built to last a lifetime. This heavy-duty material is highly resistant to corrosion, rust, and household cleaning chemicals.

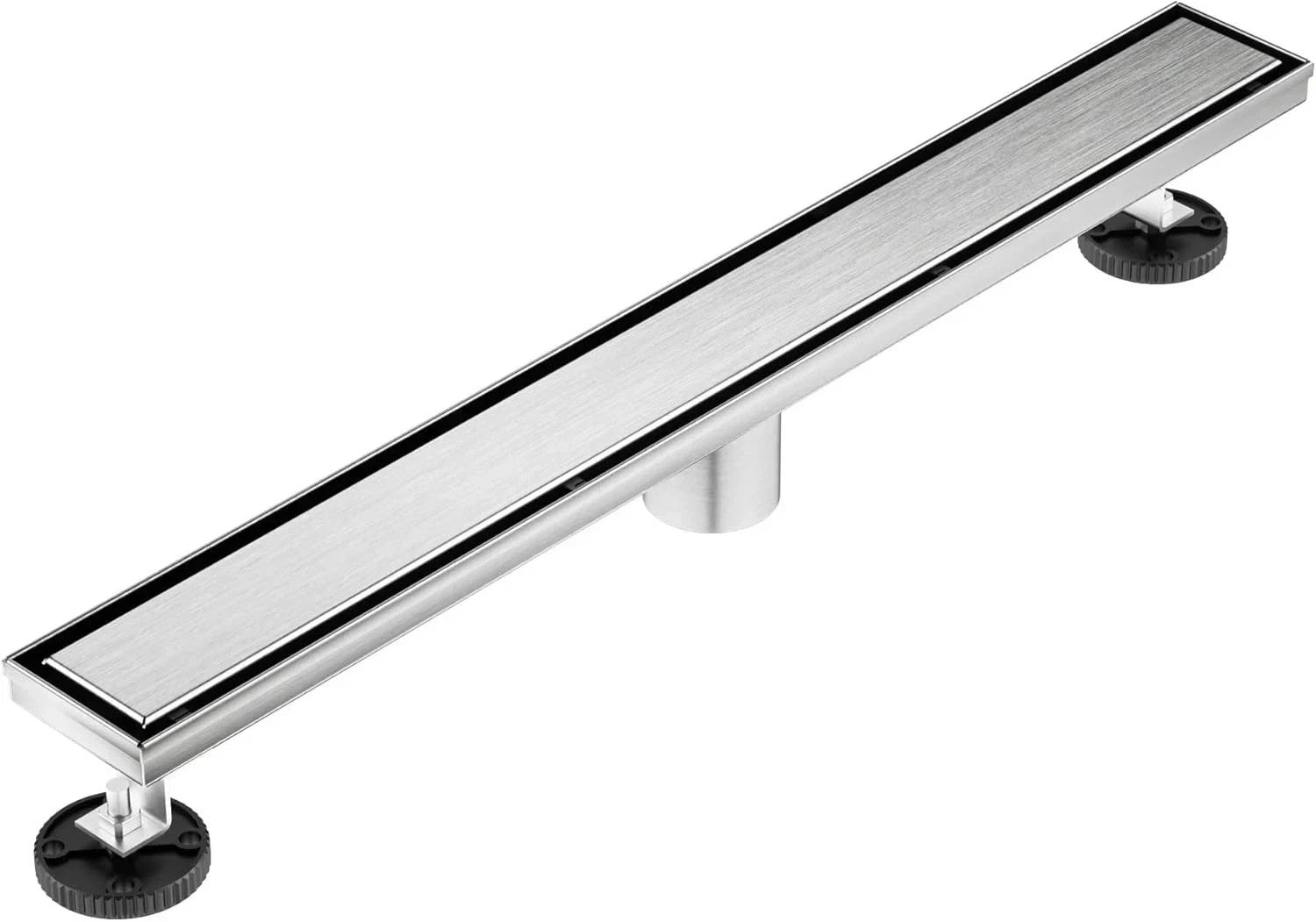

• Precision Leveling – Equipped with adjustable leveling feet on both ends to ensure the drain is perfectly flush with your subfloor before pouring the mortar bed.

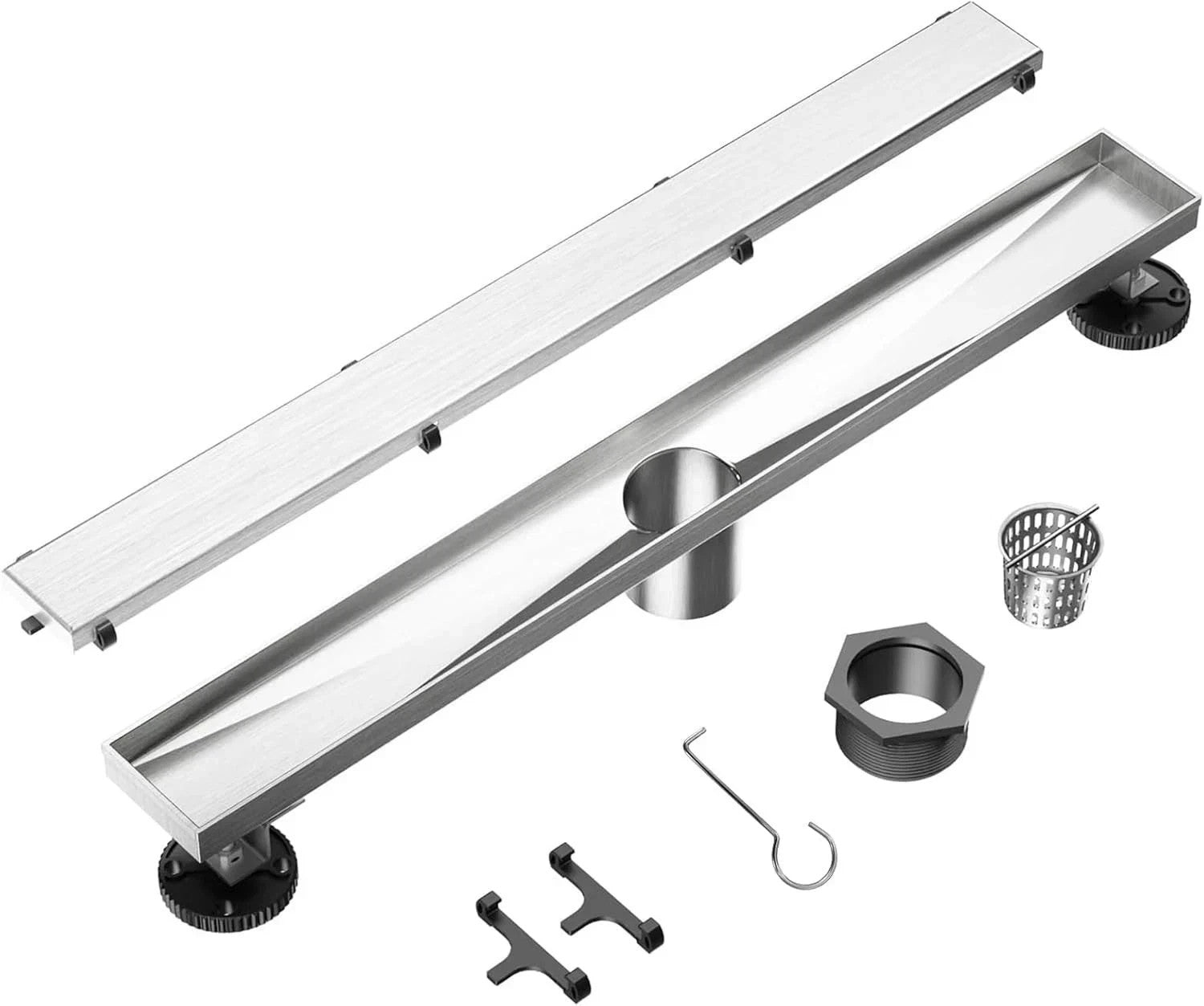

• Easy Maintenance – Includes a lifting hook and a removable hair strainer basket to prevent clogs and keep your plumbing running smoothly.

Technical Specifications

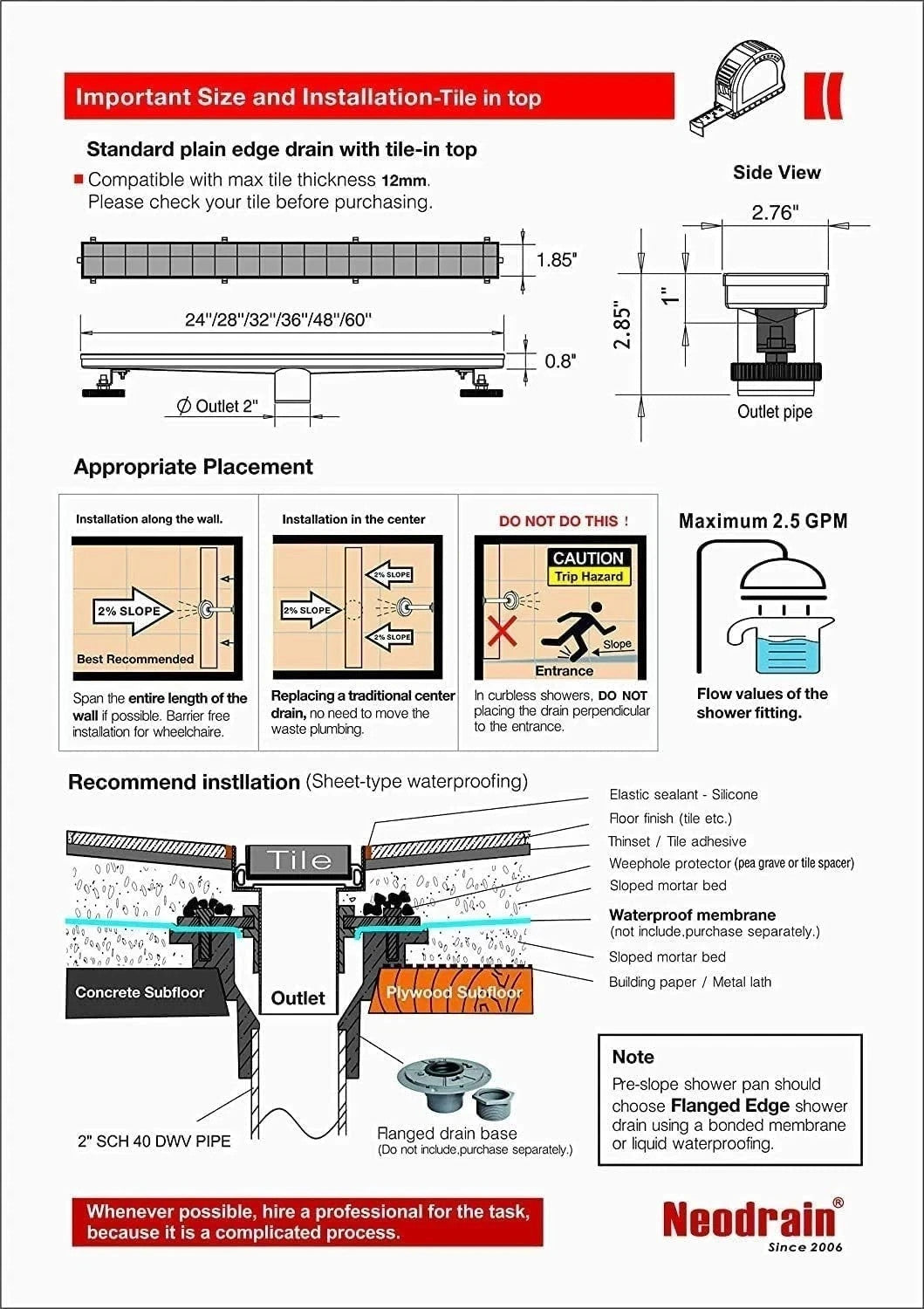

Installation & Maintenance

Designed for both professional contractors and experienced DIYers:

1. Rough-In: Connect the threaded adapter to your 2" drain flange using the included rubber O-ring to ensure a watertight seal.
2. Leveling: Use the adjustable feet to set the exact height required for your specific tile and thin-set thickness.
3. Waterproofing: Apply your waterproofing membrane (liquid or sheet) over the flange and up to the edge of the drain body.

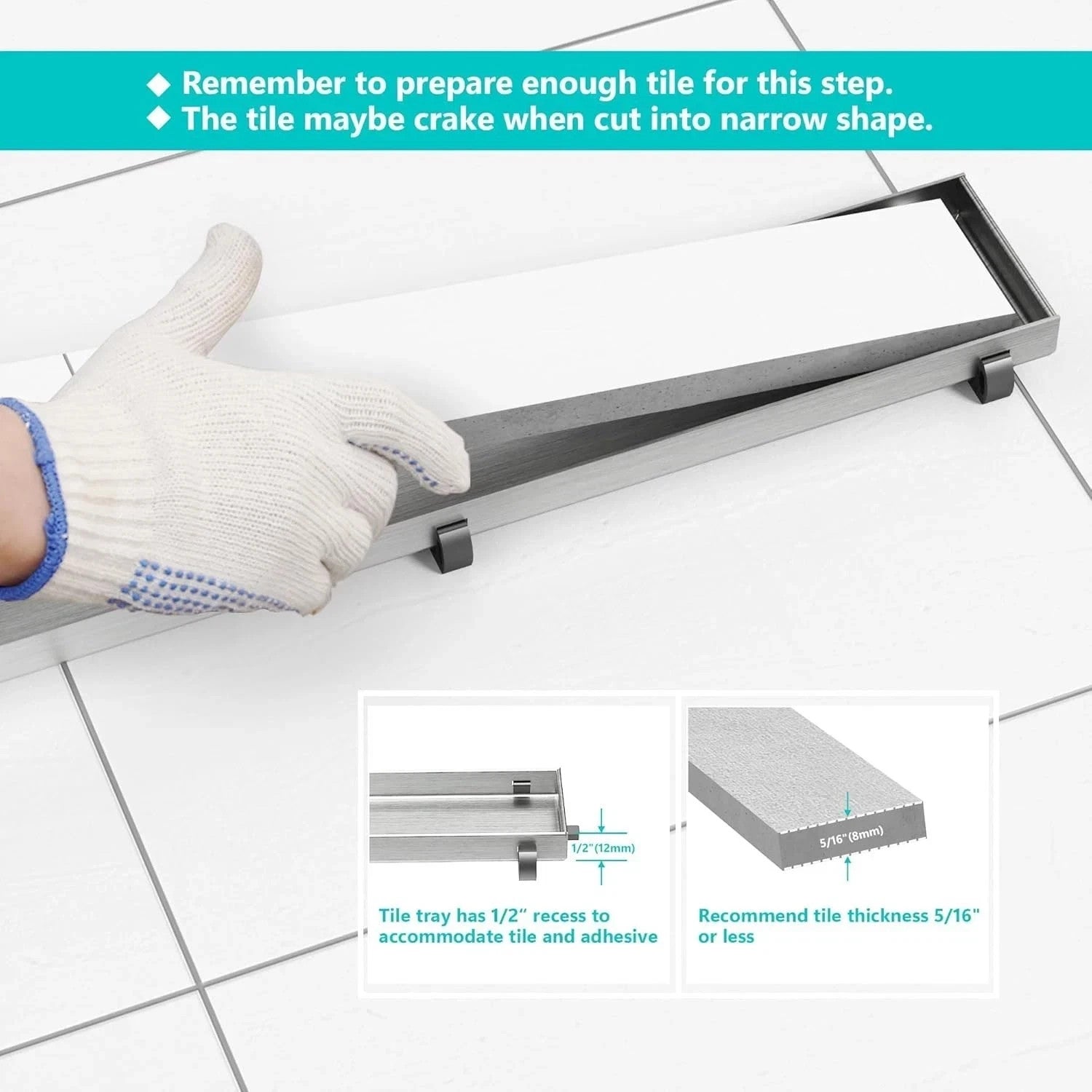

4. Tiling: If using the tile-insert option, cut your tile to fit the inner dimensions of the grate tray and secure with a small amount of adhesive.
5. Cleaning: Every few months, use the included lifting key to remove the grate and empty the hair strainer basket.

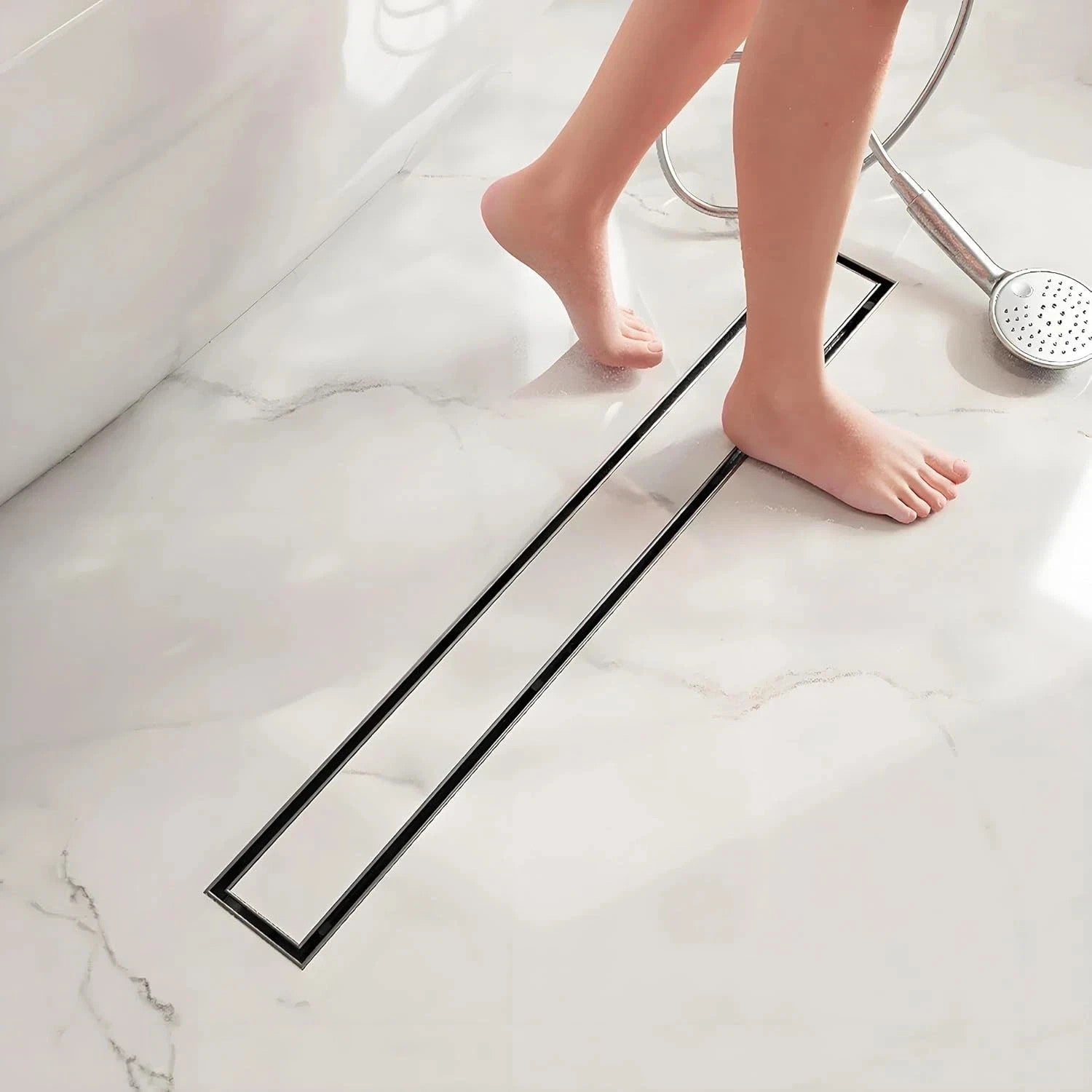

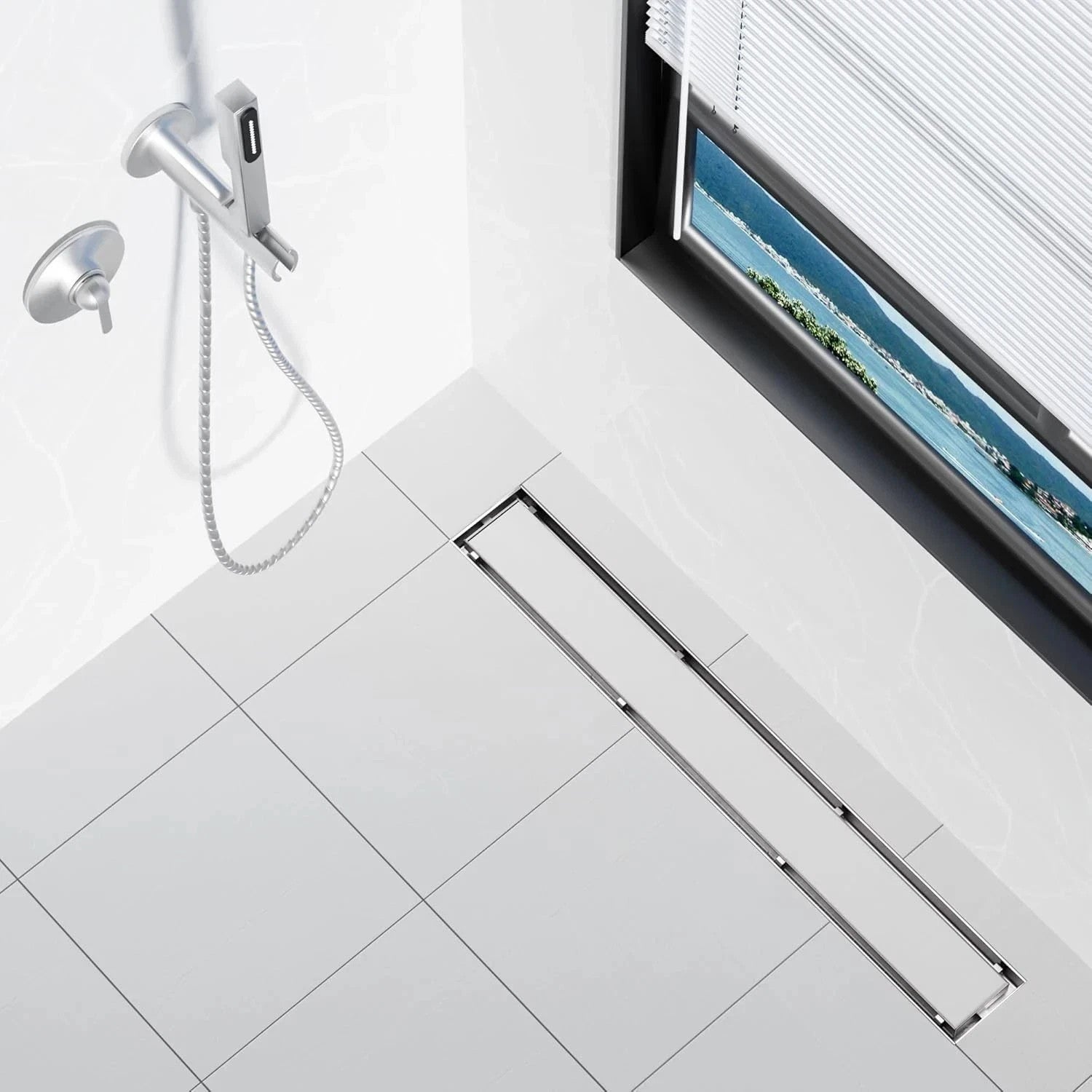

Why Choose a Linear Drain?

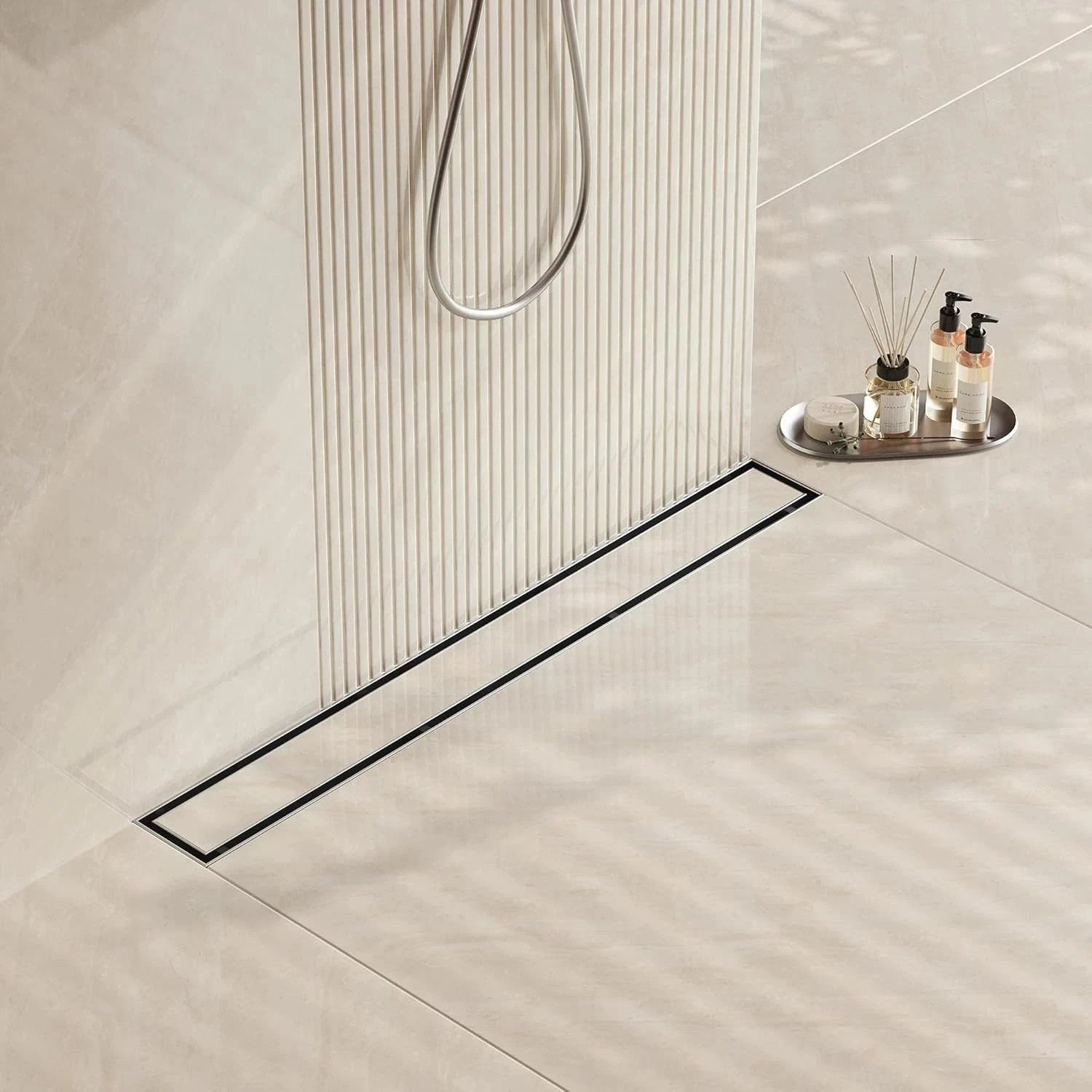

Unlike traditional center drains that require a 4-way floor slope, the Linear Drain allows for a single-slope "envelope" floor. This means you can use large-format tiles throughout the shower, reducing the number of grout lines and creating a cleaner, safer, and more spacious aesthetic. It’s the ultimate upgrade for any barrier-free or "wet room" bathroom design.
