Key Product Features

• Grade 304 Stainless Steel – Constructed from premium-grade stainless steel with a sophisticated brushed finish to resist corrosion, scratches, and tarnishing.
• High-Flow V-Channel Design – The internal "V" slope profile enhances water flow toward the outlet, effectively eliminating pooling and standing water.
• Precision Leveling – Equipped with adjustable leveling feet to ensure the drain sits perfectly flush with your subfloor, even on uneven surfaces.

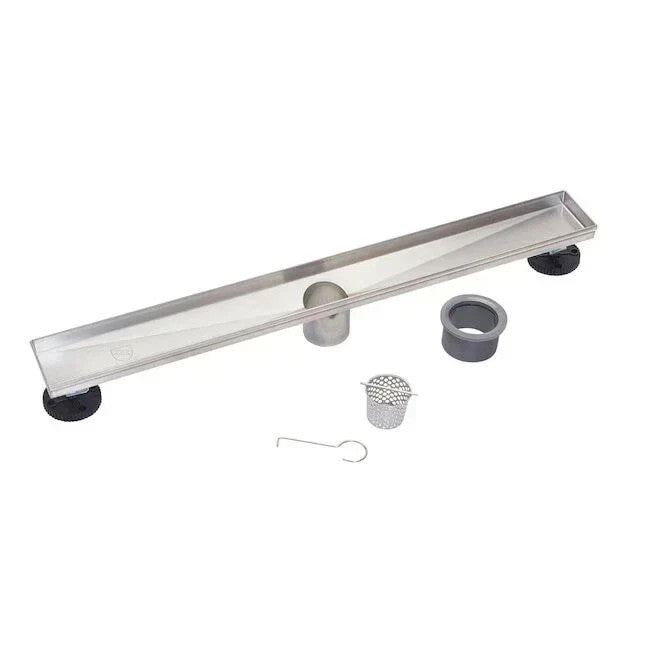

• Integrated Hair Strainer – Includes a removable debris basket that catches hair and jewelry before they enter the pipes, preventing costly clogs.
• Universal 2-Inch Fit – Designed to connect effortlessly to standard 2-inch no-hub drain outlets, making it perfect for both new construction and bathroom remodels.

Technical Specifications

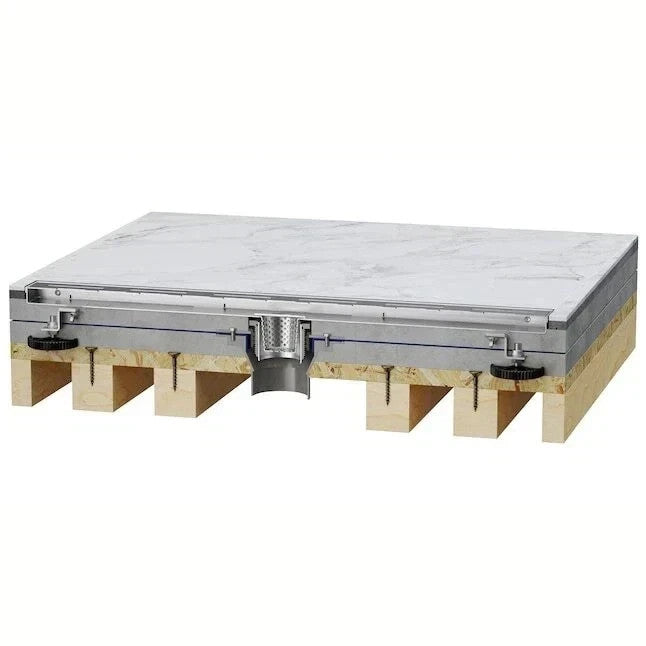

Professional Installation Guide

Ensure a leak-proof and stylish result by following these expert steps:

1. Site Preparation: Ensure your shower floor is framed with a proper slope (1/4" per foot) toward the drain location.
2. Rough-In Connection: Connect the drain body to your 2-inch waste pipe using a standard no-hub or flexible coupling (sold separately).
3. Leveling: Use a spirit level and adjust the integrated leveling feet until the top of the drain channel is perfectly horizontal and flush with the planned tile height.
4. Waterproofing: Apply your waterproofing membrane (liquid or sheet) over the floor and up to the flange of the drain to prevent leaks.
5. Tiling: Lay your mortar bed and tiles. Leave a small gap (approx. 1/8") between the tiles and the drain for a professional grout or caulk line.
6. Grate Placement: Once the grout is set, insert the hair strainer and place the decorative brushed grate into the channel.
7. Maintenance Tip: Use the included lifting key to remove the grate every 3-6 months for quick cleaning of the hair strainer.

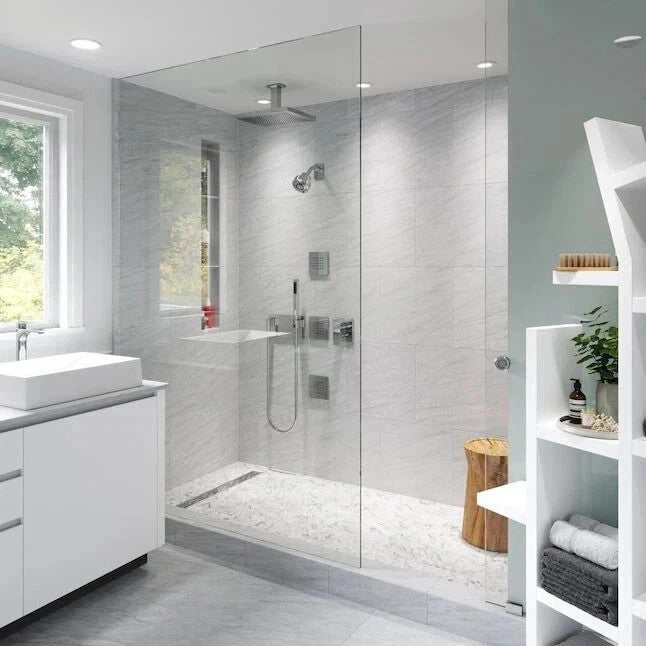

Why Choose a Linear Drain System?

The B&K Linear Drain is the preferred choice for modern luxury homes. Unlike traditional center drains that require a "bowl" slope (cutting tiles into small triangles), a linear drain only requires a single-plane slope. This allows you to use beautiful, large-format porcelain or stone tiles without interrupting the pattern. It is the perfect solution for creating ADA-compliant curb-less showers, offering a clean, high-end aesthetic that increases the resale value of your home.
