Lenovo ThinkPad Universal USB-C Dock 40AY0135US
Lenovo ThinkPad Universal USB-C Dock 40AY0135US
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Lenovo ThinkPad Universal USB-C Dock 40AY0135US
This is a Lenovo ThinkPad Universal USB-C Docking Station designed for expanding connectivity in mixed PC environments. The ThinkPad Universal USB-C Dock (40AY0135US, UPC 195892103448) delivers universal compatibility with any PC supporting USB-C standards, dynamic power charging up to 100W for notebooks, automated firmware updates, and plug-and-play simplicity. It supports wired connectivity for desktops, notebooks, and monitors with features like security lock and power delivery pass-through.
Advanced Connectivity and Management Features
- Multi-Display Support: Up to 3 displays at 4K @ 60Hz or 4K UHD (3840 x 2160 resolution).
- Power Delivery: 100W USB Power Delivery to host devices with pass-through capability; includes 135W power adapter.

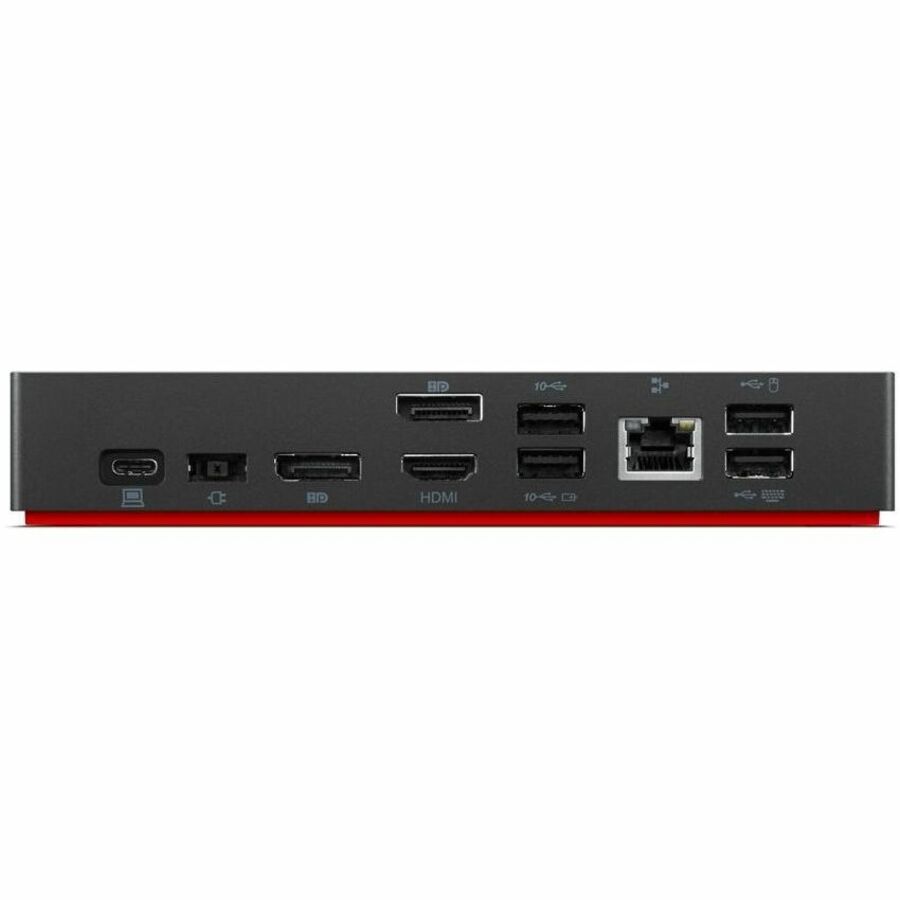

- Extensive Ports: 6 total USB ports including 1x USB-C 3.2 Gen 2, 3x USB 3.2 Gen 2 Type-A, 2x USB 2.0; 2x DisplayPort, 1x HDMI, 1x RJ-45 Gigabit Ethernet, headphone/microphone combo port.
- Network and Management: Gigabit Ethernet; PXE Boot, Wake-on-LAN, MAC Address Pass-through.
- Security and Convenience: Kensington security lock slot, plug-and-play setup, automated firmware updates.
- Universal Design: Works seamlessly in mixed-PC setups beyond traditional docking limitations.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Lenovo |
| Manufacturer | Lenovo Group Limited |
| MPN | 40AY0135US |
| UPC | 195892103448 |
| Product Line | ThinkPad |
| Product Type | Docking Station |
| Product Color | Black |
| Color Family | Black |
| Form Factor | Desktop |
| Height | 1.21" |
| Depth | 3.15" |
| Weight (Approximate) | 13.69 oz |
| Connectivity Technology | Wired |
| Host Interface | USB Type-C |
| Charging Capability | Yes |
| Device Supported | Desktop PC, Notebook, Monitor |
| Number of Displays Supported | 3 |
| Screen Mode Supported | 4K @ 60Hz, 4K UHD |
| Supported Resolutions | 3840 x 2160 |
| Ethernet Technology | Gigabit Ethernet |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| Number of USB Type-A Ports | 3 |
| Number of USB Type-C Ports | 1 |
| USB Type-C Detail | 1 x USB-C 3.2 Gen 2 |
| Number of RJ-45 Ports | 1 |
| Number of DisplayPorts | 2 |
| Number of HDMI Ports | 1 |
| Headphone/Microphone Combo Port | Yes |
| USB Power Delivery | 100W |
| Maximum Power Supply Wattage | 135 W |
| Power Source Type | Power Adapter |
| Features | Security Lock, Plug and Play, Power Delivery Pass-through |
| Management Features | PXE Boot, Wake-on-LAN, MAC Address Pass-through |
| Package Contents | ThinkPad Docking Station, 135W Power Adapter |
Plug-and-Play Setup Guide
Experience next-level simplicity with automated firmware updates and universal USB-C connectivity. Pro tip: Secure with Kensington lock in shared workspaces.

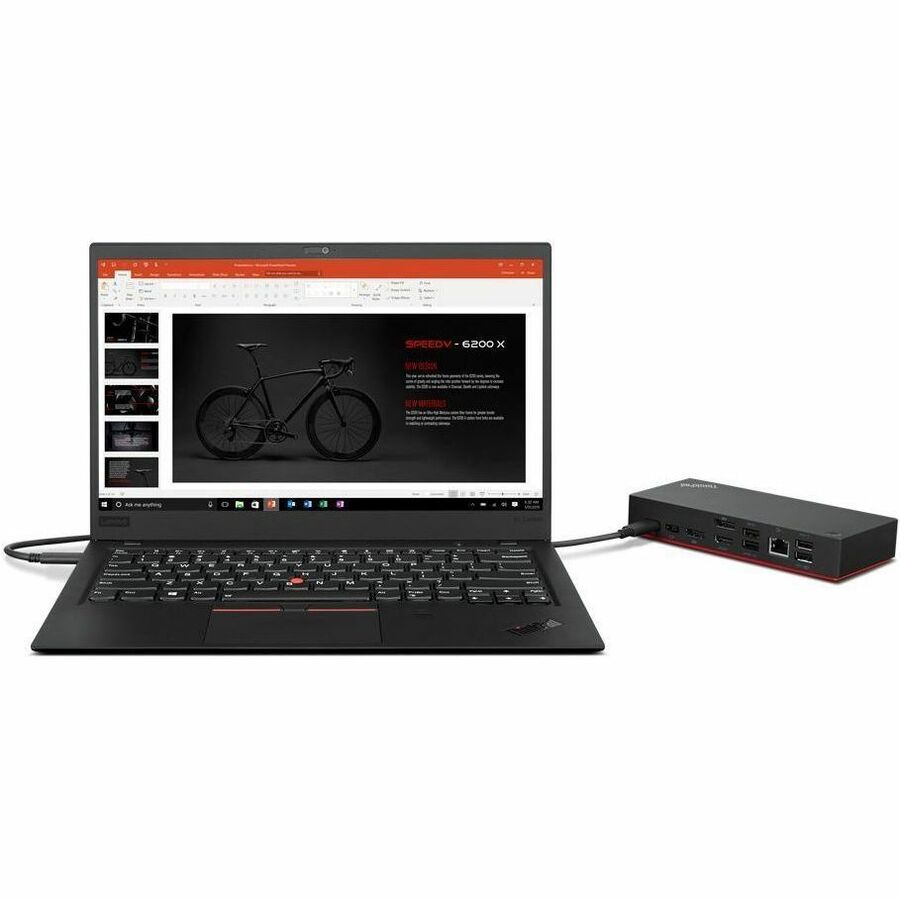

- Connect the dock to your USB-C compatible notebook or desktop using the provided cable.
- Plug the 135W power adapter into the dock and a power outlet.
- Attach peripherals to USB ports, displays to HDMI/DisplayPort, Ethernet cable to RJ-45, and audio to the combo port.
- Enable multi-monitor setup via display settings; supports up to three 4K@60Hz displays.
- Utilize management features like Wake-on-LAN for remote access.
Why Choose Lenovo ThinkPad Universal USB-C Dock
Unlock limitless potential with robust expansion for productivity, including 100W charging, Gigabit networking, and secure, reliable performance in any USB-C environment.
Expand your workspace with Lenovo ThinkPad Universal USB-C Dock 40AY0135US—Order today!
Brand: Lenovo
Type: Docking Station
Color: Black
MPN: 40AY0135US
Ports: Audio Out
Compatible Product Line: Universal
Item Height: 1.21 in
Item Length: 3.15 in
UPC: 195892103448
