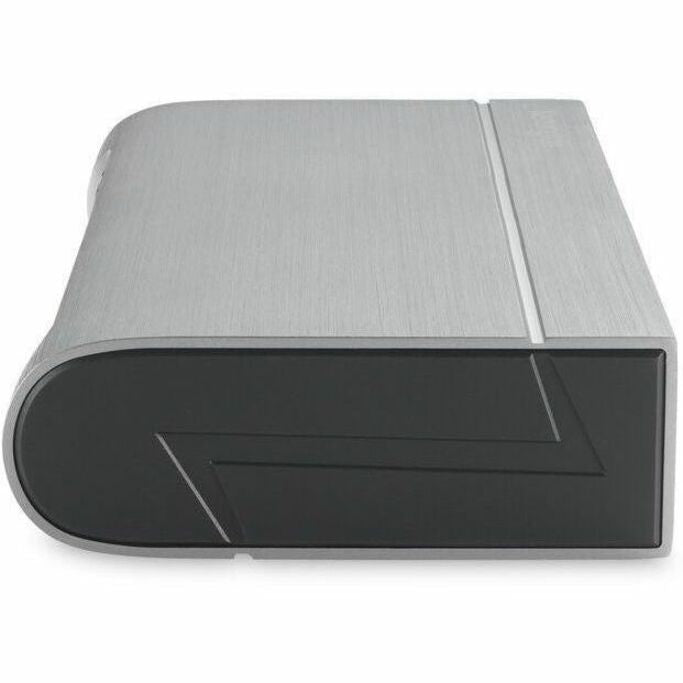

Kensington SD5800T Thunderbolt 4 and USB4 Quad Video Docking Station
This is a Kensington SD5800T Thunderbolt 4 and USB4 Quad Video Docking Station, a high-speed 16-in-1 dock designed to expand premium laptops with quad 4K display support for Windows, dual 6K for MacBooks, 40Gbps data transfer, up to 100W charging, and extensive connectivity. MPN: K32856NA; UPC: 085896328568. Ideal for professionals and creatives needing more screens, speed, ports, and power without adapters.
Key Features of Kensington SD5800T Quad Video Dock

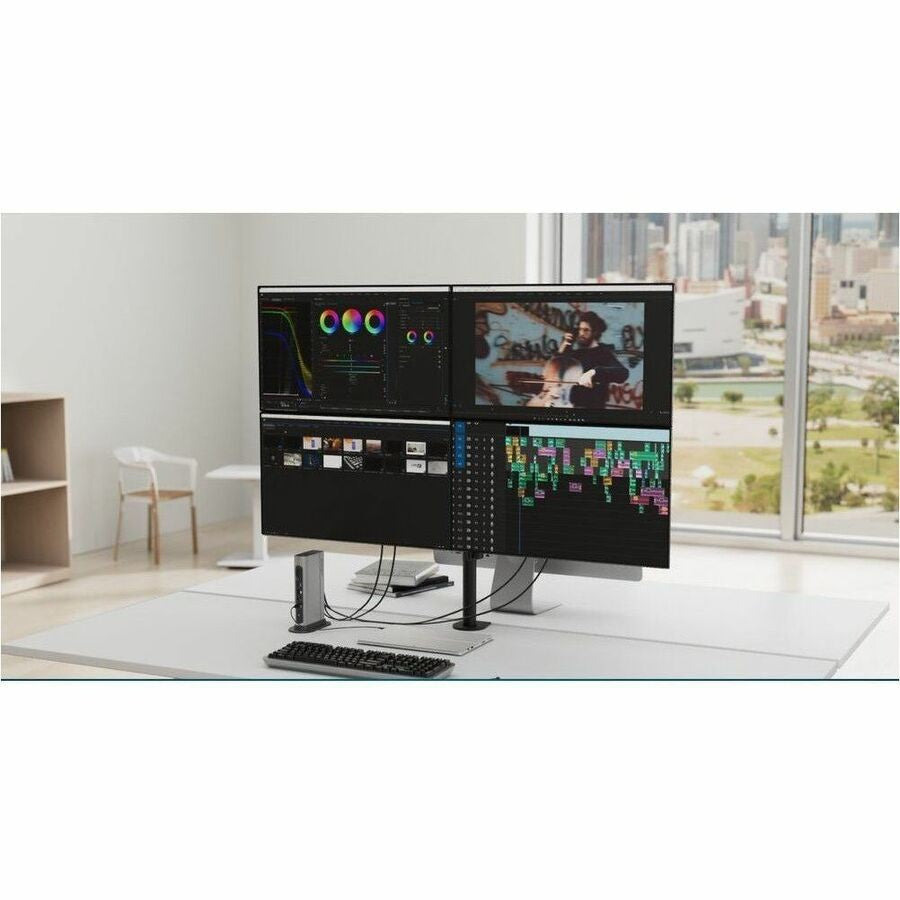

- Quad 4K Display Support – Drives up to four 4K@60Hz monitors on Windows (DisplayPort 1.4 x2, HDMI 2.1 x2, Thunderbolt 4); dual 6K for MacBooks; also supports 8K, QHD, Full HD, 2K resolutions including 7680x4320, 3840x2160.
- 40Gbps Thunderbolt 4 Performance – 5 GB/s max data, video, audio transfer; includes downstream Thunderbolt 4 port for daisy-chaining.
- 100W Power Delivery – 98W charging for notebooks; Power Delivery pass-through.

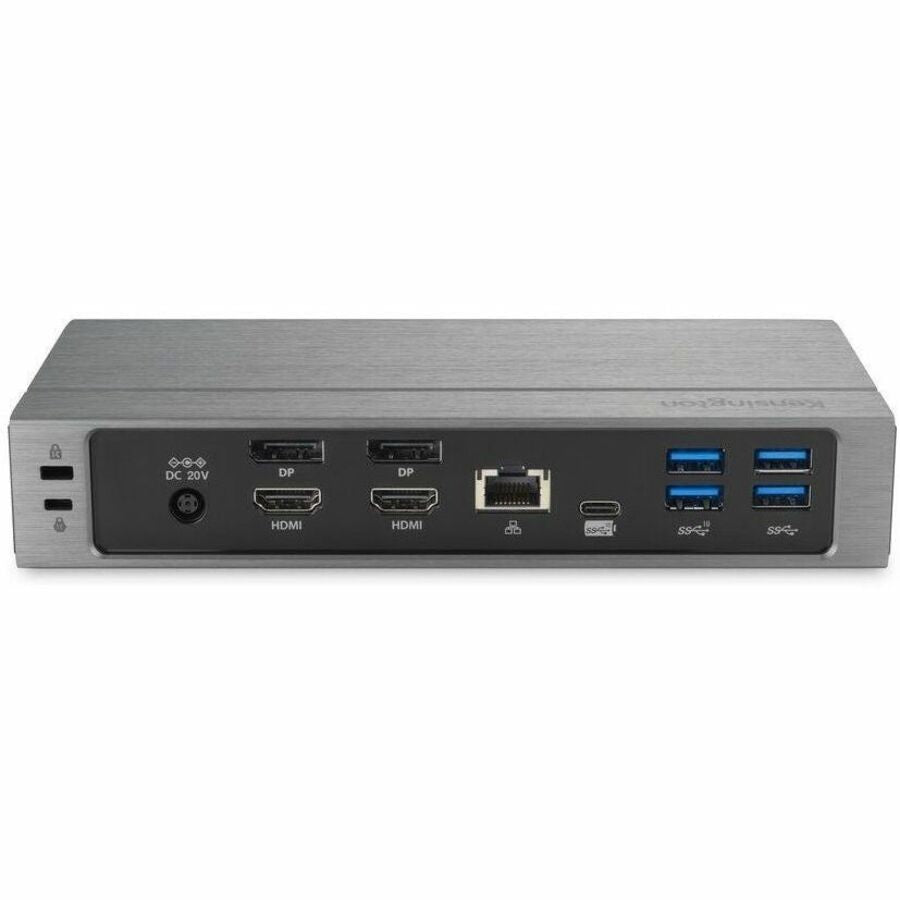

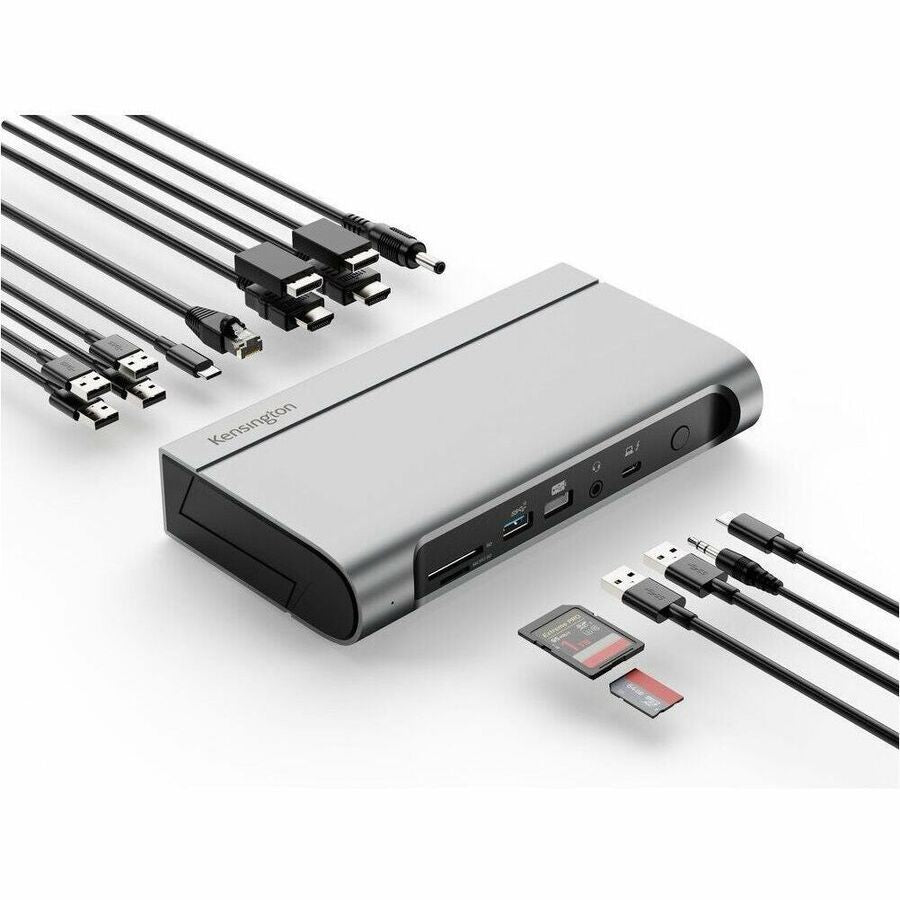

- 16 Productivity Ports – 7 USB (6 Type-A: 3x 3.2 Gen2 10Gbps, 2x 3.2 Gen1 5Gbps, 1x 2.0; 1x USB-C 3.2 Gen2 10Gbps), 2.5 Gigabit Ethernet, headphone/mic combo, SD/microSD reader.
- Security & Mounting – Kensington Security Slot and Noble Wedge; zero-footprint mounting with included vertical stand.
- Kensington DockWorks Software – Enhances management; 3-year limited warranty.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Kensington |
| Manufacturer | Kensington Computer Products Group |
| Model | SD5800T |
| MPN | K32856NA |
| UPC | 085896328568 |
| Product Type | Docking Station |
| Connectivity Technology | Wired |
| Host Interface | Thunderbolt 4 |
| Thunderbolt Ports Quantity | 1 (Thunderbolt 4 downstream) |
| Total Number of USB Ports | 7 |
| Number of USB Type-A Ports | 6 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 2.0 Ports | 1 |
| Number of USB Type-C Ports | 1 |
| USB Type-C Detail | USB-C 3.2 Gen 2 (10 Gbps) |
| USB Power Delivery | 100W (98W ) |
| Number of DisplayPorts | 2 |
| DisplayPort Version | 1.4 |
| Number of HDMI Ports | 2 |
| HDMI Version | 2.1 |
| Number of RJ-45 Ports | 1 |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Headphone/Microphone Combo Port | Yes |
| Memory Card Reader | Yes (SD, microSD) |
| Number of Displays Supported | 4 |
| Screen Mode Supported | 4K, 2K, 8K, 6K, Full HD, QHD |
| Supported Resolutions | 3840 x 2160, 7680 x 4320, 2048 x 1080, 1920 x 1080, 2560 x 1440 |
| Maximum Data Transfer Rate | 5 GB/s (40 Gbps) |
| Cable Length | 2.62 ft (Thunderbolt 4 Passive Cable) |
| Device Supported | Notebook, Tablet PC, Monitor |
| Charging Capability | Yes |
| Operating System Supported | Windows 10 or later, macOS Big Sur (11) or later |
| Power Source Type | Power Supply |
| Maximum Power Supply Wattage | 170 W |
| Input Voltage | 120 V AC / 230 V AC |
| Product Color | Black, Cool Gray |
| Dimensions (Dock) | Height: 7.68", Width: 4.09", Depth: 1.42" |
| Weight (Dock, Approximate) | 1.34 lb |
| Package Dimensions | Height: 3.60", Width: 6.10", Depth: 9.90" |
| Package Weight | 4.20 lb |
| Security Slot Type | Noble Wedge Security Slot, Kensington Security Slot |
| Country of Origin | Thailand |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | 3-year limited |

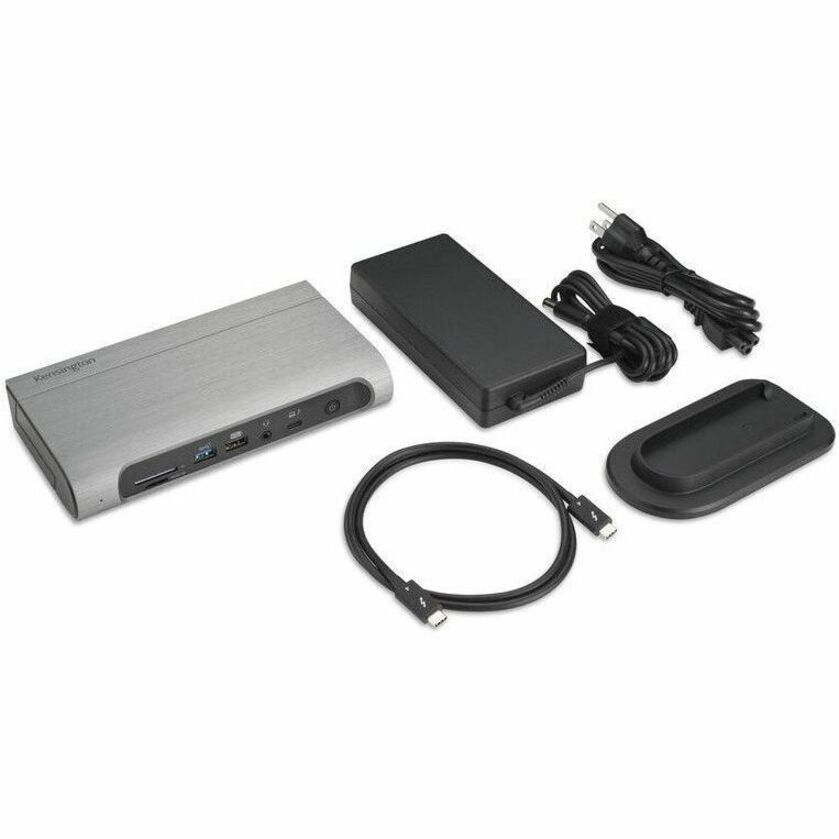

Package Contents
- SD5800T Thunderbolt 4 and USB4 Quad Video Docking Station
- 1 x Thunderbolt 4 Passive Cable (0.8m / 2.62 ft)
- 1 x Power Supply Unit (170W)
- 1 x NA Power Cord
- 1 x Vertical Stand
- 1 x Quick Installation Guide
- 1 x Warranty Card
- 1 x Compliance Sheet
- 1 x Welcome Card
Why Choose Kensington SD5800T Docking Station
Engineered as one of the first Thunderbolt 4 docks for quad 4K on Windows and dual 6K on Mac, the SD5800T delivers plug-and-play expansion with robust ports, fast Ethernet, card reader, and secure mounting options. Includes Kensington DockWorks software for optimized performance and backed by 3-year warranty.
Maximize productivity with Kensington SD5800T Thunderbolt 4 Quad Video Dock—Order today!
Brand: Kensington
Type: Docking Station
Compatible Brand: Kensington
Color: Black
Model: SD5800T
Compatible Model: SD5800T
MPN: K32856NA
Country of Origin: Thailand
Manufacturer Warranty: 3 Years
Ports: Audio Out
Compatible Product Line: For Apple MacBook
Item Height: 7.68 in
Item Width: 4.09 in
Item Length: 1.42 in
UPC: 085896328568
