Advanced Design and Performance Features

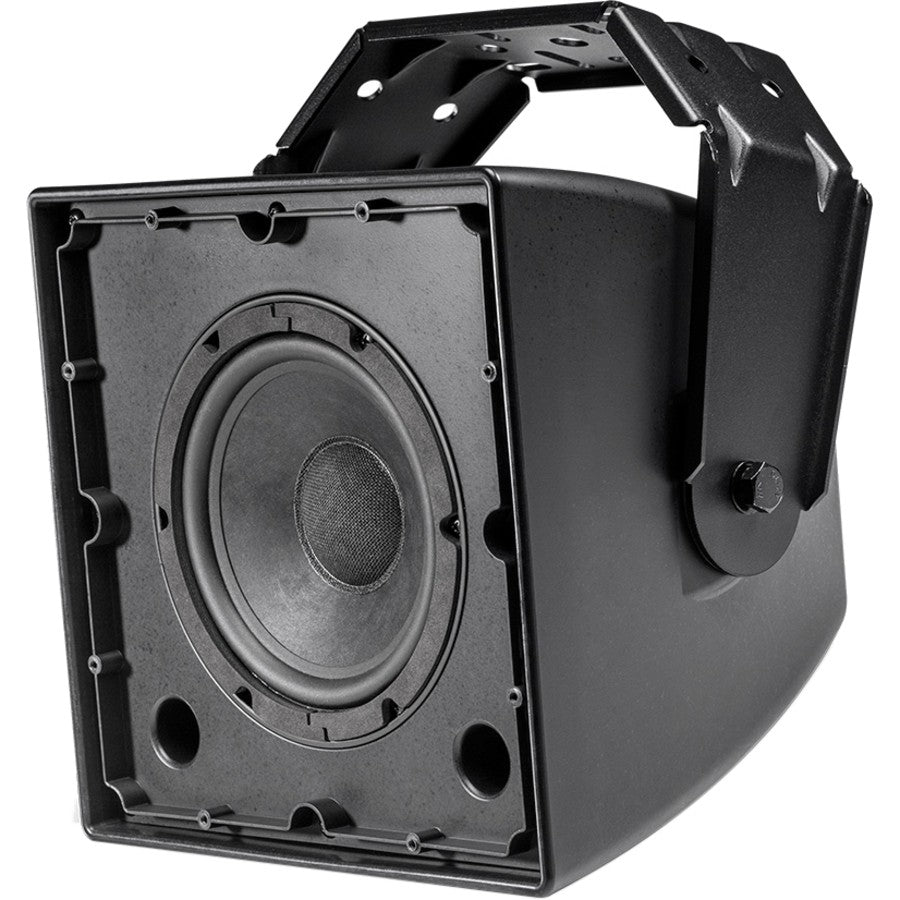

• Coaxial Driver Configuration – Unique tapered pole-piece transitions the LF cone into a pattern control horn, providing wide 110° coverage and eliminating high-frequency beaming.
• Kevlar-Reinforced LF Cone – Ensures reliability with well-damped surround for smooth response, high-temperature voice coil, and reduced distortion via saturated-gap magnet geometry.
• Rugged Enclosure – Thick ABS plus fiberglass construction, heavily braced for optimal low-frequency performance, paintable finish.
• Protective Grille – Corrosion-resistant zinc-rich extra-thick powder coated steel, backed by open cell foam and high thread-count mesh for harsh environments.
• IP-56 Rating – Per IEC529 when installed at minimum 5° down-tilt for superior weather resistance.
• Built-in Transformer – 120W 70V/100V multi-tap for distributed audio systems.
• Weatherproof Connections – Outdoor-rated terminals in recessed cup with protective cover and gland nut for 4 mm (0.16 in) to 9 mm (0.36 in) cables.
• Included Mounting Hardware – Heavy-duty zinc-rich thick powder coated U-type bracket for secure installation.

Comprehensive Technical Specifications

Installation and Connection Guide

Mount using the included heavy-duty U-type bracket. Pro tip: Install at minimum 5° down-tilt to achieve IP-56 rating.

1. Secure the U-bracket to a stable surface using appropriate hardware.
2. Attach the speaker to the bracket and adjust aiming for desired coverage.
3. Route round-jacketed cable (4-9 mm OD) through the gland nut for water-tight seal.
4. Connect to outdoor-rated terminals in the recessed cup and secure the protective cover.
5. Select transformer tap matching system voltage/power requirements.
6. Test audio performance and weather seal integrity.

Versatile Applications

• Sports facilities, racetracks, stadiums, fairgrounds, rodeos
• Skating rinks, themed entertainment venues, cruise ships, water parks
• Outdoor background music/paging systems, swimming pools
• Indoor/outdoor venues including entertainment centers, sports bars

Package Contents

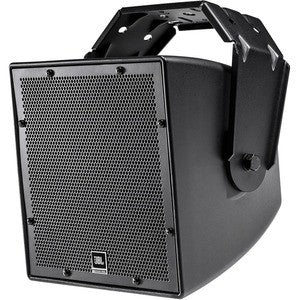

• All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5" LF
• U-Bracket (zinc-rich extra-thick powder coated steel)
• Protective terminal compartment cover
• Gland nut
