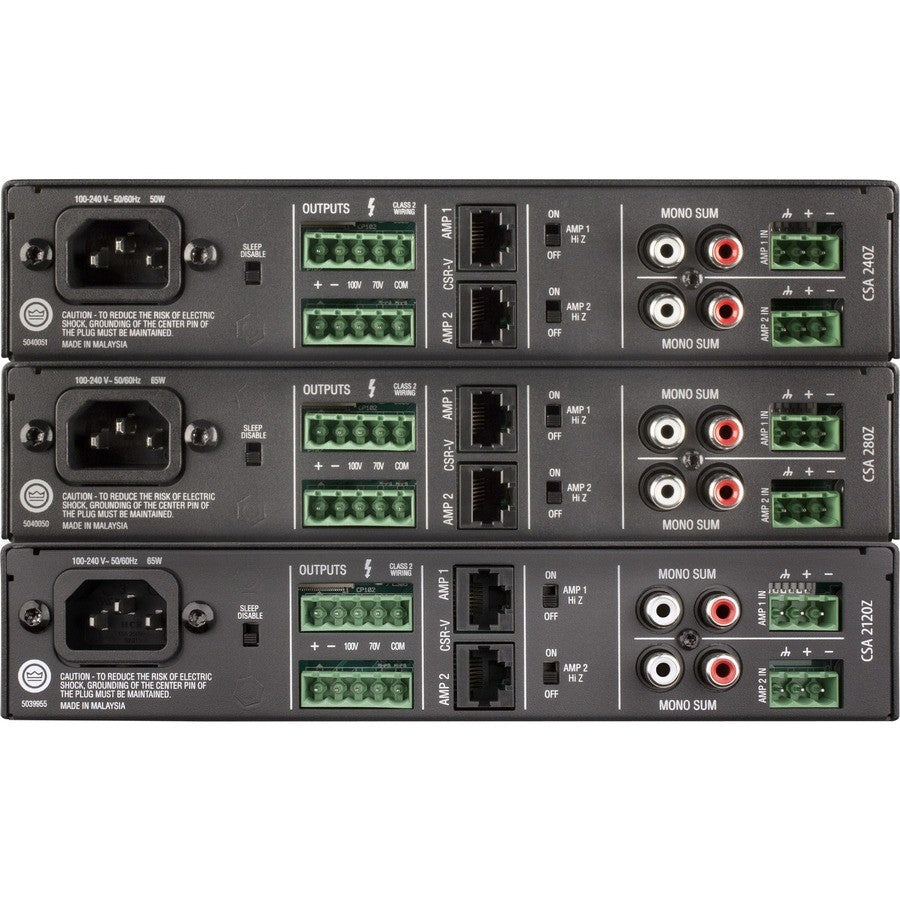

JBL Commercial CSA 240Z Amplifier - 80 W RMS - 2 Channel

This is a JBL Commercial CSA 240Z Amplifier - 80 W RMS - 2 Channel. Manufactured by Harman Professional Solutions under the JBL Commercial brand and CSA series, the CSA 240Z model delivers 80 watts RMS across two channels with Crown DriveCore Technology. It supports 70V and 100V installations out of the box and includes RJ45 connectors for use with JBL CSR-V in-wall volume controls. The unit accepts AC voltages from 100 to 240 VAC at 50/60 Hz via its switch-mode universal power supply.

Key Features

• DriveCore-based sound solution replaces up to 500 parts with one small chip for increased reliability
• Supports 70V and 100V installations out of the box
• RJ45 connectors for connection to JBL CSR-V in-wall volume controls
• Universal power supply accepts 100 to 240 VAC at 50/60 Hz
• GreenEdge environmental initiative for energy savings
• Minimum frequency response of 20 Hz and maximum of 20 kHz
• Total harmonic distortion of 0.5 percent at 8 ohm impedance
• Two audio channels with 80 W RMS output power
• Four analog audio inputs and Ethernet connectivity
• Energy Star

Comprehensive Technical Specifications

Package Contents

• CSA 240Z Amplifier
• Rack mounting kit
