HPE Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch
HPE Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

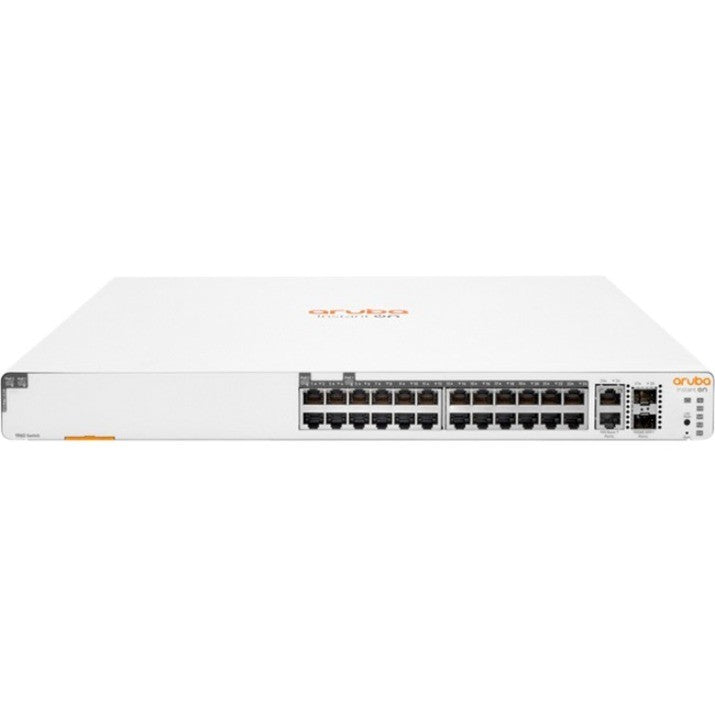

HPE Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch
This is an Ethernet Switch manufactured by Hewlett Packard Enterprise under the HPE ARUBA brand. The HPE Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch is a smart-managed stackable switch designed for small and growing businesses, supporting IT, mobile, and cloud applications with high-bandwidth connectivity for voice, video conferencing, and IoT devices.
Key Features
- Plug-and-play operation with Instant On access points right out of the box.
- Cloud-managed stacking for configuring and managing multiple switches via the Instant On mobile app.
- Access Control List, IEEE 802.1x, and VLANs for network security.
- Automatic denial-of-service monitoring to protect against malicious attacks.
- Support for up to 30W PoE power delivery for Class 4 devices and up to 60W for Class 6 devices.
- 370W PoE budget on the 24-port PoE model to support latest IoT devices.
- Two 10GBASE-T and two 10G SFP+ uplink ports for high-bandwidth connectivity.
- Layer 2 managed switch with support for multiple IEEE networking standards.
- No extra licensing or subscription fees required.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | HPE ARUBA |
| Manufacturer | Hewlett Packard Enterprise |
| Product Line | Instant On |
| Product Series | 1960 |
| Product Name | Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch |
| Manufacturer Part Number | JL807A#ABA |
| Item Number | JL807A |
| UPC | 190017521572 |
| Product Type | Ethernet Switch |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 20 x Gigabit Ethernet PoE+, 4 x Gigabit Ethernet PoE++, 2 x 10 Gigabit Ethernet Expansion Slot, 2 x 10 Gigabit Ethernet Network |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet, Gigabit Ethernet |
| Network Technology | 10GBase-T, 10GBase-X, 10/100/1000Base-T |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1x, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3az, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ac, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at, IEEE 802.1t |
| Manageable | Yes |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370 W |
| Frequency | 50 Hz, 60 Hz |
| Power Source | Power Supply |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 80 W |
| Form Factor | Rack-mountable, Table Top, Wall Mountable, Under Table, Cabinet Mount |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 13.8" |
| Weight (Approximate) | 10.40 lb |
Package Contents
- Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch
- 2-post Rack Kit
- Brackets
Maximum Data Transfer Rate: 10 Gbps
Maximum LAN Data Rate: 10 Gbps
Network Connectivity: Wired-Ethernet (RJ-45)
UPC: 190017521572
Network Management Type: Partially Managed
MPN: JL807AABA
Item Length: 17.4in.
Item Height: 1.7in.
Item Width: 13.8in.
Brand: HPE
Form Factor: 4 RU
Ethernet Technology: Gigabit Ethernet (1000-Mbit/s)
Layer: 2
Type: Ethernet Switch
Model: Aruba Instant On 1960
Number of LAN Ports: 24
Interface: SFP
