HPE Instant On 1960 12XGT 4SFP+ Switch
HPE Instant On 1960 12XGT 4SFP+ Switch
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

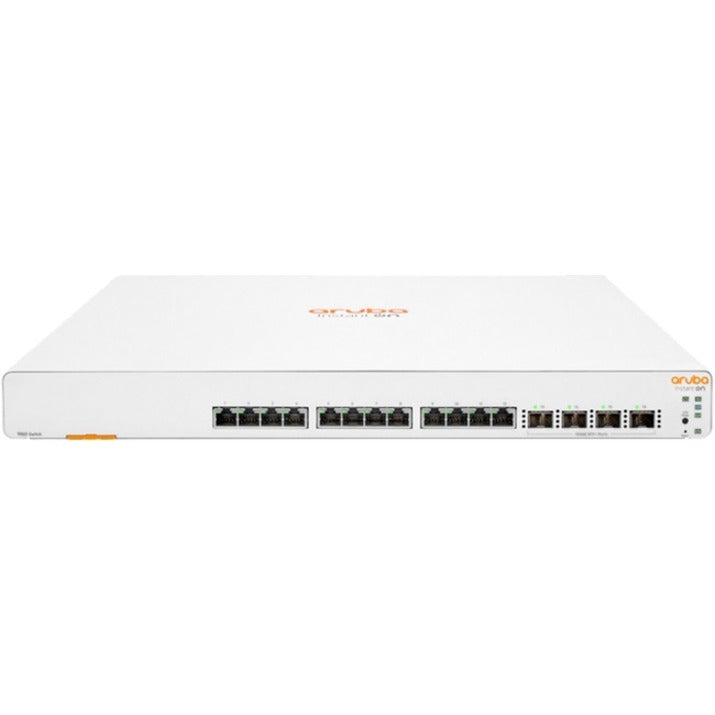

HPE Instant On 1960 12XGT 4SFP+ Switch
This is an Ethernet Switch in the HPE Instant On 1960 series. The HPE Instant On 1960 12XGT 4SFP+ Switch is a high-performance, smart-managed, fixed-configuration 10 Gigabit stackable switch designed for small and growing businesses. It supports IT, mobile, and cloud applications with plug-and-play operation alongside Instant On access points.
Key Features of the HPE Instant On 1960 12XGT 4SFP+ Switch
- 12 x 10GBASE-T ports plus 4 x 10G SFP+ expansion slots for high-bandwidth connectivity to servers, storage, and access switches.
- Layer 2 manageable with support for Access Control Lists, IEEE 802.1x, VLANs, and automatic denial-of-service protection.
- Cloud-managed stacking allows configuration and management of multiple switches through the Instant On mobile app.
- Power consumption rated at 80 W with a single internal power supply operating at 50/60 Hz.
- Rack-mountable form factor with additional support for table-top, wall, under-table, and cabinet mounting.
- Networking standards include IEEE 802.1x, 802.1p, 802.1D, 802.1w, 802.1s, 802.3az, 802.3u, 802.3ab, 802.3an, 802.3i, 802.3z, 802.3ae, 802.3x, 802.1Q, 802.3ad, 802.3ac, and 802.1t.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | HPE ARUBA |
| Manufacturer | Hewlett Packard Enterprise |
| Product Line | Instant On |
| Product Series | 1960 |
| Product Model | 1960 12XGT 4SFP+ |
| Manufacturer Part Number | JL805A#ABA |
| Item Number | JL805A |
| UPC | 190017521763 |
| Product Type | Ethernet Switch |
| Total Network Ports | 12 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 12 x 10 Gigabit Ethernet Network, 4 x 10 Gigabit Ethernet Expansion Slot |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-T, 10GBase-X |
| Layer Supported | 2 |
| Manageable | Yes |
| Power Source | Power Supply |
| Number of Power Supplies Installed | 1 |
| Frequency | 50 Hz, 60 Hz |
| Power Consumption | 80 W |
| Form Factor | Rack-mountable, Table Top, Wall Mountable, Under Table, Cabinet Mount |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 13.8" |
| Weight (Approximate) | 9.60 lb |
| Package Contents | Instant On 1960 12XGT 4SFP+ Switch, 2-post Rack Kit, Brackets |
Package Contents
Instant On 1960 12XGT 4SFP+ Switch, 2-post Rack Kit, Brackets.
Brand: Aruba
Type: Ethernet Switch
Model: 1960 12XGT 4SFP+
Form Factor: Rack Mountable
MPN: JL805A#ABA
Number of LAN Ports: 12
Ethernet Technology: 10 Gigabit Ethernet (10000-Mbit/s)
Interface: Ethernet (RJ-45)
Product Line: Instant On
Maximum Data Transfer Rate: 10 Gbps
Maximum LAN Data Rate: 10 Gbps
Network Connectivity: Wired-Ethernet (RJ-45)
Layer: 2
UPC: 190017521763
