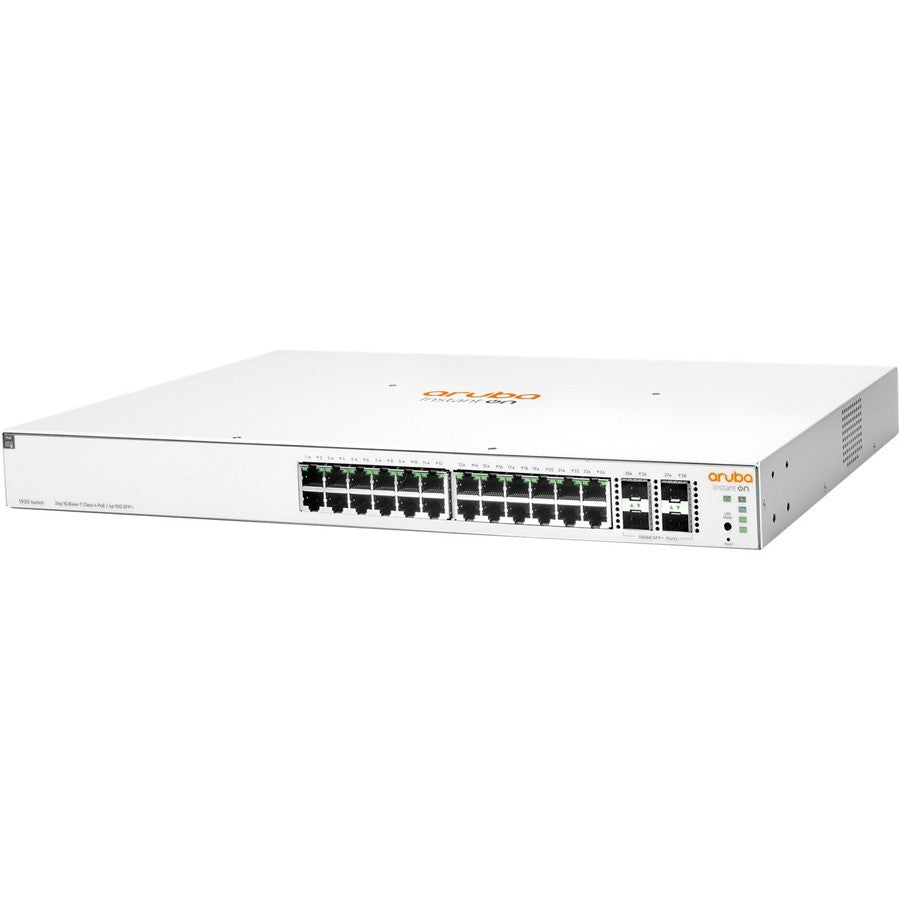

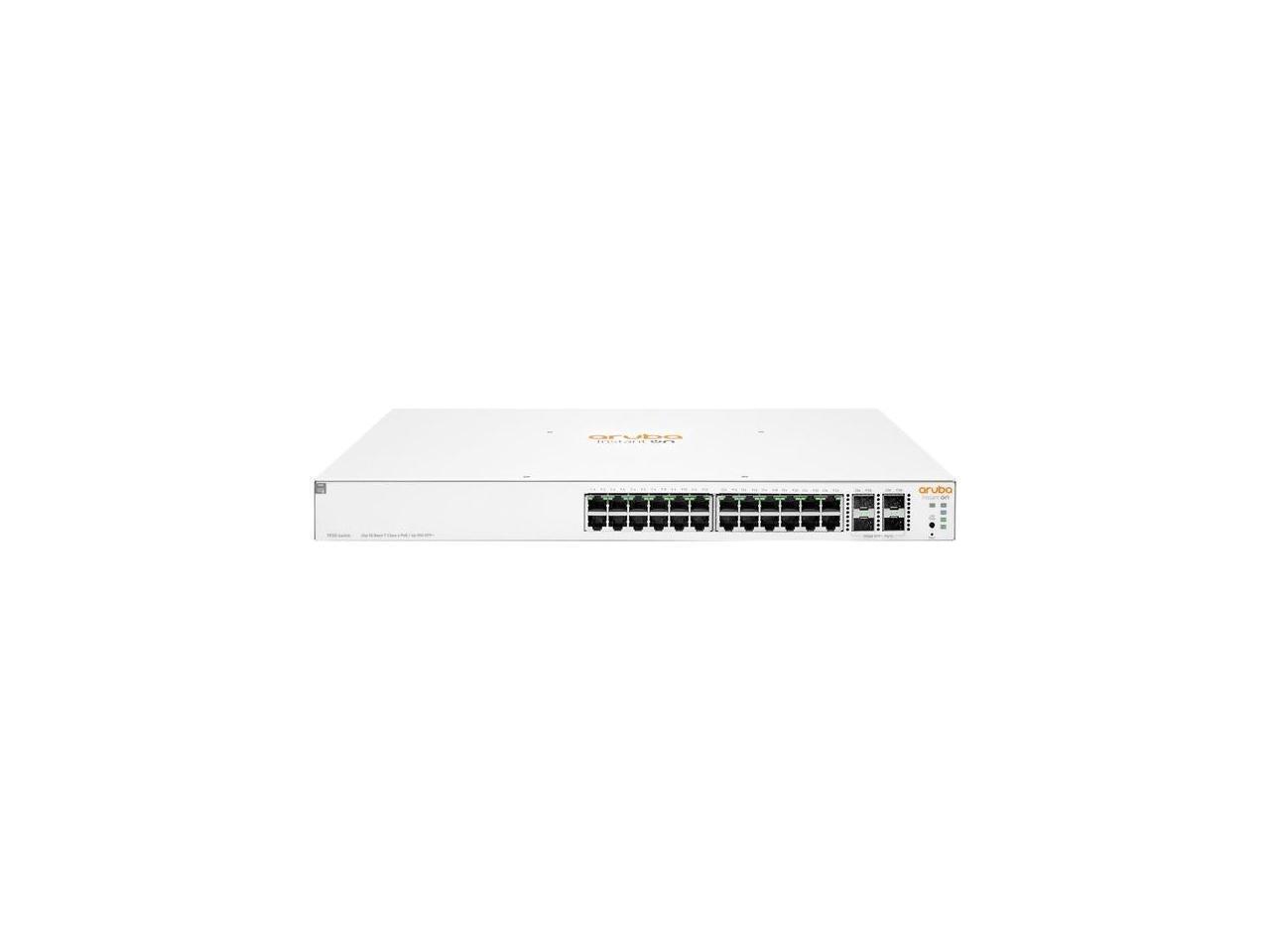

HPE Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch

This is an Ethernet Switch from the HPE Instant On 1930 series. The HPE Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch provides 24 Gigabit Ethernet PoE+ ports and 4 10 Gigabit Ethernet SFP+ expansion slots for small business networks handling voice, video conferencing, and IoT devices.

Manufacturer Hewlett Packard Enterprise supplies the unit under brand HPE ARUBA with product line Instant On and series 1930. It supports Layer 4 operation, is fully manageable, and delivers up to 195 W PoE power budget while consuming 280 W maximum. The switch accepts 120 V AC or 230 V AC input at 50/60 Hz and mounts in a 1U rack, on a wall, tabletop, cabinet, or under-table position.

Key Features

• 24 x Gigabit Ethernet PoE+ ports plus 4 x 10 Gigabit Ethernet SFP+ expansion slots
• Supports IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af, 802.3at, 802.3x, 802.1Q, 802.1p, 802.1x, 802.3az, 802.1D, 802.1w, 802.1s, 802.1ab, and 802.3ad standards
• Up to 30 W PoE power delivery per Class 4 device for access points, cameras, and VoIP phones
• Cloud-based or mobile app management for setup, monitoring, and control from any location
• Fixed-configuration smart-managed design optimized for bandwidth-heavy small business applications
• Media support for both twisted-pair and optical fiber connections
• Environmentally friendly construction compliant with Restriction of Hazardous Substances (RoHS)

Comprehensive Technical Specifications

Package Contents

• Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch
• 2-post Rack Kit
• Brackets
