HPE ARUBA Rack-mountable Desktop
HPE ARUBA Rack-mountable Desktop
Low stock: 2 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

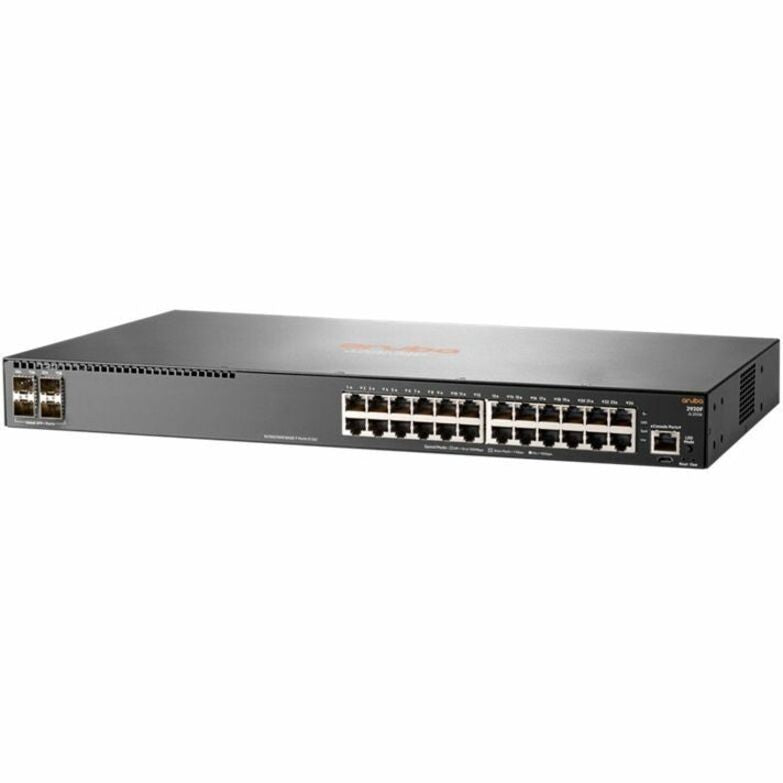

HPE Aruba 2930F 24G 4SFP Switch JL259A
This is a Layer 3 Switch manufactured by HPE ARUBA. The HPE Aruba 2930F 24G 4SFP Switch JL259A delivers 24 ports of manageable Gigabit Ethernet with 1000Base-X and 10/100/1000Base-TX support, 3 Layer operation, modular design, 4 SFP slots, twisted pair and optical fiber media, 1U rack-mountable desktop form factor, and lifetime limited warranty. It features an Aruba ProVision ASIC for SDN applications, supports 10GbE uplinks, PoE+, robust QoS, and RIP routing.
Key Features of HPE Aruba 2930F 24G 4SFP Switch JL259A
- High-Performance Access Layer – Delivers consistent wired and wireless user experience with unified management via Aruba ClearPass Policy Manager and AirWave.
- ProVision ASIC – Provides low latency, increased packet buffering, adaptive power consumption, and support for OpenFlow and SDN applications including HPE Network Visualizer, Optimizer, and Protector.
- Layer 3 Capabilities – Includes static and RIP routing, ACLs, sFlow, and IPv6 without software licensing.
- Security Features – Supports 802.1X, MAC and Web Authentication, source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
- Management Integration – Compatible with Aruba AirWave for Zero Touch Provisioning, RMON, sFlow monitoring, and out-of-band Ethernet management port.
- Power and Uplinks – Supports up to 370 W internal PoE+ and convenient built-in 1GbE or 10GbE uplinks.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | HPE ARUBA |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | 2930F 24G 4SFP |
| Manufacturer Part Number | JL259A#ABA |
| MPN | JL259A |
| UPC | 190017006000 |
| Product Type | Layer 3 Switch |
| Total Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network, 4 x Gigabit Ethernet Uplink |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X, 10/100/1000Base-TX |
| Total Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Layer Supported | 3 |
| Manageable | Yes |
| Power Source | Power Supply |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable, Desktop |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 7.9" |
| Weight | 5.31 lb |
| Packaged Quantity | 1 |
| Environmentally Friendly | Yes |
| Country of Origin | UNITED STATES |
Package Contents
- 2930F 24G 4SFP Switch
- 1 x Power Cord
- 1 x Screw Kit
- 4 x Mounting Ears
- 4 x Bumper Feet
- 1 x Cable Tie
HPE Aruba 2930F 24G 4SFP Switch JL259A – Order today.
MPN: JL259A#ABA
UPC: 190017006000
Network Management Type: Managed
Item Height: 1.7
Brand: HP
Maximum LAN Data Rate: 100 Mbps
Form Factor: Rack Mountable
Ethernet Technology: Gigabit Ethernet (1000-Mbit/s)
Layer: 3
Number of WAN Ports: 24
Type: Ethernet Switch
Model: HPE Aruba 2930F
Number of LAN Ports: 24
Interface: SFP
Product Line: Aruba
