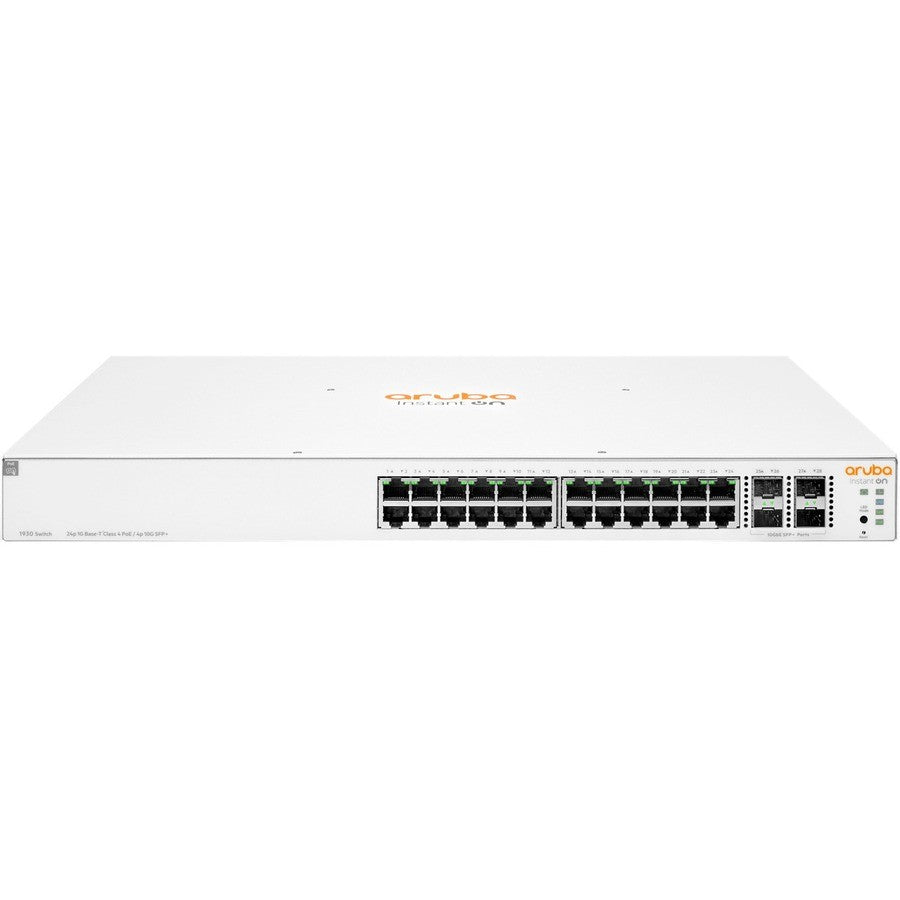

HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch JL684B
HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch JL684B
Low stock: 5 left
Save 18%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch JL684B
This is a high-performance, smart-managed Ethernet switch from the HPE Aruba Instant On 1930 series, designed for small businesses. The HPE Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch (JL684B#ABA, UPC: 190017593418) delivers 24 Gigabit PoE+ ports with a 370W budget and 4 SFP+ uplink ports for reliable connectivity supporting voice, video, mobile, and IoT devices.
Key Features of HPE Aruba Instant On 1930 Switch
- 24 Gigabit PoE+ Ports – Class 4 PoE up to 30W per port for powering access points, surveillance cameras, and VoIP phones.
- 4 x 10G SFP+ Uplinks – High-speed fiber or copper expansion for bandwidth-intensive applications like video conferencing.
- Smart-Managed Layer 3 – Fixed-configuration switch with VLANs, QoS, and security features including IEEE 802.1x.
- Cloud and Mobile Management – Instant On app or web portal for setup, monitoring, and management from anywhere.
- Versatile Mounting – Rack-mountable (1U), wall, table-top, cabinet, or under-table installation.
- Energy Efficient – Supports IEEE 802.3az for reduced power consumption; RoHS compliant.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Hewlett Packard Enterprise / HPE Aruba |
| Brand Name | HPE / Aruba Instant On |
| Product Line | Instant On |
| Product Series | 1930 |
| Product Name | Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch |
| Manufacturer Part Number | JL684B#ABA |
| D&H Item Number | JL684B |
| UPC | 190017593418 |
| Product Type | Ethernet Switch |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+; 4 x 10 Gigabit Ethernet Expansion Slot |
| Media Type Supported | Optical Fiber; Twisted Pair |
| Ethernet Technology | Gigabit Ethernet; 10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T; 10GBase-X |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3af; IEEE 802.3at; IEEE 802.3x; IEEE 802.1Q; IEEE 802.1p; IEEE 802.1x; IEEE 802.3az; IEEE 802.1D; IEEE 802.1w; IEEE 802.1s; IEEE 802.1ab; IEEE 802.3ad |
| Manageable | Yes |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370 W |
| Input Voltage | 120 V AC; 230 V AC |
| Frequency | 50 Hz; 60 Hz |
| Power Source | Power Supply |
| Power Consumption | 490 W |
| Product Color | White |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable; Wall Mountable; Table Top; Cabinet Mount; Under Table |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 10.4" |
| Weight (Approximate) | 8.23 lb |
| Application/Usage | Business |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Package Contents and Management
- Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch
- 2-post Rack Kit Brackets
Manage via Aruba Instant On mobile app or cloud-based web portal for remote setup, monitoring, and configuration.
Why Choose HPE Aruba Instant On 1930 Switch
Built for small businesses like cafes, design firms, or startups, this switch provides secure, reliable networking with easy deployment and PoE support for essential devices, ensuring consistent performance for bandwidth-heavy applications.
Enhance your business network with the HPE Aruba Instant On 1930 switch—order JL684B#ABA today!
Brand: Aruba
Type: Ethernet Switch
Model: JL684B
MPN: JL684B#ABA
Number of LAN Ports: 24
Ethernet Technology: Gigabit Ethernet (1000-Mbit/s)
Interface: Ethernet (RJ-45)
Network Management Type: Fully Managed
Form Factor: Rack Mountable
Maximum LAN Data Rate: 1000 Mbps/1 Gbps
Network Connectivity: Wired-Ethernet (RJ-45)
Layer: 3
UPC: 190017593418
