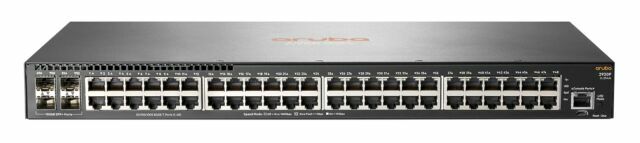

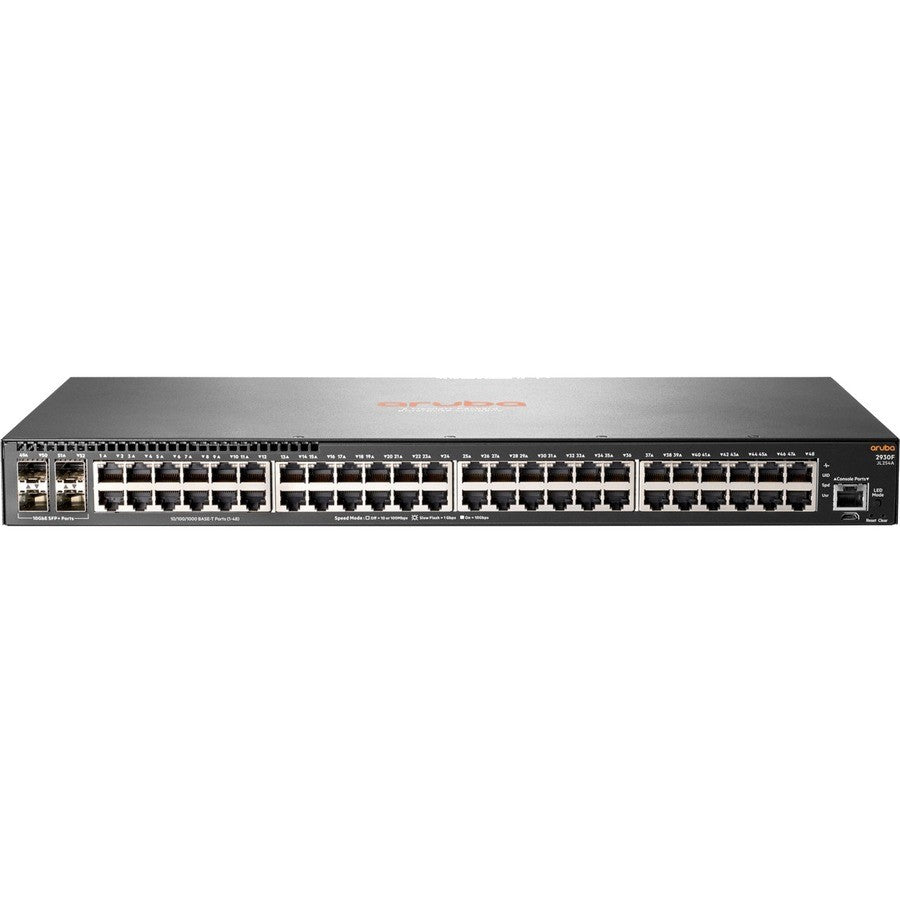

HPE Aruba 2930F 48G 4SFP+ Switch JL254A
HPE Aruba 2930F 48G 4SFP+ Switch JL254A
Low stock: 2 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
HPE Aruba 2930F 48G 4SFP+ Switch JL254A
This is a Layer 3 Switch from the Aruba 2930F Switch Series. The HPE Aruba 2930F 48G 4SFP+ Switch JL254A delivers performance, security, and ease of use for enterprise edge, SMB, and branch office networks with a powerful Aruba ProVision ASIC supporting SDN applications, 10GbE uplinks, PoE+, robust QoS, and RIP routing.
Key Features of HPE Aruba 2930F 48G 4SFP+ Switch
- High-Performance Access Layer – Delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management.
- Automatic Configuration – Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
- Built-in Uplinks and PoE+ – Convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.
- Basic Layer 3 Feature Set – Includes static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.
- SDN Ready – Designed with a powerful ProVision ASIC and support for OpenFlow for applications such as HPE Network Visualizer, Optimizer, and Protector Software products.
- Security Controls – Flexible authentication options include 802.1X, MAC and Web Authentication plus source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
- Integrated Management – Supports Aruba ClearPass Policy Manager and Aruba Airwave Network Management software for Zero Touch Provisioning, RMON and sFlow monitoring, and out-of-band Ethernet management port.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Brand | HPE ARUBA |
| Product Model | 2930F 48G 4SFP |
| Product Name | Aruba 2930F 48G 4SFP+ Switch |
| Manufacturer Part Number | JL254A#ABA |
| MPN | JL254A |
| UPC | 190017005256 |
| Product Type | Layer 3 Switch |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network, 4 x 10 Gigabit Ethernet Uplink |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet, Gigabit Ethernet |
| Network Technology | 10/100/1000Base-TX, 10GBase-X |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Shared SFP Slot | No |
| Number of SFP+ Slots | 4 |
| Layer Supported | 3 |
| Manageable | Yes |
| Power Source | Power Supply |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable, Desktop |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 9.7" |
| Weight (Approximate) | 6.83 lb |
| Packaged Quantity | 1 |
| Package Contents | Aruba 2930F 48G 4SFP+ Switch, 1 x Power Cord, 1 x Screw Kit, 4 x Mounting Ears, 4 x Bumper Feet, 1 x Cable Tie |
| Environmentally Friendly | Yes |
Order the HPE Aruba 2930F 48G 4SFP+ Switch JL254A today.
Maximum Data Transfer Rate: 10 Gbps
Maximum LAN Data Rate: 10 Gbps
Network Connectivity: Wired-Ethernet (RJ-45)
Layer: 3
UPC: 190017005256
Network Management Type: Fully Managed
MPN: JL254A
Brand: HP
Form Factor: Rack Mountable
Ethernet Technology: Gigabit Ethernet (1000-Mbit/s)
Type: Ethernet Switch
Model: 2930F
Number of LAN Ports: 48
Interface: SFP
