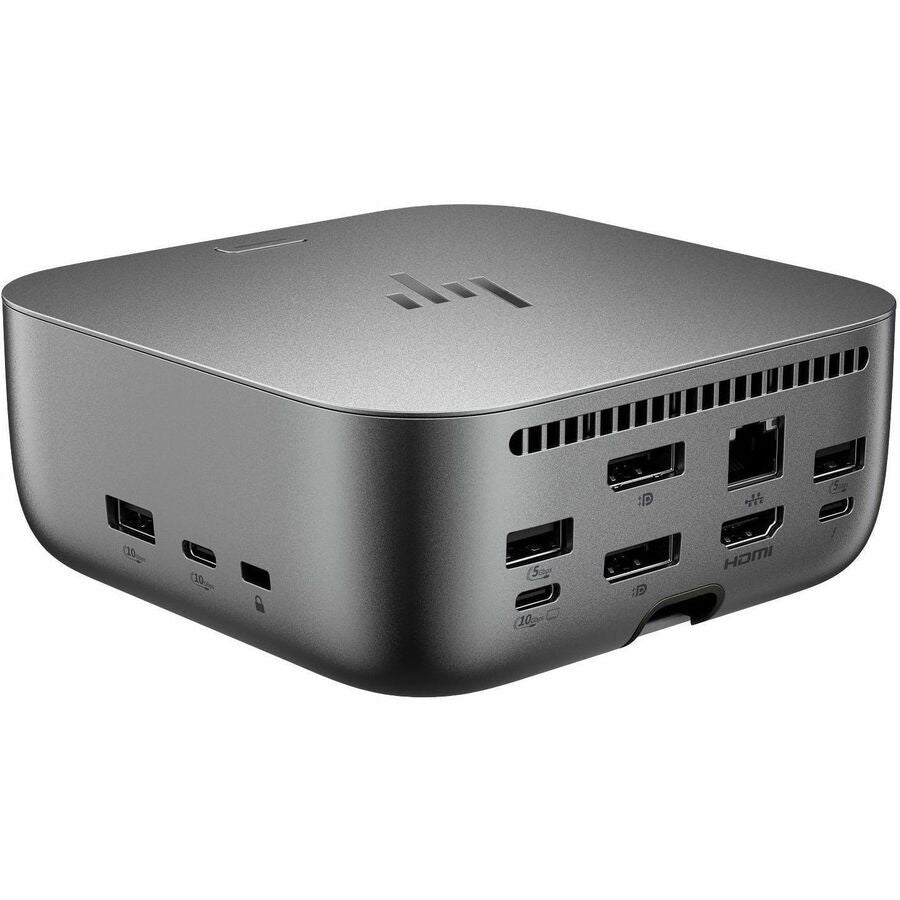

HP Thunderbolt 4 Ultra 180W G6 Dock
This is a Thunderbolt 4 docking station designed for desktops and notebooks, delivering up to 180W power delivery and support for up to four displays. The HP Thunderbolt 4 Ultra 180W G6 Dock from HP features extensive connectivity including 8 USB ports, 2.5 Gigabit Ethernet, and advanced security. Manufacturer Part Number: 9X481UT#ABA; UPC: 198415314918. Compatible with Windows 10/11, macOS, Linux, ThinPro, and ChromeOS.
Powerful Connectivity and Security Features
- 180W USB Power Delivery – Charges notebooks while providing 40 Gbps Thunderbolt 4 data transfer speeds.
- Multi-Display Support – Connect up to 4 displays via 2x DisplayPort 1.4, 1x HDMI 2.1, and USB-C with DisplayPort alt mode.
- Comprehensive Ports – 5x USB Type-A, 3x USB Type-C (two at 10Gbps/15W PD, one with PD and DisplayPort 1.4), 1x 2.5GbE RJ-45, 1x Thunderbolt 4 host port.
- HP Quick Connect – Wakes devices automatically for seamless workflow.
- HP Wolf Security – Integrates HP Sure Start and Zero Trust Framework for end-to-end protection from dock to cloud.
- Management Tools – Poly Lens for cloud-based firmware updates, telemetry, and analytics; supports PXE Boot, Wake-on-LAN, MAC Address Pass-through.
- Durable Design – Replaceable parts, power consumption monitoring, plastic-free packaging.
- Additional Features – Security Lock slot, Power Delivery Pass-through.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand Name | HP |
| Manufacturer | HP Inc. / HP Business |
| Product Line | Ultra |
| Product Model | G6 |
| Manufacturer Part Number | 9X481UT#ABA |
| UPC | 198415314918 |
| Product Type | Docking Station |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Device Supported | Desktop PC, Notebook |
| Cable Length | 3.20 ft |
| Features | Security Lock, Power Delivery Pass-through |
| Management Features | PXE Boot, Wake-on-LAN, MAC Address Pass-through |
| Number of Displays Supported | 4 |
| Maximum Data Transfer Rate | 5 GB/s |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Host Interface | Thunderbolt 4 |
| Total Number of USB Ports | 8 |
| Number of USB Type-A Ports | 5 |
| Number of USB Type-C Ports | 3 |
| USB Type-C Detail | 2 x USB Type-C 10Gbps signaling rate (up to 15 W USB Power Delivery), 1 x USB Type-C 10Gbps signaling rate (USB Power Delivery, DisplayPort 1.4) |
| Number of RJ-45 Ports | 1 |
| Number of DisplayPorts | 2 |
| DisplayPort Version | 1.4 |
| Number of HDMI Ports | 1 |
| HDMI Version | 2.1 |
| Number of Thunderbolt 4 Ports | 1 |
| USB Power Delivery | 180W |
| Operating System Supported | Windows 10, Windows 11, macOS, Linux, ThinPro, ChromeOS |
| Maximum Power Supply Wattage | 230 W |
| Power Source Type | Power Adapter |
| Height | 1.95" |
| Width | 4.76" |
| Depth | 4.76" |
| Weight (Approximate) | 1.70 lb |
Package Contents
- Thunderbolt 4 Ultra 180W G6 Dock
- 230 W Power Adapter
- Thunderbolt 4 Cable (1 m)
- Power Cord
- Product Notice
- Warranty Card
Why Choose HP Thunderbolt 4 Ultra 180W G6 Dock
Engineered for uninterrupted productivity with state-of-the-art connectivity, robust security via HP Wolf Security, and hands-off manageability through Poly Lens. Built for longevity with replaceable parts and energy monitoring.
Expand your workstation with the HP Thunderbolt 4 Ultra 180W G6 Dock—order now!
Brand: HP
Type: Docking Station
Compatible Brand: For HP
Color: Silver
Model: G6
Compatible Model: G6
MPN: 9X481UT
Material: Aluminum
Ports: DisplayPort
Item Height: 1.95"
Item Width: 4.76"
Item Length: 4.76"
UPC: 198415314918
