Key Features

• Fully Concealed 360° Hidden Design – Brackets mount entirely inside the wood board, achieving complete invisibility from all angles — no exposed L-brackets, triangle supports, or visible hardware.
• 1-Inch Backplate for Thin Boards – The 1-inch backplate height accommodates wood thicknesses of 1.5 to 2 inches, making these brackets compatible with standard lumber, butcher block, and thin wood boards.
• Heavy-Duty 5mm Galvanized Steel Construction – Bracket body is fabricated from 5mm galvanized steel plate with 1.5mm wall thickness pipes for long-term structural strength and corrosion resistance.
• 150 lbs Load Capacity – Rated to support up to 150 lbs per bracket when correctly installed into wall studs, providing reliable load-bearing for books, décor, and everyday shelf items.

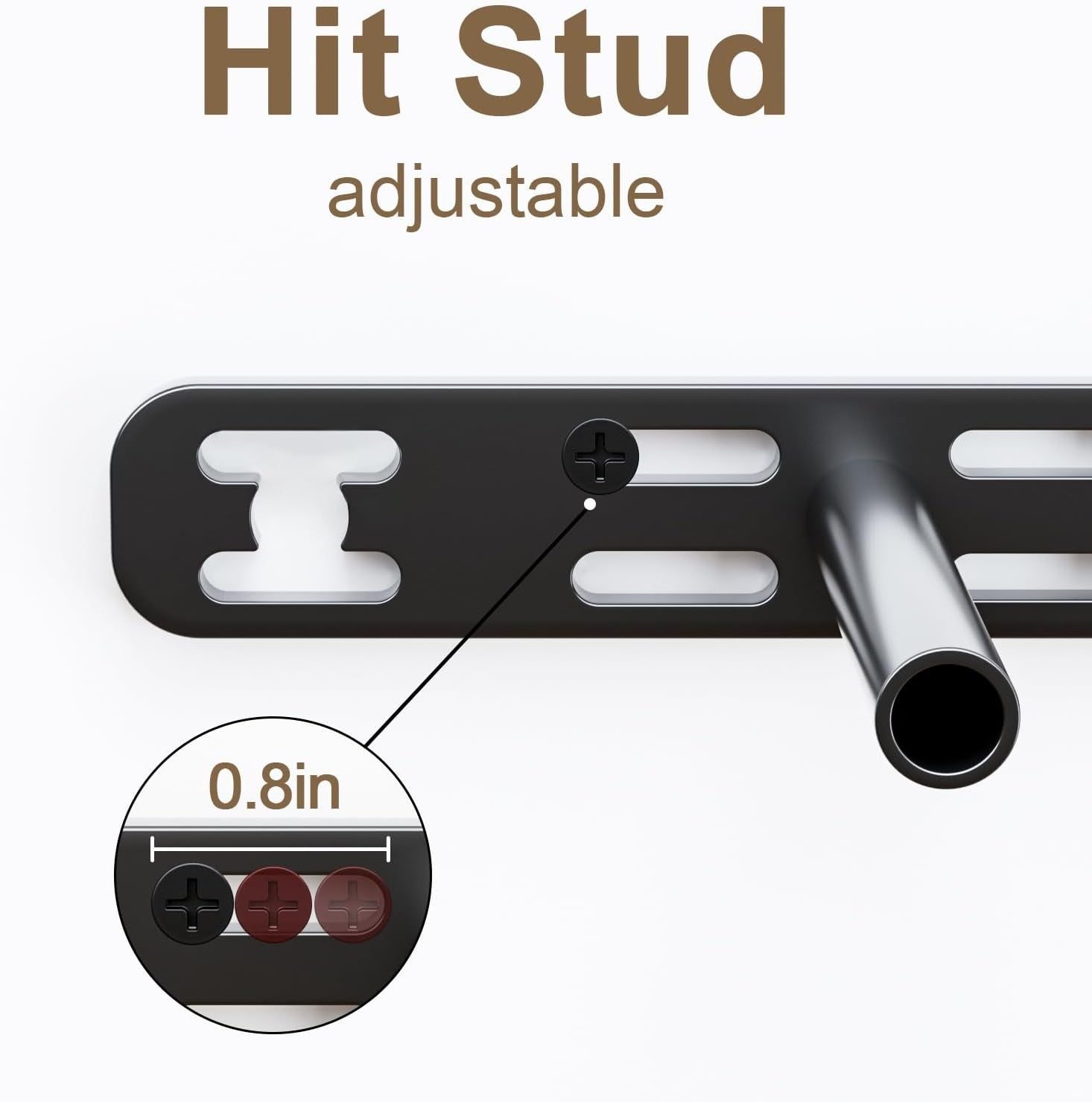

• Stud-Mount Adjustable Pre-Drilled Holes – Pre-drilled holes measure 0.8 inches in length, allowing lateral alignment adjustments during installation without the need for repeated drilling into the wall.
• Lacquered Black Finish – Powder-coated lacquer finish provides a uniform matte black appearance and added protection against wear.
• Complete Installation Tool Kit Included – Comes with screws, wall anchors, a route bit, drilling jig, auger bit, and routing jig — all tools required for a clean, accurate installation are in the box.
• 2-Pack Value Set – Includes two identical brackets, providing enough hardware to mount a single shelf with dual-point support or two separate smaller shelves.

Technical Specifications

Use Cases & Compatibility

These hidden floating shelf brackets are designed for use with wood boards between 1.5 and 2 inches thick. Suitable applications include:

• Floating wall shelves – Living rooms, bedrooms, home offices, and hallways where a clean, minimalist look is desired.
• Fireplace mantels – The heavy-duty galvanized steel construction and 150 lb capacity make these brackets appropriate for mantel installations.
• Butcher block shelves – Compatible with butcher block boards within the 1.5–2 inch thickness range.
• Standard lumber boards – Works with common dimensional lumber cut to shelf length.
• Thin wood board shelves – The 1-inch backplate is specifically designed to accommodate thinner boards that standard brackets cannot support cleanly.

Note: Maximum load capacity of 150 lbs is achieved only when brackets are mounted securely into wall studs using the provided hardware. Drywall anchor installations will support less weight.

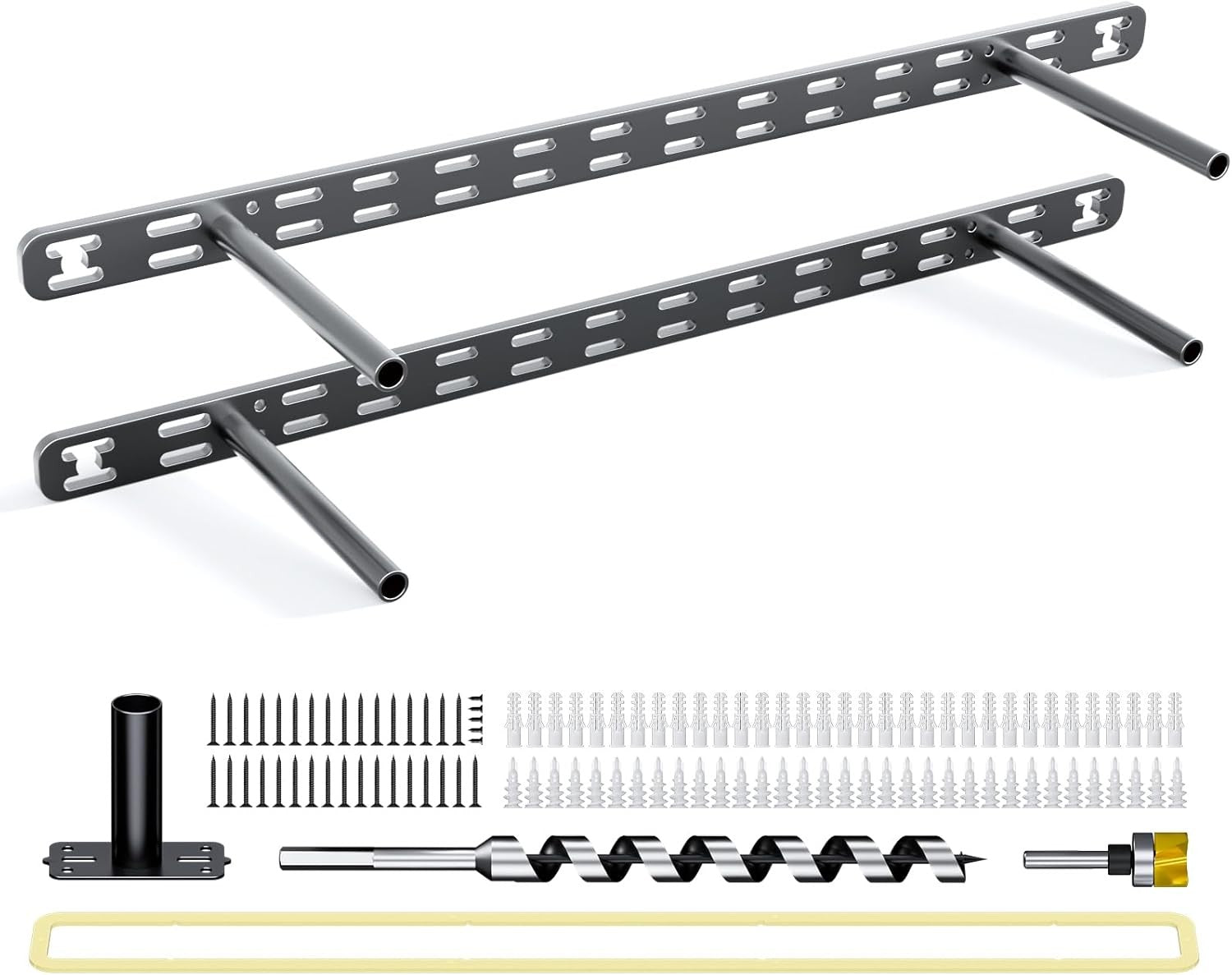

What Is Included

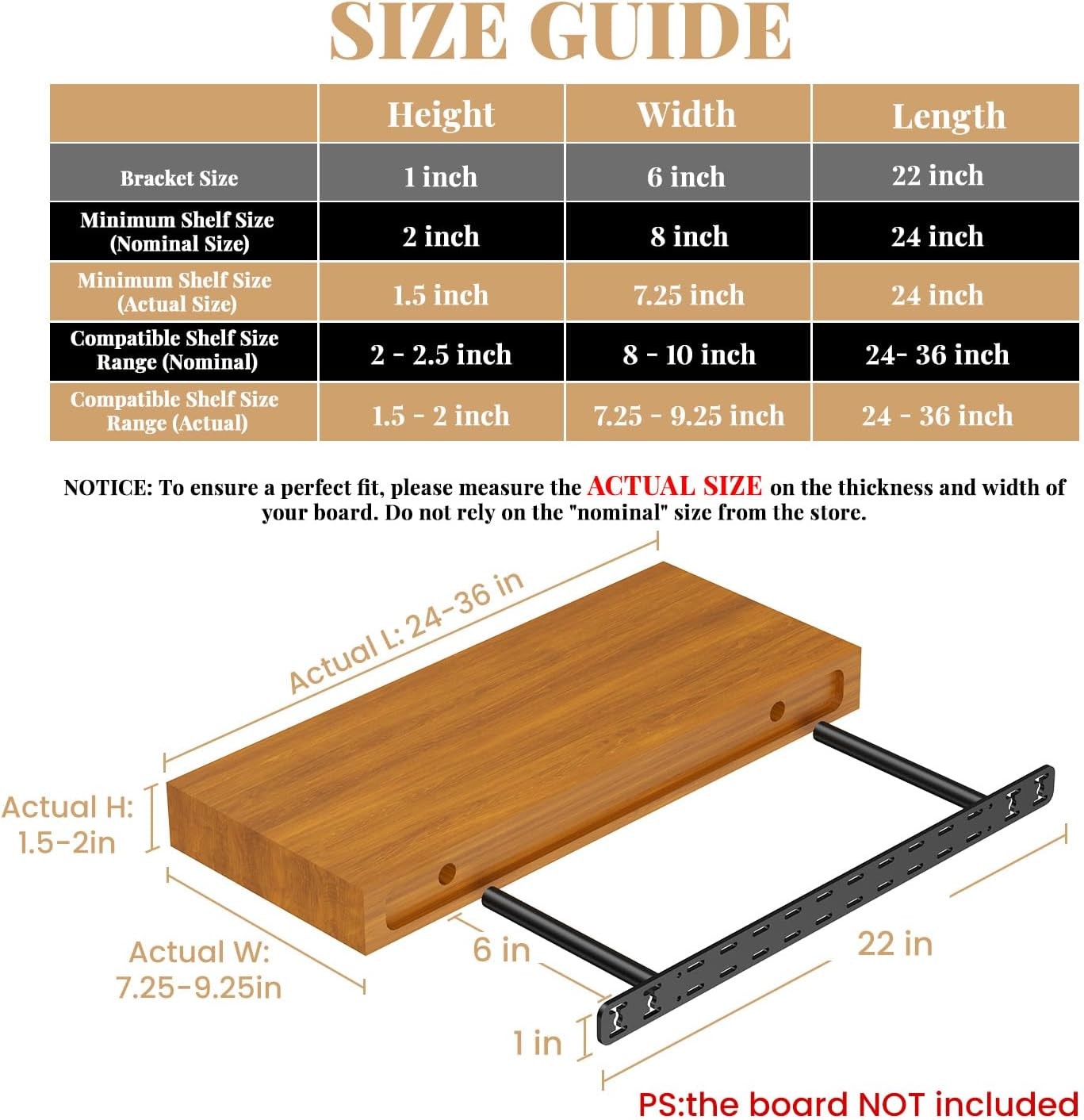

• 2 × Black hidden floating shelf brackets (22 x 6 x 1 inches each)
• Mounting screws
• Wall anchors
• Route bit
• Drilling jig
• Auger bit
• Routing jig

Installation Overview

1. Prepare the Wood Board: Confirm the board thickness is between 1.5 and 2 inches. Mark the desired bracket positions on the board and wall.
2. Use the Jigs: Align the included drilling jig and routing jig against the board to ensure precise, consistent hole and channel placement.
3. Drill and Route: Use the included auger bit to drill the bracket rod holes and the route bit to create the backplate recess channel in the board.
4. Mount Brackets to Wall: Fasten the brackets to the wall using the provided screws and anchors, aligning with wall studs where possible. The 0.8-inch adjustable holes allow fine-tuning without re-drilling.
5. Slide Board onto Brackets: Slide the prepared wood board over the bracket rods until fully seated against the wall.
6. Final Check: Verify the shelf is level and confirm secure mounting before loading with items up to the 150 lb rated capacity.
