Hardware 18" Full Extension Ball Bearing Drawer Slides 100 LB Capacity - 2 Pairs
Hardware 18" Full Extension Ball Bearing Drawer Slides 100 LB Capacity - 2 Pairs
Low stock: 1 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

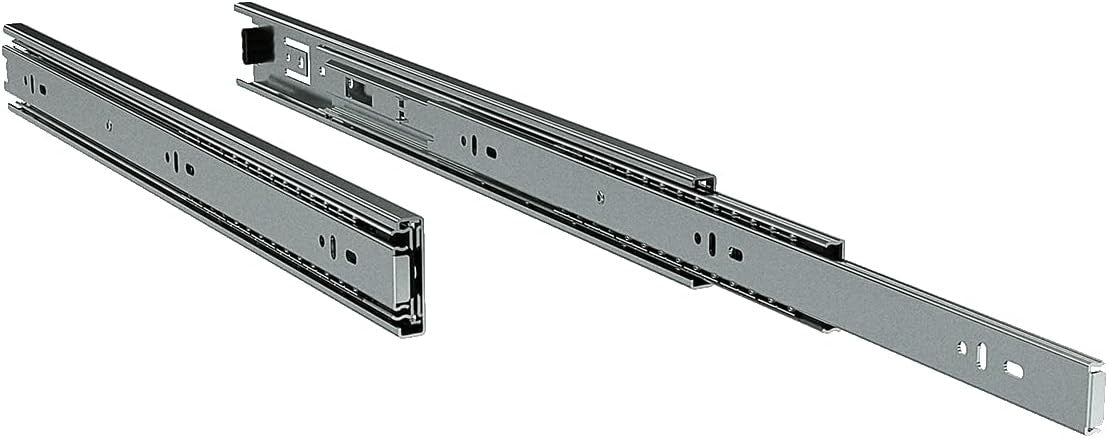

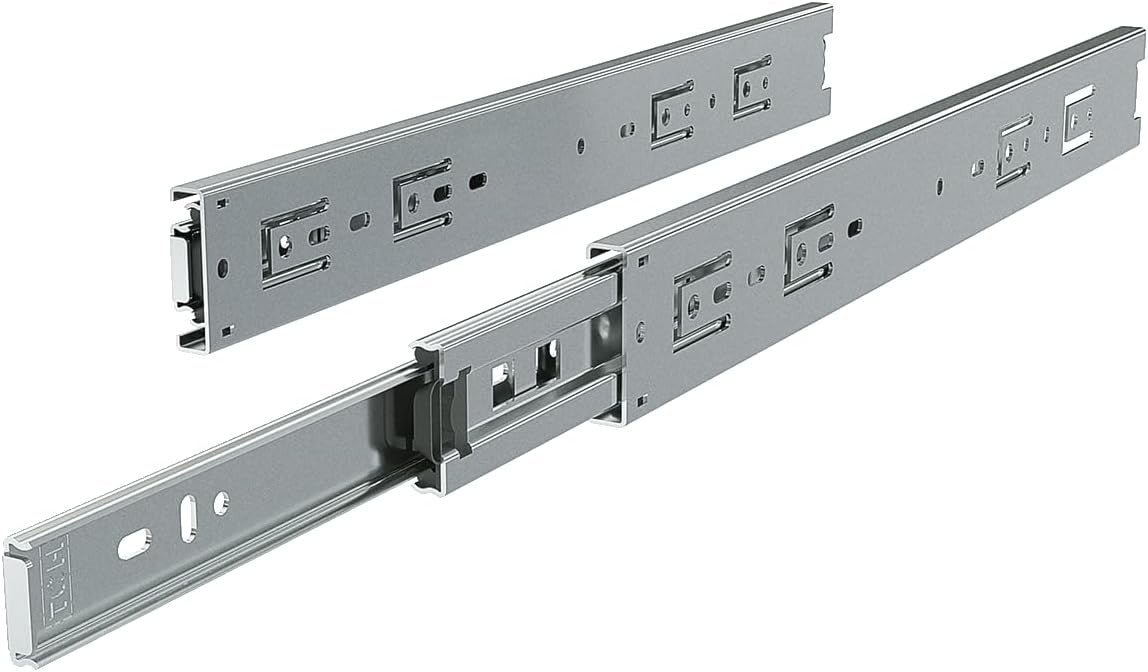

TCH Hardware 18" Heavy-Duty Full Extension Drawer Slides (2 Pairs)
Upgrade your cabinetry and custom furniture with TCH Hardware 18-Inch Drawer Slides. Engineered for smooth operation and heavy-duty reliability, these 3-stage full-extension runners allow complete access to the back of your drawers. Built with precision-hardened steel ball bearings and coated in a rust-resistant bright zinc plate finish, they are the perfect choice for kitchen cabinets, office desks, workshop toolboxes, and storage furniture.
We recommend using #8 or Euro M6 pan head screws for proper installation.
Key Performance Features
- 100 LB Weight Capacity – Heavy-duty alloy steel construction easily supports up to 100 lbs per pair for reliable, sag-free performance.
- 3-Stage Full Extension – Slides extend completely out of the cabinet frame, giving you 100% full access to all drawer contents.
- Hardened Steel Ball Bearings – Precision ball bearings deliver a whisper-quiet, ultra-smooth glide even under maximum load conditions.
- Quick-Release Latch – Features an intuitive lever disconnect that allows you to easily separate the slides for effortless drawer installation or removal.
- Bright Zinc Plated Finish – Protective zinc coating provides superior resistance against corrosion, rust, and wear in humid environments.

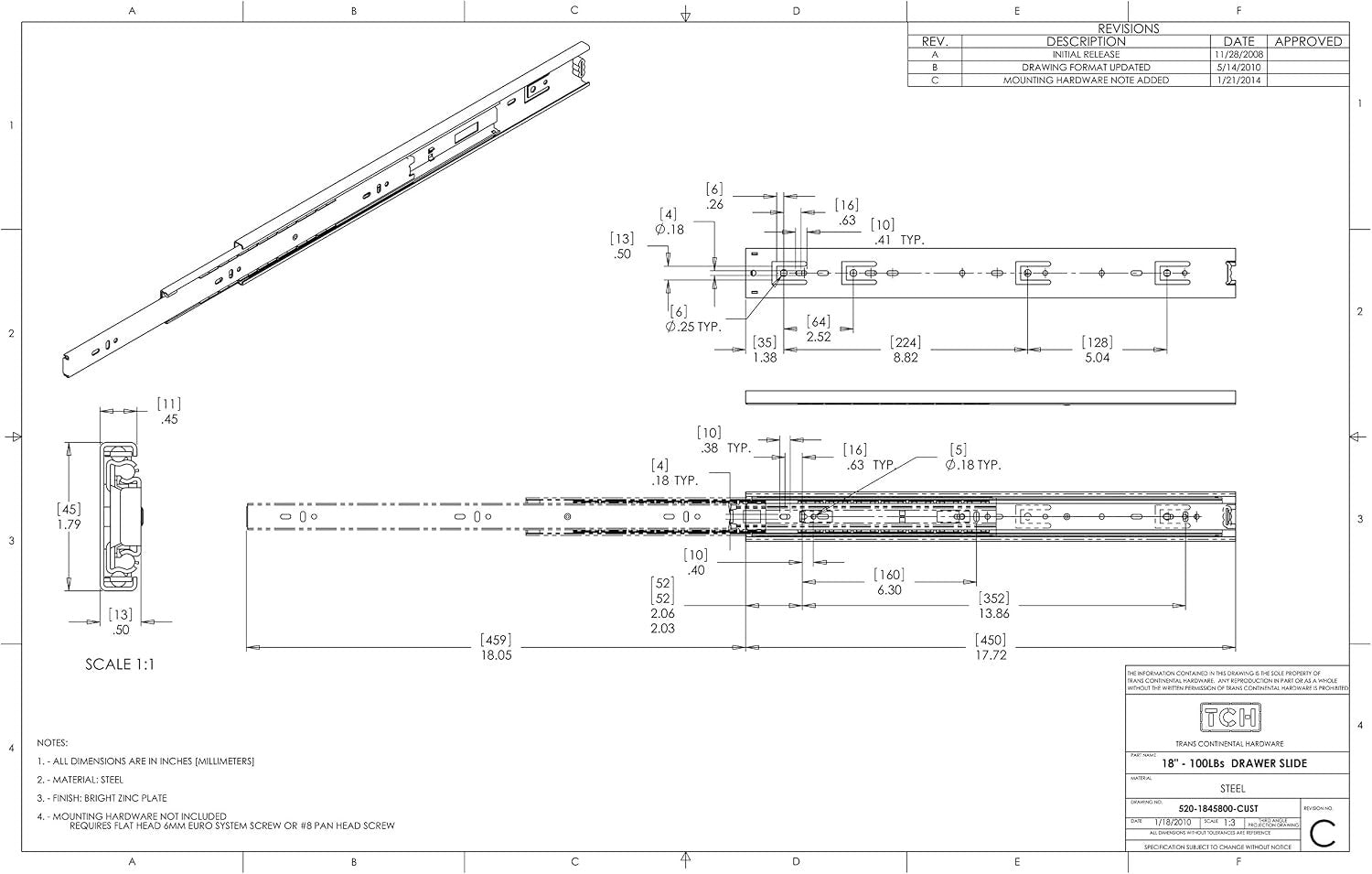

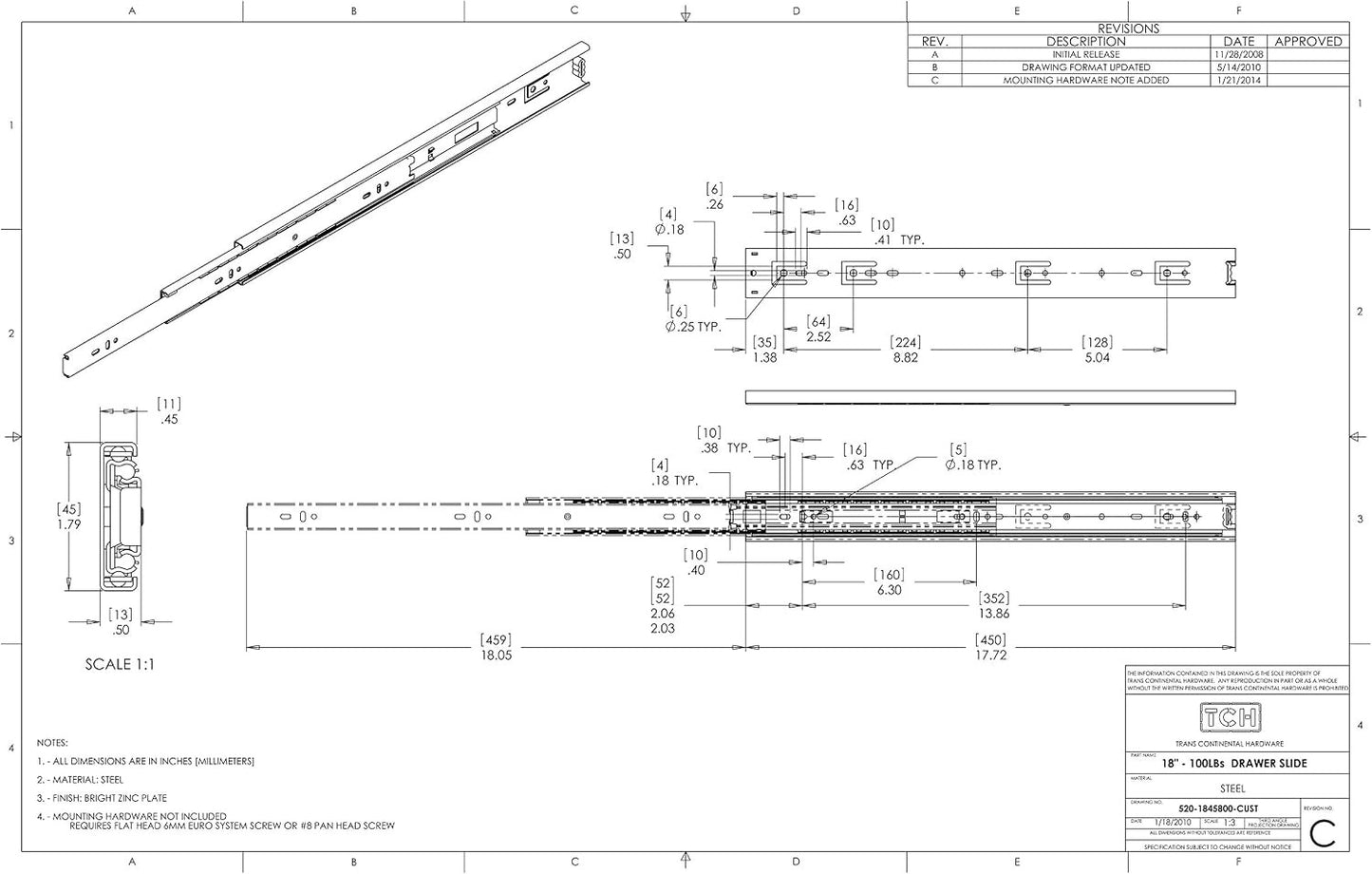

Technical Specifications
| Specification | Details |
|---|---|
| Brand | TCH Hardware |
| Quantity Included | 2 Pairs (4 Individual Slides for 2 Drawers) |
| Slide Length | 18.00 Inches |

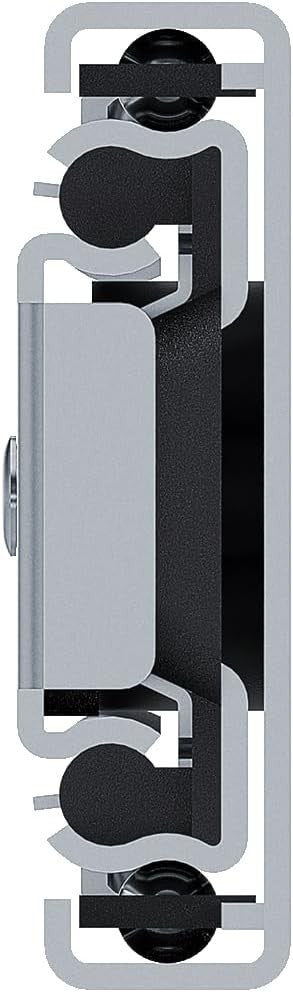

| Profile Dimensions | 1/2" (0.5") Wide x 1-7/8" (1.88") Tall |
| Load Rating | 100 lbs (45 kg) per pair |
| Material / Finish | Alloy Steel / Bright Zinc Plated |
| Extension Type | 3-Stage Full Extension |
Installation & Maintenance Guide
Ensure precise installation for optimal smooth sliding action:
- Measurement: Ensure you have 1/2" side clearance on both sides of the drawer box for proper fitment.
- Separation: Press the quick-release lever to detach the inner member from the slide assembly.
- Mounting Cabinet Slide: Attach the outer slide to the inside of your cabinet wall, ensuring it is perfectly level.
- Mounting Drawer Slide: Attach the inner member flush to the side of the drawer box using #8 or M6 pan head screws.
- Engagement: Align the drawer rails with the cabinet tracks and push firmly until the quick-release latch engages.
Why Choose TCH Hardware?
TCH Hardware is recognized for manufacturing durable, professional-grade hardware components. These 18-inch full-extension slides eliminate sticky, jerky drawer movements and offer a factory-quality feel to any woodworking or restoration project. Whether you are building new kitchen cabinets or upgrading worn-out desk slides, this 2-pair set offers exceptional strength and value.
Upgrade your drawers with smooth, heavy-duty sliding action—Order your 2-pair set today!
Brand: TCH
Closing Type: Soft Close
Type: Ball Bearing Drawer Slides
Material: Alloy Steel / Bright Zinc Plated
Color: Silver
Item Length: 18 in
Number in Pack: 2
Style: Modern
Unit Quantity: 2
Unit Type: Unit
MPN: Does not apply
